iDEAL SC-2K-UTV-X Single Column UTV Mower Lift
In Stock SKU SC-2K-UTV-X UPC 850049063500
OUR PRICE: $4,890.00
Regular Price: $5,139.00
Short Description
iDEAL SC-2K-UTV-X Single Column UTV Mower Lift
Multi-Use UTV And Mower Storage and Service Lift

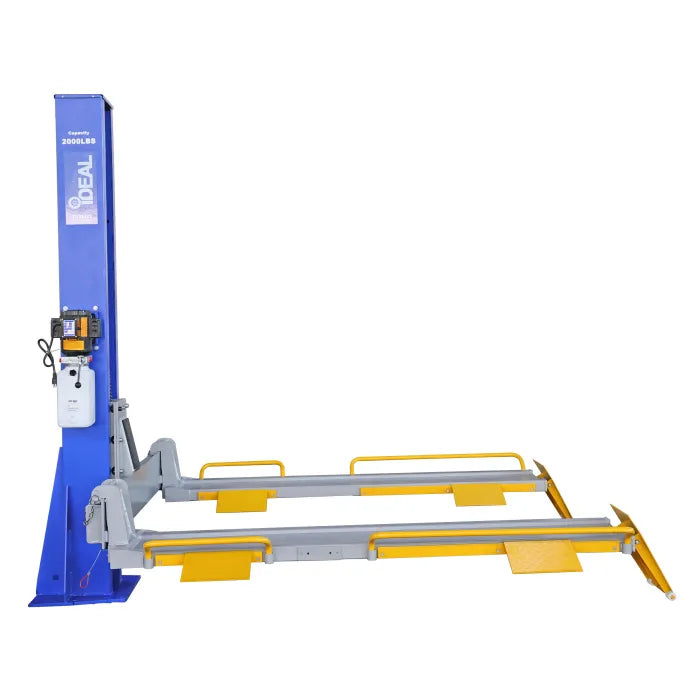

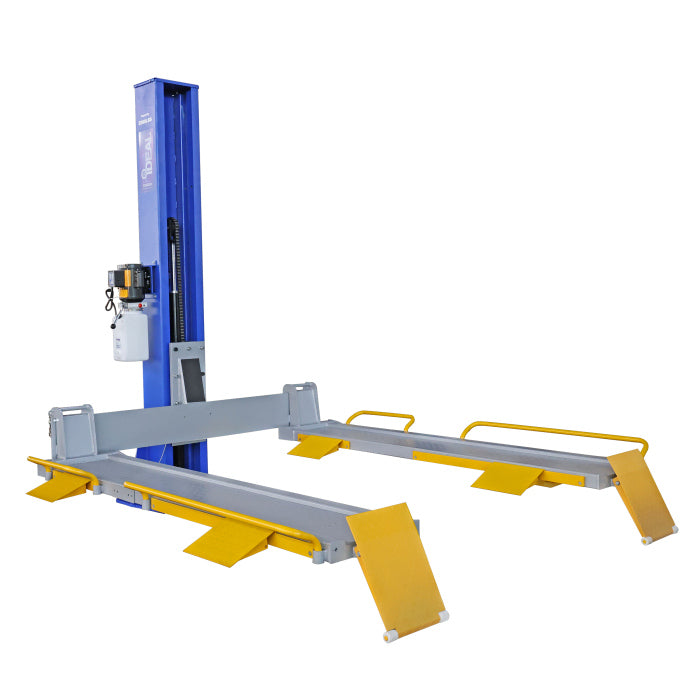

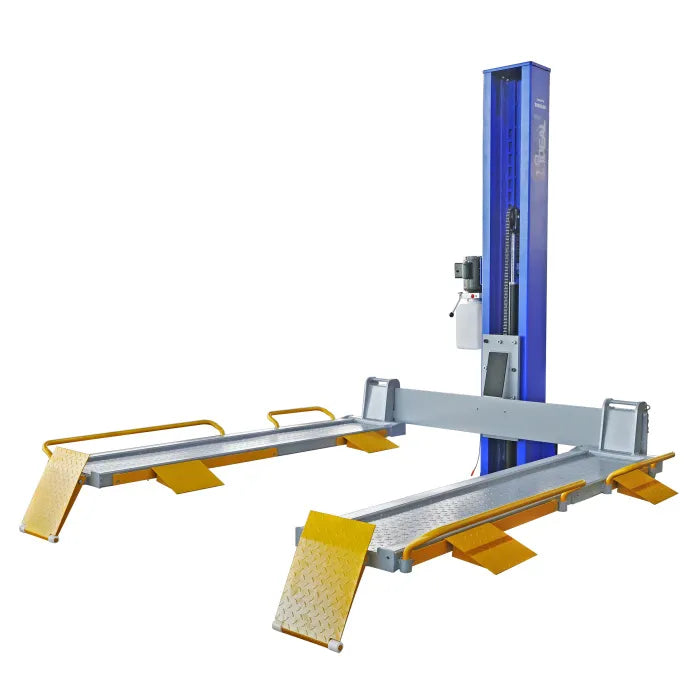

The iDEAL SC-2K-UTV-X is an innovative 2,000 lbs. single column, high-rise 'multi-use' storage and service lift, incorporating 'multi-adjustable' platform design with multi-directional front and side vehicle loading for most ATVs, UTVs, golf carts, riding and zero turn mowers. The low-profile multi-adjustable platforms incorporate spring-loaded 'quick release / locking nylon rollers & brackets mounted to the underside of each platform, making adjusting the platforms widths 'quick and easy'.
Description
iDEAL SC-2K-UTV-X Single Column UTV Mower Lift
Multi-Use UTV And Mower Storage and Service Lift
The iDEAL SC-2K-UTV-X is an innovative 2,000 lbs. single column, high-rise 'multi-use' storage and service lift, incorporating 'multi-adjustable' platform design with multi-directional front and side vehicle loading for most ATVs, UTVs, golf carts, riding and zero turn mowers. The low-profile multi-adjustable platforms incorporate spring-loaded 'quick release / locking nylon rollers & brackets mounted to the underside of each platform, making adjusting the platforms widths 'quick and easy'.

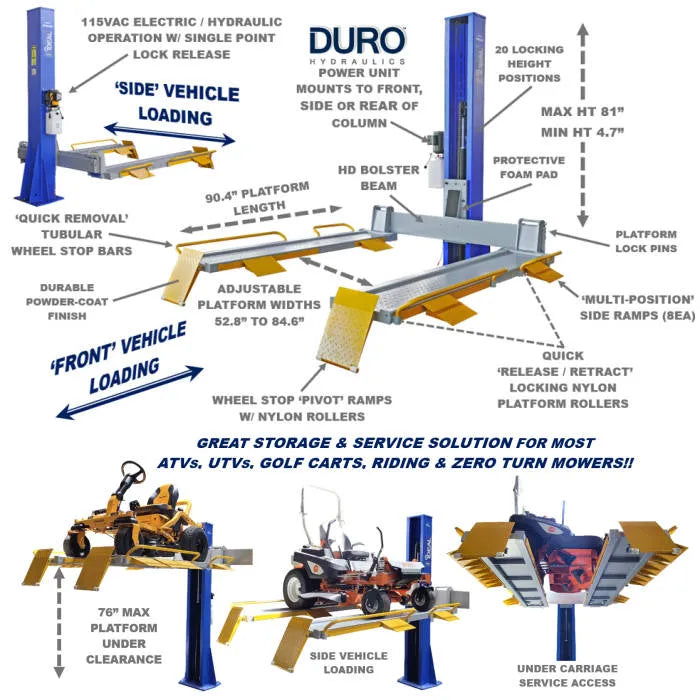

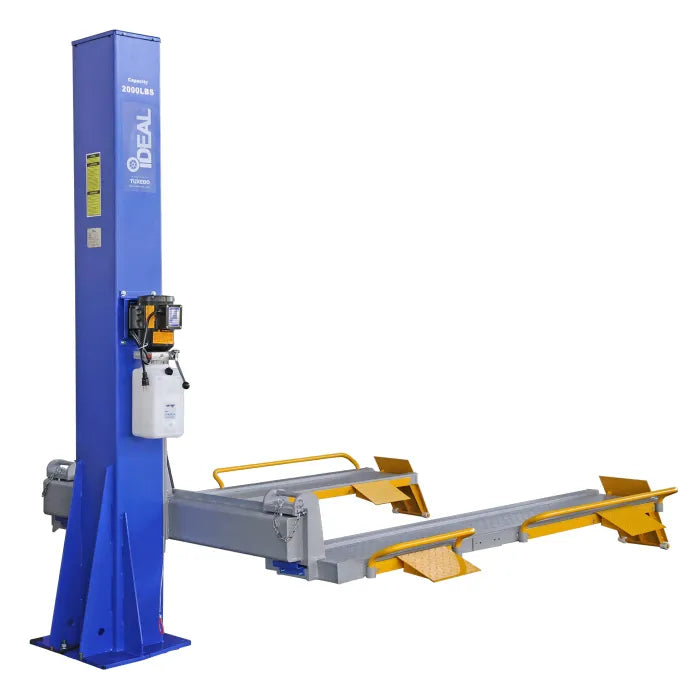

Each platform is secured to the bolster via heavy-duty lock pins and retainer brackets once the desired platform width is set. For additional space saving benefits, the power unit can be easily mounted to either the front, side, or rear of column providing the best fit in a shop or garage!
In addition, iDEAL SC-2K-UTV-X 2,000 lbs. lift comes standard with durable powder-coat finish, eight multi-position side ramps, wheel stop 'pivot' ramps with protective nylon rollers, and quick removal tubular wheel stop bars for platform sides. Easy lift operation is provided with a high quality electric / hydraulic 115V DURO power unit, heavy-duty hydraulic chain-drive cylinder and single point manual lock release with twenty different locking height positions.
Features & Specs

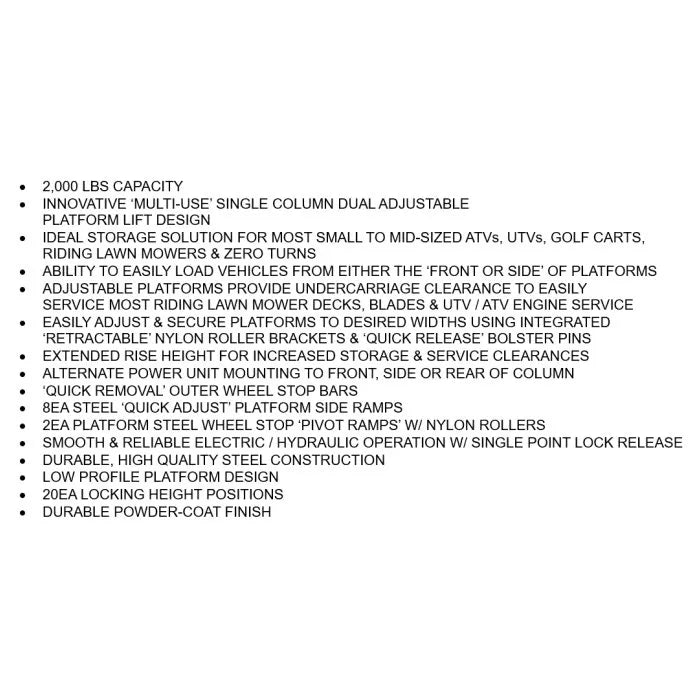

Features
- 2,000 lbs. Capacity
- Innovative 'Multi-Use' Single Column Dual Adjustable Platform Lift Design

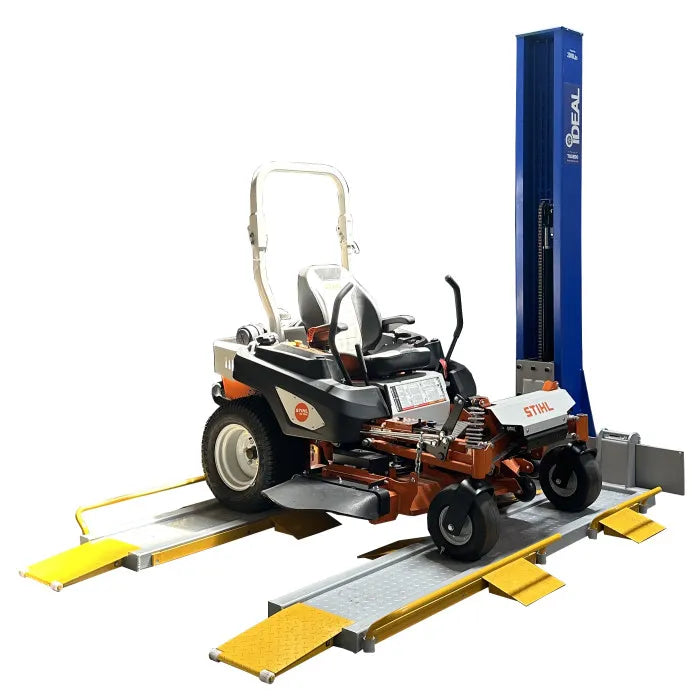

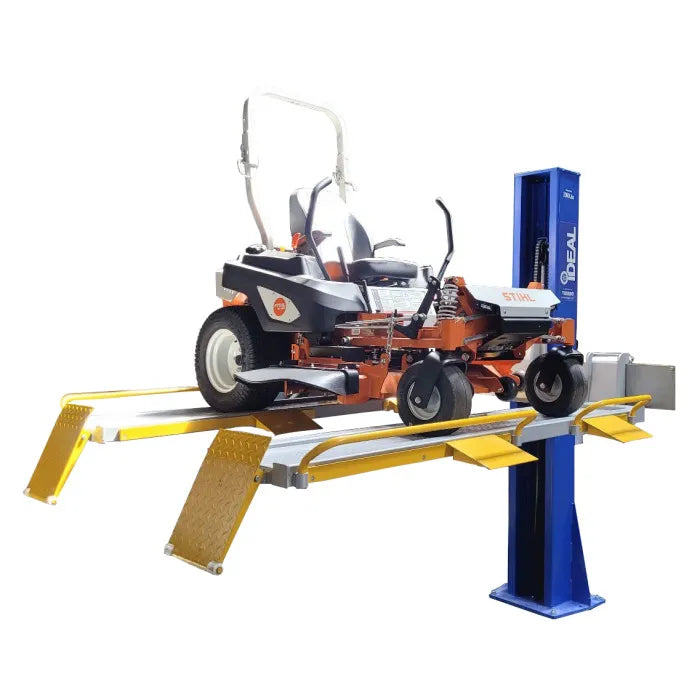

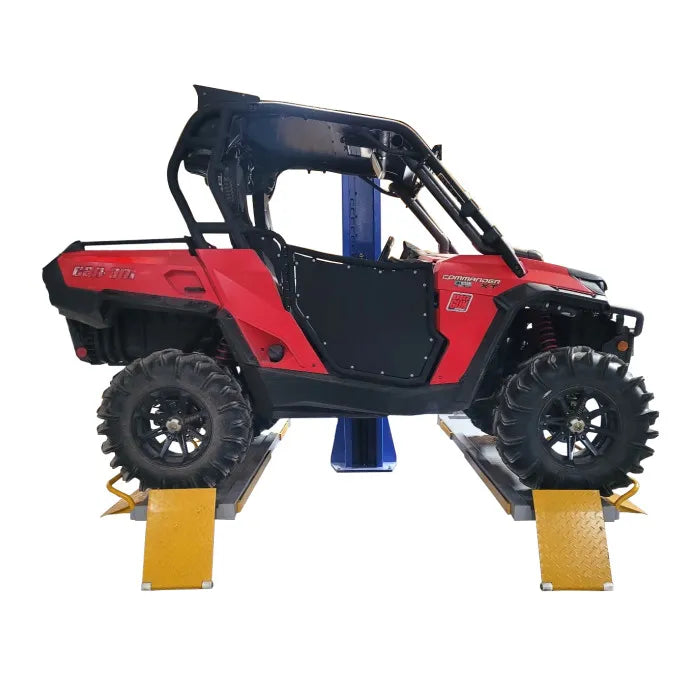

- Ideal Storage Solution For Most Small To Mid-Sized ATVs, UTVs, Golf Carts, Riding Lawn Mowers & Zero Turns

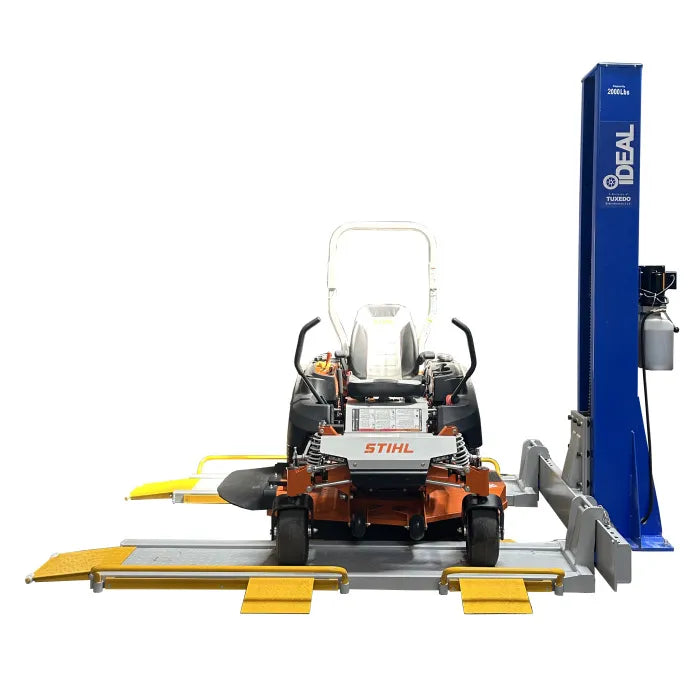

- Ability To Easily Load Vehicles From Either The 'Front Or Side' Of Platforms

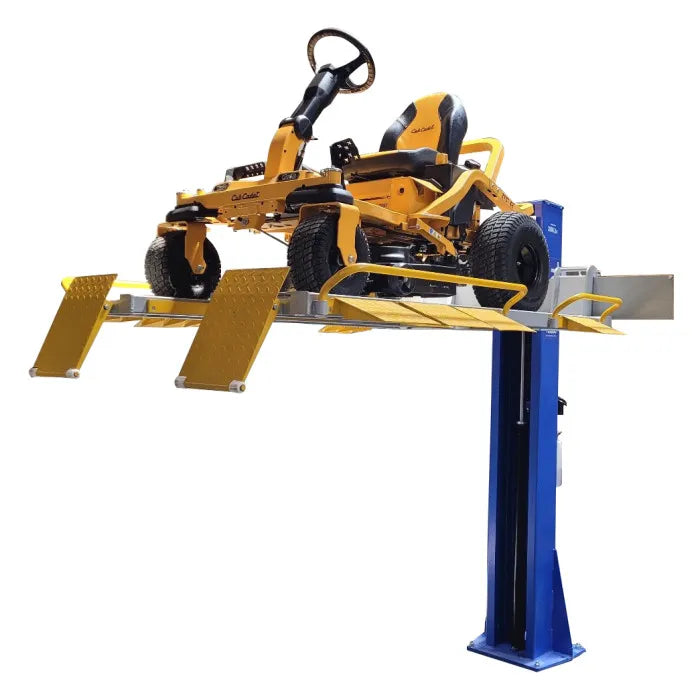

- Adjustable Platforms Provide Undercarriage Clearance To Easily Service Most Riding Lawn Mower Decks, Blades & UTV / ATV Engine Service
- Easily Adjust & Secure Platforms To Desired Widths Using Integrated 'Retractable' Nylon Roller Brackets & 'Quick Release' Bolster Pins
- Extended Rise Height For Increased Storage & Service Clearances
- Alternate Power Unit Mounting To Front, Side Or Rear Of Column
- 'Quick Removal' Outer Wheel Stop Bars
- (8) Steel 'Quick Adjust / Multi-Position' Platform Side Ramps
- (2) Platform Steel Wheel Stop 'Pivot Ramps' With Nylon Rollers
- Reliable 115VAC Electric / Hydraulic Operation With Single Point Lock Release
- Durable, High Quality Steel Construction
- Low Profile Platform Design
- (20) Locking Height Positions
- Durable Powder-Coat Finish

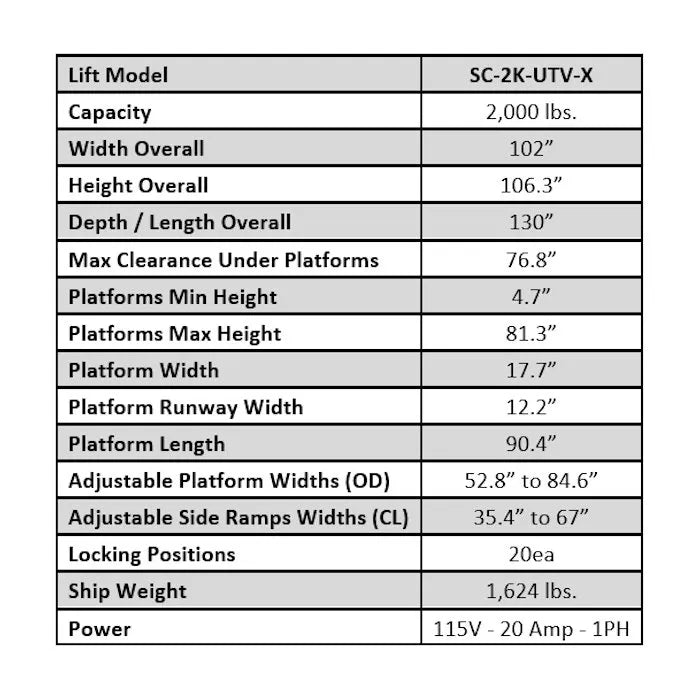

Specifications
- Capacity: 2,000 lbs.
- Width Overall: 102"
- Height Overall: 106.3"
- Depth / Length Overall: 130"
- Max Clearance Under Platforms: 76.8"
- Platforms Min Height: 4.7"
- Platforms Max Height: 81.3"
- Platform Width: 17.7"
- Platform Runway Width: 12.2"
- Platform Length: 90.4"
- Adjustable Platform Widths (OD): 52.8" to 84.6"
- Adjustable Side Ramps Widths (CL): 35.4" to 67"
- Locking Positions: 20
- Power: 115V - 20 Amp - 1PH
- Shipping Weight: 1,624 lbs.
- Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
- Parts needed for normal maintenance
- Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
- Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
- On-site labor
Accessories/Options

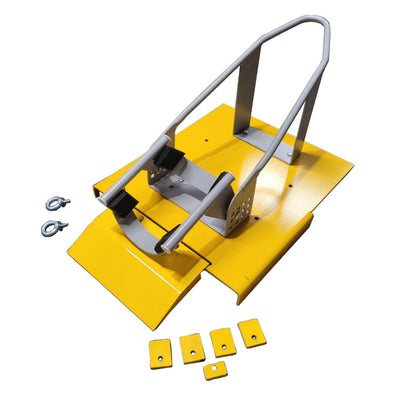

iDEAL Motorcycle M-Chock & Base Plate Kit
