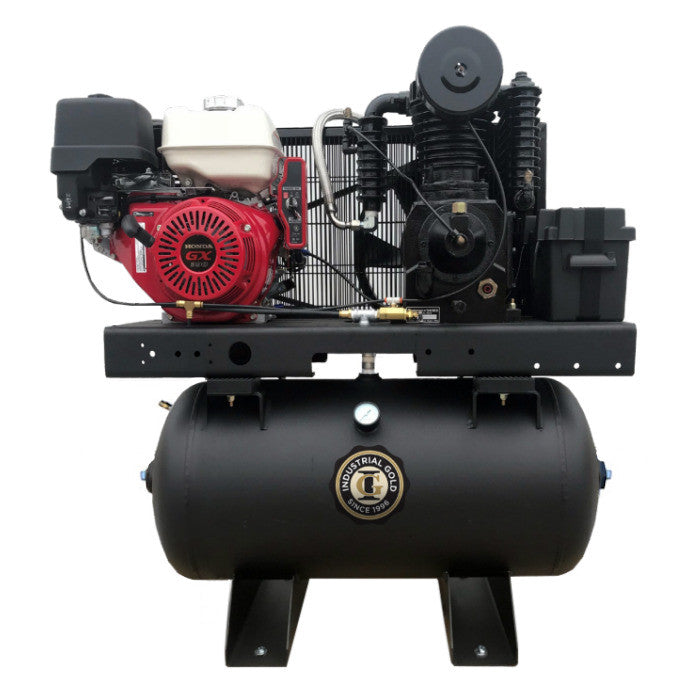

Industrial Gold CI13GEH30 Engine Driven Reciprocating Compressor

Name: Industrial Gold CI13GEH30 Engine Driven Reciprocating Compressor
Brand: ASEDeals
SKU: CI13GEH30
Price: 3097.0 USD
Availability: InStock

In Stock SKU CI13GEH30

OUR PRICE: $3,097.00

Regular Price: $3,259.00

$86.02 / mo

INCLUDES FREE SHIPPING*

Short Description

Industrial Gold CI13GEH30-P Platinum Engine Driven
Reciprocating Compressor
Industrial Electric Start Honda Driven 13HP 23CFM 30 Gallon Horizontal
Industrial Gold Industrial Duty gasoline engine driven compressors are designed for applications that require air on the go. The units are designed with durability and reliability in mind. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. No more walking all the way around the truck to start the compressor. The unloader is at your finger tip so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver. With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

This isn't the standard series model. This is the Platinum Series Model.
What does that mean?
Industrial Gold Platinum Series Air Compressors come fully loaded with Belt Guard Cooler, On-Board Battery, Rubber Mounting Pads, Tank Discharge Ball Valve, Automatic Tank Drain, Stainless Steel Flex Lines, and 2-Piece Tank Design. These are premium features you won't find on most competing models.

Description

Industrial Gold

Industrial Gold CI13GEH30 Engine Driven Reciprocating Compressor
Industrial Electric Start Honda Driven 13HP 23CFM 30 Gallon Horizontal

Industrial Gold Industrial Duty gasoline engine driven compressors are designed for applications that require air on the go. The units are designed with durability and reliability in mind. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. No more walking all the way around the truck to start the compressor. The unloader is at your finger tip so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver. With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

This is the standard series model.
Add -P After Model Number to Make Platinum Model

If you want the finest compressors on earth, with all the premium features you would want. Then the Industrial Gold Platinum Series air compressors are for you. These elite commercial quality machines have features that you just won't get on typical air compressors.

What is the difference between the standard Industrial Gold air compressor and the Industrial Gold Platinum Series models? A lot. All Platinum Series commercial quality models are premium automotive shop air compressors for the commercial garage. They include the following premium features:

Belt Guard Cooler
On-Board Battery
Rubber Mounting Pads
Tank Discharge Ball Valve
Automatic Tank Drain
Stainless Steel Flex Lines
2-Piece Tank Design

Belt Guard Cooler. This cools the air before it goes into the receiver, so more moisture stays in the receiver rather than running to your air tools.

On-Board Battery with recharge system. This makes installation simple. No wire to run. No worries about voiding vehicle warranty.

Rubber Mounting Pads. This helps prevent the vibration of the unit from causing loose nuts and bolts.

Tank Discharge Ball Valve makes draining fast and easy.

Automatic Tank Drain. Used with the belt guard cooler this drains the moisture from the receiver so you don’t have to crawl under the compressor to manually drain the receiver.

Stainless Steel Flex Lines for added durability.

2-Piece Tank Design for easier installation.

So, if you're comparing to other manufacturer's models, as well as other distributors that are carrying the same model number, if it cost less, make sure you're comparing apples to apples. The Platinum series include all of these premium features.

When you purchase an Industrial Gold air compressor you are getting a precision built compressor from the finest materials using the finest state of the art design and high-tech engineering. Quality, performance and trouble free operation will assure you a dependable supply of air power on demand.

Features & Specs

Standard Features

18.4 cfm @ 175 psi
24.3 cfm @ 90 psi
No Start-Up Kit Required
Easy Use Pump Oil Drain
Easy View Oil Sight Glass
Electric Start Drive Engine
Engine Idle Control for Fuel Savings
Engine has Recharging System
Fork Slot Width Mounting Feet for More Stable Base and More Maneuverability
Inline Pump for Smooth Operation
Low RPM Pump for Lower Operating Temperature
Operating Pressures Available up to 190 psi
OSHA compliant Belt Guard
Oversized Pump Flywheel for Better Pump Cooling
Pilot Valve for Continuous Operation
Pneumatic Throttle Control
Solid Cast Iron Pump
Stainless Steel Flexible 1200° F Rated Air Line
Swedish Steel Reed Valves
Vibration Isolation Mount Included
2-Stage Compressor Pump
2-Piece Tank Design for More Mounting Options of Compressor System
30 Gallon ASME/CRN Air Receiver

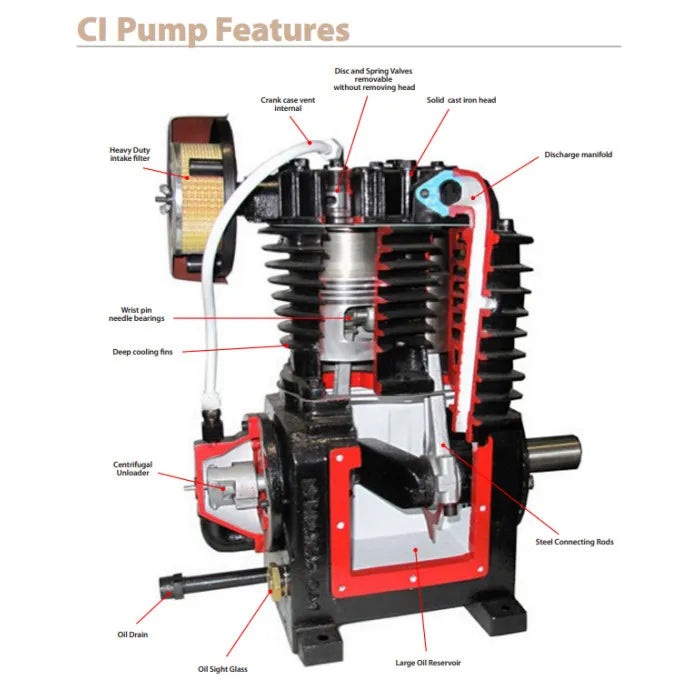

CI Pump Features

Heavy-Duty Intake Filter
Crank Case Vent Internal
Disc and Spring Valve Removable without Removing Head
Solid Cast Iron Head
Discharge Manifold
Steel Connecting Rods
Large Oil Reservoir
Oil Sight Glass
Oil Drain
Centrifugal Unloader
Deep Cooling Fans
Wrist Pin Needle Bearings

Add -P After Model Number to Make Platinum Model

Platinum Model Features

All Standard Features
Belt Guard Cooler
On-Board Battery
Rubber Mounting Pads
Tank Discharge Ball Valve
Automatic Tank Drain
Stainless Steel Flex Lines
2-Piece Tank Design

Specifications

Horsepower: 13
cfm @ 175 psi: 18.4
cfm @ 90 psi: 24.3
Tank Size: 30 Gallon
Vert/Horiz: Horizontal
Drive Engine: Honda GX390
Dimensions: 42" L x 22" W x 42" H
Net Weight: 395 lbs.
Warranty: (1) Year Limited Reciprocating Compressor and Parts

Industrial Gold Limited Warranty Reciprocating Compressors and Parts
All component parts on this compressor, installed by the manufacturer, are warranted to be free of defects in workmanship and material for a period of one year. Transportation charges are the responsibility of the purchaser. This warranty extends to the original purchaser of the compressor only. The purchaser must use Synthetic Reciprocating Compressor Oil, Part Number 30100, in the compressor for the duration of the compressor warranty. There are NO express warranties other than those contained in this limited warranty statement. Covered in the one year period of the warranty are defective parts and labor only. Part defects are limited to original parts only. The compressor warranty is void in the case of abuse, lack of proper service, incorrect application, incorrect installation, and neglect. Industrial Electric stationary compressors may be repaired on site as long as the compressor is not located further than 50 miles from the service center. The purchaser is responsible for any additional travel expense beyond 50 miles from the service center. Gas/Diesel Engine Driven, Single Stage Stationary, and Contractor Series compressors must be repaired at the closest service center to the compressor. The purchaser is responsible for any travel expense if they do not wish to bring the compressor to the service center.
ALL "SPECIALTY COMPRESSOR" WARRANTY SERVICE MUST BE PERFORMMED AT THE CLOSEST SERVICE CENTER TO THE COMPRESSOR. A "SPECIALTY COMPRESSOR" is any compressor packaged with options other than those that apply to the standard model in the catalog. Warranty labor for the first year is only covered for work performed Monday-Friday 8am-5pm excluding all major US holidays. BEFORE WARRANTY SERVICE IS PERFORMED, CONTACT THE MANUFACTURER TECH SUPPORT FOR FASTEST SOLUTION AND APPROVAL (800-531-9656). New parts purchased are warrantied to be free from defects for a period of 1 year. Parts warranty is repair or replace only. Parts warranty is limited to the repair or replacement of the defective part only. No labor allowed for parts warranty. The defective part will be repaired or replaced. Freight and labor are not covered under the parts warranty. FOR A DEFECTIVE PART, CONTACT THE WARRANTY SERVICE CENTER (800-531-9656).
