Industrial Gold CI13GEH30-GWE-P Platinum Engine Driven Compressor Generator Welder

Name: Industrial Gold CI13GEH30-GWE-P Platinum Engine Driven Compressor Generator Welder
Brand: ASEDeals
SKU: CI13GEH30-GWE-P
Price: 5844.0 USD
Availability: InStock

In Stock SKU CI13GEH30-GWE-P UPC 810524029827

OUR PRICE: $5,844.00

Regular Price: $6,139.00

$161.00 / mo

INCLUDES FREE SHIPPING*

Short Description

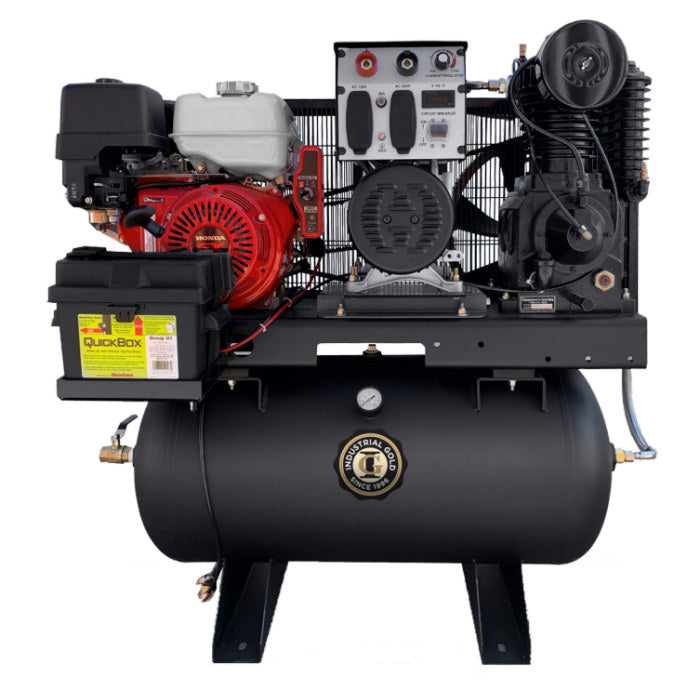

Industrial Gold CI13GEH30-GWE-P Platinum Engine Driven
Compressor Generator Welder
Industrial Electric Start Honda Driven 14HP 19CFM 30 Gallon Horizontal
Industrial Gold Industrial Duty gasoline engine driven compressors are designed for applications that require air on the go. The units are designed with durability and reliability in mind. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. No more walking all the way around the truck to start the compressor. The unloader is at your finger tip so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver. With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

This isn't the standard series model. This is the Platinum Series Model.
What does that mean?
Industrial Gold Platinum Series Air Compressors come fully loaded with Belt Guard Cooler, On-Board Battery, Rubber Mounting Pads, Tank Discharge Ball Valve, Automatic Tank Drain, and Stainless Steel Flex Lines. These are premium features you won't find on most competing models.

CURRENT LEAD TIME - 2-3 WEEKS

Description

Industrial Gold

Industrial Gold CI13GEH30-GWE-P Platinum Engine Driven
Compressor Generator Welder
Industrial Electric Start Honda Driven 14HP 19CFM 30 Gallon Horizontal

Industrial Gold Industrial Duty gasoline engine driven compressors are designed for applications that require air on the go. The units are designed with durability and reliability in mind. Built for durability and reliability with features designed to make these compressors simpler to use and easier to maintain than any other compressor in this class. The engine is standard on the drivers side of the vehicle. No more walking all the way around the truck to start the compressor. The unloader is at your finger tip so you can unload the compressor before starting to increase solenoid and starter life. The transfer tube is protected by the receiver. With the capacity to run 1-inch impact wrenches along with any assortment of air tools, this is the compressor you need to get the job done.

If you want the finest compressors on earth, with all the premium features you would want. Then the Industrial Gold Platinum Series air compressors are for you. These elite commercial quality machines have features that you just won't get on typical air compressors.

What is the difference between the standard Industrial Gold air compressor and the Industrial Gold Platinum Series models? A lot. All Platinum Series commercial quality models are premium automotive shop air compressors for the commercial garage. They include the following premium features:

Belt Guard Cooler
On-Board Battery
Rubber Mounting Pads
Tank Discharge Ball Valve
Automatic Tank Drain
Stainless Steel Flex Lines

Belt Guard Cooler. This cools the air before it goes into the receiver, so more moisture stays in the receiver rather than running to your air tools.

On-Board Battery with recharge system. This makes installation simple. No wire to run. No worries about voiding vehicle warranty.

Rubber Mounting Pads. This helps prevent the vibration of the unit from causing loose nuts and bolts.

Tank Discharge Ball Valve makes draining fast and easy.

Automatic Tank Drain. Used with the belt guard cooler this drains the moisture from the receiver so you don’t have to crawl under the compressor to manually drain the receiver.

Stainless Steel Flex Lines for added durability.

So, if you're comparing to other manufacturer's models, as well as other distributors that are carrying the same model number, if it cost less, make sure you're comparing apples to apples. The Platinum series include all of these premium features.

When you purchase an Industrial Gold air compressor you are getting a precision built compressor from the finest materials using the finest state of the art design and high-tech engineering. Quality, performance and trouble free operation will assure you a dependable supply of air power on demand.

Features & Specs

9KOHX Overhead Two Post Lift Features

9,000 lbs. Capacity
Light Commercial Grade
"Padded" Shut-Off Bar
Asymmetric/Symmetric Arms
Clear Floor Design
Powder Coat Finish
Dual Hydraulic Direct Drive Cylinders
Single Point Lock Release
Secondary Lock System (SLS)
Free 8 Piece Truck Adapter Set
Automatic Arm Restraints
Mounting Hardware Included

9KOHX Overhead Two Post Lift Specifications

Capacity: 9,000 lbs.
Lifting Time: Ask Your Salesperson
Overall Height: 142" (11' 10") or 138" (11' 6")
Overall Width (With Power Unit): 141" (11' 9")
Overall Width (Without Power Unit): 134-1/4" (11' 2-1/4")
Outside Column To Outside Column: 124-5/8" (10' 4-5/8")
Maximum Lift Height (Without Adapters): 74" (6' 2")
Maximum Lift Height (With Adapters): 80-1/4" (6' 8-1/4")
Padded Bar Height: 1136" (11' 4") or 132" (11')
Minimum Arm Height: 4"
Inside Column: 109-3/4" (9' 1-3/4")
Column Size: 7-1/4" x 11"
Drive Thru: 100" (8' 4")
Symmetric/Asymmetric Arm Configuration: 90-1/2" (7' 6-1/2")
Base of Lift: 14-1/4" x 18"
Column Thickness of Steel: 5mm
Carriage Thickness of Steel: 6mm
Arms Thickness of Steel: 6mm
Cable Diameter: .375"
Motor Requirement: 220V Single (1) Phase
Electrical Requirement: A 30 Amp Breaker is Required
Floor Requirement: Minimum 4" 3000PSI Concrete
Oil Requirement: 3-5 Gallons AW32/AW46
Shipping Dimensions: 22" x 40" x 113"
Shipping Weight: 1450 lbs.
Warranty: (2) Years Structure, (1) Year Hydraulic, No Labor

LMA Lawn Mower Adapter Features

"Lawnmower" Adapter For Two Post Lifts
Includes 4 Plates And All Hardware
Adjustable To Fit A Variety Of Sizes And Brands (MAY NOT WORK WITH ALL LIFTS)
Up To 5,000 lbs. Capacity (WILL VARY BY LIFT AND WHEEL BASE)
Can Be Positioned Along The Length Of The Lift Arms (LEVELING BLOCKS MAY BE REQUIRED)

LMA Lawn Mower Adapter Specifications

Capacity: Up To 5,000 lbs. *
Adjusts In Width: 8' 11'
Wheel Base: 32" to 90" *
Wheel Well Width: 12"
Thickness Of Steel: 1/4" (2 Gauge)
Shipping Dimensions: 96-1/2" x 32" x 16-1/2"
Shipping Weight: 600 lbs.

Will Fit Over Symmetric Lift Arms With Width Up To 5-1/2".
LMA Consists Of Two Wheel Platforms.
* MAY VARY DEPENDING ON LIFT AND WEIGHT DISTRIBUTION.
* THE LONGER THE WHEEL BASE OF THE VEHICLE TO BE LIFTED.
* THE LOWER THE LIFTING CAPACITY OF THE LMA.
* MAY REQUIRE BLOCKS AND/OR SHIMS AT DIFFERENT POSITIONS.
* ON LIFT ARMS TO KEEP WHEEL PLATFORMS STABLE AND LEVEL.

2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.

Installation
The Atlas 9KOHX Overhead Two Post Lift should be installed on a concrete floor. This concrete floor should have a minimum of four (4) inches of concrete with 3000 PSI strength. Most of our above ground lift customers install their own car lifts. The average time to install the Atlas 9KOHX car lift is five hours. We provide detailed installation instructions with all our two post above ground lifts and our four post above ground lifts.
