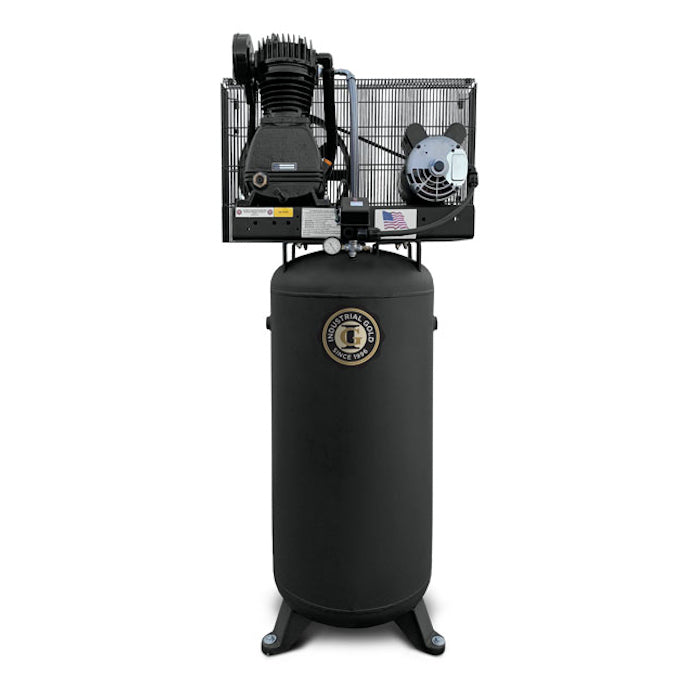

Industrial Gold CI51E63V Reciprocating Compressor 16CFM
In Stock SKU CI51E63V
OUR PRICE: $1,516.00
Regular Price: $1,599.00
Short Description
Industrial Gold CI51E63V Reciprocating Compressor 16CFM
Commercial Duty Stationary 145-175PSI 16CFM 60 Gallon Vertical
High value compressor for light commercial applications, pro-consumer or heavy home hobbyist. These commercial duty units have a high cfm per HP ratio with a maximum 50% duty cycle. Designed to power smaller air tools, low volume nail guns, small grinders and cut off tools.
Commercial Duty Stationary 145-175PSI 16CFM 60 Gallon Vertical
High value compressor for light commercial applications, pro-consumer or heavy home hobbyist. These commercial duty units have a high cfm per HP ratio with a maximum 50% duty cycle. Designed to power smaller air tools, low volume nail guns, small grinders and cut off tools.
Description
Industrial Gold CI51E63V Reciprocating Compressor 16CFM
Commercial Duty Stationary 145-175PSI 16CFM 60 Gallon Vertical
High value compressor for light commercial applications, pro-consumer or heavy home hobbyist. These commercial duty units have a high cfm per HP ratio with a maximum 50% duty cycle. Designed to power smaller air tools, low volume nail guns, small grinders and cut off tools.
Available in both vertical and horizontal configurations, our stationary units have the following features:
- No Start-Up Kit Required
- ASME/CRN 200 psi MWP Air Receiver
- Auto Start/Stop
- Bearings on Both Ends of the Crank Shaft
- Solid Cast Iron Two-Stage Compressor Pump
- Disk & Spring Valves
- UL/CSA Electric Control Components
- 60 Gallon Tank
- 208-230 Volt
- Heavy-Duty Air Filter
- Needle Bearings and Inserts on Compression Rod
- Swedish Steel Valve Components
- Stainless Steel Flexible Discharge Line
- Motor Overload Protection Built-In
- No Magnetic Starter Required
When you purchase an Industrial Gold air compressor you are getting a precision built compressor from the finest materials using the finest state of the art design and high-tech engineering. Quality, performance and trouble free operation will assure you a dependable supply of air power on demand.
Features & Specs
Standard Features
- 16 cfm @ 175 psi
- 22 cfm @ 40 psi
- 145-175 psi Operating Pressure
- 208-230/1/60
- No Start-Up Kit Required
- ASME/CRN 200 psi MWP Air Receiver
- Auto Start/Stop
- Bearings on Both Ends of the Crank Shaft
- Solid Cast Iron Two-Stage Compressor Pump
- Disk & Spring Valves
- UL/CSA Electric Control Components
- 60 Gallon Tank
- 208-230 Volt
- Heavy-Duty Air Filter
- Needle Bearings and Inserts on Compression Rod
- Swedish Steel Valve Components
- Stainless Steel Flexible Discharge Line
- Motor Overload Protection Built-In
- No Magnetic Starter Required
- Horsepower: SPL
- cfm @ 165 psi: 16
- cfm @ 40 psi: 22
- Operating Pressure: 145-175
- Tank Size: 60 Gallon
- Vert/Horiz: Vertical
- Voltage: 208-230
- Phase: 1
- Amps @ 230 Volt: 22
- Dimensions: 30" L x 25" W x 74" H
- Warranty: (1) Year Limited Reciprocating Compressor and Parts
Industrial Gold Limited Warranty Reciprocating Compressors and Parts
All component parts on this compressor, installed by the manufacturer, are warranted to be free of defects in workmanship and material for a period of one year. Transportation charges are the responsibility of the purchaser. This warranty extends to the original purchaser of the compressor only. The purchaser must use Synthetic Reciprocating Compressor Oil, Part Number 30100, in the compressor for the duration of the compressor warranty. There are NO express warranties other than those contained in this limited warranty statement. Covered in the one year period of the warranty are defective parts and labor only. Part defects are limited to original parts only. The compressor warranty is void in the case of abuse, lack of proper service, incorrect application, incorrect installation, and neglect. Industrial Electric stationary compressors may be repaired on site as long as the compressor is not located further than 50 miles from the service center. The purchaser is responsible for any additional travel expense beyond 50 miles from the service center. Gas/Diesel Engine Driven, Single Stage Stationary, and Contractor Series compressors must be repaired at the closest service center to the compressor. The purchaser is responsible for any travel expense if they do not wish to bring the compressor to the service center.
ALL "SPECIALTY COMPRESSOR" WARRANTY SERVICE MUST BE PERFORMMED AT THE CLOSEST SERVICE CENTER TO THE COMPRESSOR. A "SPECIALTY COMPRESSOR" is any compressor packaged with options other than those that apply to the standard model in the catalog. Warranty labor for the first year is only covered for work performed Monday-Friday 8am-5pm excluding all major US holidays. BEFORE WARRANTY SERVICE IS PERFORMED, CONTACT THE MANUFACTURER TECH SUPPORT FOR FASTEST SOLUTION AND APPROVAL (800-531-9656). New parts purchased are warrantied to be free from defects for a period of 1 year. Parts warranty is repair or replace only. Parts warranty is limited to the repair or replacement of the defective part only. No labor allowed for parts warranty. The defective part will be repaired or replaced. Freight and labor are not covered under the parts warranty. FOR A DEFECTIVE PART, CONTACT THE WARRANTY SERVICE CENTER (800-531-9656).
Accessories/Options
Industrial Gold CI51E61V Reciprocating Compressor 12CFM
OUR PRICE: $1,133.00
Regular Price: $1,189.00
Industrial Gold CI51E62V Reciprocating Compressor 17CFM
OUR PRICE: $1,503.00
Regular Price: $1,579.00
More Information
Industrial Gold CI51E63V Commercial Reciprocating Brochure (.pdf)
Industrial Gold Commercial Reciprocating Electric Catalog (.pdf)
Industrial Gold Commercial Reciprocating Electric Manual (.pdf)
Industrial Gold Reciprocating Electric Installation (.pdf)
Industrial Gold Reciprocating Electric Checklist (.pdf)
Industrial Gold Rotary Air Compressors Warranty (.pdf)
