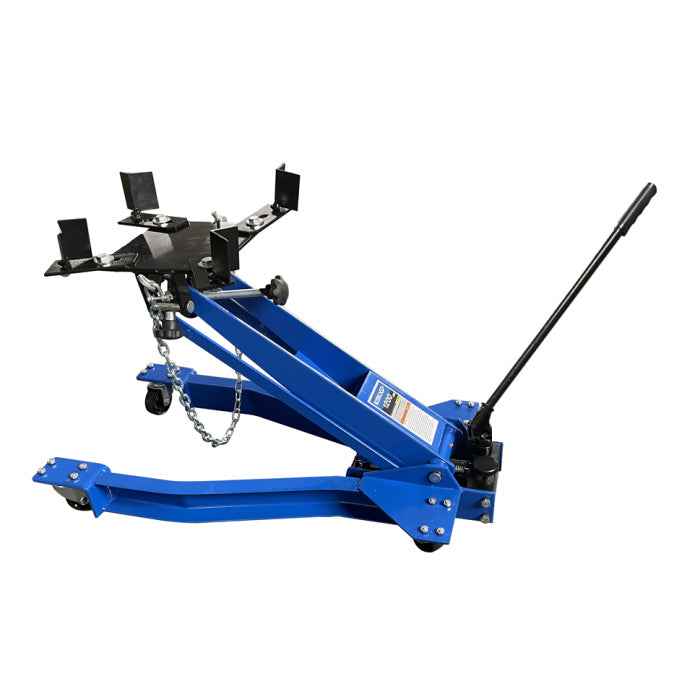

K Tool KTIXD63515 Low-Profile Transmission Jack
In Stock SKU KTIXD63515 UPC 769622909961
OUR PRICE: $689.00
Regular Price: $729.00
Short Description
K Tool KTIXD63515 Low-Profile Transmission Jack
1,200 lbs. Capacity with Adjustable Saddle
The K Tool KTIXD63515 Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining chain is provided for additional safety during raising and lowering.
1,200 lbs. Capacity with Adjustable Saddle
The K Tool KTIXD63515 Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining chain is provided for additional safety during raising and lowering.
Description
K Tool KTIXD63515 Low-Profile Transmission Jack
1,200 lbs. Capacity with Adjustable Saddle
The K Tool KTIXD63515 Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining chain is provided for additional safety during raising and lowering.
Features & Specs
Features
- Removal, Installation, and Moving of Heavy Truck Transmissions
- Built-In By-Pass System Prevents Ram from Over Extension
- Meets or Exceed ASME PASE 2019 Standards
- Wide Front Open Chassis for Lower Profile When Loaded
- Universal Adjustable Saddle with Four Brackets
- Load Restraining Chain
- Full Swivel Pump Handle
- Controlled Lowering with Release Valve
- Steel Wheels and Full Swivel Ball Bearing Casters
Specifications
- Capacity: 1,200 lbs.
- Max Height: 31.5"
- Min Height: 7"
- Travel: 24.5"
- Saddle Tilt: +/-10°
- Max Lifting Head Size: 15-1/2" x 15-1/2"
- Chassis Length: 33"
- Overall Width: 19.7"
- Weight: 130 lbs.
- Warranty: 1 Year
Accessories/Options

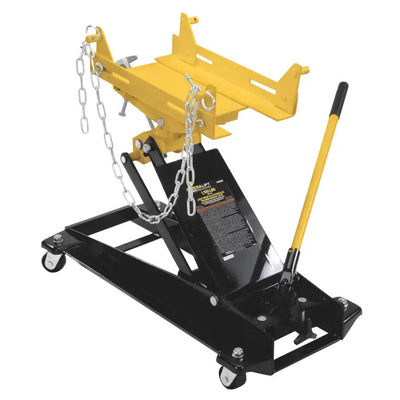

Omega 41100C Transmission Jack Low Profile 1,100 lbs. Capacity
OUR PRICE: $1,282.00
Regular Price: $1,480.00

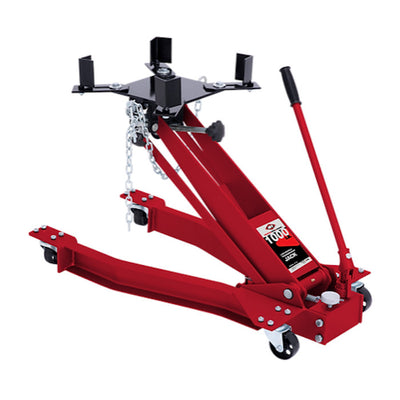

AFF 3171A Low Profile Transmission Jack
