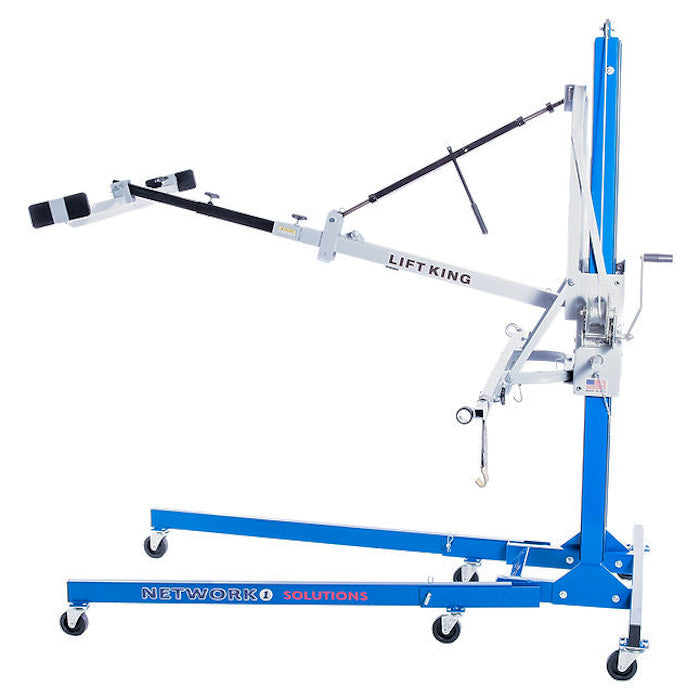

Lift King LK4000 Main Component

Features & Specs

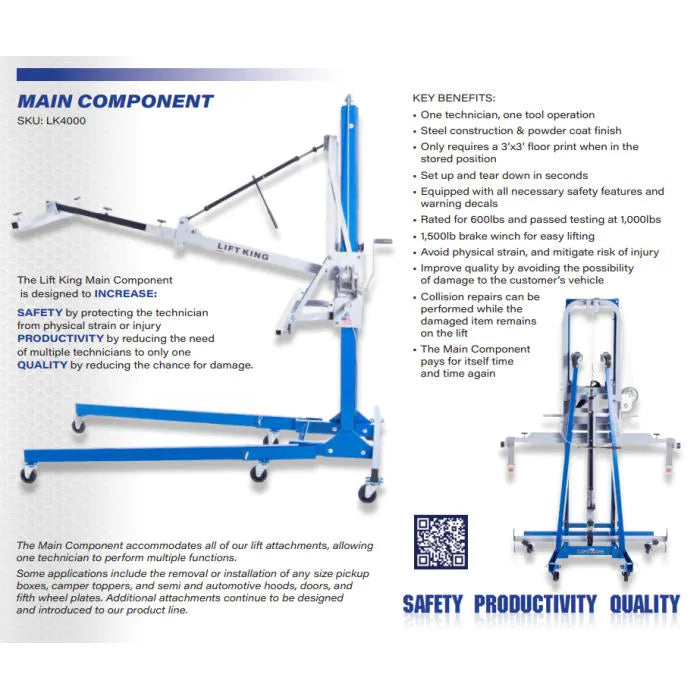

Key Benefits

• One Technician, One Tool Operation
• Steel Construction & Powder Coat Finish
• Only Requires A 3' X 3' Floor Print When In The Stored Position
• Set Up And Tear Down In Seconds
• Equipped With All Necessary Safety Features And Warning Decals
• Rated For 600 lbs. And Passed Testing At 1,000 lbs.
• 1,500 lbs. Brake Winch For Easy Lifting
• Avoid Physical Strain, And Mitigate Risk Of Injury
• Improve Quality By Avoiding The Possibility Of Damage To The Customer's Vehicle
• Collision Repairs Can Be Performed While The Damaged Item Remains On The Lift
• The Main Component Pays For Itself Time And Time Again

Features

• Improved Safety - Avoiding technician injury
• Increase Productivity - One Tech One Tool Four Technician not needed
• Improve Work Quality - Avoid potential vehicle damage
• Key Benefits - One technician, one tool. No need for four technicians to do the job of one. Avoid human strain, the loss of a good employee due to injury, worker compensation claims, and potential legal claims The average pickup bed weighs between 275 lbs. and 350lbs. With the Lift King, anyone can remove or install a pickup bed effortless with no human lifting. Improve quality by avoiding the possibility of damage to the customer vehicle because a technician slipped and the box hit the cab (little to no clearance between the box and cab). Collision repairs can be performed while the damaged item remains on the lift. The lift will adjust the item to the best working height for the technician.

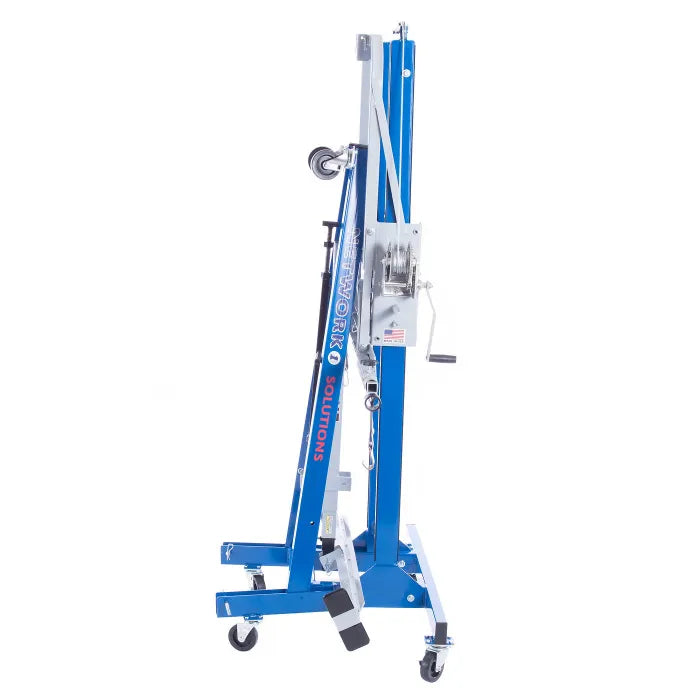

• Floor Space? Only requires 3 square feet of floor space when in the stored position
• Will It Last? Steel construction & a powder coat finish
• Will It Lift A Dually Box? The lift is rated for 500 lbs., it passed testing at 1,000 lbs. and comes with a 1,000 lbs. brake winch. Lifting a 350 lbs. pickup bed or semi hood is a very easy process.
• What if the box is new and doesn't have any hardware? How can I lift it? There is a secondary rear mount feature (seat belt looking item with a hook). An example of why this feature would be used, if a new pickup bed needed to be lifted and the bed was bare of hardware (no tailgate hinge pins) the seat belt strap would connect under the rear bed lip. It would also be used if the truck was hit hard in the rear bed area and the bed was out of square.
• How Long Before It Pays For Itself? When four technicians remove a pickup box, the technician working on the pickup spends an average of 15 minutes recruiting three other technicians to assist. By the time the technicians find their gloves, complain about lifting the box, removes the box, talks about it, and gets back to their jobs, it is an average of 30 minutes X four. When they reinstall the bed it is another 30 minutes X four. The total amount of time spent is an average of 4 hours X the hourly shop rate. This is pending the box does not have to be relocated within the shop while off the truck. Depending on the shops hourly rate, the Lift King Light Duty Package pays for itself within the first 12 jobs. If a technician gets injured or a customer box or cab gets damaged, the lift would have more than paid for itself immediately.

Specifications

• Warranty: (1) Year

Lift King Warranty Statement
One (1) year unconditional warranty under normal wear. "Normal use" means for the purpose intended (e.g. pick-up truck box removal, topper removal, doors and semi hoods) at or below the load weights indicated for the product. "Normal wear does not include use in extreme environments (e.g., high or low temperatures, or environments with high chemical or dust concentrations).

Network 1 Solutions will replace all parts determined to be defective. To make a warranty claim, the buyer must first contact Network 1 Solutions and provide pictures of the tool and the defective part(s). All defective parts must be shipped to Network 1 Solutions for examination.

The following voids the warranty: Removal of components or hardware provided by Network 1 Solutions at the date of original purchase. Buyer’s modifications to the product or use of attachments other than Network 1 Solution’s products. Improper assembly of the product. Removal/concealment of any safety decals or labeling.

This warranty is non-transferable and covers only the initial buyer identified in the purchase records of Network 1 Solutions. There are no implied warranties of merchantability or fitness for a purpose, and the scope of the warranty is limited to that described above.

For additional warranty information or to order replacement parts, please call 1-888-918-0737.
