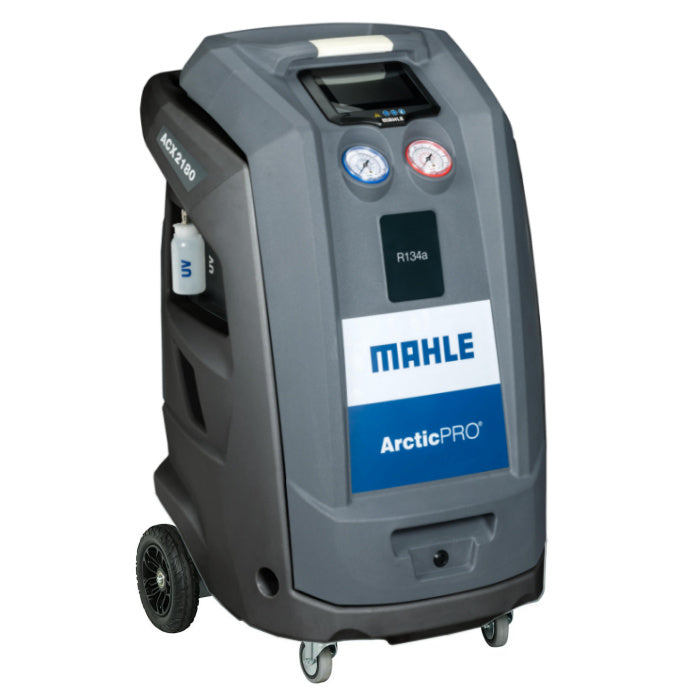

MAHLE ArcticPRO ACX2180 R134a Refrigerant Handling System

In Stock SKU 460 80447 00 UPC 757522812061

OUR PRICE: $4,849.00

Regular Price: $5,780.00

$134.69 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

MAHLE ArcticPRO ACX2180 R134a Refrigerant Handling System
The new ArcticPRO ACX2180 R134a Refrigerant Handling System is a highperformance unit that is capable of running virtually unattended allowing your technicians the extra time to perform other tasks. Our new design offers a uniquely designed ergonomic service door, built-in status indicator light, and an intuitive, state of the art user interface that provides the optimal environment for fully automatic A/C service and simple unit maintenance. The ACX2180 comes to you with an integrated 7" capacitive touchscreen making this unit even easier to use than previous models and a UV dye injection feature provides high-level A/C system leak detection. The optional refrigerant identifier ensures that the proper refrigerant is being serviced and prevents contamination of the unit and your customer's air conditioning system. For a streamlined shop, and safe and precise A/C refrigerant handling, rely on ArcticPRO.

Description

MAHLE ArcticPRO

MAHLE ArcticPRO ACX2180 R134a Refrigerant Handling System


The new ArcticPRO ACX2180 R134a Refrigerant Handling System is a high performance unit that is capable of running virtually unattended allowing your technicians the extra time to perform other tasks. Our new design offers a uniquely designed ergonomic service door, built-in status indicator light, and an intuitive, state of the art user interface that provides the optimal environment for fully automatic A/C service and simple unit maintenance. The ACX2180 comes to you with an integrated 7" capacitive touchscreen making this unit even easier to use than previous models and a UV dye injection feature provides high-level A/C system leak detection. The optional refrigerant identifier ensures that the proper refrigerant is being serviced and prevents contamination of the unit and your customer's air conditioning system. For a streamlined shop, and safe and precise A/C refrigerant handling, rely on ArcticPRO.



Features & Specs

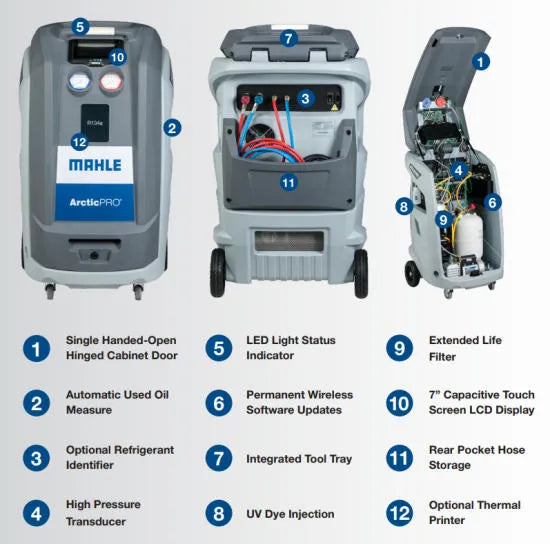

Distinguishing Features

  • Ecolock® R134A Couplers
  • 3 Transducers Reduces Process Time
  • iOS And Android Phone App For Remote Service Session Mirroring And Advanced Functionality Included
  • Integrated Automatic Oil And UV Dye Injection For AC Leak Detection
  • Network Printing Capability
  • Database Included

Features

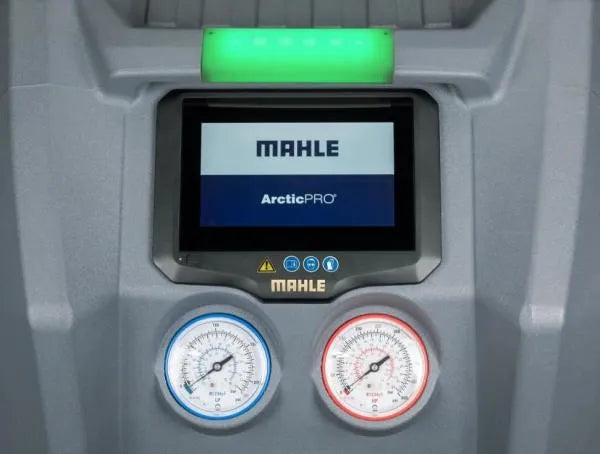

  • State-of-the-art ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
  • Contains three transducers, providing reduced process times over dual sensor units.
  • LED light indicates status visible from anywhere in the workshop.
  • iOS and Android capable phone app allowing remote service session mirroring and advanced functions.

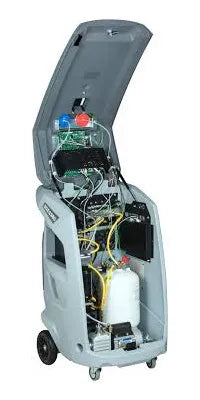

  • Best-in-class serviceability with a new ergonomic hinged service door simplifies unit service.
  • Permanent wireless automatic software updates, ensuring you always have the latest features.
  • Automatic weighing of recovered oil, allowing accurate replenishment of oil removed during service and allows two oil types for injection.
  • Integrated UV dye injection provides high level of A/C system leak detection.
  • Remote support for technicians allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
  • Data management and reporting metrics offers the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
  • Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
  • Retain valuable service records, network printing capability to print services provided for customer.

Specifications

  • Certifications: SAE J2788, SAE J2099, UL 1963
  • Charge Performance: +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)
  • Recovery Performance: 95% at 70° to 75°F (21° to 24°C) within 30 minutes
  • Operation: Fully Automatic
  • Charging Cylinder: 30 lb. (13.6 kg) DOT
  • Compressor: 3/8 HP-0.279kW
  • Display: Color, 7" Capacitive Touch Screen
  • Filter Drier Capacity: 150 lb. (68 kg) spin-on type
  • Hoses: 9 ft. (2.75 m)
  • Languages: English, French, Spanish
  • Operating Ranges: 50 degrees - 122 degrees F (10° to 50°C)
  • Power Source: 120 VAC - 60 HZ - 12 AMP
  • Vacuum Pump: 2 CFM dual stage
  • Printer: Optional
  • Dimensions: (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)
  • Weight: 215 lbs. (98 kg)
  • Warranty: 1 Year Labor, 2 Years Parts
