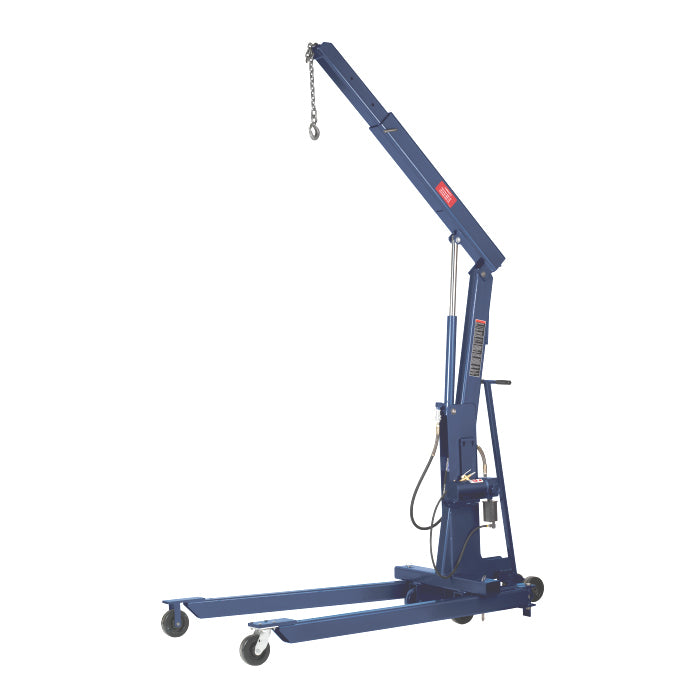

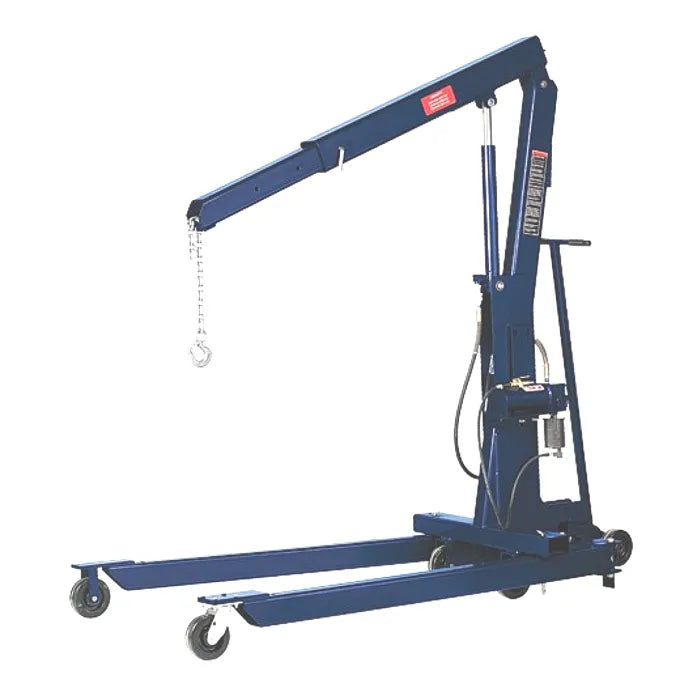

MAHLE ShopPRO CSC-2200 Shop Crane
In Stock SKU 485 80070 00 UPC 757522807678
OUR PRICE: $5,155.00
Regular Price: $5,510.00
Short Description
MAHLE ShopPRO CSC-2200 Shop Crane
Manual Pump with 2,200 lbs. Capacity
The MAHLE ShopPRO Shop Cranes are the most versatile and mobile shop cranes being built today in 2,200 lbs. and 4,400 lbs. capacities. The unique large 6" caster design makes maneuvering any component an easy task. Three simple to adjust leg width positions allows the user to get the shop crane into position to do the job. These shop cranes can also be purchased with an air assist hydraulic pump.
Manual Pump with 2,200 lbs. Capacity
The MAHLE ShopPRO Shop Cranes are the most versatile and mobile shop cranes being built today in 2,200 lbs. and 4,400 lbs. capacities. The unique large 6" caster design makes maneuvering any component an easy task. Three simple to adjust leg width positions allows the user to get the shop crane into position to do the job. These shop cranes can also be purchased with an air assist hydraulic pump.
Description
MAHLE ShopPRO CSC-2200 Shop Crane
Manual Pump with 2,200 lbs. Capacity
The MAHLE ShopPRO Shop Cranes are the most versatile and mobile shop cranes being built today in 2,200 lbs. and 4,400 lbs. capacities. The unique large 6" caster design makes maneuvering any component an easy task. Three simple to adjust leg width positions allows the user to get the shop crane into position to do the job. These shop cranes can also be purchased with an air assist hydraulic pump.
Features & Specs
Features
- Up to 2,200 lbs. Capacity
- Unique Large Caster Design
- Easy Adjustable Leg Width
- Can be Purchased with a Manual or Air Assist Hydraulic Pump
Specifications
- Capacity Retracted: 2,200 lbs.(998 kg)
- Capacity Center: 1,900 lbs.(862 kg)
- Capacity Extended: 1,650 lbs.(748 kg)
- Max Boom Height Retracted: 114 in (290 cm)
- Max Boom Height Extended: 125 in (318 cm)
- Overall boom height (Horizontal): 83 in (211 cm)
- Boom Reach Retracted: 33 in (84 cm)
- Boom Reach Extended: 48 in (122 cm)
- Overall Length: 82 in (208 cm)
- Minimum Throat Width: 22 in (56 cm)
- Leg Length (Inside): 55 in (140 cm)
- Inside Leg Width (Position 1): 22 in (56 cm)
- Inside Leg Width (Position 2): 36 in (91 cm)
- Inside Leg Width (Position 3): 50 in (127 cm)
- Leg Height: 8.1 in (21 cm)
- Wheel Diameter: 6 in (15 cm)
