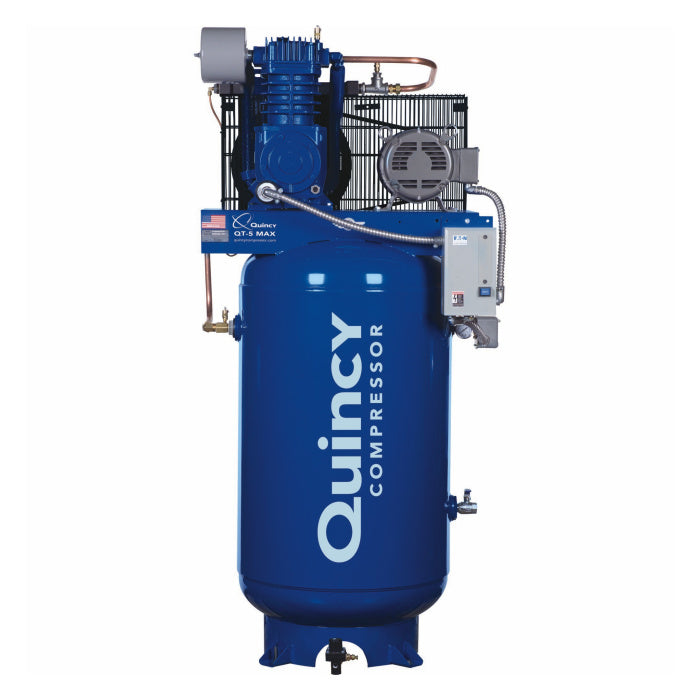

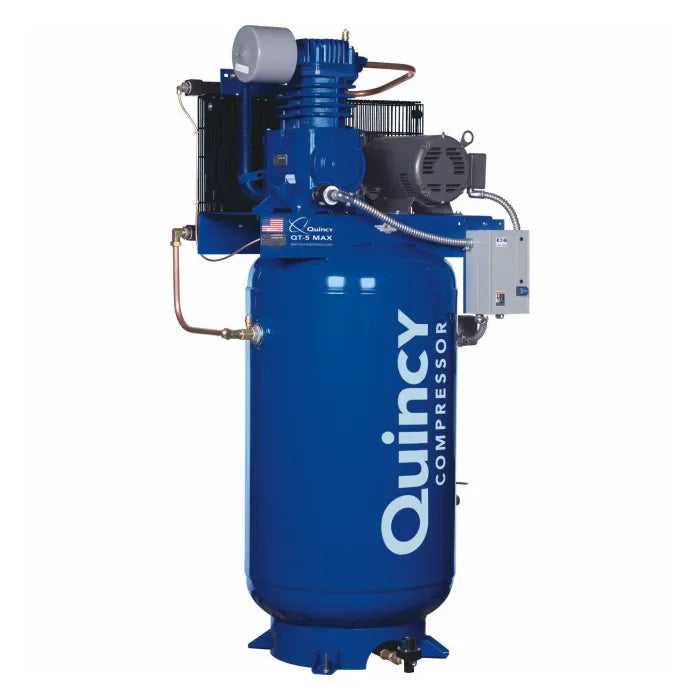

Quincy 451CS80VCBM QT-5 Max Reciprocating Air Compressor

Name: Quincy 451CS80VCBM QT-5 Max Reciprocating Air Compressor
Brand: ASEDeals
SKU: 2020040711
Price: 4299.0 USD
Availability: InStock

In Stock SKU 2020040711 UPC 791326114372

OUR PRICE: $4,299.00

Regular Price: $4,519.00

$119.41 / mo

INCLUDES FREE SHIPPING*

Short Description

Quincy 451CS80VCBM QT-5 Max Reciprocating Air Compressor
QT Max Package 5HP 230 Volt 1 Phase 80 Gallon Vertical Tank
Quincy's two-stage splash lubricated QT series piston air compressor models lead the industry with the most ACFM per brake horsepower and are designed to deliver higher volumes of air while also consuming less energy. A one-piece aluminum head optimizes strength and dissipates heat while Quincy's unique valve design provides the highest possible volumetric efficiency and features super-strong stainless steel valves. The balanced counter-weighted crankshaft ensures smooth operation and fewer maintenance headaches. The cast iron construction also assures a long compressor lifespan.

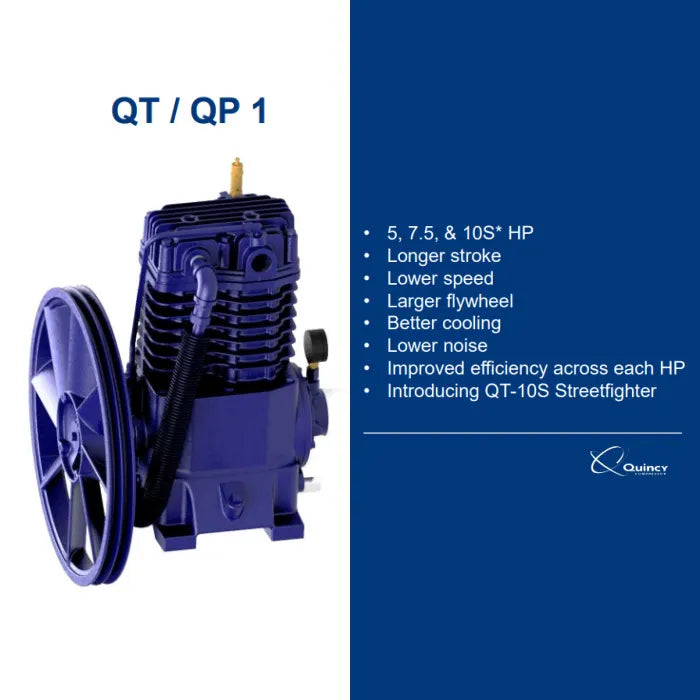

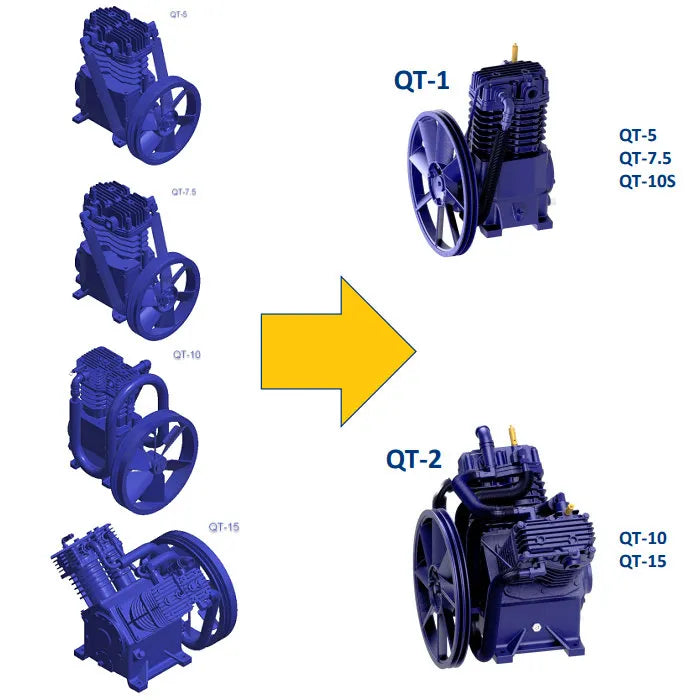

Features New Improved QT-1 Pump with Longer Stroke, Lower Speed, Larger Flywheel, Better Cooling, Lower Noise, and Improved Efficiency.

QT Max Package Features: ODP Slow Speed Motor, Motor Overload Protection, Automatic Tank Drain, Automatic Start/Stop 5 to 7.5 hp, Dual Control on 10 to 15 hp, Low OIl Level Shutdown, Air Cooled Aftercooler, Optional NO BULL Warranty Available.

Made In USA

Description

Quincy 451CS80VCBM QT-5 Max Reciprocating Air Compressor
QT Max Package 5HP 230 Volt 1 Phase 80 Gallon Vertical Tank

Quincy's two-stage splash lubricated QT series piston air compressor models lead the industry with the most ACFM per brake horsepower and are designed to deliver higher volumes of air while also consuming less energy. A one-piece aluminum head optimizes strength and dissipates heat while Quincy's unique valve design provides the highest possible volumetric efficiency and features super-strong stainless steel valves. The balanced counter-weighted crankshaft ensures smooth operation and fewer maintenance headaches. The cast iron construction also assures a long compressor lifespan.

Features New Improved QT-1 Pump with Longer Stroke, Lower Speed, Larger Flywheel, Better Cooling, Lower Noise, and Improved Efficiency.

QT Max Package Features: ODP Slow Speed Motor, Motor Overload Protection, Automatic Tank Drain, Automatic Start/Stop 5 to 7.5 hp, Dual Control on 10 to 15 hp, Low OIl Level Shutdown, Air Cooled Aftercooler, Optional NO BULL Warranty Available.

At A Glance

Two-piece connecting rods
High efficiency intercoolers
Industrial class bearings
Loadless auto stop/start
Cast iron crankcase/cylinders

Up Close

5-15 hp, 175 psig maximum
Two Stage
100% duty cycle rated
Splash lubrication system

Powerful Performance
The Quincy QT reciprocating piston air compressor is more than just your typical splash-lubricated two-stage. The highly efficient, robust QT delivers more air (CFM) per brake horsepower while consuming less energy. We use cast-iron where it's needed for strength and durability, and aluminum where it's needed for optimum cooling and long life. A Quincy compressor may cost you a little more up front, but over time, the long lasting performance will save you money.

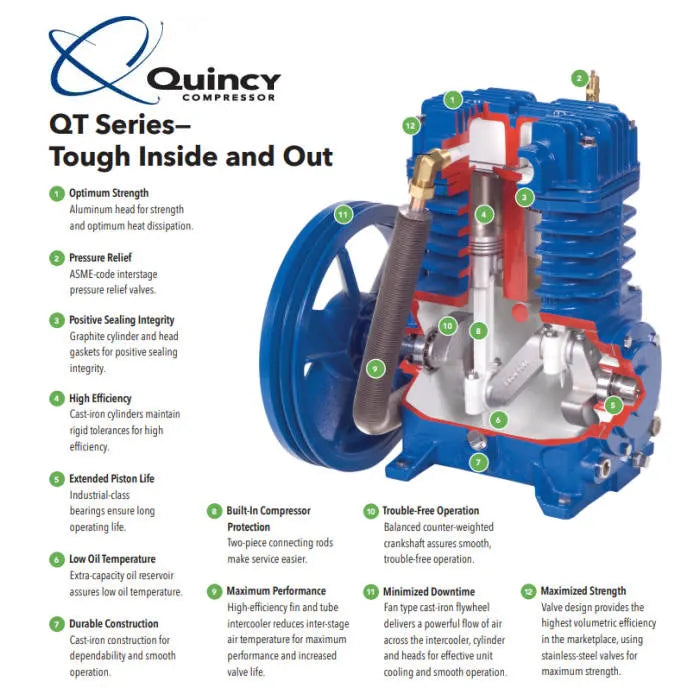

What Makes it a Quincy?

Compressor Head, Gaskets and Valves

Aluminum head for cooler operating temperatures and longer life
Graphite cylinder and head gaskets for positive sealing and improved performance
Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency

Interstage Intercooler

Finned-copper-tubed intercooler dissipates excess heat from the first stage of compression to the second-stage, helping to eliminate carbon build up in the head and increase valve life

Flywheel

Large, balanced cast-iron flywheel for smoother operation, angled for maximum cooling across the compressor for longer life

Rings

High performance, automotive-style rings allow less than 6 PPM oil carryover

Crankshaft

Balanced counter-weighted crankshaft for smooth, trouble-free operation

Construction

Cast-iron cylinder, flywheel, and crankcase for dependability
The extra-capacity oil reservoir assures low oil temperatures for lasting performance

Superior Components

Quincy packs a one-two punch when comparing components to lower priced compressors. We feature IEC magnetic starters, premium motors, high quality pressure switches, metal automotive style filter/silencers, and a manual ball valve-style tank drain

Features & Specs

QT Compressor Features

Splash Lubricated Two-Stage
Cast-iron Crankcase, Cylinders and Flywheel
Stainless-Steel Reed Valves with Valve Bumpers
Ductile Iron, Double Throw Crankshaft
Industrial Ball Bearings
Two-Piece Aluminum Connecting Rods
Fin and Tube Intercooler
Sight Glass Oil Gauge on QT-5, QT-7.5 and QT-10
Bayonet Type Oil Gauge - QT-15; QT-54
Automotive Style Inlet Filter/Silencer
One-Year Warranty Standard

QT Unit Features

Slow Speed Open Drip Proof Motors; 200, 230, 460 or 575 Volt (QT-5 through QT-15)
200 PSIG-Rated ASME/CRN-Coded Receiver
ASME-Coded Relief Valves in the Inter-stage, Discharge Line and Receiver Tank
Tank Pressure Gauge
Service Valve
Pressure Switch on Electric Models
Loadless Auto-Stop/Start Controls
200, 230, 460, 575 Volt Full Voltage Magnetic Starters†**
Single Source Duplex Control Panels on Duplex Units†
Kohler, Honda and Diesel Engines
OSHA Complaint Totally Enclosed Belt Guard
UL Listed and CSA certified electrical components
Manual Ball Valve Tank Drain†
Factory Fill of Quin-Cip Lubricant
One-Year Warranty Standard
Optional NO BULL Warranty 3-Year Pump/2-Year Package Warranty
