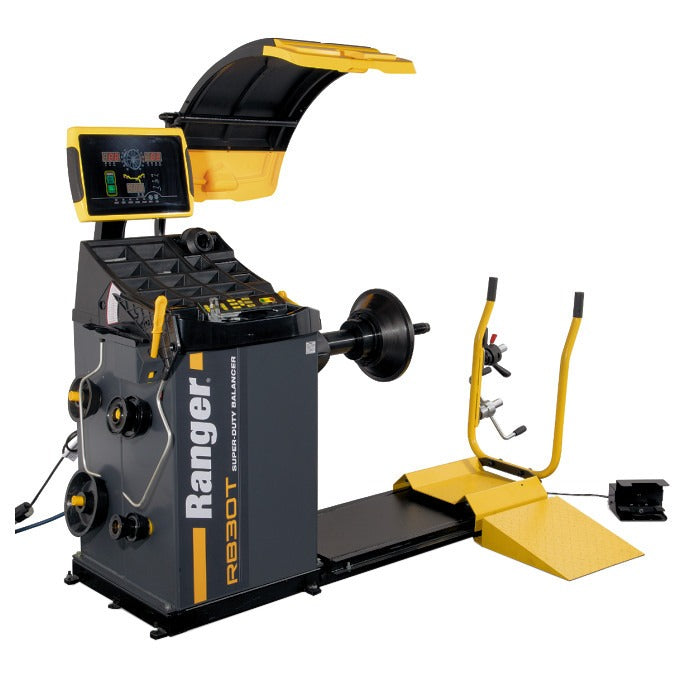

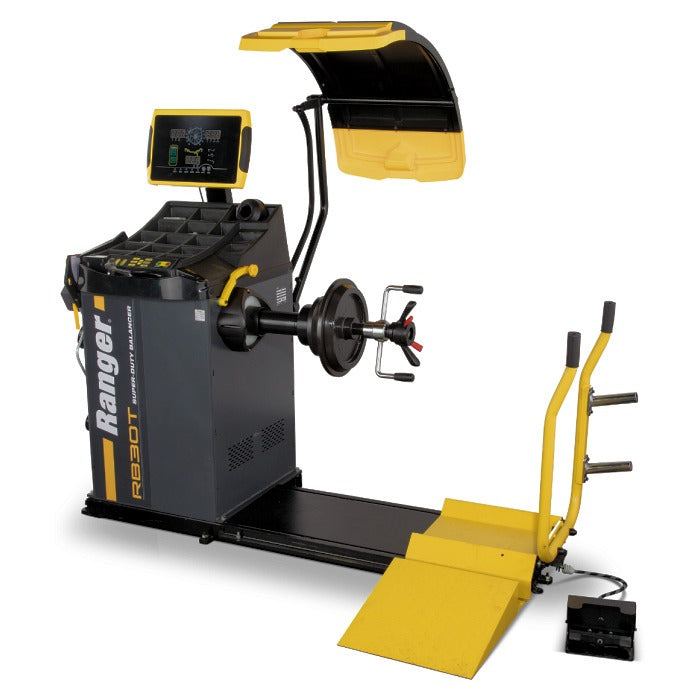

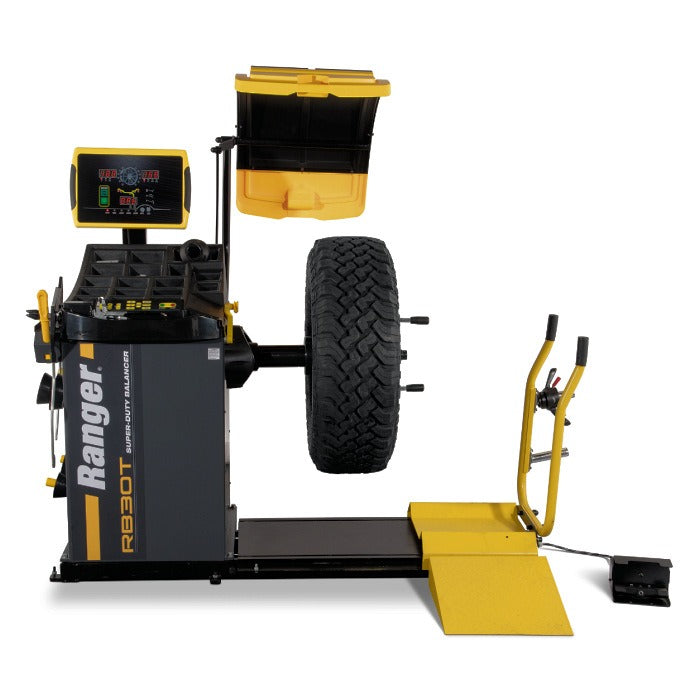

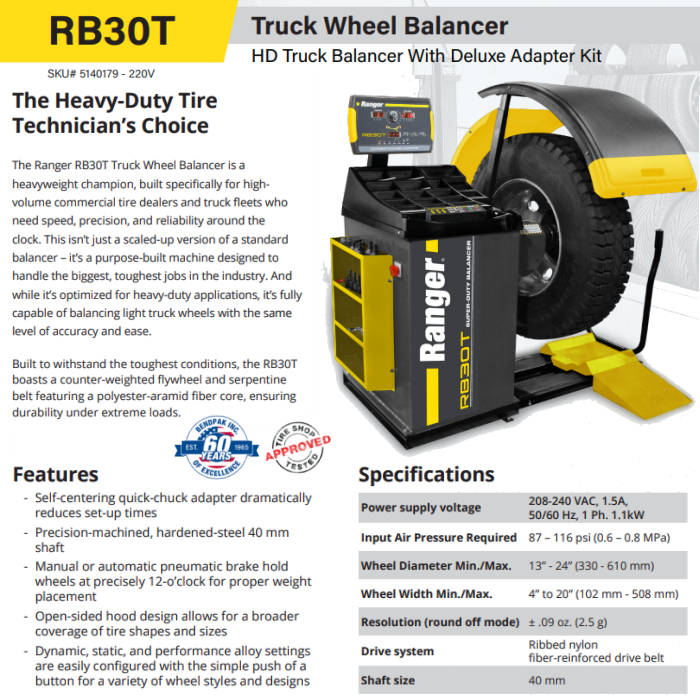

Ranger RB30T Super-Duty Truck Wheel Balancer

Name: Ranger RB30T Super-Duty Truck Wheel Balancer
Brand: ASEDeals
SKU: 5140179
Price: 13495.0 USD
Availability: InStock

In Stock SKU 5140179 UPC 849672036173

OUR PRICE: $13,495.00

Regular Price: $14,095.00

$389.00 / mo

INCLUDES FREE SHIPPING*

Short Description

Ranger RB30T Super-Duty Truck Wheel Balancer
Includes Deluxe Adapter Kit 208-240V
The Ranger RB30T Super-Duty Truck Wheel Balancer isn't some half-baked passenger machine with bigger cones. It's a dedicated, heavy-duty workhorse built from the ground up for commercial truck shops and fleet operations that live and die by uptime. From massive OTR tires to standard light-truck wheels, the RB30T brings purpose-built engineering, real-world precision, and relentless reliability to every spin. It's fast, intuitive, and built to crush the demands of nonstop wheel balancing - day in, day out.

Description

Ranger RB30T Super-Duty Truck Wheel Balancer
Includes Deluxe Adapter Kit 208-240V

The Ranger RB30T Super-Duty Truck Wheel Balancer isn't some half-baked passenger machine with bigger cones. It's a dedicated, heavy-duty workhorse built from the ground up for commercial truck shops and fleet operations that live and die by uptime. From massive OTR tires to standard light-truck wheels, the RB30T brings purpose-built engineering, real-world precision, and relentless reliability to every spin. It's fast, intuitive, and built to crush the demands of nonstop wheel balancing - day in, day out.

Built for Real-World Demand

When your shop's reputation rides on the balance of every wheel, the equipment you choose isn't just a tool - it's your margin, your time, your name. The Ranger RB30T Truck Wheel Balancer was built for that level of pressure. Specifically designed for commercial truck fleets and high-volume tire shops, the RB30T takes on the biggest balancing jobs with factory-grade precision and zero hesitation. Whether you're working with buses, semis, OTR applications, or light-duty trucks, this machine gives you the power and accuracy to turn over wheels fast and without guesswork.

Purpose-Built, Not Repurposed
The RB30T isn't just another "heavy-duty" option - it's a fully re-engineered platform. A max capacity of 330 lbs, tire diameters up to 49.25", and widths up to 20" are only part of the story. This machine reads like it was built by technicians who've wrestled with the biggest wheels and didn't settle for workarounds. Its cycle times hit 7 seconds for passenger car wheels and around 20 seconds for full truck assemblies, making it fast enough for volume and tough enough for abuse. Truck or car mode is just a button away, allowing seamless transitions between wheel types without extra steps or recalibration.

Smarter Tech, Better Balancing
At the heart of the RB30T is Ranger's Drive-Check™ system, a smart balancing tech that simulates real-world conditions and hunts down even the subtlest vibrations before they show up on the road. This isn't basic “spin and guess” balancing - it's high-sensitivity detection backed by a 64-bit microprocessor and a full suite of quartz piezoelectric sensors that measure across longitudinal, transverse, and shear axes. Once imbalance is detected, the RB30T recommends the most efficient correction - saving time, reducing waste, and improving tire wear longevity for your customers.

Engineered to Endure
It's more than smart - it's built to last. A rugged ribbed nylon-fiber drive belt and counter-weighted flywheel system deliver smooth operation under extreme loads, while the three-phase motor and solid-state phase converter ensure consistent torque without the maintenance headaches of older systems. The shaft is a hardened 40 mm steel build, machined for repeat accuracy and made to hold its own under daily abuse.

Operator-Focused for Faster Workflow
Ease-of-use features are dialed in for real-world speed. A built-in pneumatic lift handles the heaviest wheels with minimal effort. An electro-pneumatic braking system locks wheels dead-on for accurate weight placement. Top-dead-center and bottom-dead-center modes give techs flexibility with clip-on or stick-on weights, and a bright LED display guides them to perfect placement in seconds. Optional lower laser mode pinpoints 6 o'clock adhesive weight positions when working with alloy wheels.

Ready for the Grind
Even storage and workflow get an upgrade. A spacious top tray holds an arsenal of wheel weights, while side shelves and cone pegs keep everything organized and ready for rapid-fire balancing. The machine is shipped with a full multi-piece commercial mounting kit, including all necessary cones and adapters to start balancing everything from day one - no upsell required.

Productivity Without Compromise
For tire shops chasing throughput, and fleet operations who can't afford downtime, the RB30T is the kind of upgrade that pays for itself fast. It's a purpose-driven powerhouse that combines old-school durability with cutting-edge tech - giving you the confidence to tackle every wheel that rolls through your bay without hesitation or compromise.

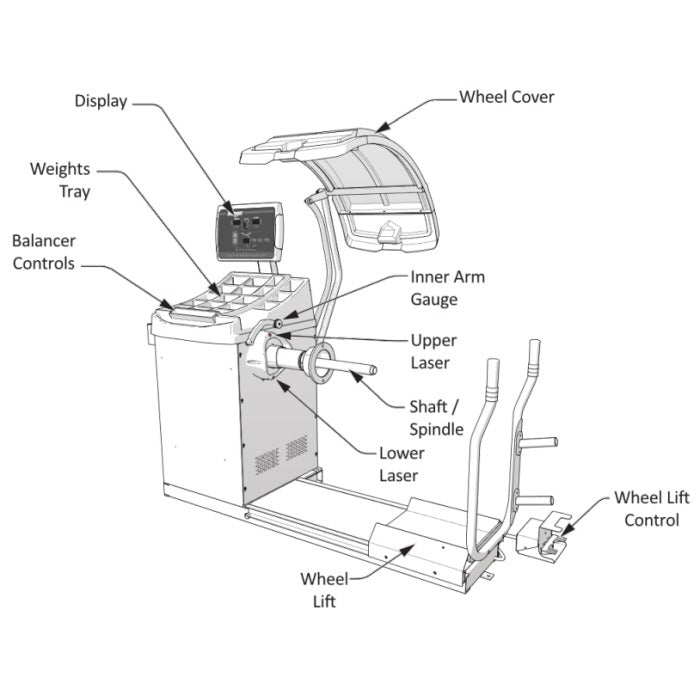

Features & Specs

Features

Five Distinct Balancing Modes: Dynamic, Static, ALU1, ALU2 & ALUs For Total Compatibility With Steel And Aluminum Wheels

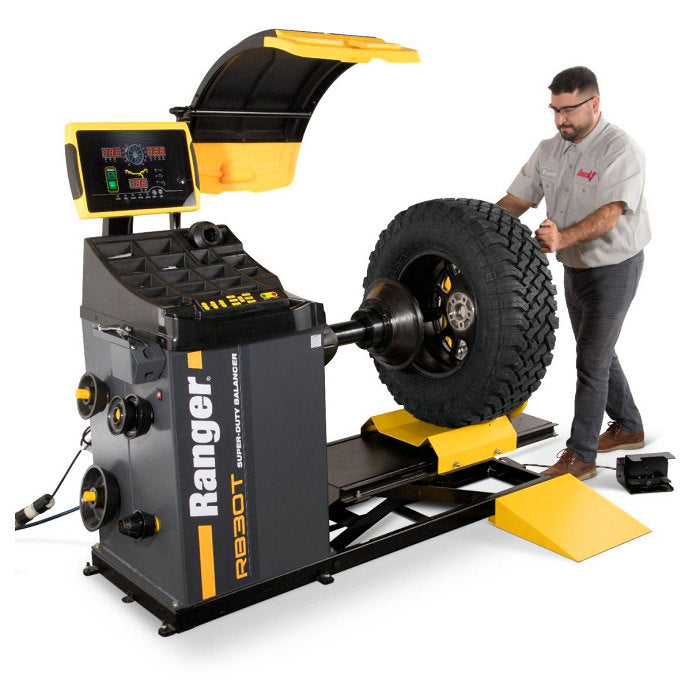

Integrated Pneumatic Wheel Lift Handles Up To 330 lbs. For Easy Mounting And Reduced Strain On Technicians
High-Precision 64-Bit Digital Architecture And Single-Chip Control System For Ultra-Fast Data Processing
Rugged 40mm Precision-Machined, Hardened-Steel Shaft Ensures Long-Term Durability And Repeatable Clamping
Self-Centering Quick-Chuck System Dramatically Reduces Setup Time And Improves Centering Accuracy
Electro-Pneumatic Braking System Locks Wheels For Pinpoint Weight Placement At Top Or Bottom Dead Center
Optional Lower Laser Projects 6 O'Clock Placement For Adhesive Weights In ALU Modes
Top-Dead-Center Led Weight Placement Indicators Guide Fast And Accurate Clip-On Weight Installation
Supports Wheels Up To 49.25" In Diameter, 20" Wide, And Up To 330 lbs. In Weight
Dual-Unit Display Allows User Preference Between Gram/Ounce And Inch/Millimeter Readouts
Rapid Cycle Times: 7-10 Seconds For Car Wheels, Approximately 20 Seconds For Truck Wheels
Built-In Optimization Mode Improves Balance On Problematic Wheels Using Tire Rotation Guidance
Self-Calibration And Inner-Arm Calibration Functions Maintain Long-Term Measurement Accuracy
Durable Ribbed Nylon-Fiber Reinforced Serpentine Belt Resists Wear And Slippage Under Load
Multi-Directional Quartz Piezoelectric Sensors Detect Longitudinal, Transverse, And Shear Imbalances
Top Tray And Side Shelving Offer Generous Onboard Storage For Weights, Cones, And Tools
Includes Full Heavy-Duty Cone And Commercial Adapter Kit - Everything You Need Is In The Box

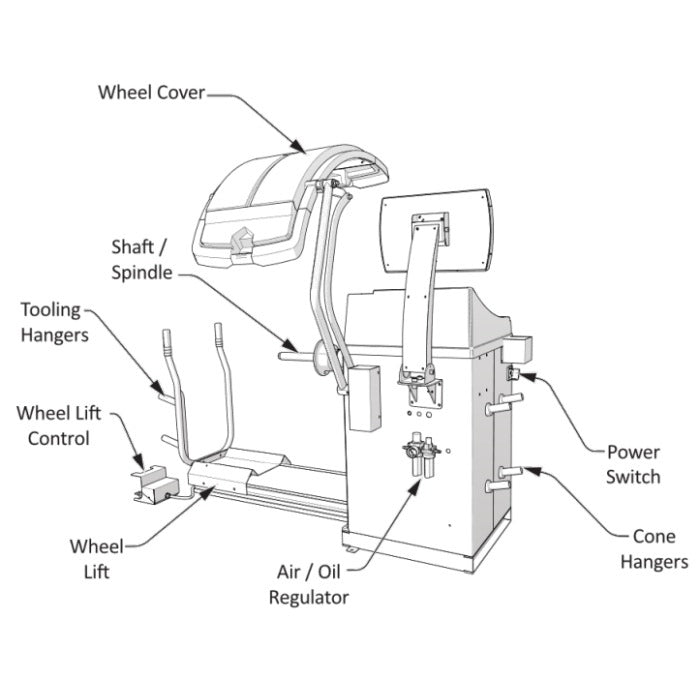

Built-In Air Regulator And Oiler System Ensures Reliable Pneumatic Lift Operation

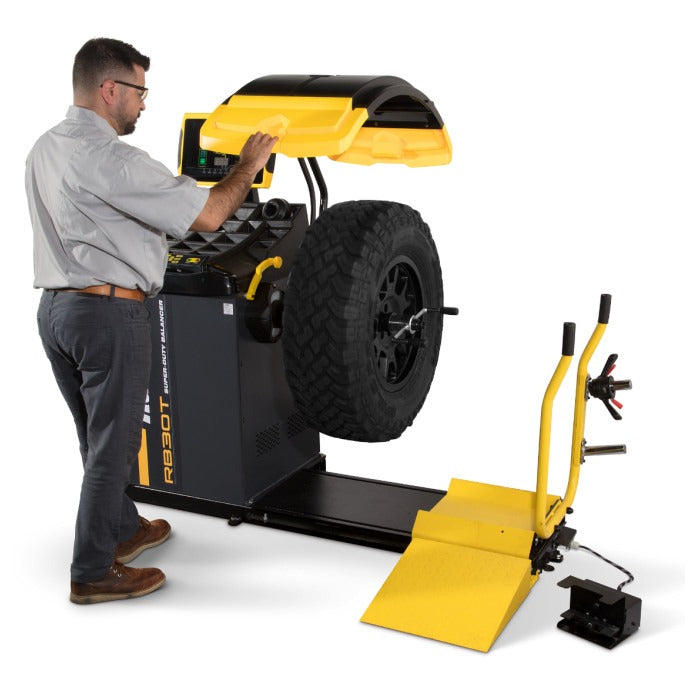

Manual Or Automatic Start Options When Hood Is Lowered - Customizable For Technician Workflow
Touchpad Interface With Intuitive Led Guidance And Clear Operator Prompts
Error-Code Diagnostics Streamline Troubleshooting And Service
Engineered To Operate In High-Heat, High-Humidity Environments - Up To 122°F And 85% Humidity

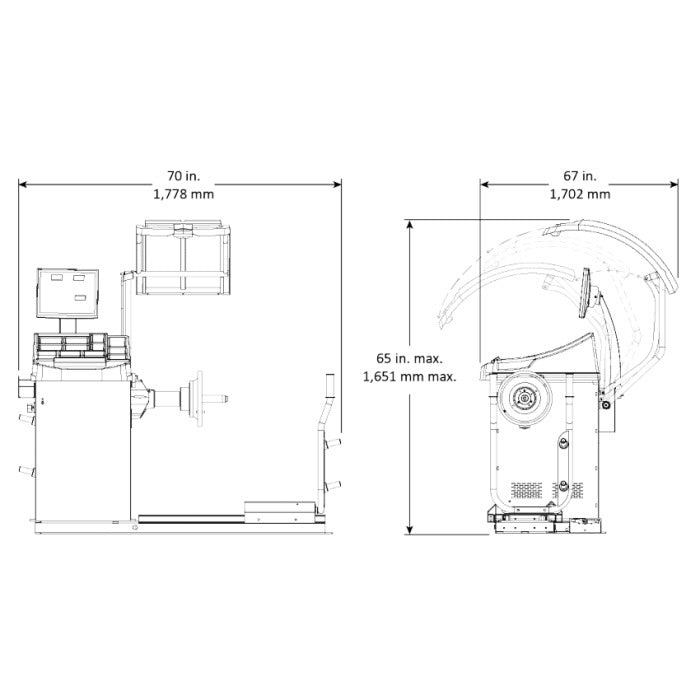

Specifications

Power Supply: 208 - 240V, 50 / 60 Hz, 1 Ph, 1.5A
Drive Motor: 3 Ph Motor with Solid-State Phase Converter
Operating Temperature: 32°F - 122°F (0°C - 50°C)
Drive System: Ribbed Nylon Fiber-Reinforced Drive Belt
Cycle Time: 7 seconds (Car) / 20 seconds (Truck)
Balancing Modes: 1 Dynamic / 1 Static / 3 Alloy (ALU1, ALU2, ALUS)
Wheel Spin Braking: Electronic Pulse / Pneumatic Brake
Wheel Hold Device: Pneumatic Brake
Shaft Size: 40 mm
Centering Cones Included: Multi-Piece Commercial Adapter Kit
Max. Tire Diameter: 49.25" (1,250 mm)
Max. Tire Weight: 330 lbs. (150 kg)
Wheel Diameter Range: 13" - 24" (330 mm - 610 mm)
Wheel Width Capacity: 4" - 20" (102 mm - 508 mm)
Balancing Increments: 0.035 oz (1 gram)
Balancing Speed: 260 RPM (Car) / 135 RPM (Truck)
Accuracy / Standard: ± 0.035 oz (1 gram)
Accuracy / Truck: ± 0.4 oz (12.5 grams)
Resolution: ± 0.09 oz (2.5 grams)
Shipping Weight: 990 lbs. (449 kg)
Warranty: (2) Years on Equipment Structure, (1) Year on Operating Components, (1) Year Labor, (1) Year Labor, (1) Year Free Shipping

Ranger Wheel Service Equipment Warranty
Duration: From the date of purchase by original Purchaser or 24‐12 months from the date of shipment by BendPak/Ranger or whichever comes first.

Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty (Product): Any Ranger brand tire changer, wheel balancer or brake lathe***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:

Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
Any damage caused by overloading Product beyond rated capacity.
Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
Rusted components due to improper maintenance or corrosive environments.
Cosmetic defects that do not interfere with Product functionality.
Damage due to incorrect voltage or improper wiring.
Any failure that results from improper installation or use not according to specifications.
Damage caused by disasters such as fire, flood, wind, and lightning.
Damage caused by unauthorized attachments or modifications.

Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
Responsibilities of Purchaser under this warranty/ notice of claims:

Provide dated proof of purchase and maintenance records.
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).

When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*Equipment structure is defined as any non‐moving permanently affixed frame or main body, or sub‐structures that are non‐moving and permanently affixed or attached to any main equipment structure or frame. **Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.

Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
