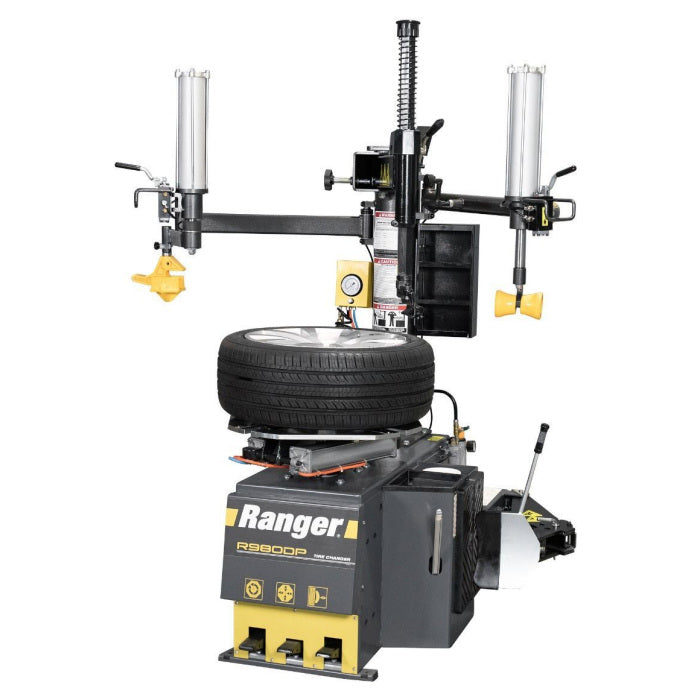

Ranger R980DP Swing-Arm Tire Changer & Dual Tower Assist

Features & Specs

Features

• High-Torque Electric Turntable Drive - Increased Speed And Reversible Direction For Faster, More Controlled Tire Changes
• 208-240V & 110V Motor Options - Choose Between High-Torque 208-240V Power For Heavy-Duty Applications Or 110V Convenience For Plug-And-Play Versatility
• High-Power Bead Loosening - Large Stainless-Steel Cylinder With Bilateral Pneumatic Accelerators Provide Lightning-Fast Speeds In Both Directions
• Multi-Axis Adjustable Bead Loosener Blade - Adjustable Settings Accommodate A Variety Of Tire And Wheel Combinations
• Rugged Bead-Breaker Arm - Box-Frame Construction Ensures Long-Term Durability And Smooth, Shock-Free Operation
• Reversible Direction - Foot-Pedal Control Allows Technicians To Switch Rotation Effortlessly For Better Efficiency
• Spring-Assisted Hex Tool Shaft & Hardened Outrigger Arm - Provides Precision And Stability For Accurate Tool Head Positioning
• Dual Pneumatic Assist Arms - Delivers Extra Power And Control For Mounting And Demounting Tough Tires
• Traveling Drop-Center Tool - Holds Low-Profile And Run-Flat Tires In Place For Smooth, Damage-Free Installation
• Bead Mount Helper Rollers - Prevents Unwanted Movement, Ensuring Beads Stay Properly Positioned
• Tire-Handling Hook - Acts As An Extra Set Of Hands To Maneuver Heavy Or Stubborn Tires During Service
• Rimguard™ Wheel Clamps - Adjustable, Non-Marring Clamps Securely Hold Wheels From 9" To 30" Without Damage
• Hardened Steel Mount/Demount Head - Micro-Smooth Surface Prevents Bead Damage For Precise Tire Changes
• Mounting Head Plastic Protector Kit - Standard Kit Prevents Scratches On Alloy, Powder-Coated, And High-End Rims
• Protective Polymer Mount/Demount Head - Extra Protection To Prevent Metal-To-Metal Contact On Delicate Wheels
• Upfront Controls & Ergonomic Design - Conveniently Positioned Controls Enhance Efficiency And Ease Of Use
• Geometric Tabletop - Optimized For Better Bead Lubrication And Improved Visibility During Mounting
• Turboblast™ Bead Seating System - High-Pressure Air Burst Ensures Quick, Secure Bead Sealing
• Hands-Free Foot-Pedal Tire Inflator - Clip-On Valve Chuck Allows For Effortless Inflation
• Advanced Brushless Ac Motor - Provides Power, Efficiency, And Long-Term Durability For High-Volume Use
• Sealed Electrical Components - Protects Internal Wiring From Dust, Moisture, And Contamination
• Precision-Engineered Pneumatic Control Valves - Built For Durability, Featuring An Ergonomic Oversized Handle
• Forged Steel Foot Pedals - Stronger And More Durable Than Cast Iron, Built For Heavy Shop Use
• Stainless Steel & Aluminum Pneumatic Cylinders - Reduces Vibration And Extends Equipment Lifespan
• Maintenance-Free Gearbox - Oil And Grease Reservoir Ensures Smooth, Long-Lasting Operation
• Industrial-Grade Pneumatic Control Valves - Die-Cast Zinc And Aluminum Design Ensures Smooth Airflow And Durability
• High-Pressure Polyurethane Pneumatic Tubing - Kink-Resistant Tubing Delivers Exceptional Airflow And Longevity
• Durable Drive Belt - Convex Sidewalls Provide Even Wear And Extended Service Life
• Balanced Flywheel - Reduces Vibration And Stress On Machine Components
• Large Soap Bucket With Brush - A Must-Have For Proper Bead Lubrication
• Plastic Wheel Protector Kit - Includes Rimguard Clamp Covers, Bead-Breaker Blade Boots, And Tool Head Inserts
• Hardened Steel Tire Iron & Bead Lever Tool - Provides Extra Leverage For Mounting And Demounting Tough Tires

Essential Accessories Included

• Large Soap Bucket With Brush
• Plastic Wheel Protector Kit Includes
• Rimguard Wheel Clamp Polymer Covers And Inserts
• Bead-Breaker Blade Boots
• Mount/Demount Head Covers And Inserts
• Hardened Steel Tire Iron & Bead Lever Tool

Specifications

• Motor (R980DP-L): 110 VAC, 50-60 Hz
• Drive System Type: Electric / Air
• Internal Rim Clamping: 9" - 30" (254 - 762 mm)
• External Rim Clamping: 9" - 26" (229 - 660 mm)
• Turntable Tire Width Capacity (Mounting): 4" - 15" (102 - 381 mm)
• Bead Breaker Tire Width Capacity (Demounting): 1.5" - 13" (38 - 330 mm)
• Max. Tire Diameter: 50" (1,270 mm)
• Dimensions: 47" L x 60" W x 82" H (1,200 x 1,530 x 2,090 mm)
• Warranty: (2) Years on Equipment Structure, (1) Year on Operating Components, (1) Year Labor, (1) Year Labor, (1) Year Free Shipping

Ranger Wheel Service Equipment Warranty
Duration: From the date of purchase by original Purchaser or 24‐12 months from the date of shipment by BendPak/Ranger or whichever comes first.

• Two Years (24-Months) Warranty on equipment structure*
• One Year (12-Months) Warranty on operating components
• One Year (12-Months) Labor Warranty on site or at factory
• One Year (12-Months) Free-Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty (Product): Any Ranger brand tire changer, wheel balancer or brake lathe***
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
1. Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
2. Any damage caused by overloading Product beyond rated capacity.
3. Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
4. Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
5. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
6. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
7. Rusted components due to improper maintenance or corrosive environments.
8. Cosmetic defects that do not interfere with Product functionality.
9. Damage due to incorrect voltage or improper wiring.
10. Any failure that results from improper installation or use not according to specifications.
11. Damage caused by disasters such as fire, flood, wind, and lightning.
12. Damage caused by unauthorized attachments or modifications.
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
7. Responsibilities of Purchaser under this warranty/ notice of claims:
1. Provide dated proof of purchase and maintenance records.
2. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
3. Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

*Equipment structure is defined as any non‐moving permanently affixed frame or main body, or sub‐structures that are non‐moving and permanently affixed or attached to any main equipment structure or frame. **Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.

Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
