Rotary R144i Swing-Arm Tire Changer

In Stock SKU R144i

OUR PRICE: $5,509.00

Regular Price: $5,789.00

$153.02 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

Rotary R144i Swing-Arm Tire Changer
High-Performance Extra Height Changer

The Rotary R144i Swing-Arm Tire Changer is designed for affordability and growth. Rotary's New R144i Tabletop Tire Changer grows with your shop. Out of the box, the R144i is ready to tackle high-volume wheel service requests, while offering additional upgrades to help shops affordably step into advanced productivity and profits.

Description

Rotary

Rotary R144i Swing-Arm Tire Changer
High-Performance Extra Height Changer

The Rotary R144i Swing-Arm Tire Changer is designed for affordability and growth. Rotary's New R144i Tabletop Tire Changer grows with your shop. Out of the box, the R144i is ready to tackle high-volume wheel service requests, while offering additional upgrades to help shops affordably step into advanced productivity and profits.

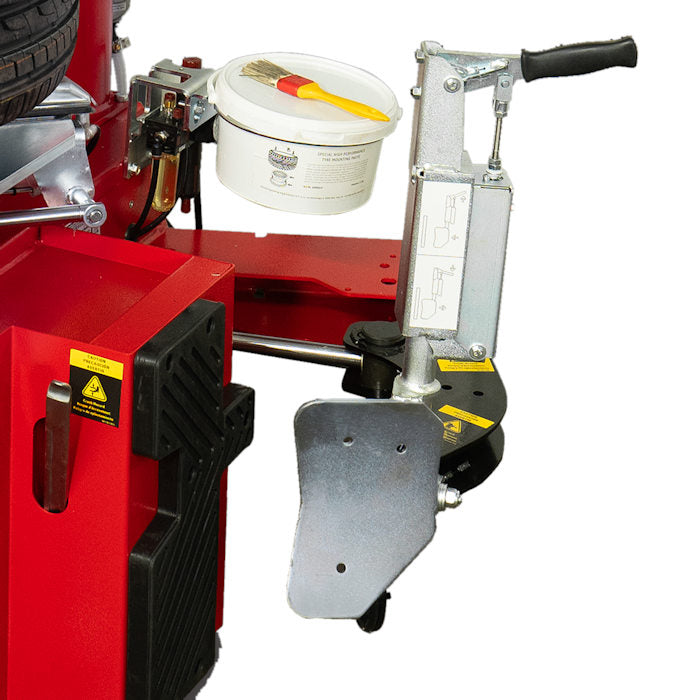

Greater Control with Less Strain
The R144i Tire Changer features a hand-controlled bead breaker, giving operators greater control and reducing the chance of rim damage. This hand-controlled system places less strain on the operator than pedal-controlled bead breakers, making the tire-changing experience more comfortable for your technicians. Its extra-wide tool shaft handles tires up to a 15" maximum width, while its POWER IN, PARK, and POWER OUT actions work on low-profile and large steel or alloy rims.

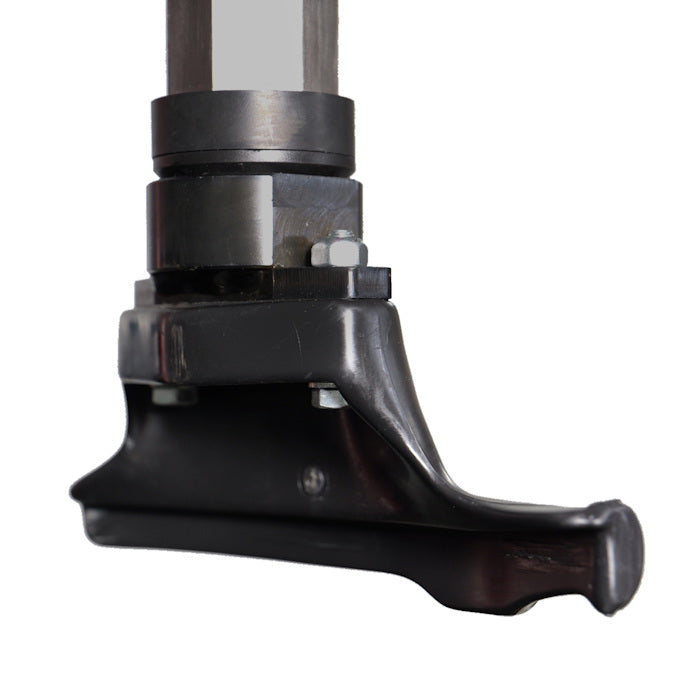

Wheel-Friendly
The R144i comes standard with a plastic mounting/demounting head for greater wheel protection, so your shop can focus on fast-paced, quality service. The featured mounting head is built to protect wheels, making it the perfect solution for high-volume shops and even up-and-coming technicians still learning the ins and outs of tire changing.

Space-Saving
Engineered to save space and maximize your shop's efficiency, the R144i features a built-in encapsulated air tank, freeing up valuable space behind your changer.

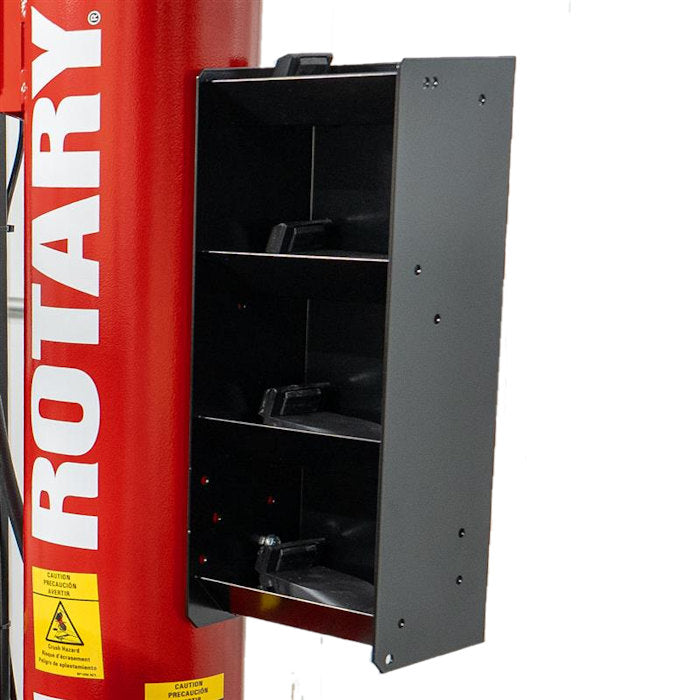

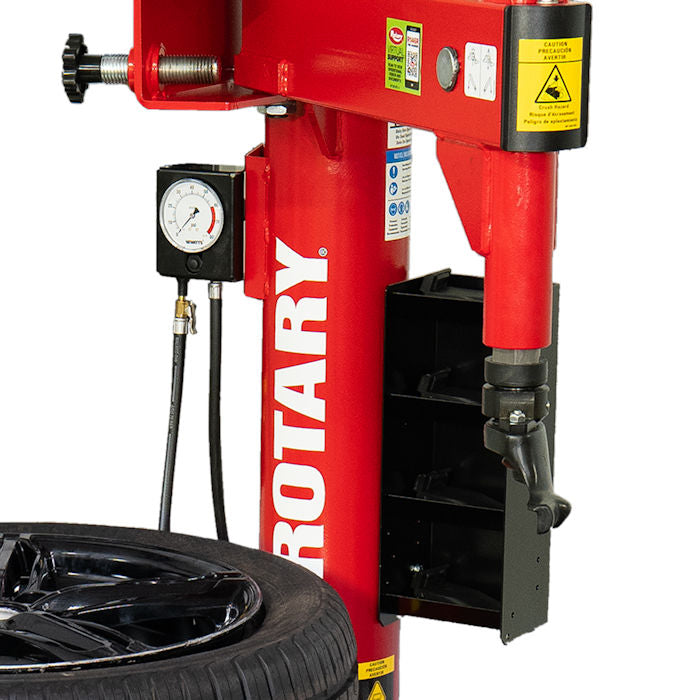

Convenient & Organized
Our handy storage compartment comes standard with the R144i. It keeps convenient tools and supplies (including valve stems, valve cores, and other tire-changing accessories) within arm's reach, speeding up your shop's tire-changing process.

Rotary Strong
The R144i is backed by Rotary's 100-year heritage as the world's preferred shop solution provider. Rotary wheel service products are supported by the industry's largest authorized distributor, installer, and service network. With Rotary, shops enjoy unmatched equipment uptime, revolutionary features, and industry-leading precision, and unbelievable freedom.

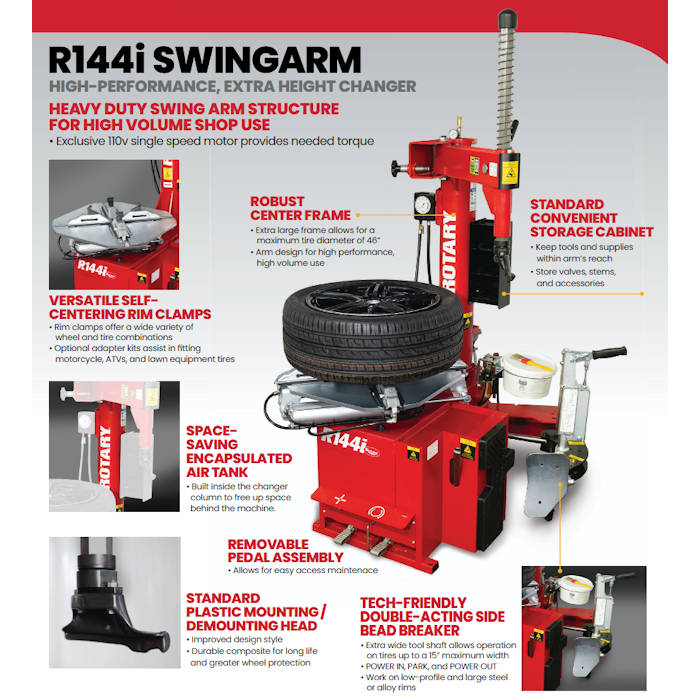

Features & Specs

Features

  • High Performance, Extra Height Tire Changer
  • Heavy-Duty Swing-Arm Structure For High Volume Shop Use
  • High Torque 110V Motor
  • Robust Center Frame

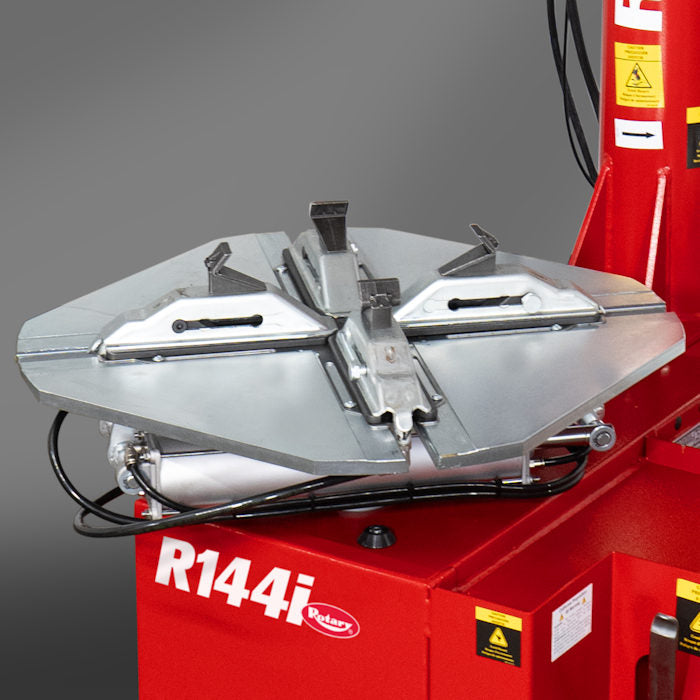

  • Versatile Self-Centering Rim Clamps
  • Space-Saving Encapsulated Air Tank
  • Removable Pedal Assembly
  • Standard Plastic Mounting/Demounting Head
  • Tech-Friendly Double-Acting Side Bead Breaker
  • Standard Convenient Storage Cabinet

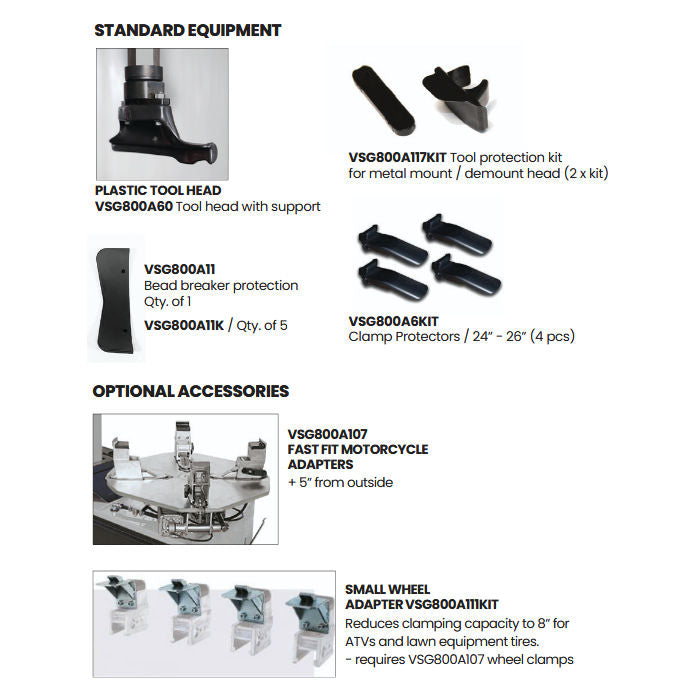

Standard Equipment

  • Plastic Tool Head
  • Tool Protection Kit For Metal Mount/Demount Head
  • Bead Breaker Protector
  • Clamp Protectors

Specifications

  • Internal Clamping: 12" - 28.5"
  • External Clamping: 10" - 26"
  • Max. Torque To Chuck: 885 ft/lbs (1200 Nm)
  • Internal Clamping: 12" - 28.5"
  • Max. Tire Diameter: 46" (1200 mm)
  • Max. Tire Width: 15" (380 mm)
  • Max. Bead Breaker Opening: 15" (380 mm)
  • Bead Breaker Cylinder Power At 145 PSI: 6,745 ft/lbs (3060 kg)
  • Power Supply : 110v / 1Ø / 60 Hz
  • Site Requirements: 110V/115-145 PSI Air Supply
  • Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.​

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period. ​

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.​

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.​

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.​

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.​

This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
