Rotary R5100HD Towerless Heavy-Duty Truck & Trailer Aligner
In Stock SKU RWA5100HD
OUR PRICE: $24,438.00
Regular Price: $25,659.00
Short Description
Rotary R5100HD Towerless Heavy-Duty Truck & Trailer Aligner
Multi-Axle Ready - No Run-Out Compensation Required

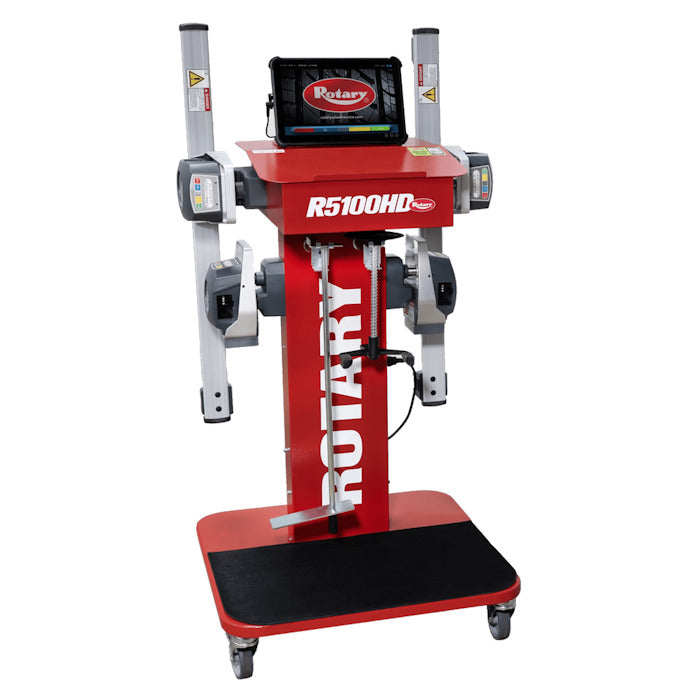

The Rotary R5100HD Towerless Heavy-Duty Truck & Trailer Aligner is a Windows Tablet-Based Alignment System that provides commercial shops with industry-leading precision and efficiency, while eliminating the bay-size requirements of traditional tower-based aligners. Experience precision, performance, and simplicity in one complete solution. The R5100HD is multi-axle ready and was designed to increase productivity, reduce setup time, and maximize available shop space. The R5100HD Pro replaces the R5000HD in Rotary's industry leading alignment offering.
Description
Rotary R5100HD Towerless Heavy-Duty Truck & Trailer Aligner
Multi-Axle Ready - No Run-Out Compensation Required
The Rotary R5100HD Towerless Heavy-Duty Truck & Trailer Aligner is a Windows Tablet-Based Alignment System that provides commercial shops with industry-leading precision and efficiency, while eliminating the bay-size requirements of traditional tower-based aligners. Experience precision, performance, and simplicity in one complete solution. The R5100HD is multi-axle ready and was designed to increase productivity, reduce setup time, and maximize available shop space. The R5100HD Pro replaces the R5000HD in Rotary's industry leading alignment offering.
Eliminates Dedicated Alignment Bays
Thanks to its compact, towerless design, Rotary's revolutionary R5100HD alignment system eliminates the need for a dedicated alignment bay and allows shops to perform alignments anywhere - on the floor, on a lift, or even in the parking lot.
Work From Anywhere In The Bay
Featuring a rugged, full-powered Windows PC Tablet, this revolutionary alignment system gives technicians complete control so they can work from anywhere in the bay and cut down on the time spent traveling to and from the alignment console. A strong, reliable magnetic backing provides even greater convenience, enabling secure tablet placement on any lift or chassis during adjustment operations.
No Rolling Compensation Required
Rotary's NEW R5100HD features industry-leading three-point clamps that self-center on commercial lug nuts for incredible accuracy and faster setup times. These clamps eliminate the need for rolling compensation and moving heavy-duty vehicles during the alignment process, providing a safer work environment for techs.
Get To Work & Align Faster
Our easy-to-onboard alignment system features step-by-step illustrated procedures so your shop can get to work sooner, focusing on what matters most for your shop.
Save Money. Multi-Axle Ready.
Unlike comparable competitor models, Rotary's NEW R5100HD eliminates the need to purchase additional CCD sensors and clamps to align multi-axle vehicles. The R5100HD's fast, accurate, and easy step-by-step system will guide your techs through the process, utilizing only four CCD sensors, saving your shop time and money.
Commercial Aligner Features
- Tower-free system
- Mobile tablet operation
- Double inclinometer for caster adjustment
- 6-CCD sensor system with axle offset calculation
- No run-out compensation required

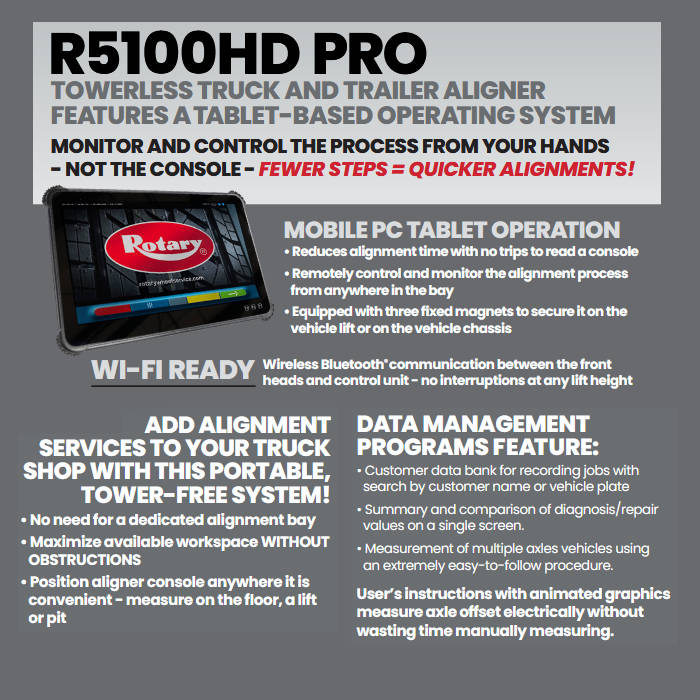

Tablet-Based Operation
- Mobile PC tablets allow technicians to monitor and control alignments directly at the vehicle
- Fewer steps and faster alignments, no trips back to a fixed console
- Tablet secures to the lift or chassis with integrated fixed magnets
Wireless, Interruption-Free Performance
- Reliable operation at at any height with no cable obstructions
- Wi-Fi ready with Bluetooth® communication between measuring heads and control unit

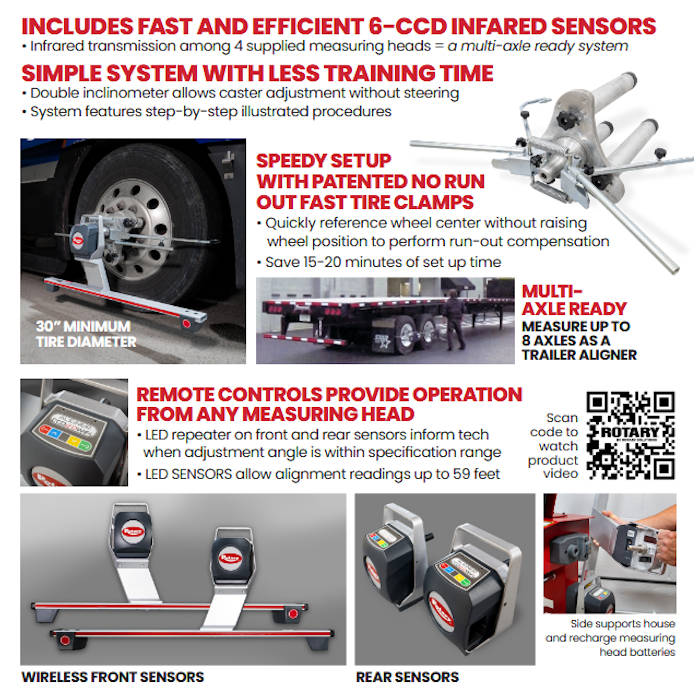

Fast, Accurate Measurement
- 6-CCD infrared sensor system with infrared transmission between four measuring heads
- Multi-axle ready system capable of measuring up to 8 axles
- LED repeaters on front and rear sensors indicate when adjustments are within specification
- Alignment readings supported up to 59 feet
Reduced Setup & Training Time

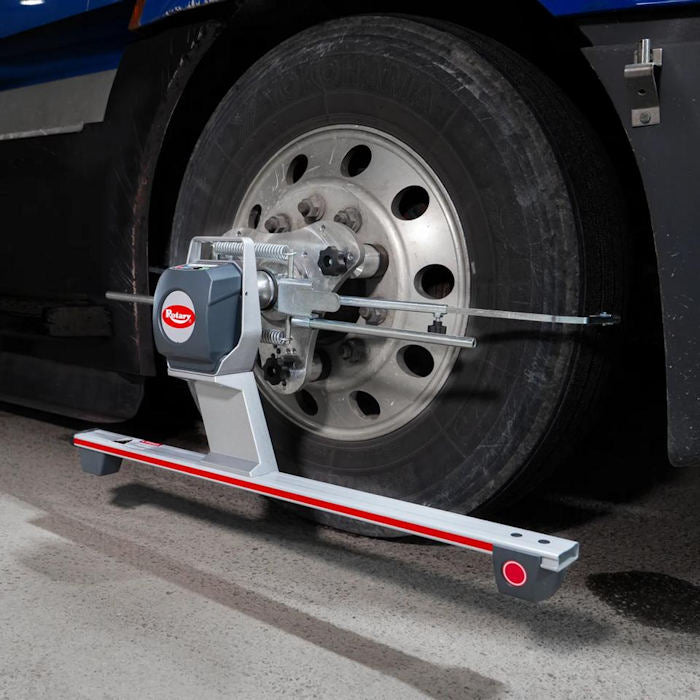

- Patented No-Run-Out Fast Tire Clamps eliminate traditional run-out compensation
- Save 15 - 20 minutes per setup by referencing wheel center without raising the vehicle
- Double inclinometer allows caster adjustment without steering
- Step-by-step illustrated procedures and animated user instructions
Flexible Shop Integration
- No dedicated alignment bay required
- Measure vehicles on the floor, lift, or over a pit
- Tower-free design maximizes workspace and removes obstructions
- Minimum tire diameter: 30 inches
Data Management
- Customer data bank with search by customer name or vehicle plate
- Single-screen summary and comparison of diagnosis and repair values
- Electronic axle offset measurement - no manual measuring required

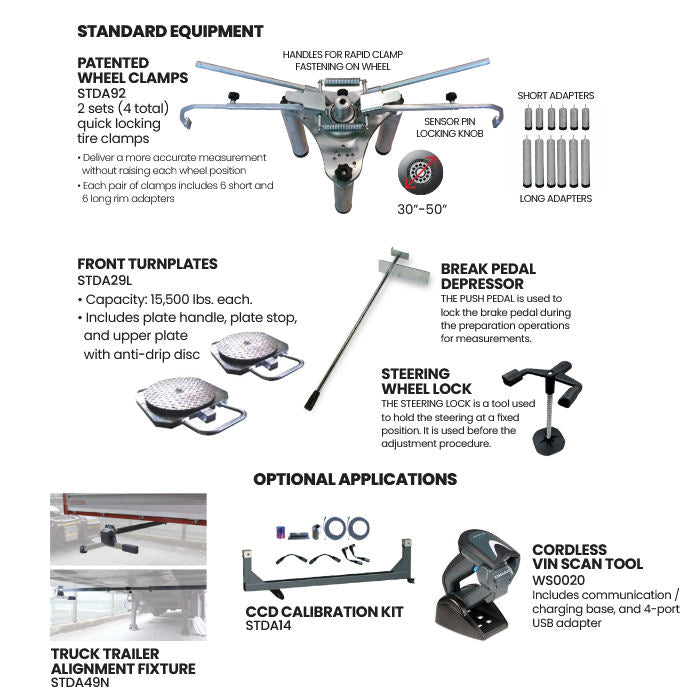

Standard Equipment Includes

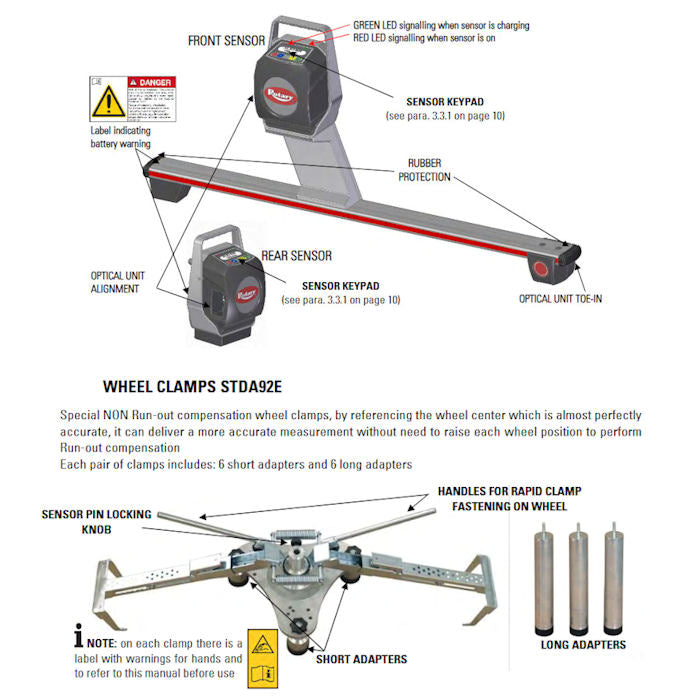

- Patented wheel clamps (2 sets / 4 total) with quick-locking tire clamps
- Short and long rim adapters (6 each per clamp pair)
- Front turnplates (15,500 lb. capacity each) with anti-drip disc
- Brake pedal depressor
- Steering wheel lock
Power Supply: 110V / 10 / 60 Hz
Features & Specs
Features
- Tower-Free Tablet-Based Commercial Aligner
- Double Inclinometer for Caster Adjustment
- 6-CCD Sensor System with Axle Offset Calculation
- No Run-Out Compensation Required
- Tablet-Based Operation with Integrated Fixed Magnets
- Wireless Wi-Fi Ready Bluetooth Operation Provides Interruption-Free Performance
- Fast, Accurate Multi-Axle Ready Measurement
- Reduced Setup & Training Time
- No-Run-Out Fast Tire Clamps
- Step-By-Step Illustrated Procedures
- Flexible Shop Integration
- No Dedicated Alignment Bay Required
- Measure Vehicles On The Floor, Lift, Or Over A Pit
- Tower-Free Design Maximizes Workspace And Removed Obstructions
- Data Management
- Electronic Axle Offset Measurement - No Manual Measuring Required
What's Included
- R5100HD Aligner
- Windows Based Tablet
- (4) Patented Wheel Clamps with Quick-Locking Tire Clamps
- (6) Each Per Clamp Pair Short and Long Rim Adapters
- Front Turnplates with Anti-Drip Disc
- Brake Pedal Depressor
- Steering Wheel Lock

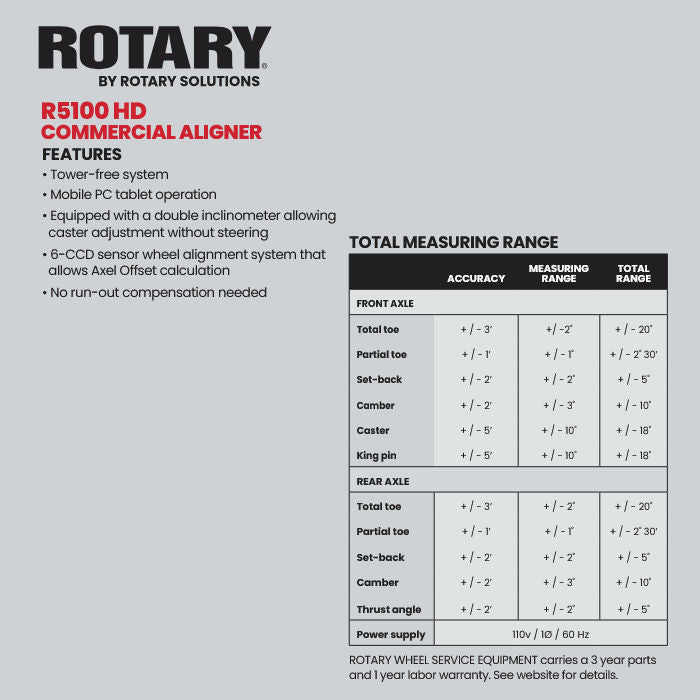

Front Axle Specifications
- Total Toe: +/- 2'+/- 2°+/- 20°
- Partial Toe: +/- 1′ +/- 1° +/– 2˚ 30'
- Set-back: +/- 2' +/- 2° +/- 5°
- Camber: +/- 2' +/- 3° +/- 10°
- Caster: +/- 5′ +/- 10° +/- 18°
- King-pin: +/- 5′ +/- 10° +/- 18°
Front Axle Specifications
- Total Toe: +/- 2′ +/- 2° +/- 5˚
- Partial Toe: +/- 1′ +/- 1° +/- 2˚ 30'
- Set-back: +/- 2′ +/- 2° +/- 5˚
- Camber: +/- 2′ +/- 3° +/- 10˚
- Thurst angle: +/- 2′ +/- 2° +/- 5°
- Power Supply: 110v / 1Ø / 60 Hz
- Machine Warranty: (3) Years Functional, (1) Year Labor
Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship ("Warrantable Failure"). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.
Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period.
VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.
VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.
This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.
This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.
This warranty shall be governed by the laws of the State of Indiana and shall be subject to the exclusive jurisdiction of the Court in the State of Indiana in the County of Jefferson.
