Titan Lifts HD4P-12000 Heavy Duty Four Post Lift

Name: Titan Lifts HD4P-12000 Heavy Duty Four Post Lift
Brand: ASEDeals
SKU: HD4P-12000
Price: 6393.0 USD
Availability: InStock

Out Of Stock SKU HD4P-12000 UPC 91037579560

OUR PRICE: $6,393.00

Regular Price: $6,719.00

$177.58 / mo

INCLUDES FREE SHIPPING*

Short Description

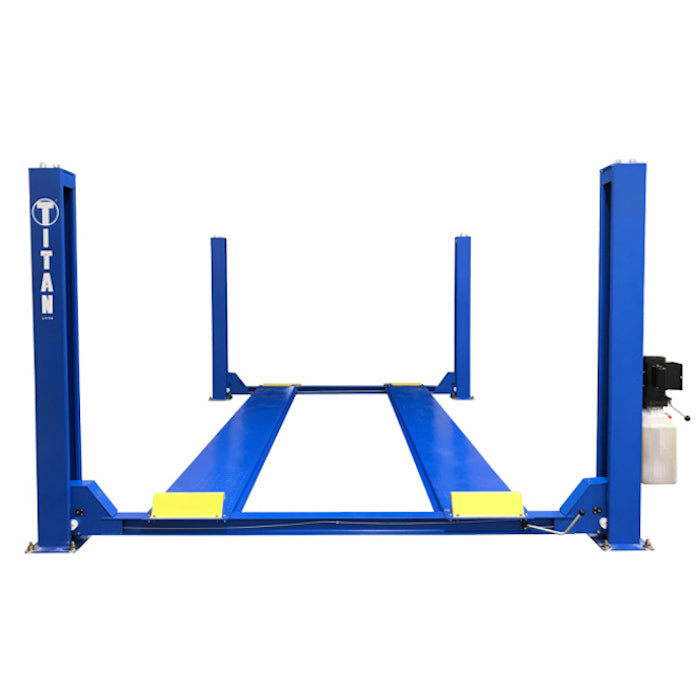

Titan Lifts HD4P-12000 12,000 lbs. Capacity Heavy Duty
Commercial Grade Cable Driven Four Post Lift
The HD4P-12000 Heavy Duty Four Post Lift provides 12,000 lbs. of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.

CURRENT LEAD TIME 6-8 WEEKS

Description

Titan Lifts

Titan Lifts HD4P-12000 12,000 lbs. Capacity Heavy Duty
Commercial Grade Cable Driven Four Post Lift

The HD4P-12000 Heavy Duty Four Post Lift provides 12,000 lbs. of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.

Features & Specs

Specifications

Capacity: 12,000 lbs.
Overall Height: 88"
Overall Width: 137"
Overall Length: 195.25"
Lifting Speed: 51 sec
Max Lifting Height: 67"
Lowered Runway Height: 6"
Width Between Columns: 118.5"
Max Drive-Thru Clearance: 104.5"
Max Clearance Under Runway: 63"
Runway Width: 19.25"
Width Between Runways: 48"
Runway Length (no ramp): 191.25"
Ramp Length: 38"
Load Capacity: 12,000 lbs.
Concrete Spec. Min.: 4" Reinforced @ 3,000 PSI
Power Supply: 220V-1PH-60HZ-20AMP1
Shipping Dimensions L x W x H: 196" L x 25" W x 43" H
Shipping Weight: 2,900 lbs.
Warranty: (5) Years Structure, (1) Year Hydraulic & Electrical Parts, No Labor

Titan Limited Warranty
Titan 2 Post lifts and 4 Post lifts are backed by a standard 1 year replacement parts warranty and a 5 year structural warranty from the date of purchase, to the original purchaser only. The 1 year replacement parts warranty covers power units, hydraulic cylinders, and all other assembly components such as, but not limited to: turn plates, slip plates, cables, chains, valves, switches etc. This does not cover normal wear items such as but not limited to rubber lifting pads and nylon slide blocks. Titan Elite model lifts have been discontinued but still qualify under the same terms as shown above.
