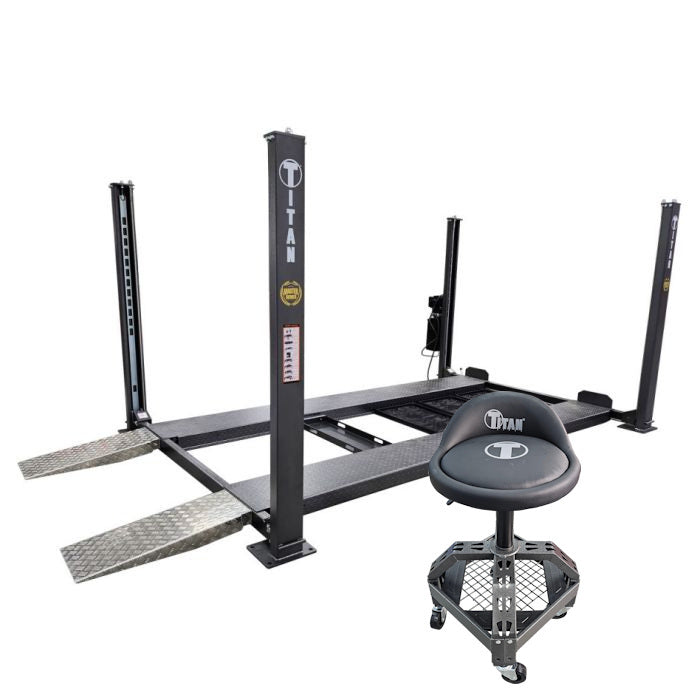

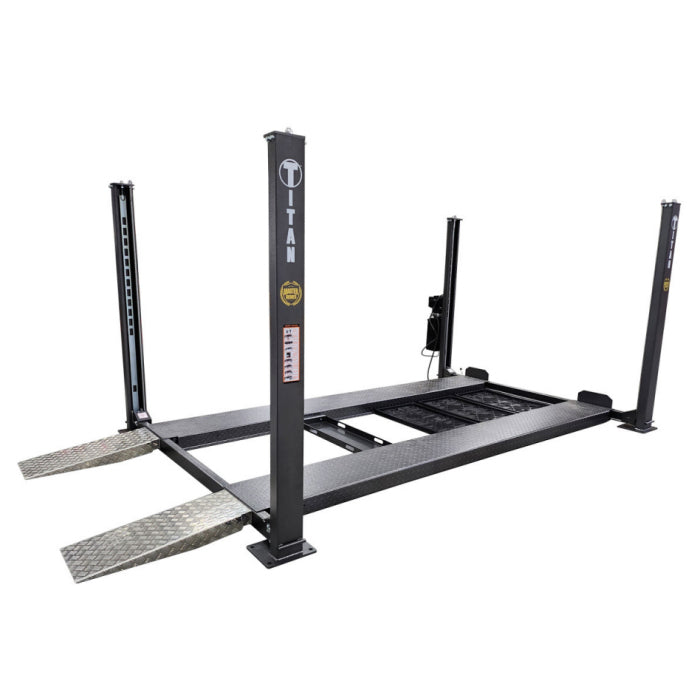

Titan Lifts MASTER Series SDPL-8KMS Four Post Lift

Features & Specs

Features

• 8,000 lbs. Lifting Capacity
• Powder Coated Hammered Dark Finish
• Internal Linkage Rods
• Single Point Safety Lock Release Handle

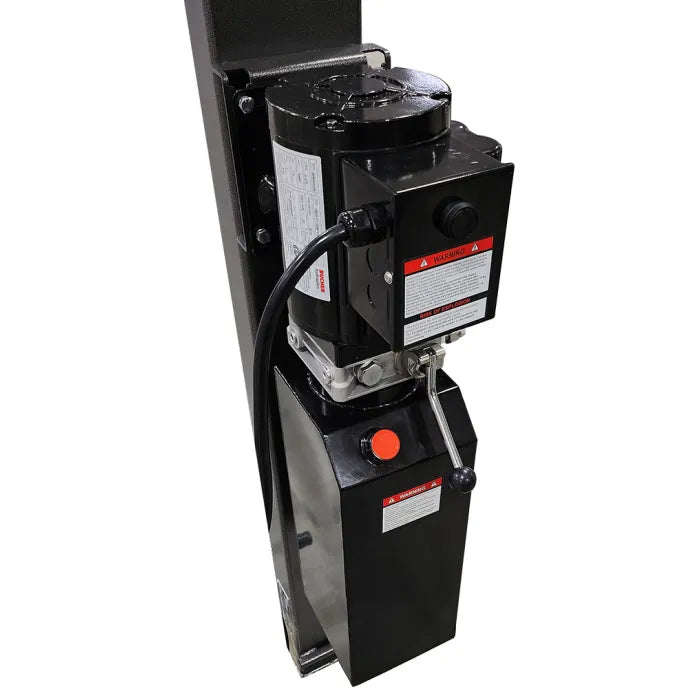

• Metal Hydraulic Tank Reservoir
• Diamond Plated Steel One Piece Formed Runways

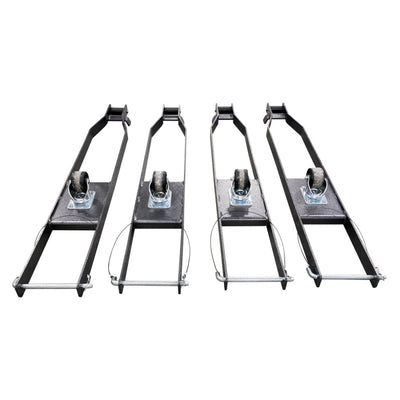

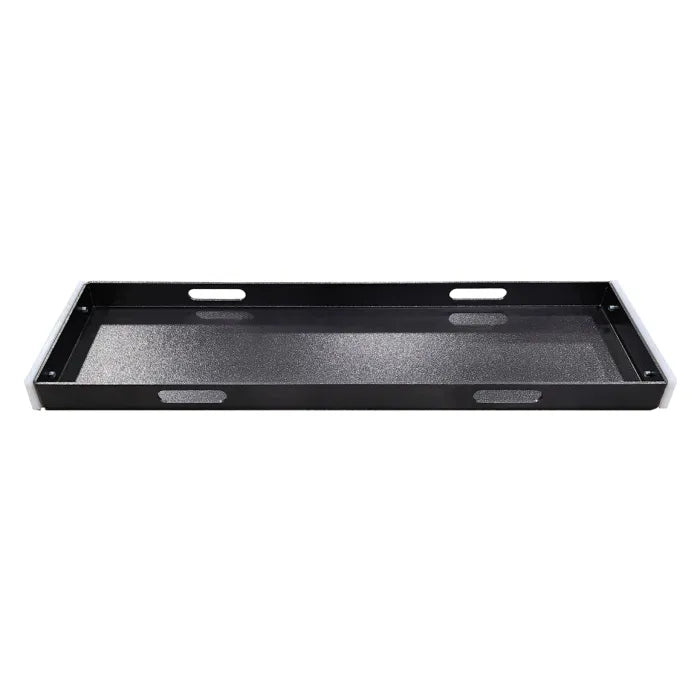

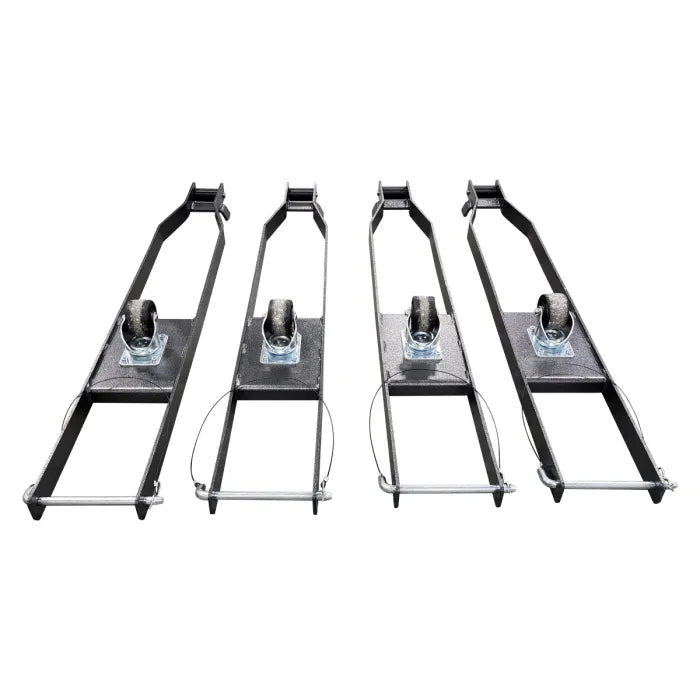

• Includes Aluminum Ramps, Caster Kit, Drip Trays, Tool Tray, and Wheel Stop Plates
• 6 Year Structural, 2 Year Electric / Hydraulic Warranty

Optional Accessories

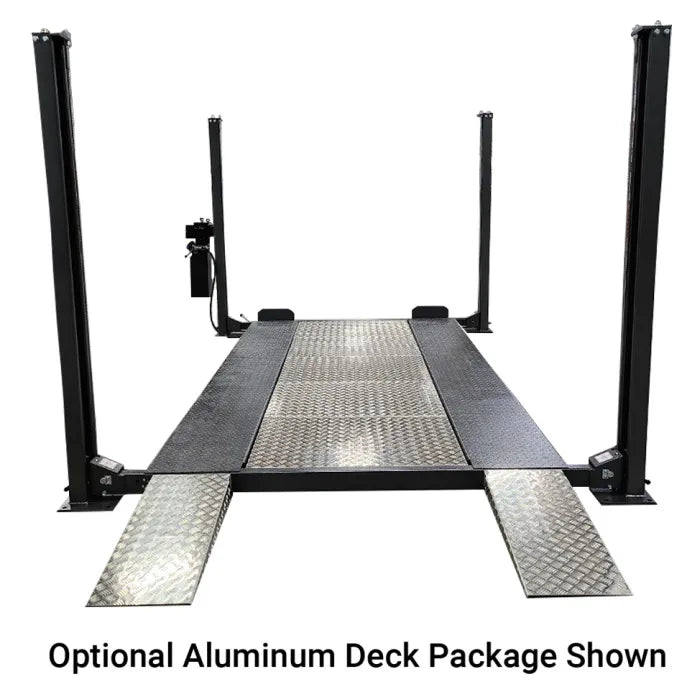

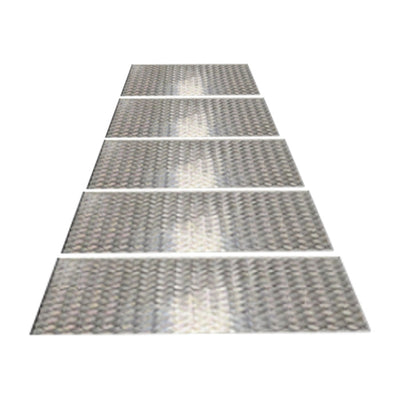

• Aluminum Center Deck Package
• Jack Tray
• Sliding Bridge Jack

Specifications

• Lifting Capacity: 8,000 lbs.
• Center Of Baseplates - Width: 99-5/8"
• Outside Of Baseplates - Width: 109-13/16"
• Outside Of Columns - Width: 107-1/16"
• Inside Of Columns - Width: 100-3/8"
• Overall Width with Motor: 122-5/8"
• Drive-Thru: 90"
• Between Runways: 43-1/2"
• Out To Out - Runways: 80-7/8"
• Length Of Runway: 160"
• Width Of Runway: 18-11/16"
• Total Length Of Ramp: 36-5/8"
• Baseplate Dimensions: 11-13/16" x 10-1/4"
• Column Dimensions: 3-3/8" x 6-5/16"
• Center Of Baseplates - Length: 158-1/16"
• Outside Of Baseplates - Length: 169-7/8"
• Outside Of Columns - Length: 164-3/8"
• Inside Of Columns - Length: 151-3/4"
• Overall Length with Ramps: 201-7/16"
• Lifting Height: 4-1/2" - 76-3/4"
• Overall Height: 83-9/16"
• Shipping Dimensions: 164" L x 23" W x 45" H
• Shipping Weight: 1,667 lbs.
• Warranty: (6) Years on Structure, (2) Years on Electric / Hydraulic, No Labor

Titan Limited Warranty
Titan Master Series 4 Post Lifts are backed by a 2-year replacement parts warranty and a 6-year structural warranty from the date of purchase, to the original purchaser only. The 2-year replacement parts warranty covers power units, hydraulic cylinders, and all other assembly components such as, but not limited to: valves, switches, capacitors etc. This does not cover normal wear items such as, but not limited to: rubber lifting pads, nylon slide blocks and rubber arm pads.

For all warranty considerations, Titan Marketing, LLC will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. Hydraulic/Pneumatic cylinders may qualify for exchange under warranty if reported within the first 30 days from date of sale. After the first 30 days from date of sale, a seal kit and installation instructions will be sent for cylinder repairs. All defective parts must be returned to Titan for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Titan Marketing, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A TITAN MARKETING LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY. Titan Marketing, LLC, P.O. Box 7069, Greenwood, IN 46142, Phone (888) 908-4826, Fax (317) 215-2770
