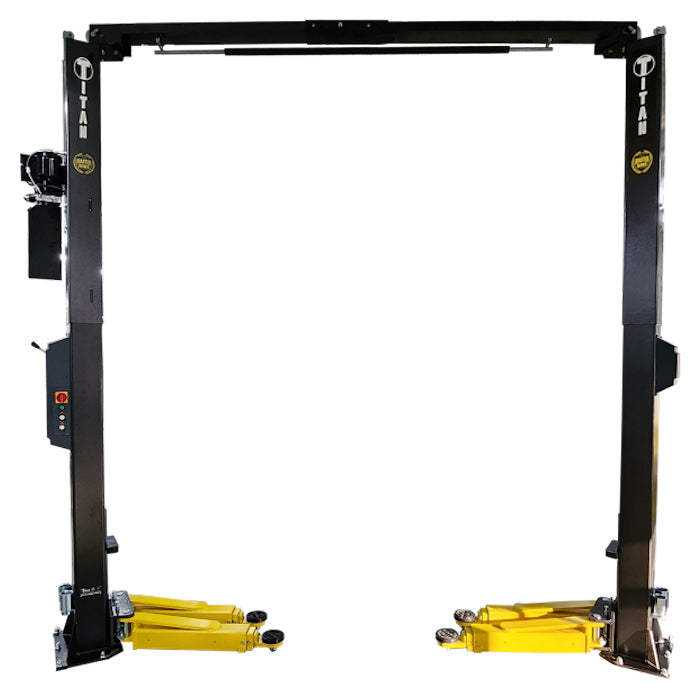

Titan Lifts MASTER Series HD2P-12KMSC Clearfloor Two Post Lift
In Stock SKU HD2P-12KMSC UPC 672975028190
OUR PRICE: $7,042.00
Regular Price: $7,399.00
Short Description
Titan Lifts MASTER Series HD2P-12KMSC Clearfloor Two Post Lift
12,000 lbs. Lifting Capacity with Adjustable Height
The all-new Titan Lifts MASTER Series 12,000 lbs. Clearfloor Two Post Lift is perfect for any hobbyist or commercialized application. With the flexibility to have asymmetric or symmetric columns and two height options of either 154" or 176" this lift is a great option for most applications. The HD2P-12KMSC comes with a premium motor by 100-year old industry innovator Bucher Hydraulics, and a robust set of 3-stage front and 3-stage rear arms to ensure years of consistent operation. Combine all that with the included disconnect and one button operation to be the last lift you will ever need.
Description
Titan Lifts MASTER Series HD2P-12KMSC Clearfloor Two Post Lift
12,000 lbs. Lifting Capacity with Adjustable Height
The all-new Titan Lifts MASTER Series 12,000 lbs. Clearfloor Two Post Lift is perfect for any hobbyist or commercialized application. With the flexibility to have asymmetric or symmetric columns and two height options of either 154" or 176" this lift is a great option for most applications. The HD2P-12KMSC comes with a premium motor by 100-year old industry innovator Bucher Hydraulics, and a robust set of 3-stage front and 3-stage rear arms to ensure years of consistent operation. Combine all that with the included disconnect and one button operation to be the last lift you will ever need.
Features & Specs
Features
- 12,000 lbs. Lifting Capacity
- Asymmetric Or Symmetric Columns
- Lift Height Of 154" Or 176"
- Power On Green LED

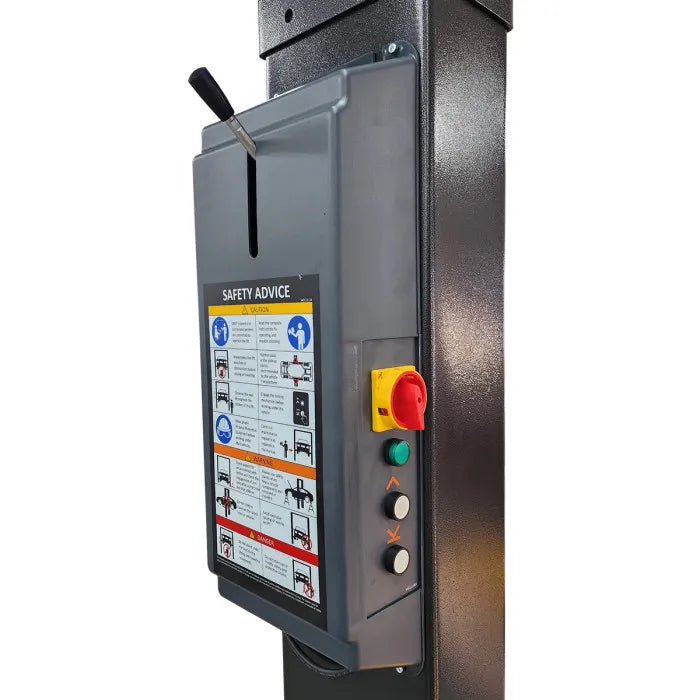

- Single Button Operation
- Included Electrical Disconnect
- Single Lever Lowering

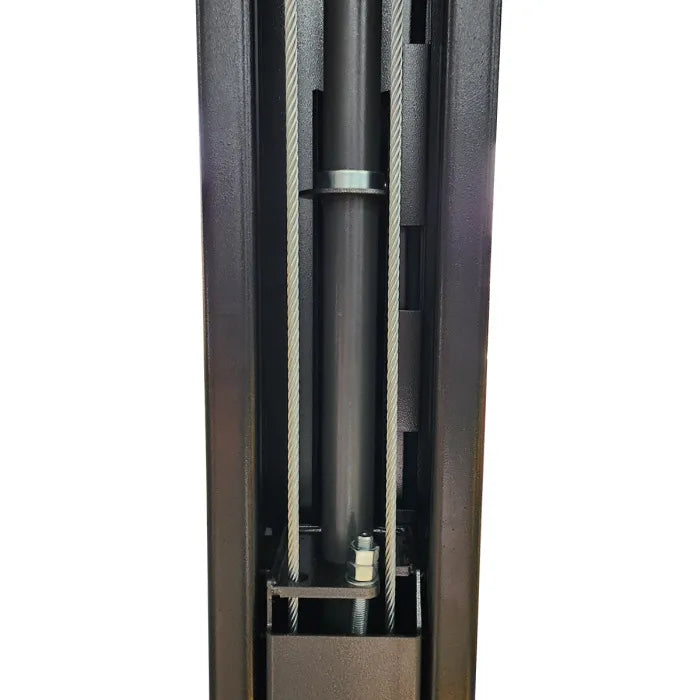

- Direct Drive Hydraulic Cylinders
- Single Point Lock Release
- Overhead Shut-Off Bar With Limit Switch
- Carriage Limit Switch
- Serviceable Arm Restraint Locks

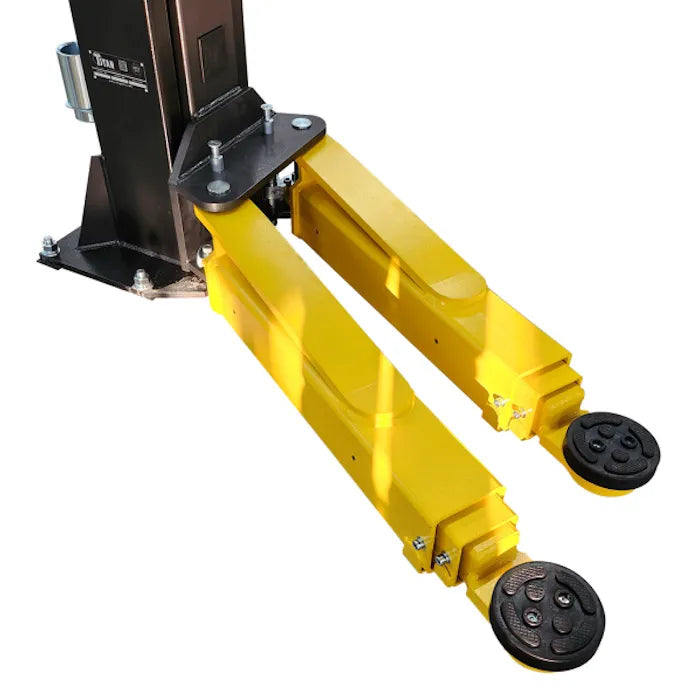

- 3-Stage Front and 3-Stage Rear Arms
- European Style Carriages
- Thread Up Lifting Pads
- 4" Truck Adapters
- Rubber Door Guards

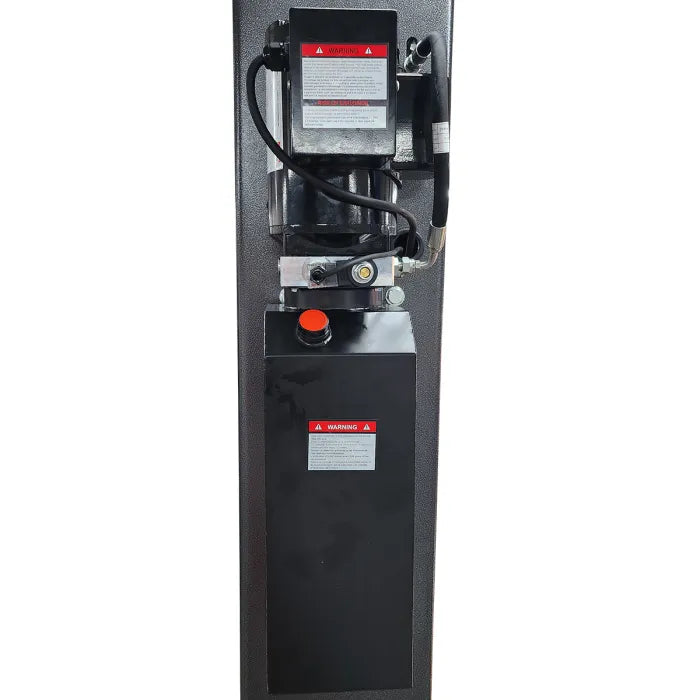

- Steel Hydraulic Oil Reservoir
- Powder Coated Hammered Dark Finish
- Durable Textured Powder-Coated Finish
- 5 Year Structural Warranty
- 2 Year Electric/Hydraulic Warranty
- Lifetime Warranty On Nylon Slide Blocks
Specifications
- Lifting Capacity: 12,000 lbs.
- Power Unit: 220V 60Hz 1Ph 2.2kW
- Shipping Weight: 2,190 lbs.
- Shipping Dimensions: 113" L x 23" W x 47" H
- Warranty: (5) Years on Structure, (2) Years on Parts, No Labor
- *Lifetime Warranty on Nylon Slide Blocks
Dimensions with Symmetric Column Configuration
- Outside Of Baseplates - Width: 154-7/8"
- Inside of Columns - Width: 131-3/4"
- Overall Width w/Motor: 160-3/16"
- Drive-Thru: 119"
- Lifting Height: 4-5/16" to 74-13/16"
- Overall Height: 153-9/16" or 175-1/4"
- Shipping Weight: 2,190 lbs.
- Power Unit: 220V 60Hz 1Ph 2.2kW
Dimensions with Asymmetric Column Configuration
- Outside Of Baseplates - Width: 161-1/2"
- Inside of Columns - Width: 126"
- Overall Width w/Motor: 161-1/2"
- Drive-Thru: 113-3/8"
- Lifting Height: 4-5/16" to 74-13/16"
- Overall Height: 153-9/16" or 175-1/4"
Titan Limited Warranty
Titan Master Series, SL-6600 Scissor Lifts and PREMIER Series 2 Post Lifts are backed by a 2-year replacement parts warranty and a 5-year structural warranty from the date of purchase, to the original purchaser only. The 2-year replacement parts warranty covers power units, hydraulic cylinders, and all other assembly components such as, but not limited to: valves, switches, capacitors etc. This does not cover normal wear items such as, but not limited to: rubber lifting pads, nylon slide blocks and rubber arm pads. Titan Master Series includes lifetime warranty on nylon slide blocks.
For all warranty considerations, Titan Marketing, LLC will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. Hydraulic/Pneumatic cylinders may qualify for exchange under warranty if reported within the first 30 days from date of sale. After the first 30 days from date of sale, a seal kit and installation instructions will be sent for cylinder repairs. All defective parts must be returned to Titan for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Titan Marketing, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner's manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A TITAN MARKETING LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY. Titan Marketing, LLC, P.O. Box 7069, Greenwood, IN 46142, Phone (888) 908-4826, Fax (317) 215-2770
