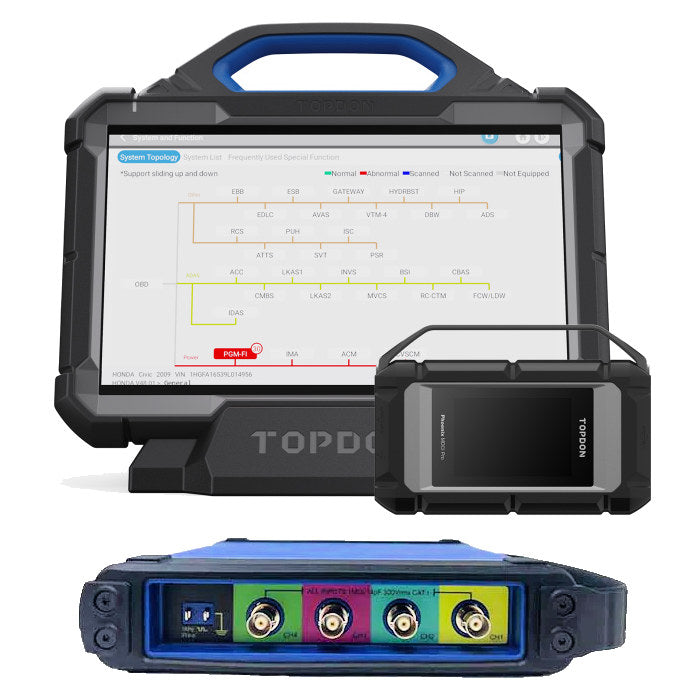

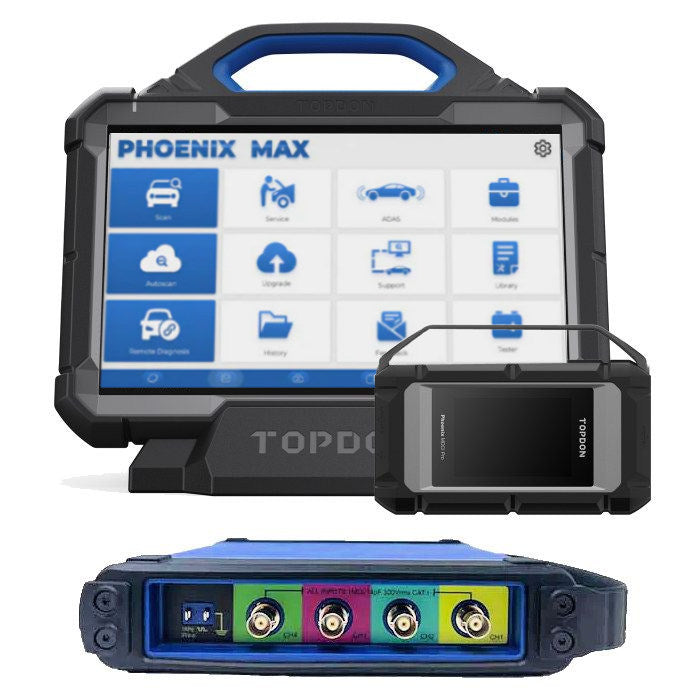

TOPDON Phoenix Max Integrated Diagnostic Tablet with Oscilloscope

Features & Specs

Features

• Includes a 4-channel Oscilloscope
• Supports Online Programming for 9+ Brands
• Supports 9V to 24V Vehicle Models, Configuring both Passenger Cars and Heavy Trucks
• Access the FCA Gateway to Work on the Most Modern Vehicles and Adjust Protected Functions
• Supports ADAS Calibration and Battery Testing

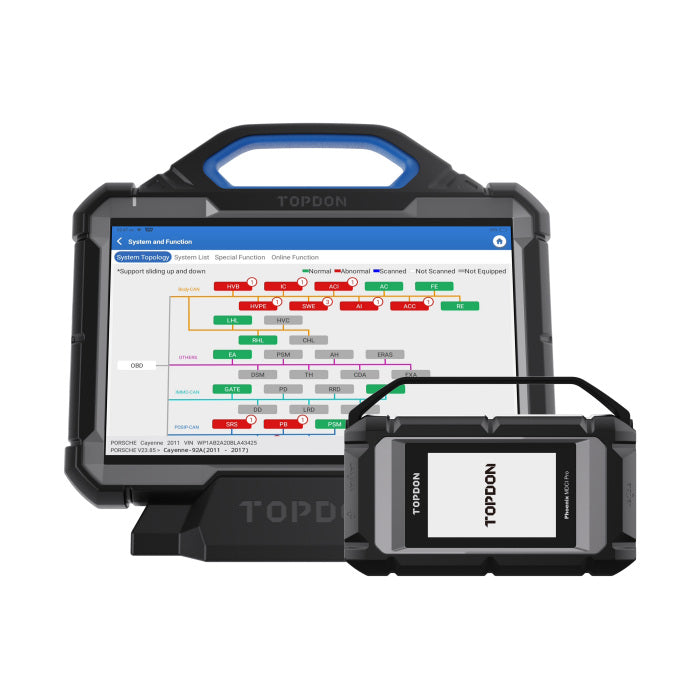

• Features Topology Mapping

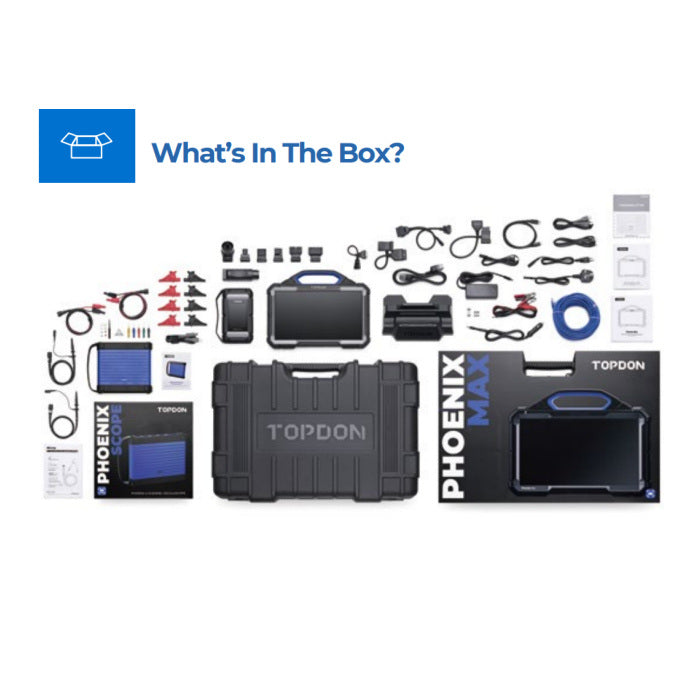

What's in the Box

• Phoenix Max
• Base
• Phoenix MDCI PRO (VCI Dongle)

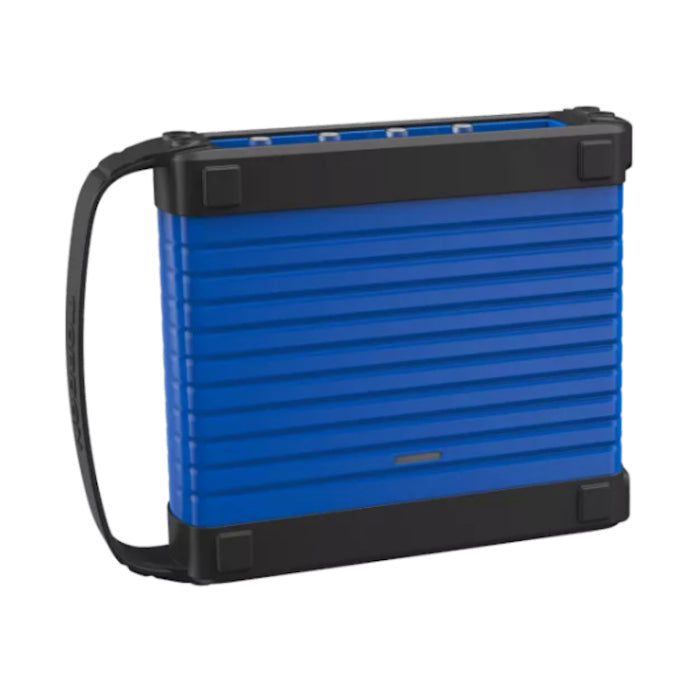

• Phoenix Scope
• OBD I Adaptor
• MDCI PRO CAB Male to Diagnostic Cable
• Clipper Cable (LCDSS)
• MDCI PRO CAB Type A to B Cable
• Type A USB to Type C
• Ethernet Cable
• Cigarette Lighter Cable
• Adaptor
• AC Cable (US)
• AC Cable (EU)
• AC Cable (UK)
• Mini-HDMI to HDMI
• 3-in-1 Charger (Matched with U.S., U.K. and European plugs)
• Charging Cable
• (4) Fuse (AC250V/5A, φ5x20mm)
• (2) Fuse (AC250V/5A, φ6x30mm)
• User Manual
• Password Envelope
• Non-16pin Adaptor Cable Kit
• B-20 (BMW)
• BZ-38 (BENZ)
• CR-6 (CHRYSLER)
• FT-3 (FIAT)
• G/V-12 (GM/VAG)
• HA-3 (HONDA)
• M/H-12+16 (MITUBISHI/HYUNDAI)
• NN-14+16 (NISSAN)
• TA-17 (TOYOTA)
• TA-22 (TOYOTA)

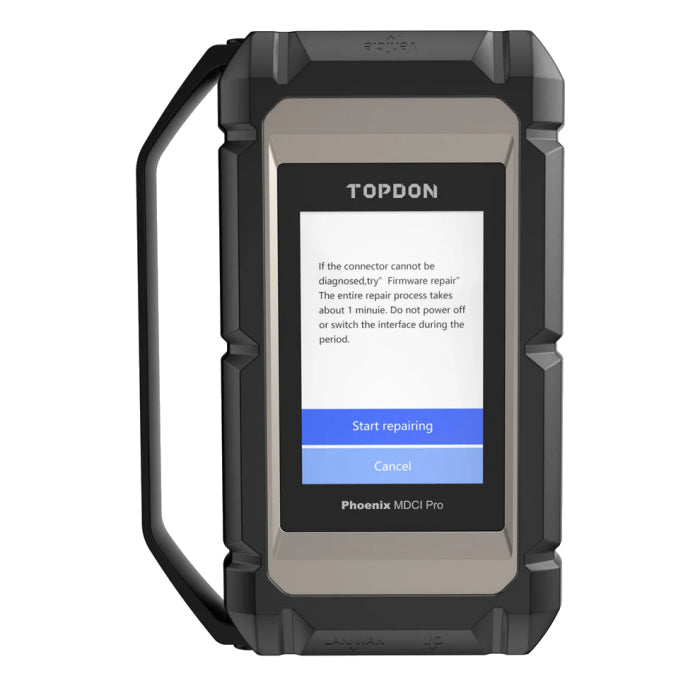

Phoenix MDCI PRO Specifications

• Display: TFT, 3.97 inches, 320 x 480 pixels
• CPU: Cortex-A7 + Cortex-M7, Dual Processor
• Operating System: Linux
• RAM: 256M
• ROM: 8G
• Wi-Fi: 2.4GHz/5GHz, Dual Band
• Operating Voltage: 9~36 V
• Working Temperature: 0℃~50℃ (32℉~122℉)
• Dimensions: 196 x 135 x 42.8 mm (7.72 x 5.31 x 1.69 inches)
• New Protocols Supported: J2534, CAN FD, DoIP, D-PDU, RP1210

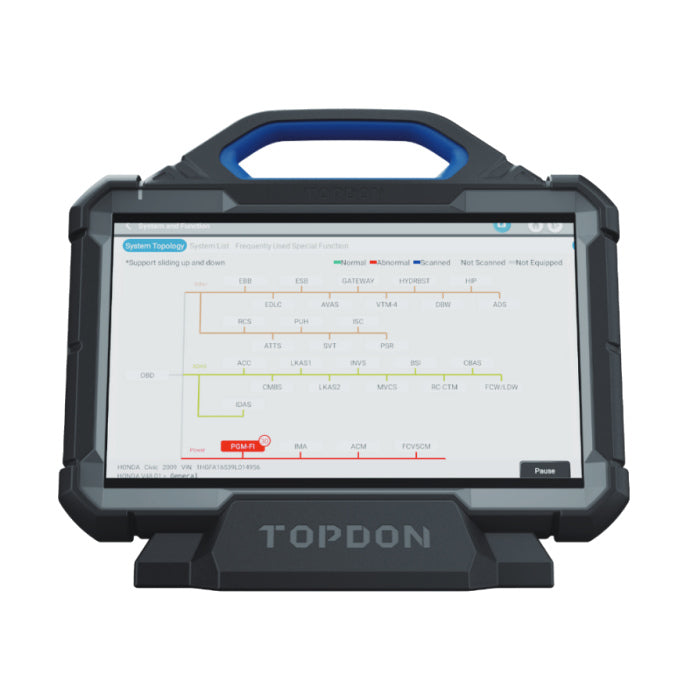

Phoenix Max Specifications

• Display: LCD 13.3 inches, 1920 x 1200 pixels
• CPU: 8-Core Processor, 2.0 GHz, Android 9.0
• RAM: 8G
• ROM: 256G
• Battery: 18600 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
• Working Temperature: 0℃ to 50℃ (32℉ to 122℉)
• Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)
• Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)
• Net Weight: 3.18kg (7.0 lb)
• Multilingual Support: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish
• Software Upgrades: (2) Years Free
• Warranty: (2) Years
