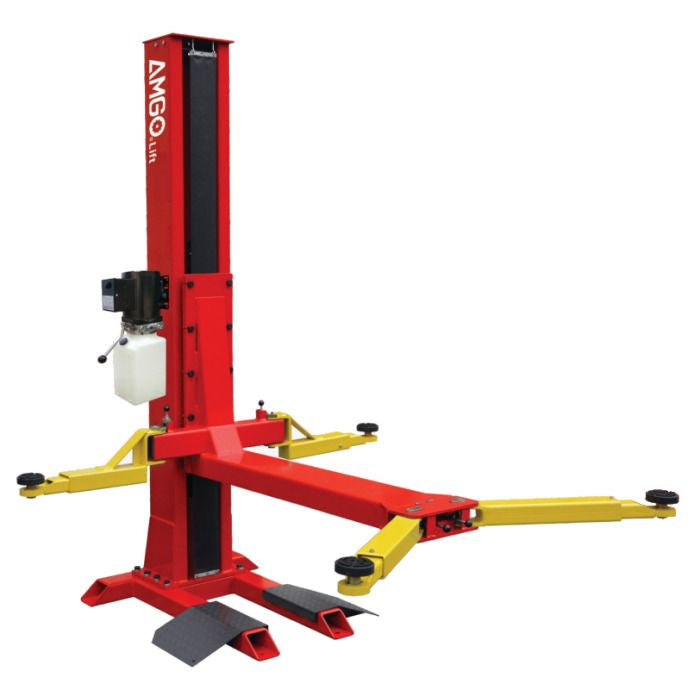

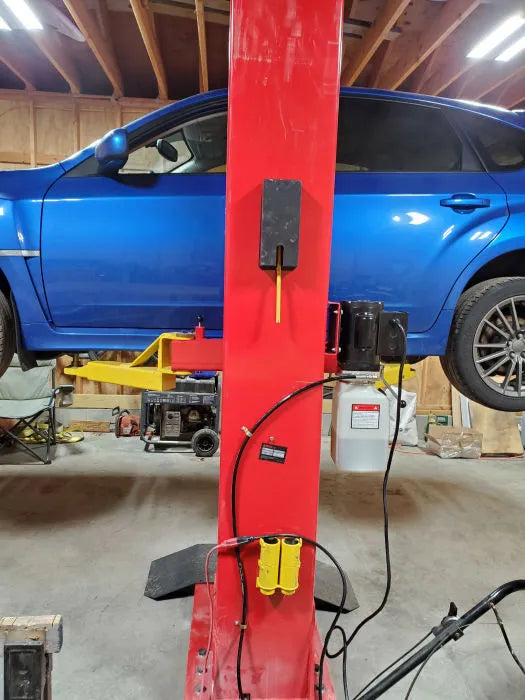

AMGO SL-7 Full-Rise Single Post Lift

Features & Specs

Features

• 7,000 lbs. Lifting Capacity
• Portable Single Post Lift
• Maximum Lifting Height 77 3/4"
• Minimum Lfting Height 4 3/8"
• Self-Lubricating UHMW Polyethylene Sliders and Bronze Bushings
• High Quality Cylinders and Power Units are Manufactured to High Standards

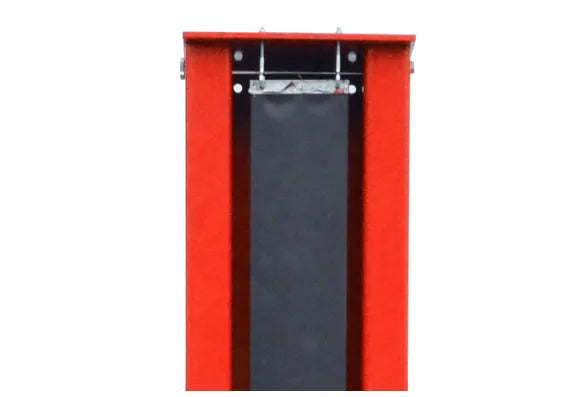

• Dust Cloth Provides Protection to the Chain and Gives SL-7 an Elegant Appearance

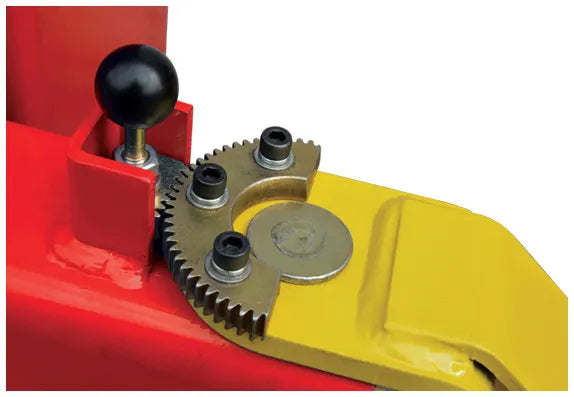

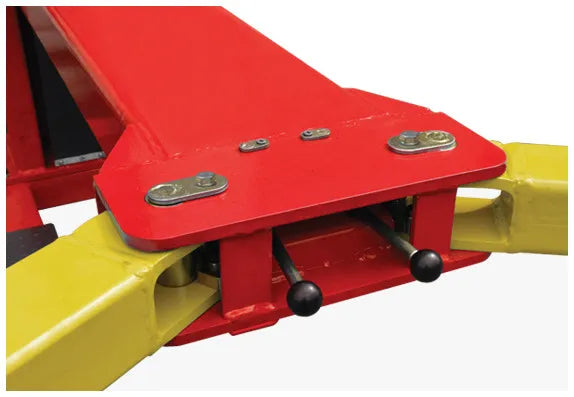

• Arm Locking Device with Easy to Release Handles

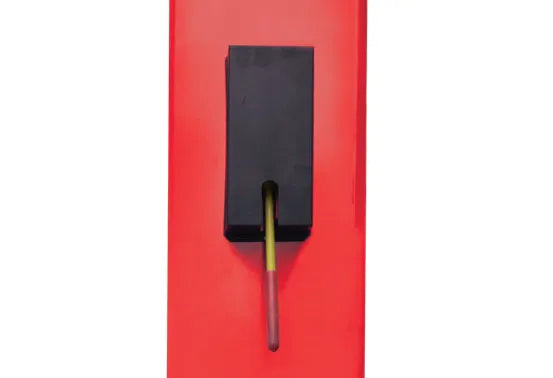

• Single Point Safety Release Unlocks both Column Locks

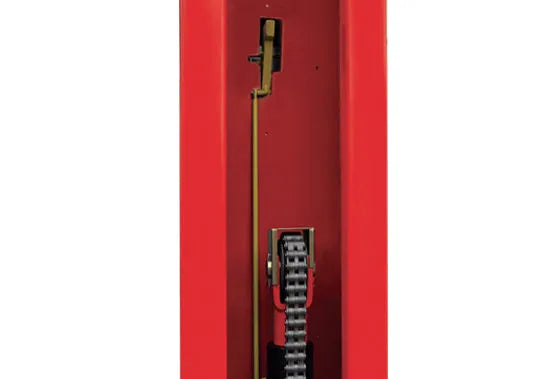

• Manual Single Locking Release Safety Device Controls the Double Locks

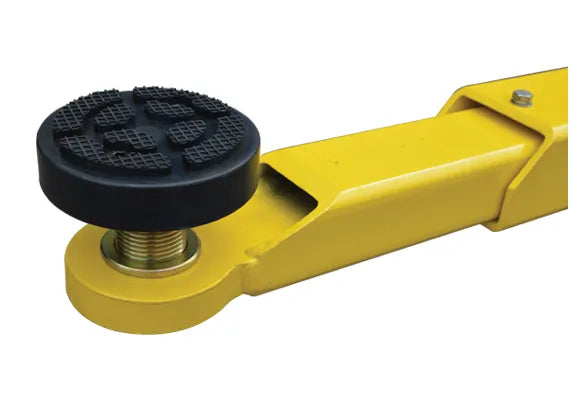

• Features Screw and Insert Rubber Pads
• Adjustable Portable Ramps Included
• High Strength Gear Rack

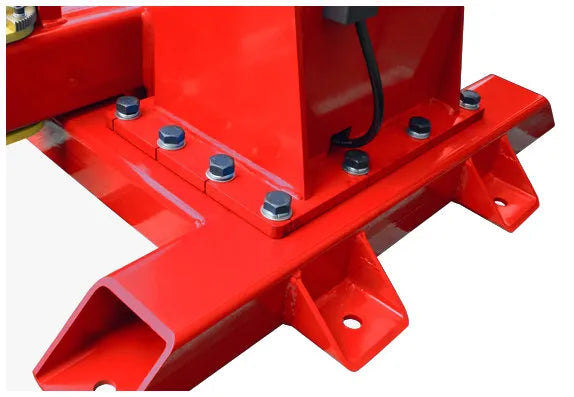

• Tempered Steel Plate Makes the Lift Steadier and Safer to Use

Specifications

• Lifting Capacity: 7,000 lbs.
• Lifting Time: 84S (110V) 32S (220V)
• A: Lifting Height: 72" - 77 3/4" (1830mm - 1976mm)
• B: Overall Height: 108 7/8" (2766mm)
• C: Overall Width: 84 1/2" (2146mm)
• D: Minimum Pad Height: 4 3/8" (110mm)
• Motor (110V): 1.0HP 110V 60Hz Single Phase
• Motor (220V): 2.0HP 220V 60Hz Single Phase
• Gross Weight: 1,488 lbs. (675kg)
• Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer‰۪s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
