Atlas 12AWFSL Wheels Free Scissor Alignment Lift

Name: Atlas 12AWFSL Wheels Free Scissor Alignment Lift
Brand: ASEDeals
SKU: ATEATTD-12AWFSL-N
Price: 18349.0 USD
Availability: InStock

In Stock SKU ATEATTD-12AWFSL-N UPC 810524020336

OUR PRICE: $18,349.00

Regular Price: $19,269.00

$509.69 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas 12AWFSL Wheels Free Scissor Alignment Lift
12,000 lbs. Capacity Heavy-Duty Super-Balanced

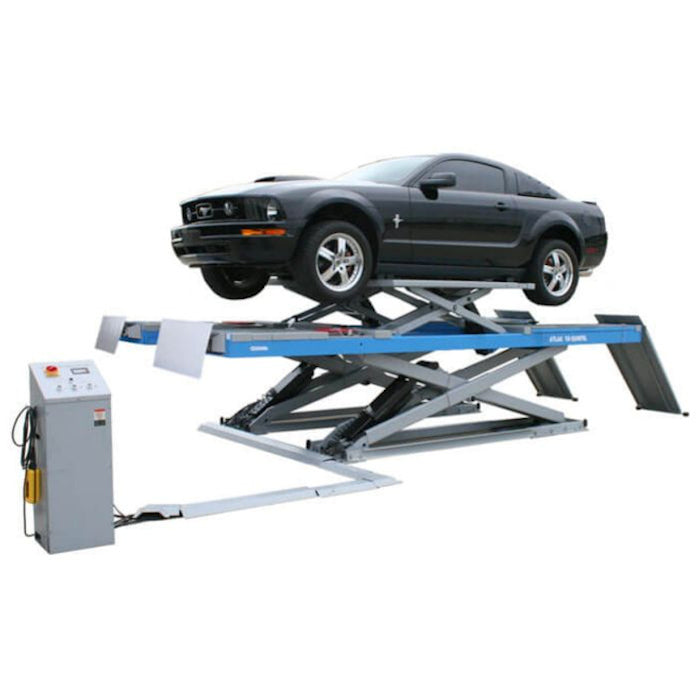

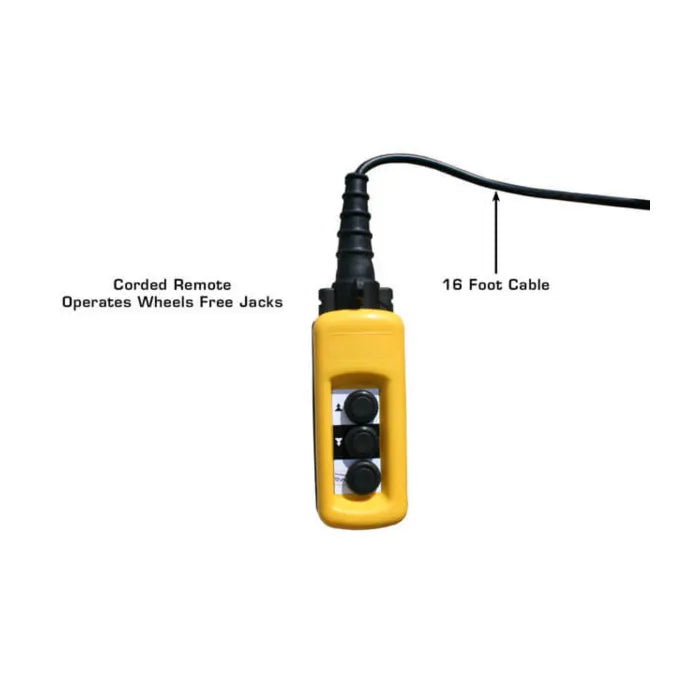

The Atlas 12AWFSL 12,000 lbs. Scissor Alignment Lift has all the same features as the Atlas 12ASL lift but with the addition of built in runway lifts known as the "Wheels Free" lifting system. When a vehicle is loaded on the 12AWFSL lift the "Wheels Free" jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments. The "Wheels Free" jacks are conveniently controlled at the lifts control console. The Atlas 12AWFSL has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting. The full frame under the scissor lift provides for maximum stability.

Includes Alignment Turntables, Turntable Covers, Extra Long Slip Plates, Airline Kit, Rubber Lifting Pads, and Mounting Hardware.

CURRENT LEAD TIME 10-12 WEEKS

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas Automotive Equipment

Atlas 12AWFSL Wheels Free Scissor Alignment Lift
12,000 lbs. Capacity Heavy-Duty Super-Balanced

The Atlas 12AWFSL 12,000 lbs. scissor alignment lift has all the same features as the Atlas 12ASL lift but with the addition of built in runway lifts known as the "Wheels Free" lifting system. When a vehicle is loaded on the 12AWFSL lift the "Wheels Free" jacks will raise a vehicle by the frame, lifting it so the wheels come off the runways for easier access and to facilitate alignments. The "Wheels Free" jacks are conveniently controlled at the lifts control console. The Atlas 12AWFSL has a lifting height of over seven feet so that it may be floor mounted or recessed in the floor for flush mounting. The full frame under the scissor lift provides for maximum stability.

The 12AWFSL scissor alignment lift can be surface mounted or flush mounted. Each lift comes with approach ramps for the floor mounted application or an optional set of ramps if the customer decides to flush mount the lift. Check the technical specifications to better understand how the extra high lifting height allows the Atlas 12K scissor alignment to be flush mounted and still offer plenty of room under the runways to properly access the underside of the vehicle. The extra long 71" long approach ramps make it easy to load low riding vehicles.

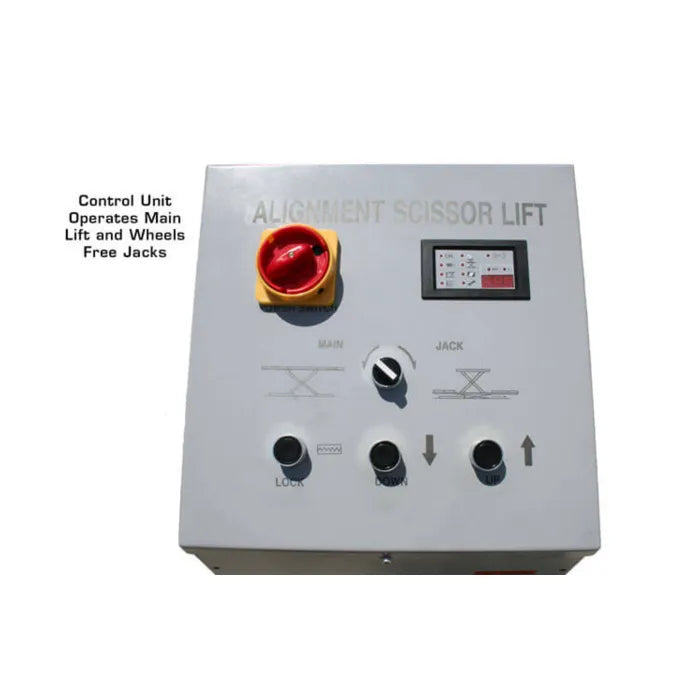

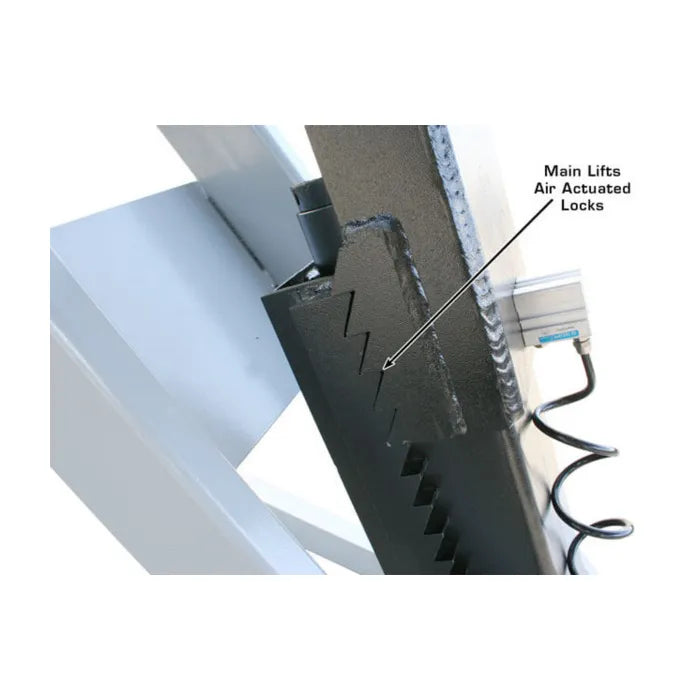

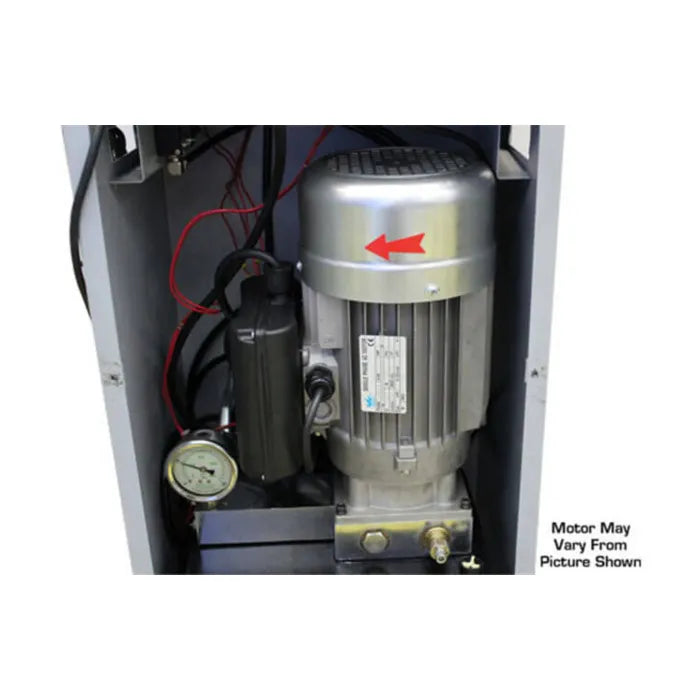

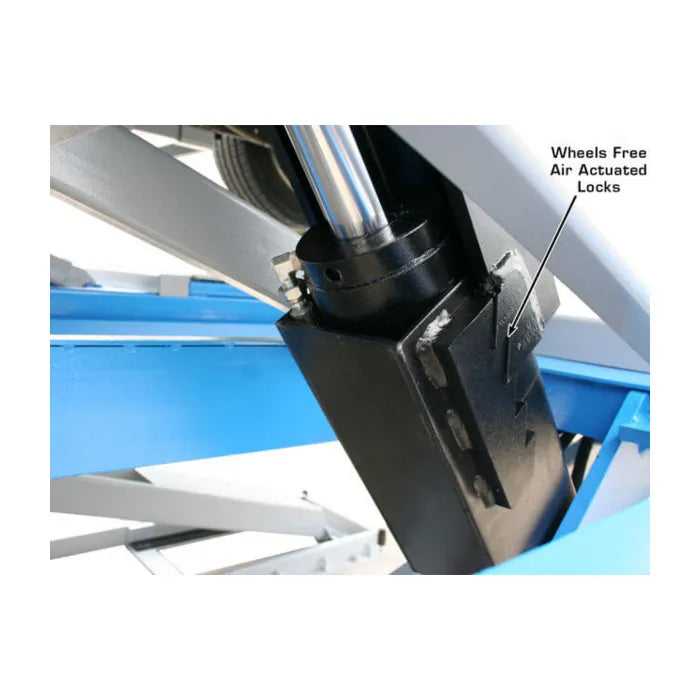

The separate control panel may be conveniently positioned to allow easy access for the operator. The 220 volt (single phase) electric/hydraulic power unit is housed inside the metal control panel box. The push button controls activate the raising and lowering of the lift. The sophisticated air actuated lock system is automatically engaged and disengaged as the lift is being raised or lowered. The lift has a safety lowering limit switch. Once the lift platforms are lowered to within 10 1/2 inches of the ground, the lift automatically stops its descent. The Down button needs to be released and depressed again to allow the lift to go down completely.

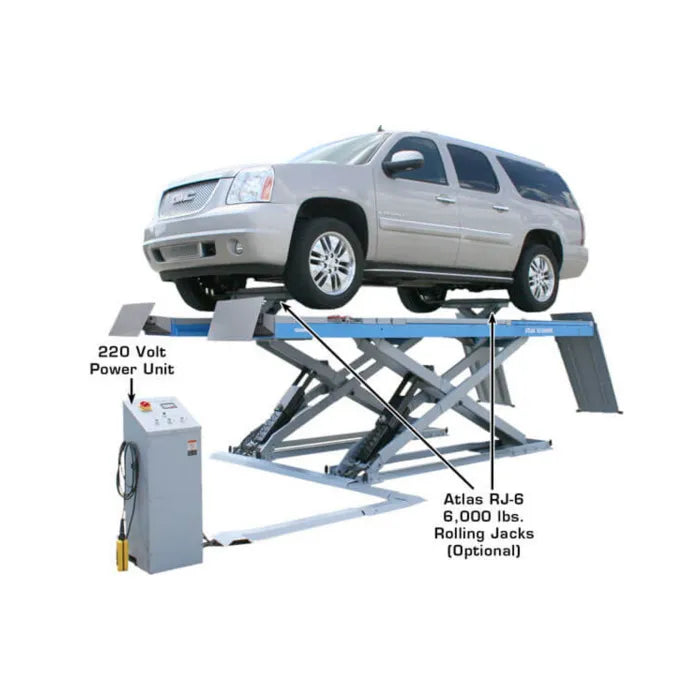

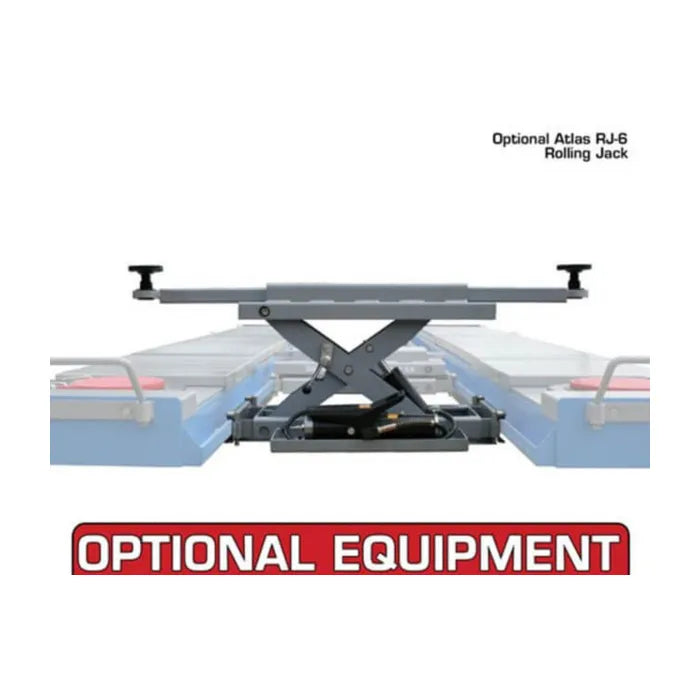

Once a vehicle is positioned on the Atlas scissor alignment lift, the optional Atlas RJ-6 rolling jack can lift the vehicle off of the runways to perform wheel service. The air powered hydraulic Atlas RJ-6 rolling jack has telescoping arms that extend over the runways to access lift points. These jacks have screw out extensions or optional stack on truck adapters. Welded rails on the inside of the runways are standard, allowing the customer the option of incorporating the Atlas RJ-6 rolling jack system on his Atlas scissor alignment lift.

Quality workmanship, ease of operation, straight forward installation instructions, a durable powder coat finish and the lowest prices in the industry makes the Atlas 12AWFSL 12,000 lbs. scissor alignment lift the perfect choice for the demanding and discriminating ship owner.

Worried about bay space? This Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dually.

Features & Specs

Standard Features

12,000 lbs. Lifting Capacity
Commercial Grade Heavy-Duty Construction
Super-Balanced Scissor Lift for Wheel Alignment
Precise Platform Leveling Accuracy
Built in "Wheels Free" Lifting System

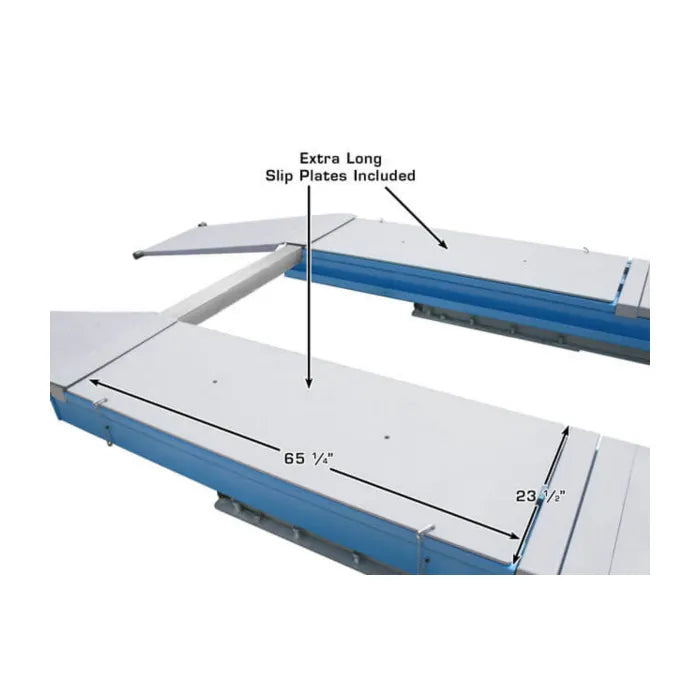

Built in Extra Long Slip Plates and Alignment Turntables Included

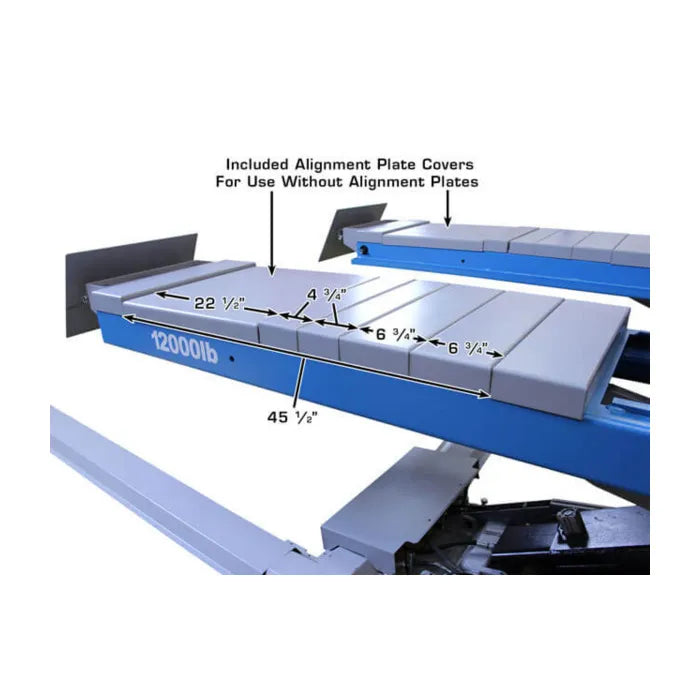

Turntable Covers Included
Open Center Design for Easy Access

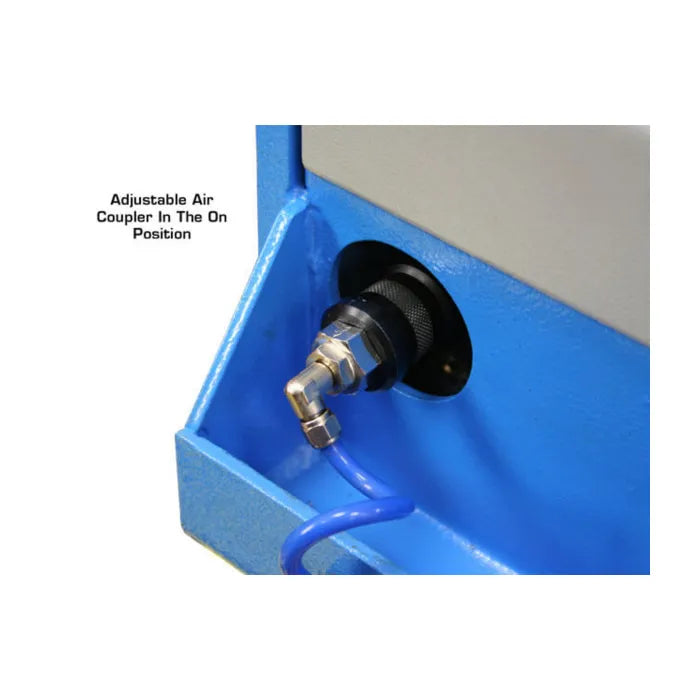

Air-Operated Single Point Lock Release (External Air Supply Required)
Airline Kit Included

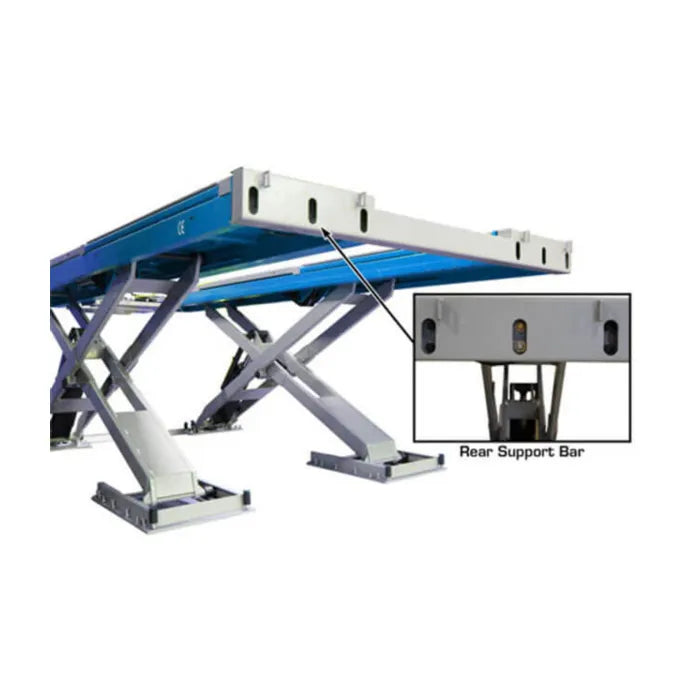

Rear Cross Beam for Extra Stability Included
Extra Long 72" Ramps Standard
Separate Self-Contained Control Panel
Emergency Manual Pump for Lowering

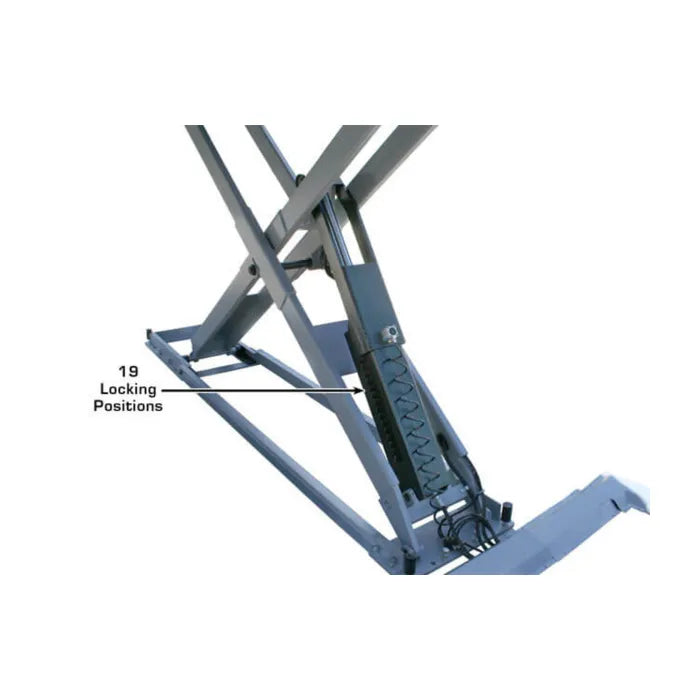

19 Locking Positions
Can be Surface Mounted or Flush Mounted
Overload Valve Included
Lowering Speed Control Valve Included

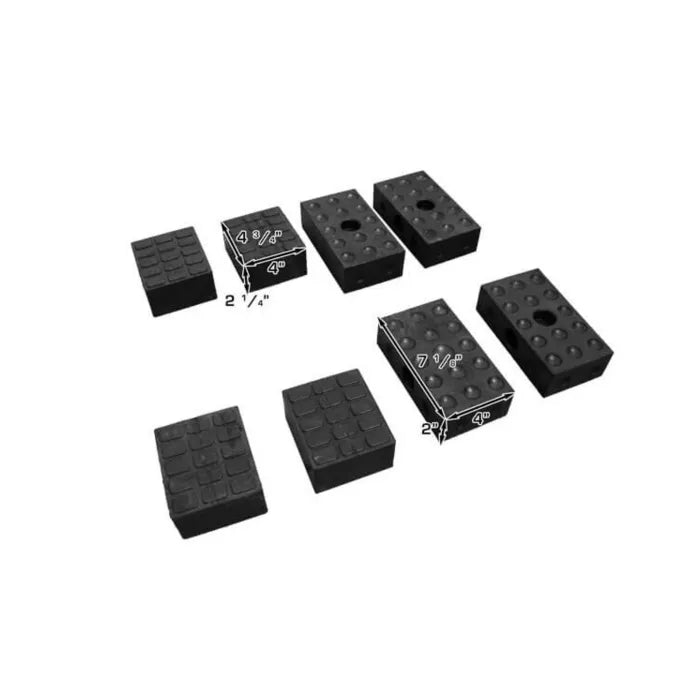

Rubber Lifting Pads Included

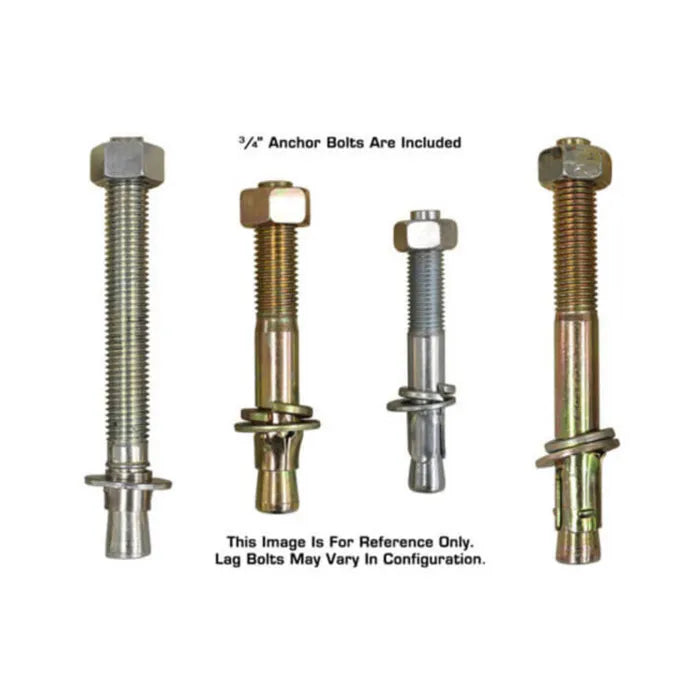

Mounting Hardware Included
220 volt / 1 phase Electric Operation (Requires a 30amp Breaker)
CE Certified

Optional Accessories

Atlas RJ-6 Rolling Jack 6,000 lbs. Capacity

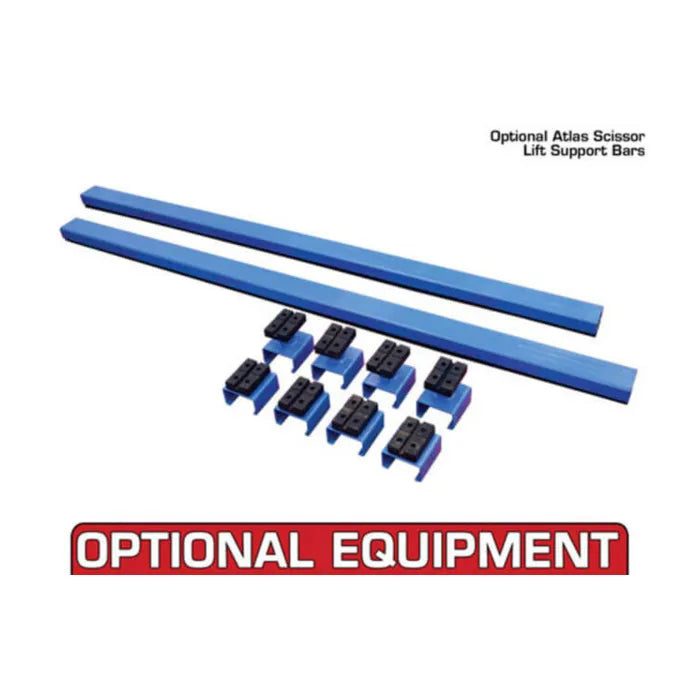

Atlas Scissor Lift Support Bars

Specifications

Lifting Capacity: 12,000 lbs.

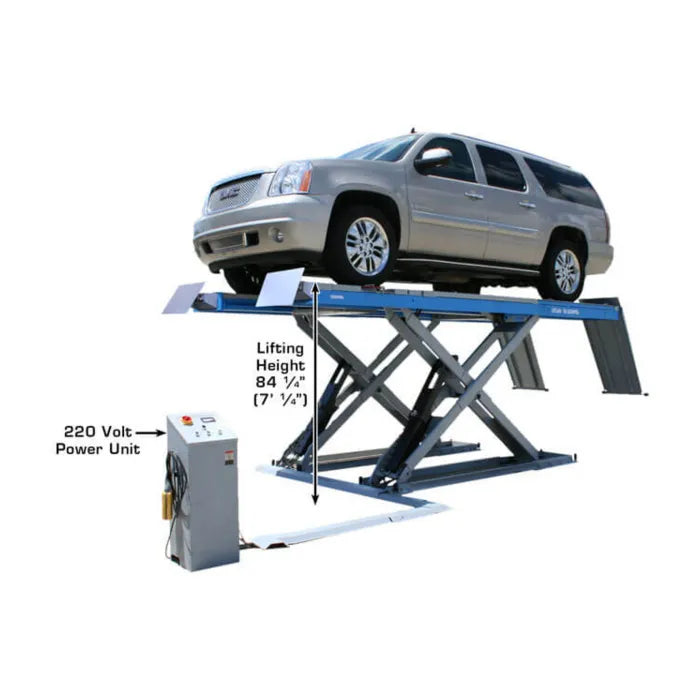

Lifting Height: 84 1/4" (7' 1/4") (Surface Mounted)

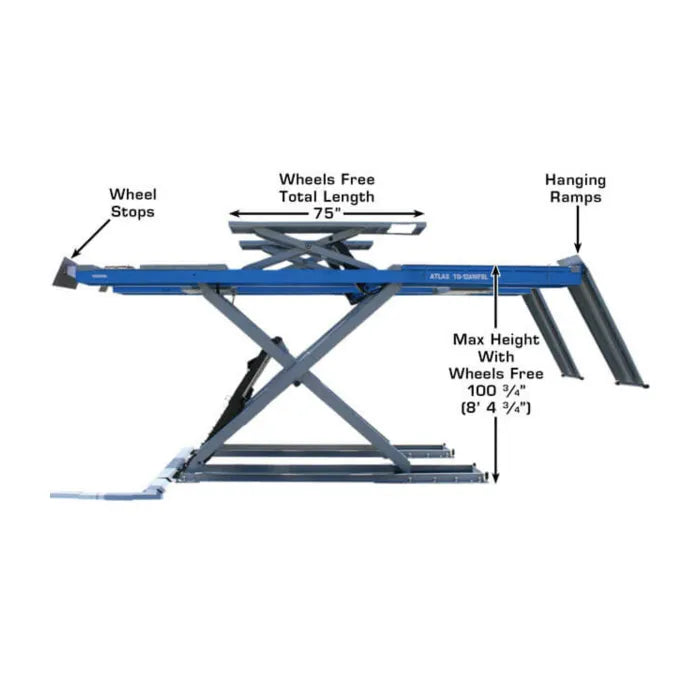

"Wheels Free" Lift Height: 17" (Above Runway)
Lowered Height: 11 1/2"

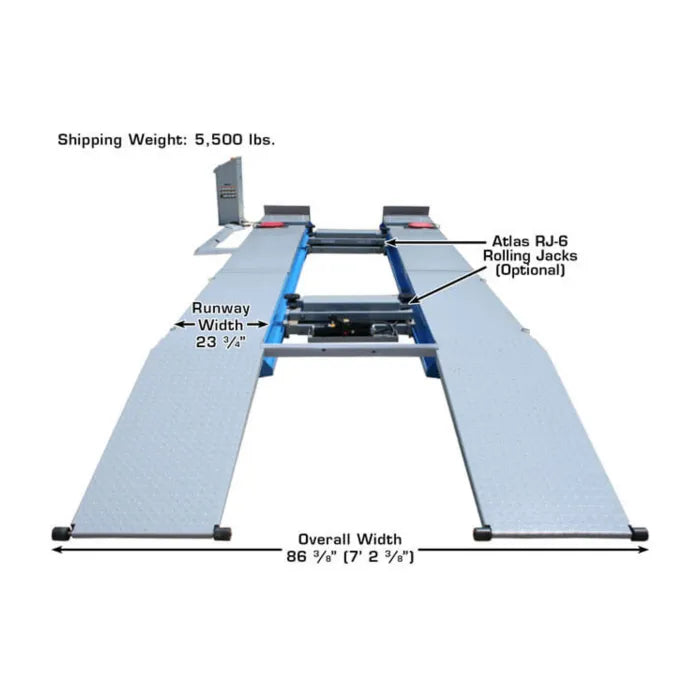

Overall Width: 86 3/8" (7' 2 3/8")

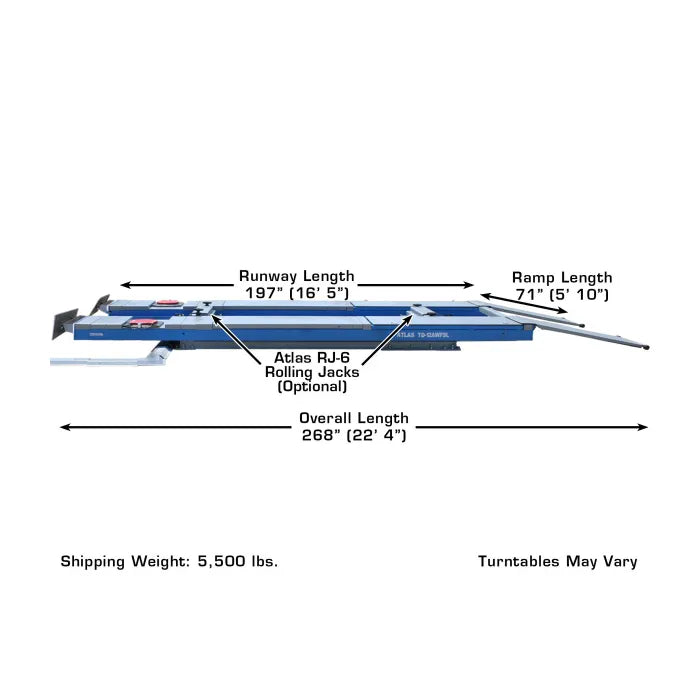

Overall Length with Approach Ramps: 250" (20' 10")
Overall Length without Approach Ramps: 197" (16' 5")
Approach Ramp Length: 72" (6')
4-Wheel Alignment Wheelbase Max: 168"
4-Wheel Alignment Wheelbase Min: 90"
2-Wheel Alignment Wheelbase Max: 172"
2-Wheel Alignment Wheelbase Min: 86"
Runway Width including Rail: 23 3/4" (1' 11 3/4")
Width Between Runways: 39 1/4"
Width Between Runway Rails: 34 3/8"
Motor: 220 volt +/- 5% (209-231 volts) single (1) phase
Electrical Requirement: 30 Amp Breaker is Required
Air Requirement: 90-120 psi
Oil Requirement: 3-5 Gallons AW32 or AW46 (Not Included)

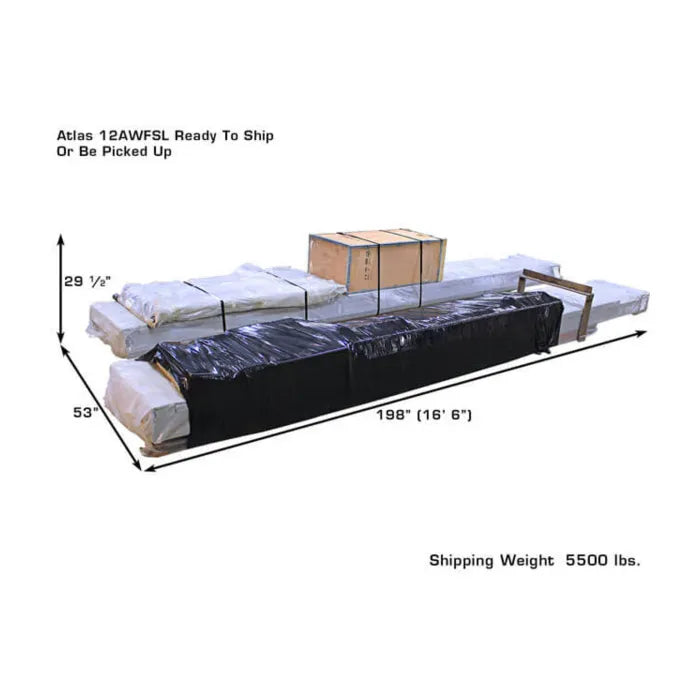

Shipping Dimensions: 198" x 53" x 29 1/2" (2 Boxes)
Shipping Weight: 5,000 lbs.
Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

Requires a minimum of 6" of concrete with 3000 psi.
All lifts come with a step by step instruction manual.

2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

CE Tested And Approved
The letters 'CE' appear on many products that are traded in the European Economic Area (EEA). There are 27 member states of the EU and European Free Trade Association. The CE marking attests the verification by a manufacturer that products meet EU safety requirements. It is the manufacturer's responsibility to carry out the conformity assessment. Conformity assessment testing was performed by CCQS UK Ltd. www.ccqs.co.uk

This Atlas lift (structure and hydraulics) has been tested and has passed the CE conformity requirements. Atlas lifts sold in the USA and Canada use a different power unit than those required by CE. CE requires an electrical control box (with solenoids) that actuates the hydraulic power unit.

Electric power units supplied with above ground lifts in the USA and Canada do not require the electronic control box; therefore the power unit was not tested to CE approval requirements. If you have questions relating to the power unit supplied with your lift, please discuss these with your salesman.

If you are customer from the EU or other foreign county that requires CE approval, please contact our sales office to see how we can help.

Electrical Requirements
The electric motor for the power unit requires 220 Volt (single phase) 60 Hz (+/- 5%, so 209-231 volts). We recommend using at least a 10 gauge (grounded) wire from the electrical panel. The power unit may or may not have a short pigtail (no plug) that can be wired to either an optional quick disconnect box (mounted on the lift column) or to a male/female plug combination. A 30 amp breaker is required.
