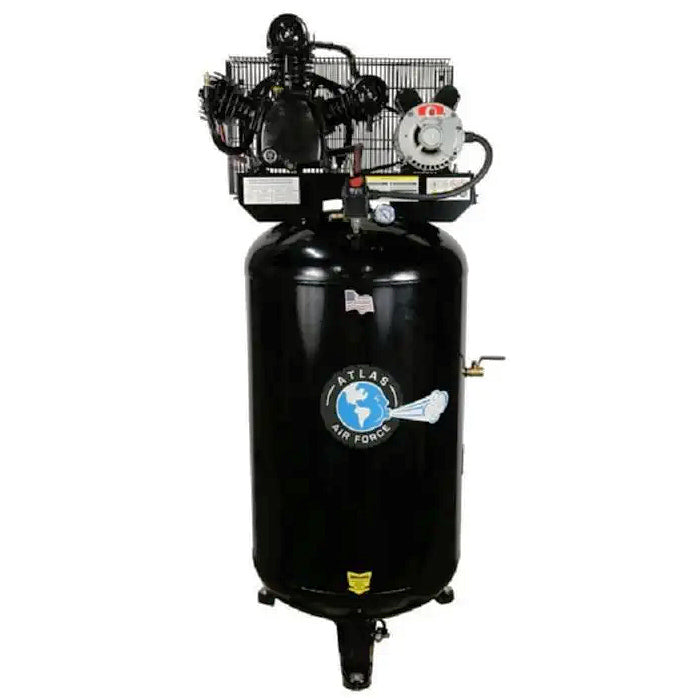

Atlas AF6 Two Stage 5HP 80 Gallon Air Compressor

Name: Atlas AF6 Two Stage 5HP 80 Gallon Air Compressor
Brand: ASEDeals
SKU: ATEMPAF6
Price: 2349.0 USD
Availability: InStock

In Stock SKU ATEMPAF6 UPC 376204971393

OUR PRICE: $2,349.00

Regular Price: $2,469.00

$65.25 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas AF6 Two Stage 5HP 80 Gallon Air Compressor
220V 1Ph Commercial Reciprocating Vertical Tank
with 3 Cylinder / 2 Stage Pump
The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 90 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF6 comes standard with a USA made 80-gallon vertical steel tank.

Description

Atlas AF6 Two Stage 5HP 80 Gallon Air Compressor
220V 1Ph Commercial Reciprocating Vertical Tank
with 3 Cylinder / 2 Stage Pump

The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 90 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF6 comes standard with a USA made 80-gallon vertical steel tank.

The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressor is built to the same exacting standards as the entire line of Atlas professional grade automotive equipment.

FEATURES INFORMATION:

Hands Free Water Drain: The water drain is conveniently located on the base of the air compressor for hands free water drain operation. You can also hook up a hose to ensure your air compressor drains the water where you want it to.

Oil Drain Extension Tube: The oil drain extension tube allows you to easily drain the oil in the air compressor.

Vibro-Isolation Pads: When the compressor "starts up", there is a vibration created which puts a stress on the legs of the air tank. The pads absorb the vibration and prevent damage to the weldment between the tank and the legs.

Atlas Auto Equipment Air Force Air Compressors represent decades of quality production and reliable service. Our air compressor line covers a wide range of needs; from 110 volt portable models for home or small shop use all the way to extra large horizontal 120 gallon models for heavy commercial use. We even offer gas-powered models for mobile service trucks and vans.

Features & Specs

Features

Commercial Grade
Cast Iron, V Cylinder, 2-Stage Pump
Aluminum Head & Machined Cast Iron Valve Plate
Durable Stainless Steel Reed Valves
Shipped with 100% Synthetic Air Compressor Oil
5HP 1750 RPM Motor
80 Gallon Vertical Tank (Made in the USA)
Air Output 90-175 PSI
Extremely Quiet Operation
Set of Vibro-Isolation Pads Included
Hands Free Tank Drain Extension
Compressor Oil Drain Extension Tube
Finned Tank Inlet Tube for Reduced Tank Water Accumulation
Heavy Duty Metal Belt Guard
Electric: 220 Volt Single (1) Phase, 30 Amp Breaker Required

Specifications

Motor Running: 5 HP
Delivered-CFM @ 90 PSI: 18.5
Delivered-CFM @ 175 PSI: 14.5
Pressure Setting: 90-175 PSI
Tank Capacity: 80 Gallons (Vertical)
Air Outlet Size: 1/2" NPT
Compressor Pump: 3 Cylinder, 2-Stage
Power Supply: 220 Volt Single (1) Phase
Electrical Requirement: 30 Amp Breaker Is Required
Overall Dimensions: 36" L x 24" W x 69" H
Shipping Weight: 485 lbs.
Warranty: (1) Year Limited Parts Only

Atlas (1) Year Limited Parts Only Warranty
This warranty covers any defects in manufacturing on your air compressor.

This warranty lasts (1) year from the date of purchase. Coverage terminates if you sell or otherwise transfer the air compressor during the period of the warranty.

Rust, or any problem that is caused by abuse, misuse, or an act of God is not covered in this warranty. The manufacturer should not be liable in either tort or contract for any loss or damage, direct, indirect, special, consequential, or incidental, arising out of the use or inability to use this product. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
