Atlas AF7 Two Stage 5HP 80 Gallon Air Compressor

Description

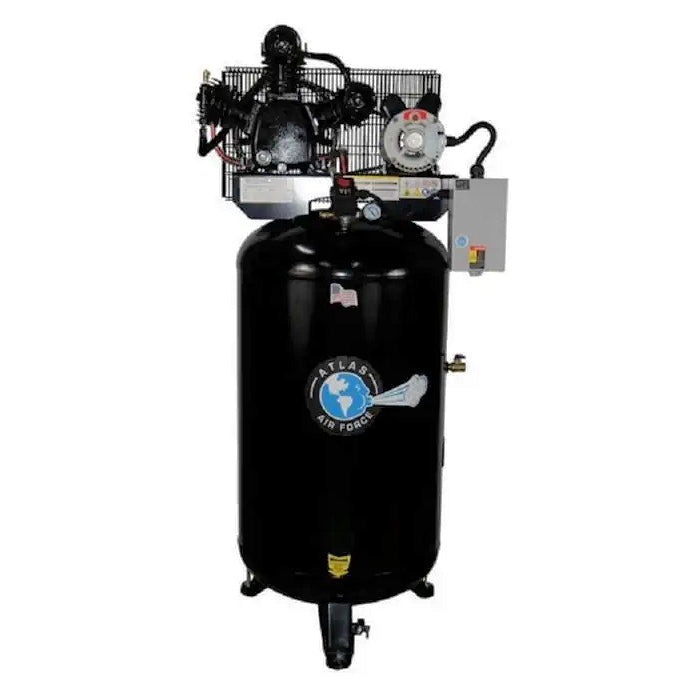

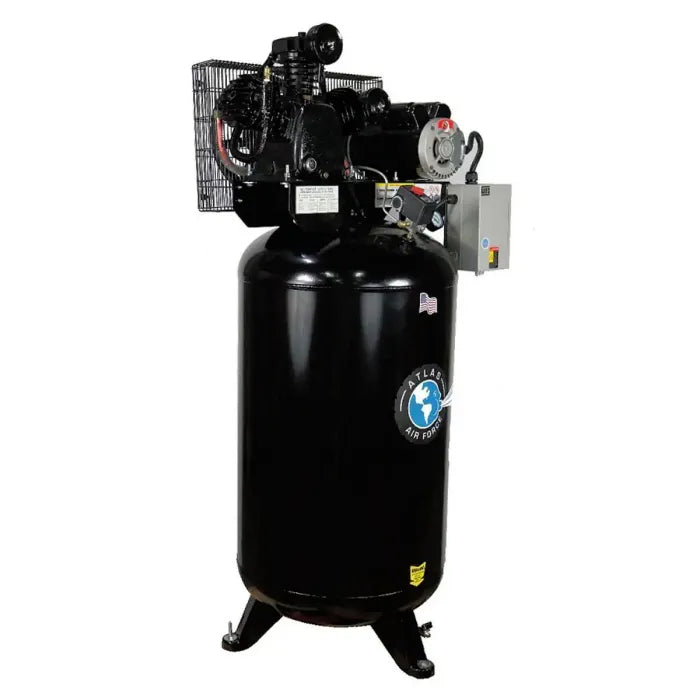

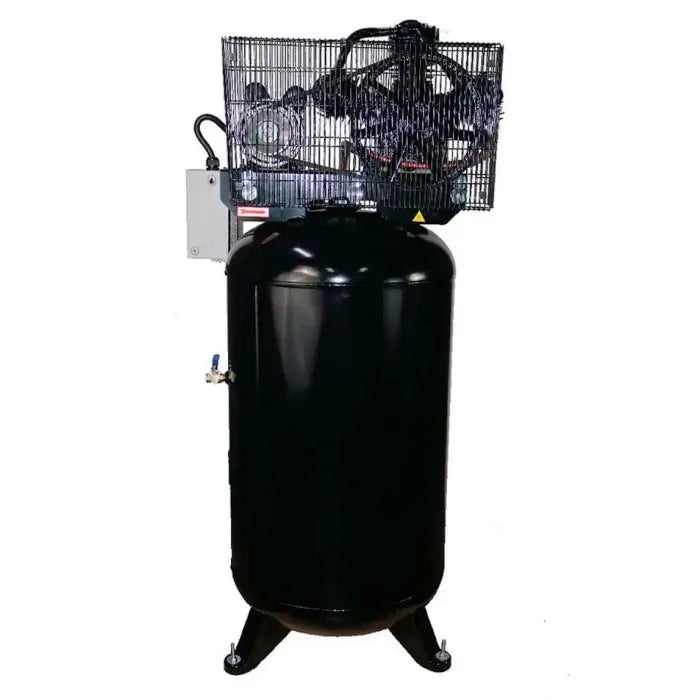

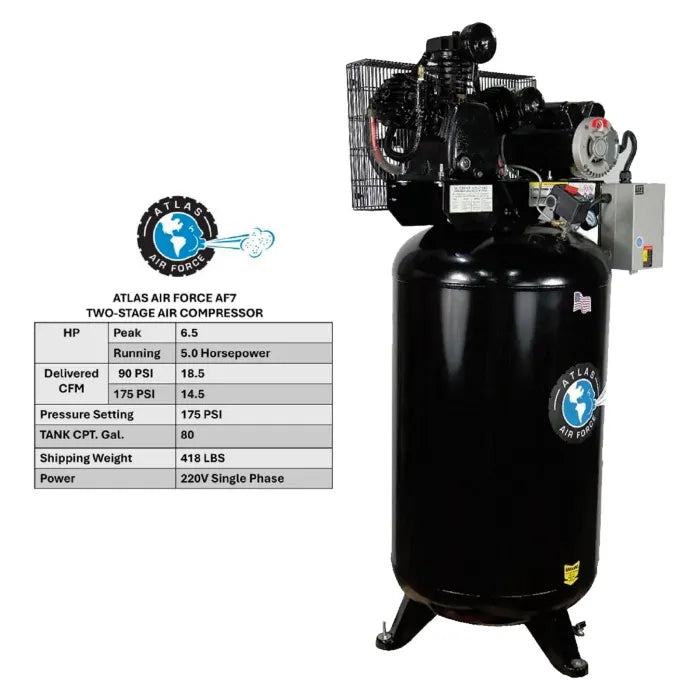

Atlas AF7 Two Stage 5HP 80 Gallon Air Compressor
220V 1Ph Commercial Reciprocating Vertical Tank

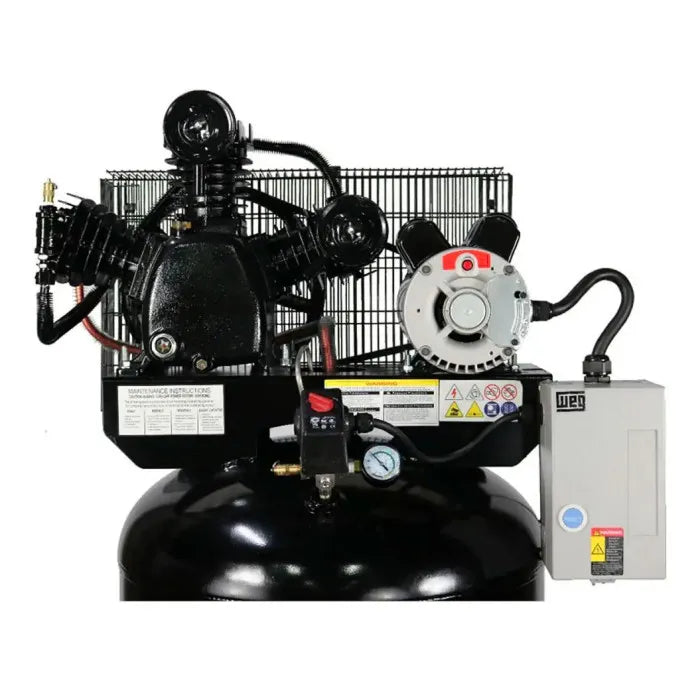

with 3 Cylinder / 2 Stage Pump and Magnetic Starter

The Atlas Air Force AF6 is a entry level commercial grade two (2) stage vertical air compressor. This unit operates between 90 and 175 PSI and will run our Atlas line of sandblast cabinets (when using Medium or Medium-Fine glass bead). The combination of the commercial grade low RPM motor and the heavy duty 3 cylinder (2 cylinders are low pressure and 1 cylinder is high pressure) cast iron reciprocating air compressor pump delivers an incredible amount of air volume and air pressure for a very low price. The AF7 comes standard with a USA made 80-gallon vertical steel tank and a magnetic starter. The magnetic starter controls the electric input and adds to the longevity of the unit.

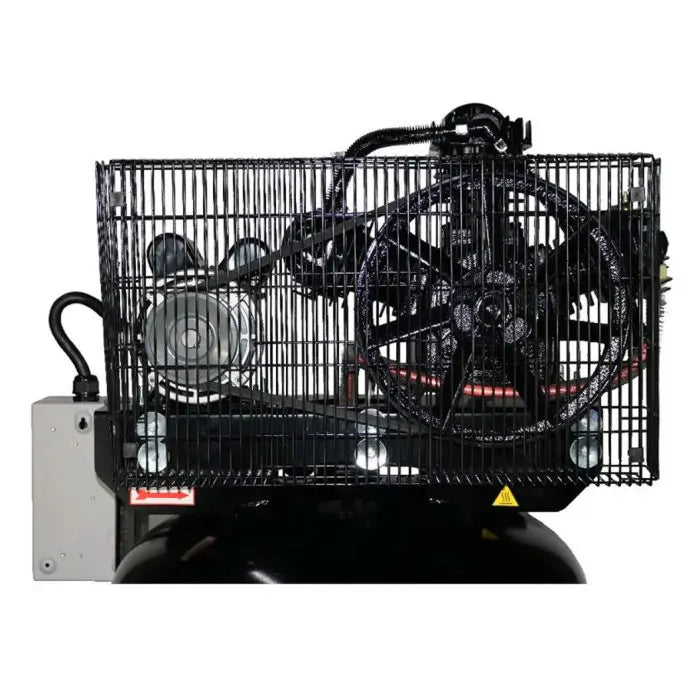

The Atlas Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas Air Force shop compressor is built to the same exacting standards as the entire line of Atlas professional grade automotive equipment.

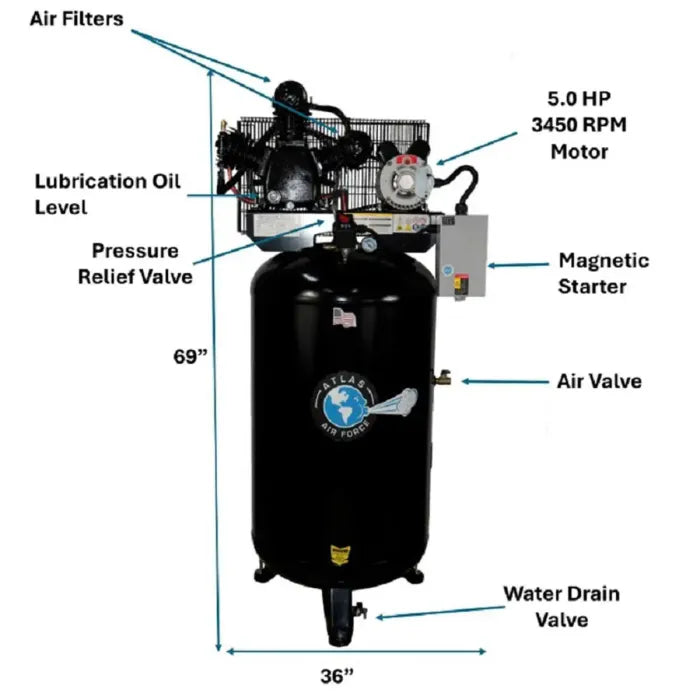

FEATURES INFORMATION:

Magnetic Starter: The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load. The overload relay inside the magnetic starters will prevent the supply voltage from energizing the motor if the starter detects a motor overload situation. Heaters (in series) are responsible for allowing current to reach the motor (and start it) or prevent the current from reaching the motor (preventing a motor failure). Magnetic starters will allow a motor (when properly sized to the compressor pump) to operate at a 100% duty cycle. A heavy-duty pressure switch can also be used (with some motors) to mimic the actions of a magnetic starter.

Hands Free Water Drain: The water drain is conveniently located on the base of the air compressor for hands free water drain operation. You can also hook up a hose to ensure your air compressor drains the water where you want it to.

Oil Drain Extension Tube: The oil drain extension tube allows you to easily drain the oil in the air compressor.

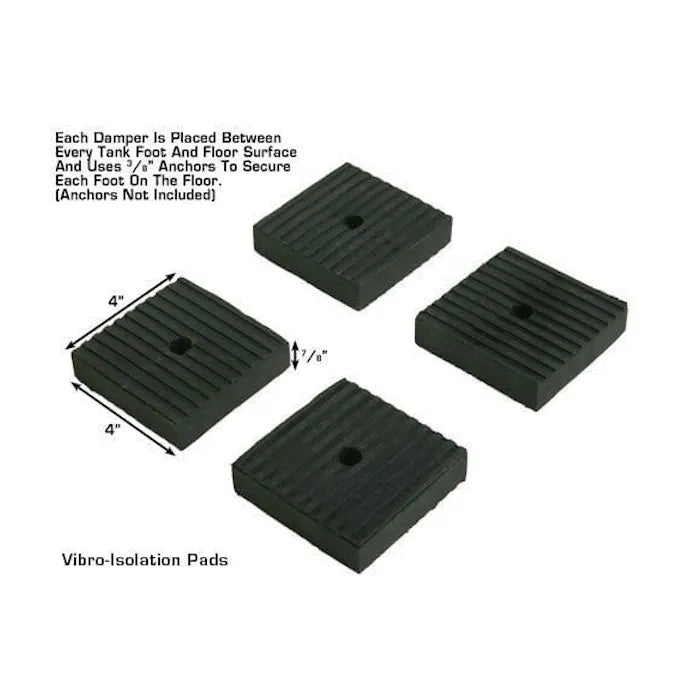

Vibro-Isolation Pads: When the compressor "starts up", there is a vibration created which puts a stress on the legs of the air tank. The pads absorb the vibration and prevent damage to the weldment between the tank and the legs.

Atlas Auto Equipment Air Force Air Compressors represent decades of quality production and reliable service. Our air compressor line covers a wide range of needs; from 110 volt portable models for home or small shop use all the way to extra large horizontal 120 gallon models for heavy commercial use. We even offer gas-powered models for mobile service trucks and vans.
