Atlas LR06 Portable Low-Rise Scissor Lift 6,000 lbs. Capacity

Name: Atlas LR06 Portable Low-Rise Scissor Lift 6,000 lbs. Capacity
Brand: ASEDeals
SKU: ATEATTD-LR06
Price: 2999.0 USD
Availability: InStock

In Stock SKU ATEATTD-LR06 UPC 810524028806

OUR PRICE: $2,999.00

Regular Price: $3,149.00

$83.30 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas LR06 Portable Low-Rise Scissor Lift 6,000 lbs. Capacity

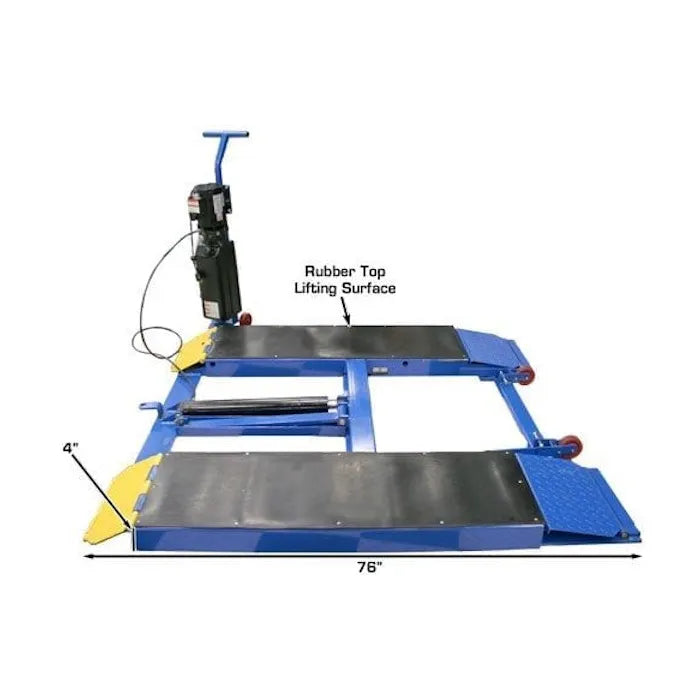

The Atlas LR06 Portable Low-Rise Scissor Lift with 6,000 lbs. capacity is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height.

CALL US NOW FOR AN EVEN BETTER DEAL!

Description

Atlas LR06 Portable Low-Rise Scissor Lift 6,000 lbs. Capacity

The Atlas LR06 Portable Low-Rise Scissor Lift with 6,000 lbs. capacity is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height.

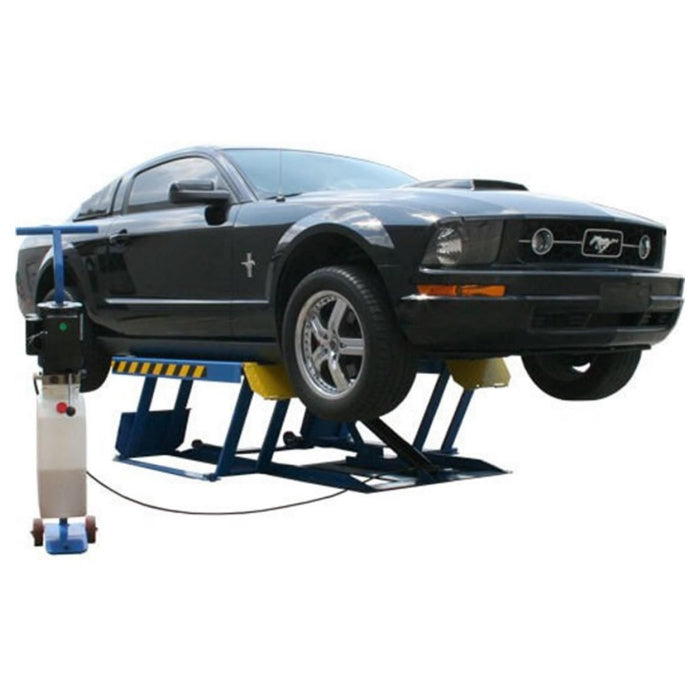

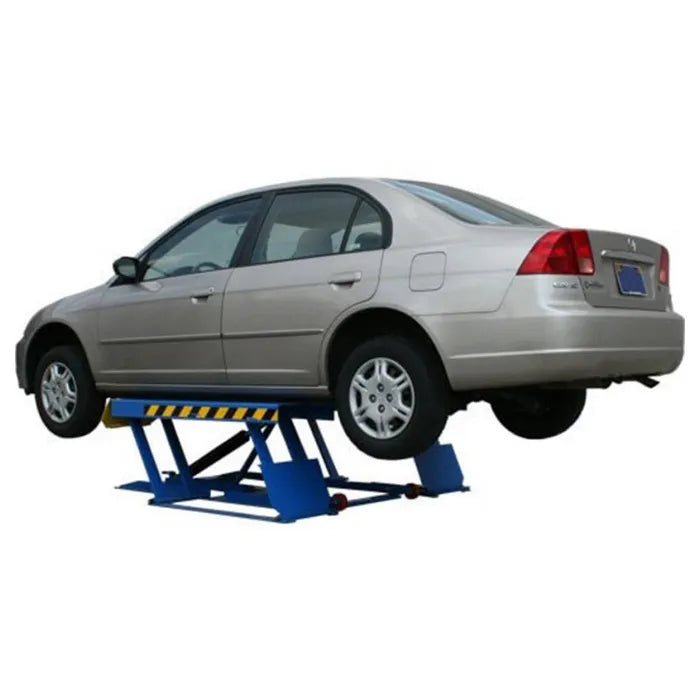

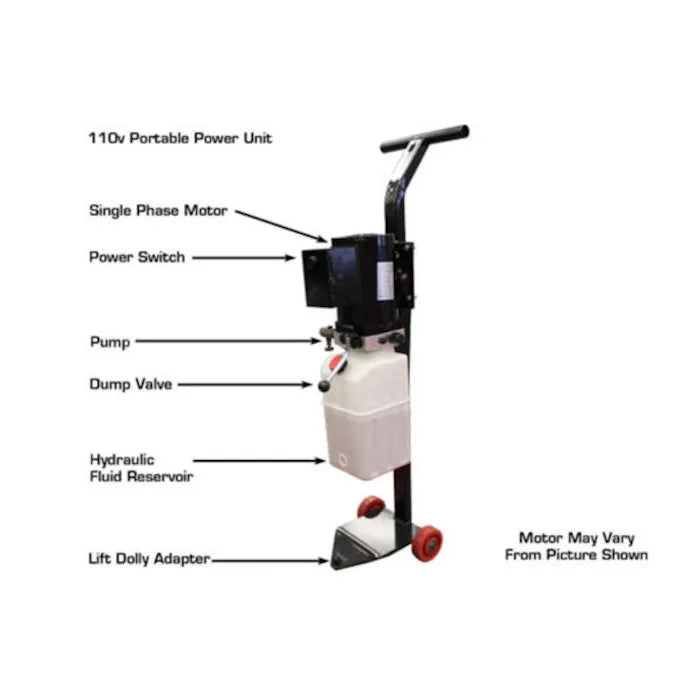

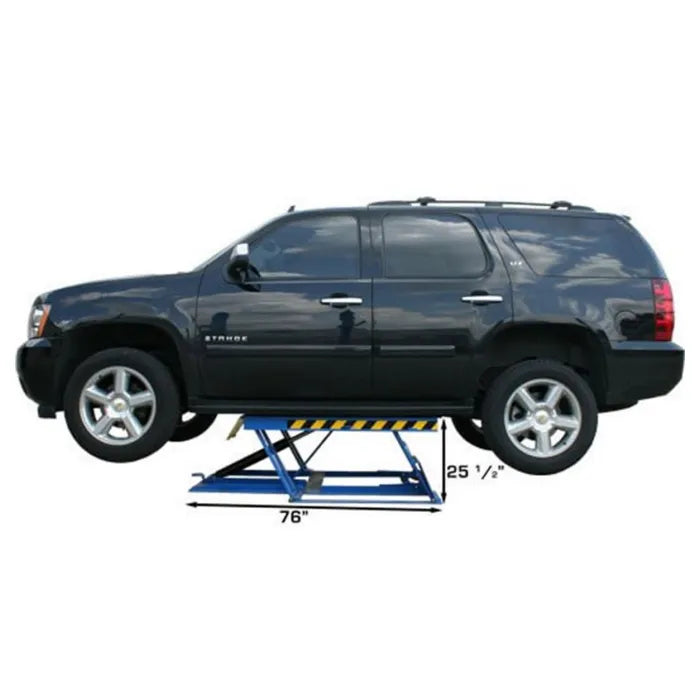

Simply drive the car over the Atlas LR06 and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. Depress the "dump valve lever" on the power unit and the lift lowers slightly to the next lower mechanical lock position.

This durable lift is built on a heavy steel frame that provides rock solid support for a lifting base. The low-profile design accommodates most low frame vehicles. Due to the horizontal cylinder configuration, it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle’s lifting points.

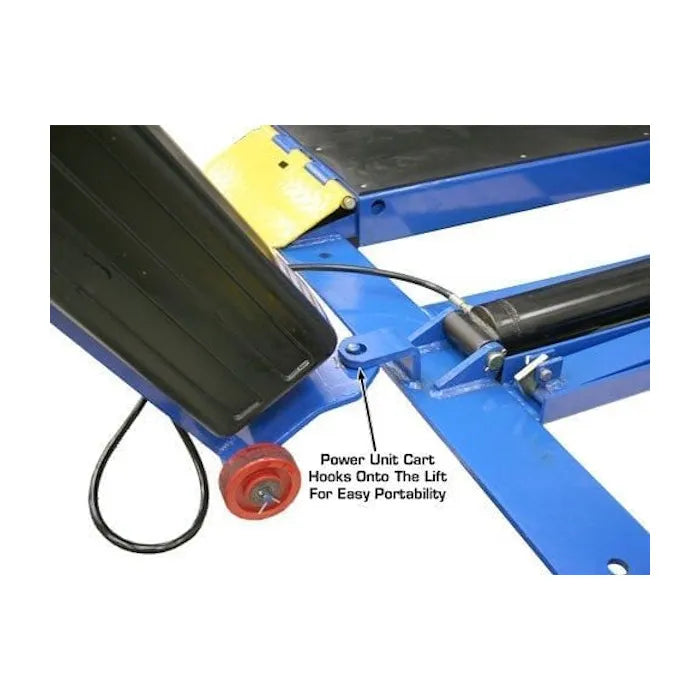

The Atlas LR06 can also be easily moved inside the garage or to an outside concrete apron in front of a bay. The standard wheel kit and the power unit stand work together to allow the operator to roll the LR06 portable low-rise lift across any concrete surface.

Features & Specs

Features

6,000 lbs. Capacity
Portable Standard Wheels and Power Unit

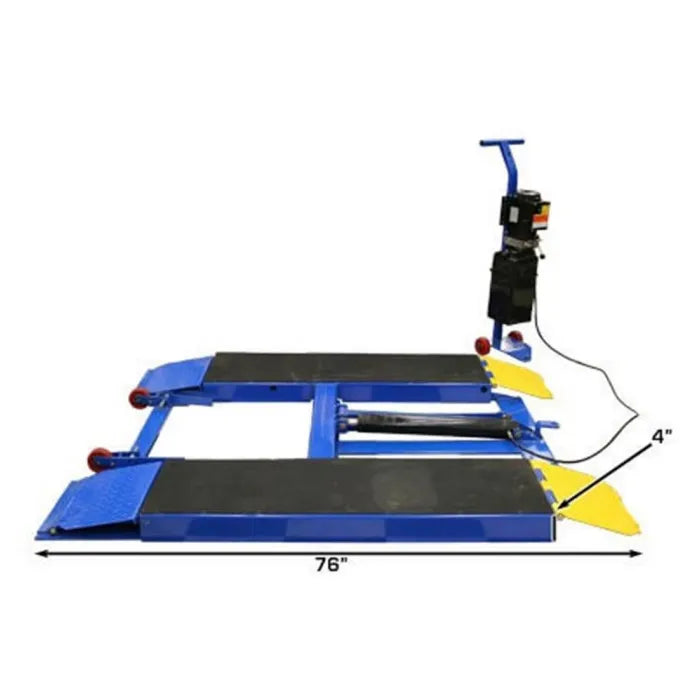

4" Low-Profile Frame
Multi-Position Manual Safety Locks
110 Volt Electric Operation

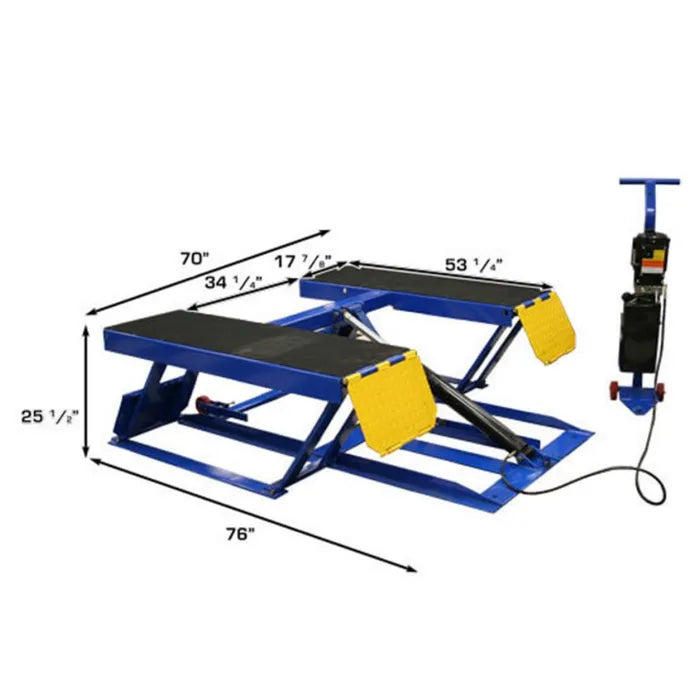

Specifications

Capacity: 6,000 lbs.
Maximum Lifting Height: 24" (2')
Locking Position Heights: 12 1/4", 18 1/2", and 22 1/4"
Overall Pad Length: 53 1/4" (4' 5 1/4")
Overall Width: 70" (5' 10")
Overall Length: 79 3/4" (6' 7 3/4")
Lowered Height: 4"
Motor/Electrical Requirement: 110volt (PLUG NOT INCLUDED)
Oil Requirement: 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED)

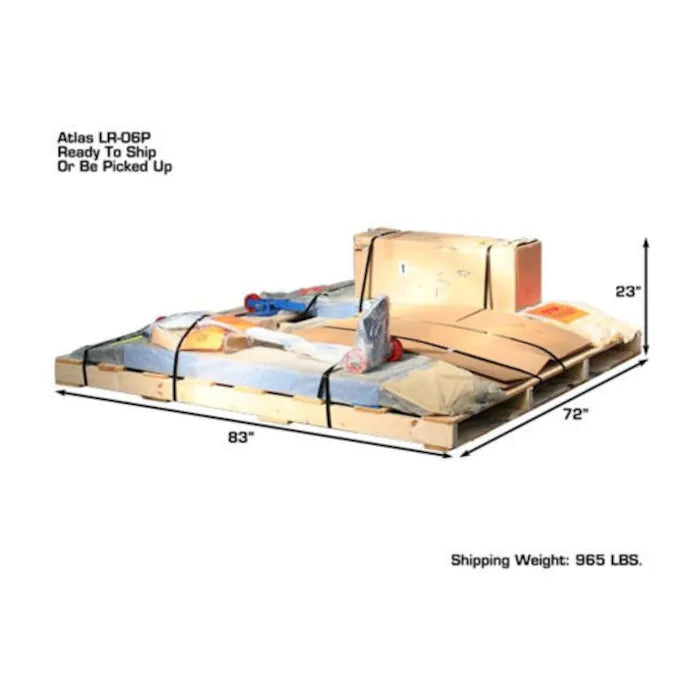

Shipping Weight: 965 lbs.
Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
