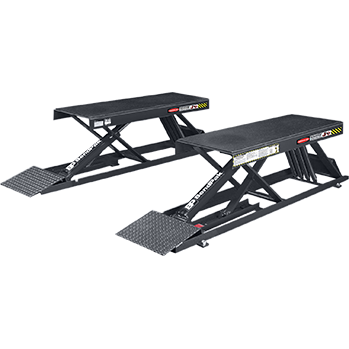

BendPak P-6 Low-Rise Pit Style Surface Mount Car Lift

BENDPAK PIT LIFT / SURFACE MOUNT MODEL

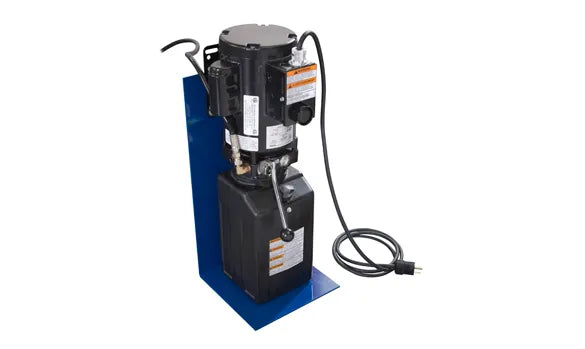

Specifically designed and engineered for quick oil-change facilities, the BendPak P-6 or P-6F easily convert ordinary fast-lube pits into wheel-service bays making wheel rotations and brake service a natural addition. Add thousands of dollars to your profit line every month with these revolutionary pit-lifts that are loaded with standard features including a commercial duty 1-1/2 HP electric-hydraulic power unit, dual hydraulic cylinders, precision flow-divider, simple push-button controls and remote pneumatic safety locks. Installation materials, hydraulic hoses and mounting hardware are included with each unit. Optional LR-4A lift arms adapt fast and easy and allow safe lifting of vehicles using manufacturer designated lift points.
With their 6,000 lbs. lifting capacity, these rugged lifts will easily handle virtually every automobile, light truck and SUV. With their clear-center design, the P-6 surface mount, or the P-6F flush mount model installs over your existing pit without interfering with your lube bay opening.

 Pneumatic lock release Pneumatic lock release opens locks effortlessly and safely for simple lowering.

Low-profile design A low 4" collapsed height accommodates most vehicles.

Rugged steel channel frame If you're going to do heavy lifting, you need a solid base.

Industrial-grade hydraulic cylinder Integrated into each hydraulic cylinder is a one-piece, pilot fitted, machined steel piston that is wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage is a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time.

Durable powder-coat finish All low-rise lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and / or threaded holes that need to be masked or plugged, are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder “sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400° F for 45 minutes.

Solid rubber lift blocks Others charge extra for these necessary adapters, but they're standard with every P-6 lift.

Detailed instructions Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines.

*Not all BendPak lift models meet the standards as  prescribed by ANSI/ALI  ALCTV-2006 or ANSI/UL 201. Consult ASEDeals for complete listings.
