BendPak LR-4A Arm Kit for Low-Rise Lifts

Name: BendPak LR-4A Arm Kit for Low-Rise Lifts
Brand: ASEDeals
SKU: 5210944
Price: 1050.0 USD
Availability: InStock

In Stock SKU 5210944 UPC 849672002079

OUR PRICE: $1,050.00

Regular Price: $1,109.00

INCLUDES FREE SHIPPING*

Short Description

AMGO LR10 Portable Low-Rise Scissor Lift 10,000 lbs. Capacity
AMGO's LR10 Portable Low-Rise Scissor Lift is an excellent choice for low ceilings or adding a bay for seasonal increases in business. Provides good working height for tires, brakes and body repairs.
Motor: 110V Standard / 220V Optional

CURRENT LEAD TIME 2 WEEKS

Description

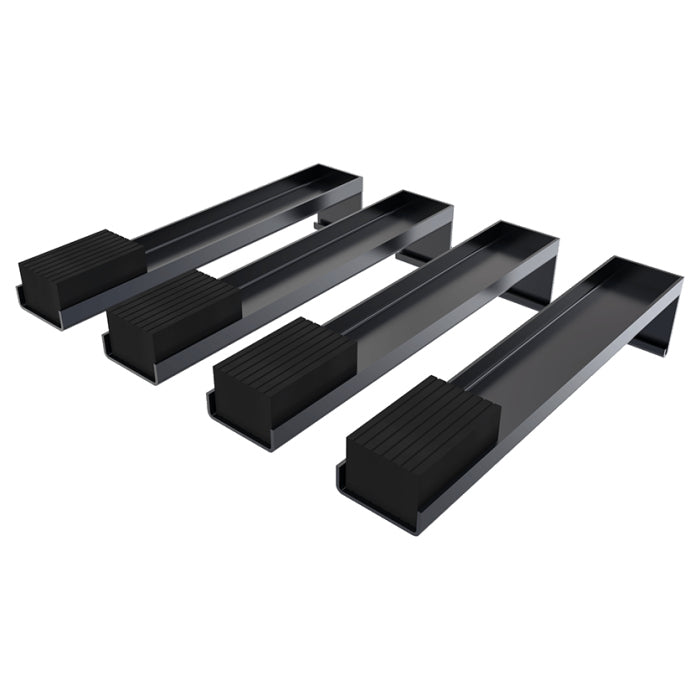

BendPak LR-4A Arm Kit for Low-Rise Lifts

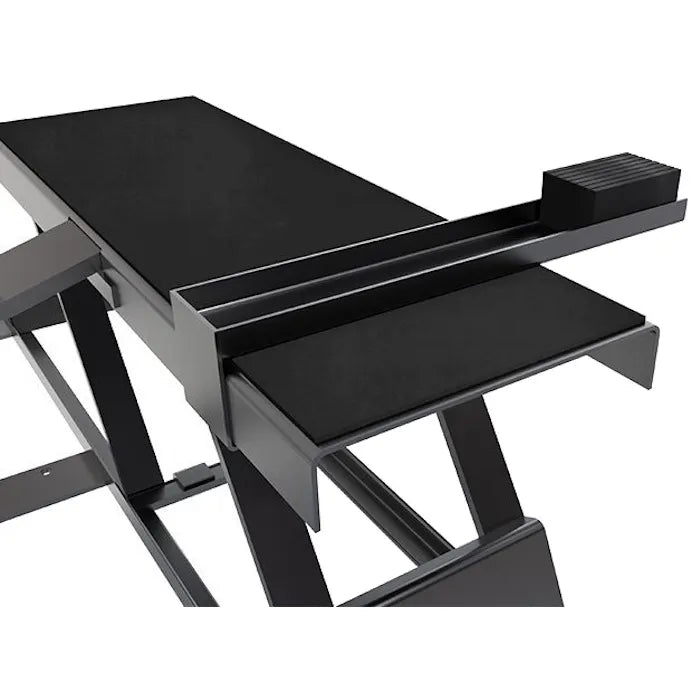

The LR-4A arm attaches easily to the low-rise lift ramp so you can reach contact points that might be closer together on your frame. The easy-slide design allows the LR-4A to move along the ramp rail giving you the power to position the lifting arm anywhere under your vehicle.

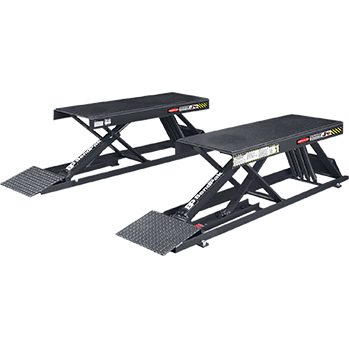

The LR-4A Arm Kit is easy-to-use and mounts quickly and easily on BendPak Low-Rise Lift Models LR-1000, LR-60, LR-60P, P-6 and P-6F.

Extend Low-Rise Lift Reach with this Arm Kit

Finding difficult-to-reach lifting points has never been easier! Increase your low-rise lifting capabilities with the LR-4A optional Arm Kit. Designed to fit BendPak low-rise lift models LR10000, LR-60 and LR-60P, these specialty arm adapters extend the pad reach of each ramp.

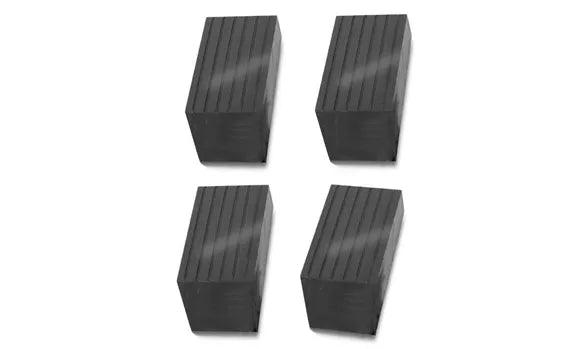

This low-profile arm kit comes complete with four lift arms, and four polyurethane rubber blocks. The rubber blocks are designed to grip the frame of your vehicle, holding it firmly in place. They are also designed to withstand heavy use, giving you the freedom to safely lift vehicles of any size. With the Arm Kit in place, your scissor lift has the versatility to reach the lifting points of the most difficult cars in your shop, and the power and durability to do it safely.

When would you need to use the LR-4A arm kit? Use it whenever the automobile frame contact points are closer together than the pads on the lift are. If the frame jacking points are deeper within the vehicle framework, then this kit will allow you to access them. These sturdy, steel arms mount easily to the lift pad, and cross over to the inside between the pads. The kit also includes four rubber lift blocks that you place on the arms so the frame contacts a soft rubber pad instead of having steel on steel contact. Most vehicles won't need this kit, but you'll be glad you have it when you run into situations where you do need it.

Features & Specs

Features

10,000 lbs. lifting capacity
Automatic multiful safety locks
Automatic safety lock release
Portable unit is easy to move with the power unit stand
High speed: From 105 - 600 mm (4-1/8" - 23-5/8") in just 50 seconds
Includes 1-1/2" & 3" height rubber pads
Ramps extend platform to 66"

Specifications

Dimensions

Lifting Capacity: 10,000 lbs. (4,500 kg)
Lifting Time: 50 s
A1: Lifting Height: 23-5/8" (600mm)
A2: Minimum Height: 4-1/8" (105mm)
B: Runway Length: 53-1/4" (1352mm)
C: Overall Runway Length (Inc. Ramp): 66" (1676mm)
D: Runway Width: 21-7/8" (556mm)
E: Overall Length: 76-1/4" (1938mm)
F: Overall Width: 71"
Motor: 1.0HP, 110V Standard 60Hz / Optional 2.0HP,220V/60Hz, single phase
Gross Weight: 1,510 lbs. (485 kg)
Warranty: (5) Years Steel Structure, (3) Years Hydraulic Parts, (2) Years Electrical Components, No Labor

AMGO Hydraulics offers the Best Warranty in the Industry
5 Year Warranty for Steel Structure
3 Year Warranty for Hydraulic Parts
2 Year Warranty for Electrical Components

Any items received that fall into the warranty category, (inoperable, or manufacturer's defect) should be handled under manufacturer’s written warranty conditions. Customer should call AMGO Hydraulic Corporation to have us troubleshoot problem by phone first. Warranty conditions will be provided with all shipments. We will happily assist customers with any warranty service.

AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows: 1. Steel Structure Components (including columns, carriages, lifting arms, topbeam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate, etc.) Warranty for Five (5) Years. 2. Hydraulic Parts (including cylinders, oil seal, oil hose, fitting etc.) Warranty for Three (3) Years. 3. Other Parts (not including consumption parts such as rubber pads), electrical components, power unit have Warranty for Two (2) Years. Warranty coverage would be applicable to the 48 contiguous states. If outside the 48 contiguous states, please call AMGO Hydraulic Corporation. If warranty parts are needed, AMGO Hydraulic Corporation will send them out at our own cost at standard ground shipping rate. If customer needs parts more quickly, it will be the customer's responsibility to pay for expedited shipping charges. AMGO Hydraulic Corporation will not compensate customers for down time when their equipment is out of service. AMGO Hydraulic Corporation will not compensate customers for time lost if freight is not delivered on the date or time estimated by the freight company.
