Atlas RJ-8000 Air Hydraulic Rolling Center Jack 8,000 lbs. Capacity

Name: Atlas RJ-8000 Air Hydraulic Rolling Center Jack 8,000 lbs. Capacity
Brand: ASEDeals
SKU: ATEATTD-RJ8000BK
Price: 2699.0 USD
Availability: InStock

In Stock SKU ATEATTD-RJ8000BK UPC 707543505435

OUR PRICE: $2,699.00

Regular Price: $2,839.00

$74.97 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas RJ-8000 Air Hydraulic Rolling Center Jack
8,000 lbs. Capacity with Truck Adapters
The commercial grade RJ-8000 rolling jack can be used to raise the front or rear section of a vehicle; allowing the operator of a four post above ground lift to perform wheel and brake service.

CALL US NOW FOR AN EVEN BETTER DEAL!

Description

Atlas RJ-8000 Air Hydraulic Rolling Center Jack
8,000 lbs. Capacity with Truck Adapters

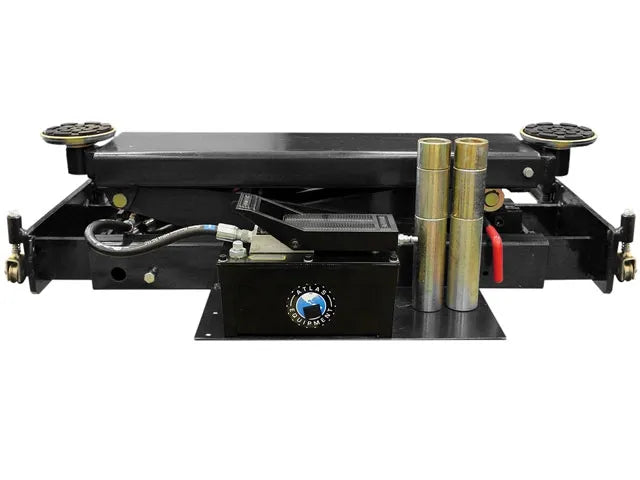

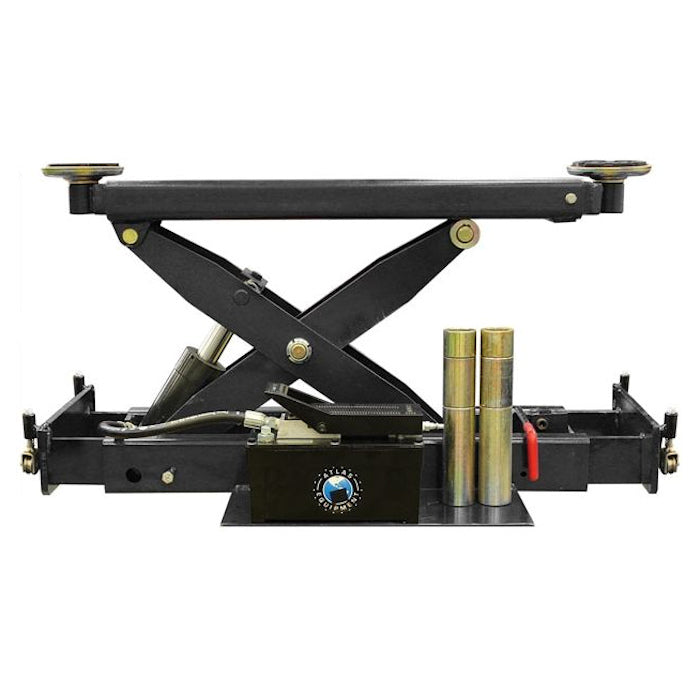

The Atlas RJ8000 heavy-duty air / hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds. The Atlas RJ8000 air / hydraulic rolling jack can be used to raise the front or rear portion of a vehicle, allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Atlas RJ8000 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ8000 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ8000 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

IMPORTANT: The Atlas RJ8000 is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.

Features & Specs

Features

8,000 lbs. Capacity
Air/Hydraulic Operated (External Air Supply Required)
Heavy-Duty / Commercial Grade

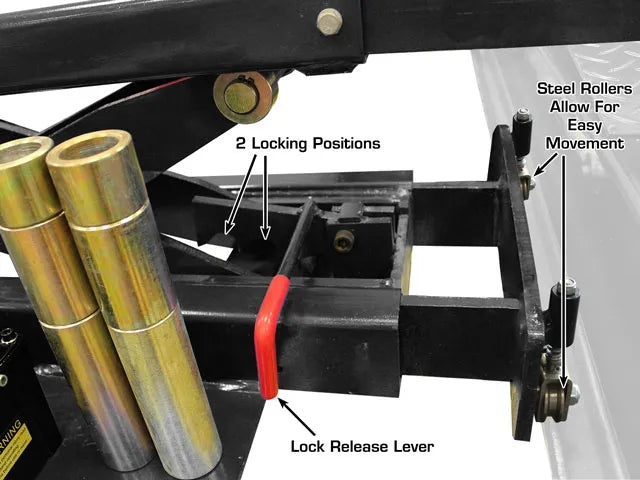

Multiple Safety Lock Positions
Compact Size With Low Profile
High Mobility Steel Rollers For Smooth Rolling Action
Scissor Mechanism Allows For Level Lifting
Powder Coated Finish

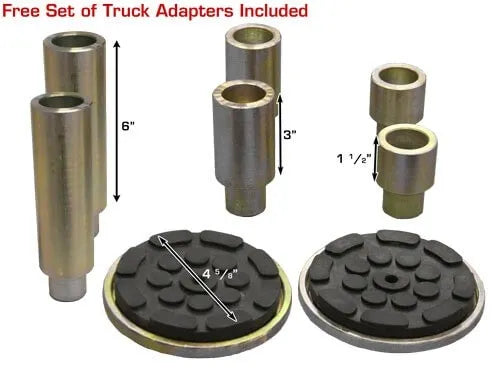

4 Piece Truck Adapter Set Included
Rolling Jack Color May Vary Blue Or Black

Specifications

Maximum Capacity: 8,000 lbs.

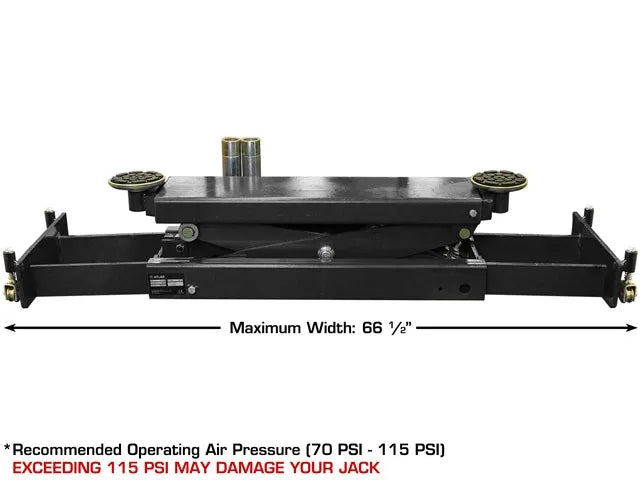

Maximum Width: 68" (5' 8")

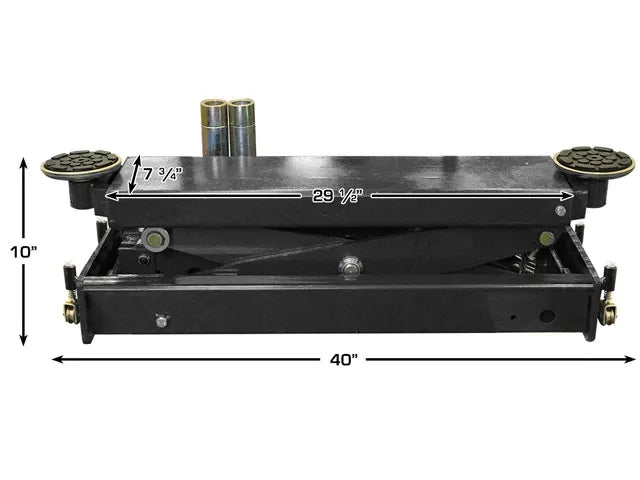

Minimum Width: 40" (3' 4")
Distance Between Runway Capability: 33"-53"
Maximum Lifting Height (With Adapters): 27"
Air Requirement: 70-115 PSI
Adapter Heights: 2 Each 2", 3"
Arm Hole/Adapter Peg Size: 1.5"
Shipping Dimensions: 22" x 13" x 38"
Shipping Weight: 390 lbs.
Warranty: 1 Year Parts

Atlas 1 Year Parts Warranty
1 Year Parts Warranty
Atlas tire changers, Atlas wheel balancers, Atlas air compressors, Atlas winches, 4 post lift jacks, Atlas brake lathes have a 1-Year Parts Warranty from the date of invoice.
NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.

Recommended Operation Air Pressure
The Atlas (air/hydraulic) RJ-8 rolling jack is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If the delivered air pressure exceeds 1115 PSI, then the rolling jack may be capable of lifting more than a weight of 8,000 lbs…HOWEVER, the metal structure and component parts of the Atlas rolling jack are rated to lift ONLY 8,000 lbs. Rolling jack metal structural damage may result from exceeding the rated capacity of 8,000 lbs.

IE: Our Atlas two post and four post lifts will actually lift and support more than their rated capacity. To prevent you (the curious customer) from trying to lift a vehicle (load) that exceeds the rated capacity of the lift, the power unit pumps (hydraulic pressure limit valve) are adjusted to deliver "only so much" hydraulic pressure. That "delivered hydraulic pressure" will allow your lift to raise only the rated capacity of the above ground lift. The power unit is electric/hydraulic. The power supply needed is normally 110V or 220V. Since the "electric power pressure" cannot be controlled..., the hydraulic pressure limit valve (which can be controlled) is set to deliver the correct amount of

An air/hydraulic power unit operates on compressed air. The "limit valve" on the air hydraulic power unit is really just the supplied air pressure (PSI). The PSI of the air supply must be regulated (for the Atlas RJ-8) to between 70 to 115 PSI. Supplied air pressure greater than 115 PSI may (inadvertently) cause damage to the rolling jack.

Example: Customer sets the air pressure at 115 PSI and the Atlas RJ-8 lifts the 8000 lbs. weight as advertised. However, the customer would like to increase the lifting speed of the rolling jack, so he decides to increase the air pressure to the air/hydraulic pump. (NEVER ADJUST AIR PRESSURE TO EXCEED 115 PSI as this could cause damage to the air/hydraulic power unit)

Yes, the rolling jack lifting points may go up a little faster (increased air pressure) and as long as the customer never tries to lift any object over 8,000 lbs. (assuming the weight is evenly distributed over the lifting surface), there will PROBABLY not be an issue. (air pressure not to exceed 115 PSI). However, what if the customer (accidently) tries to lift a vehicle (or part of a vehicle) that is OVER the 8,000 lbs. weight limit with the increased air pressure setting? The jack may lift the increased weight, BUT there is a possibility of damage to the rolling jack. Best advice is to keep the air pressure at the factory's recommended setting.
