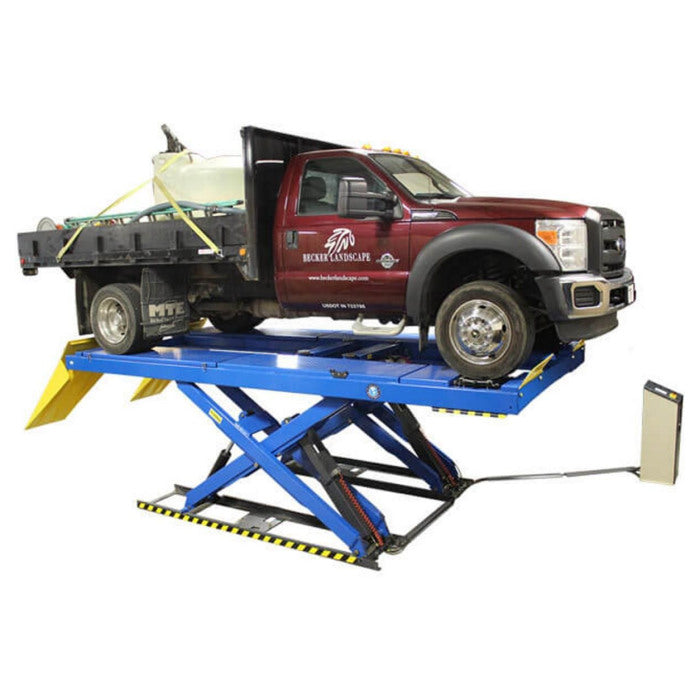

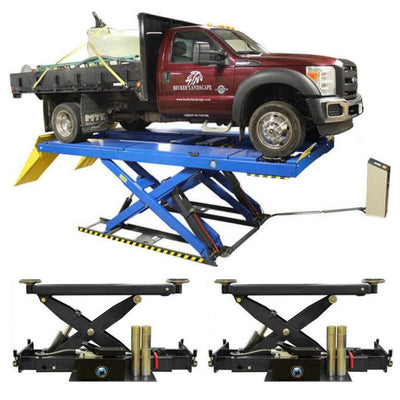

Atlas PX16A Heavy-Duty Scissor Alignment Lift

Features & Specs

Standard Features

• 16,000 lb. Capacity
• Scissor Alignment Lift
• Heavy Duty Commercial Grade Construction
• Front Cross-Beam for Added Stability
• Super-Balanced with Very Precise Platform Leveling Accuracy
• Built-in Slip Plates and Alignment Turntables Included
• Recessed Positions for Turntables
• Separate Self-Contained Control Unit
• Air Operated Mechanical Safety Locks (External Air Supply Required)
• Emergency Manual Pump for Lowering
• Overload Valve Included
• Lowering Speed Valve Included
• Extra Long Slip Plates Allow For 4-Wheel Aligning Of Long Wheelbases
• Mounting Hardware Included

Specifications

• Lifting Capacity: 16,000 lbs.
• Lifting Height: 71 1/2" (5' 11 1/2")
• Lowered Height: 13 1/4"
• Overall Width: 94" (7' 10")
• Overall Length with Approach Ramps: 271" (22' 7")
• Overall Length without Approach Ramps: 206 1/2" (17' 2 1/2")
• Approach Ramp Length: 66" (5' 6")
• 4-Wheel Alignment Max Wheelbase: 184"
• 4-Wheel Alignment Min Wheelbase: 96"
• Runway Width including Rail: 23 3/4" (1' 11 3/4")
• Width Between Runways: 44 7/8"
• Width Between Runway Rails: 41 3/8"
• Air Requirement: 90-120 PSI
• Motor: 220 volt +/- 5% (209-231volts) single (1) phase
• Electrical Requirement: 30 Amp Breaker is Required
• Oil Requirement: 3.5 Gallons AW32/AW46
• Shipping Dimensions: 217" L x 30" W x 42" H
• Shipping Weight: 6,200 lbs.
• Warranty: 2 Years Structure, 1 Year Hydraulic, No Labor

Requires a minimum of 6" of concrete with a 3000 PSI rating


2 Year Structural & 1 Year Hydraulic Warranty
This item is warranted for two (2) years on structural components and one (1) year on air or electric hydraulic power units, pneumatic power units, cylinders and major components from date of invoice. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
