Atlas PX16A HD Scissor Alignment Lift + RJ8 Rolling Jacks Combo

Description

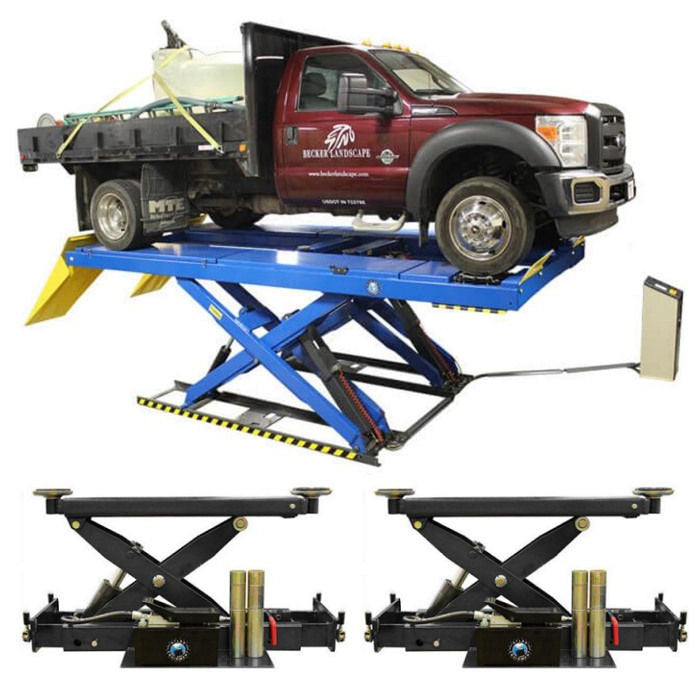

Atlas PX16A Heavy-Duty Scissor Alignment Lift 16,000 lbs. Capacity +
RJ8 Air Hydraulic Rolling Jacks 8,000 lbs. Capacity Combo

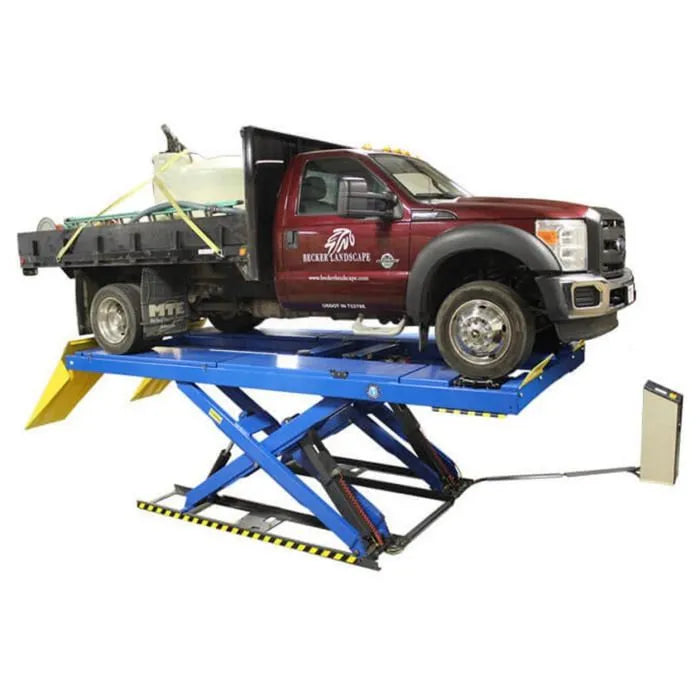

Atlas PX16A Heavy-Duty Scissor Alignment Lift
16,000 lbs. Capacity with Extra Long Slip Plates and Turntables

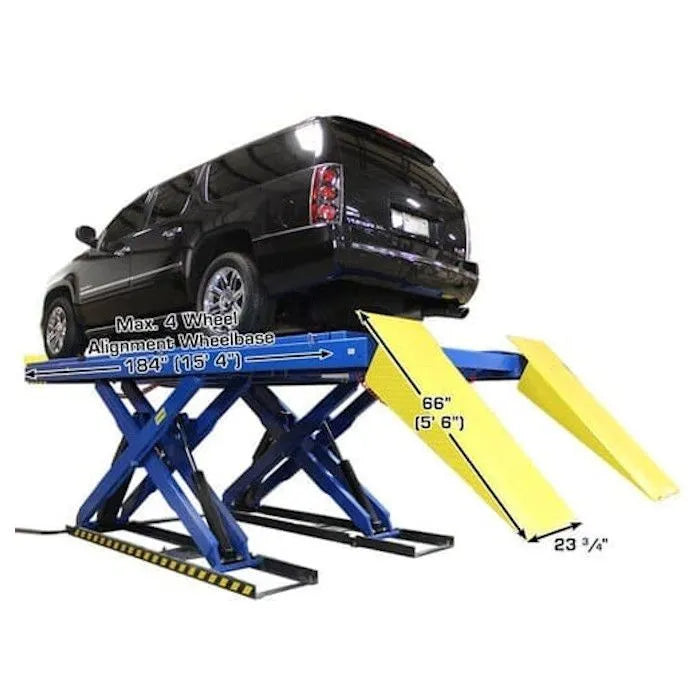

The Atlas PX16A Heavy-Duty Scissor Alignment Lift has a 16,000 lbs. capacity scissor and is the perfect choice for those service shops that need a space saving (narrow width) alignment lift to accommodate most all passenger cars up to heavy-duty long wheel base trucks and vans. The Atlas PX16A allows the operator to perform 4-wheel alignments for vehicles with wheel base lengths from 96 inches to 184 inches.

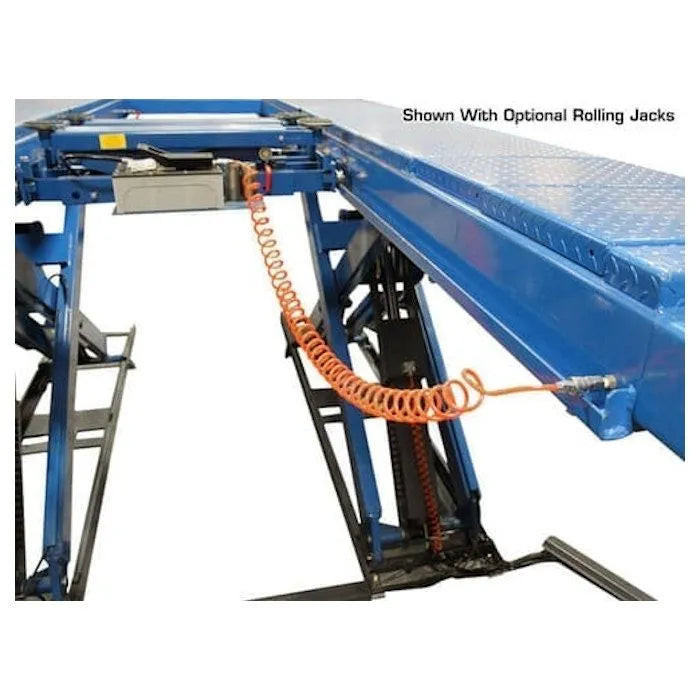

The Atlas PX16A includes a set of turntables, built in slip-plates, and runway jack rails designed to accommodate optional rolling jacks (like the Atlas RJ8000BK). The lift is equipped with a semi enclosed air line kit routing system to accommodate the optional airline kit. This air line kit will provide air to the rolling jacks and prevent shop air hoses from cluttering the floor.

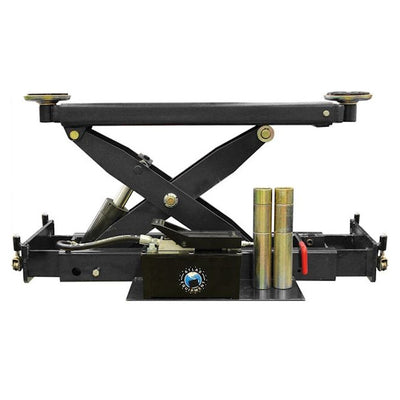

Atlas RJ-8000 Air Hydraulic Rolling Center Jack
8,000 lbs. Capacity with Truck Adapters

The Atlas RJ8000 heavy-duty air / hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle. The large heavy steel wheels allow the rolling jack to be positioned under the correct lifting points in a matter of seconds. The Atlas RJ8000 air / hydraulic rolling jack can be used to raise the front or rear portion of a vehicle, allowing the operator of a four post above ground lift to perform wheel and brake service. Most commercial shops buy two of these hydraulic rolling jacks, so that the entire vehicle can be supported in the air at the same time.

The Atlas RJ8000 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ8000 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ8000 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).

IMPORTANT: The Atlas RJ8000 is designed and engineered to operate on "delivered" air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.

Accessories/Options
