Atlas TTC306 Deluxe Automatic Super-Duty Truck Tire Changer

Name: Atlas TTC306 Deluxe Automatic Super-Duty Truck Tire Changer
Brand: ASEDeals
SKU: ATEATTC306
Price: 14499.0 USD
Availability: InStock

In Stock SKU ATEATTC306 UPC 810524000000

OUR PRICE: $14,499.00

Regular Price: $15,229.00

$402.75 / mo

INCLUDES FREE SHIPPING*

Short Description

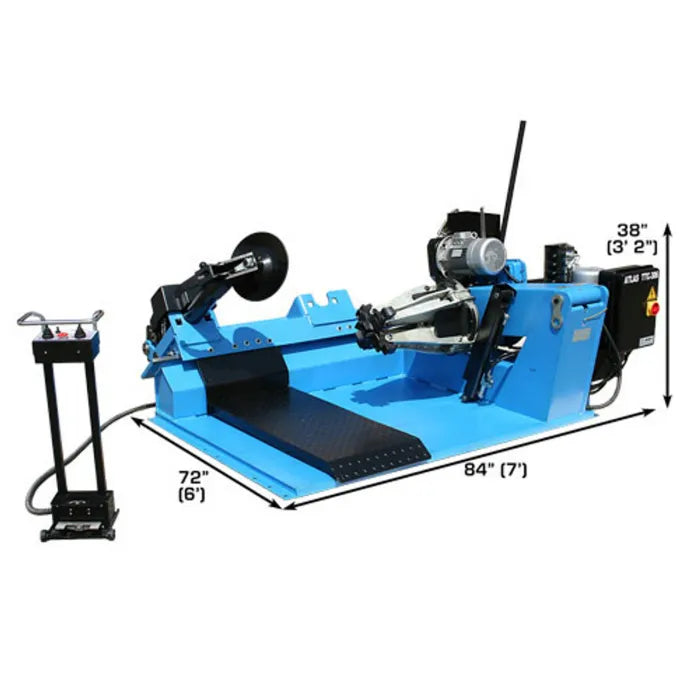

Atlas TTC306 Deluxe Automatic Super-Duty Truck Tire Changer
Super Duty 14" - 56" Diameter 53" Width Rims 97"+ Tires

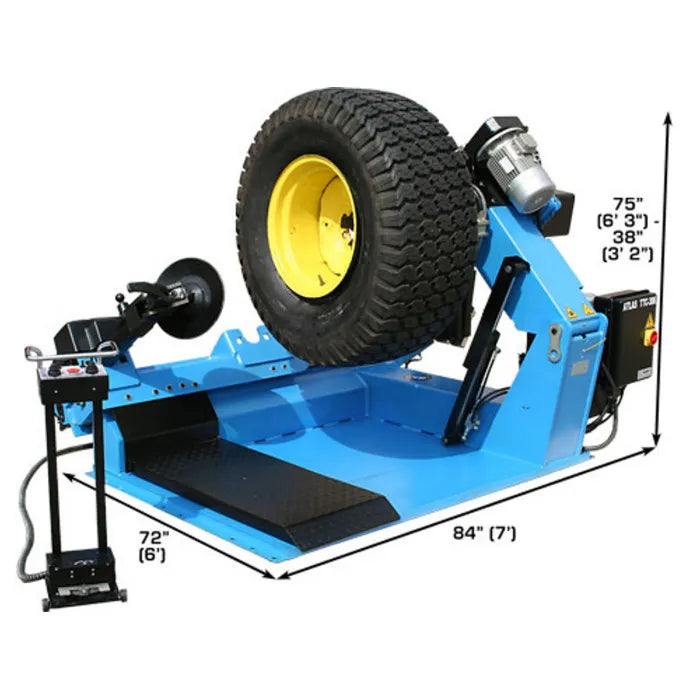

The Atlas TTC306 Deluxe Automated Truck Tire Changer is very similar to the Atlas TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas truck tire changer is designed and engineered to handle rim sizes from 14" to 56" and tire diameters in excess of over 97". The Atlas TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53". This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000.

CALL OUR EXPERTS NOW FOR UNBEATABLE, EXCLUSIVE PRICING!

Description

Atlas TTC306 Deluxe Automatic Super-Duty Truck Tire Changer
Super Duty 14" - 56" Diameter 53" Width Rims 97"+ Tires

The Atlas TTC306 Deluxe Automatic Super-Duty Truck Tire Changer is very similar to the Atlas TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas truck tire changer is designed and engineered to handle rim sizes from 14" to 56" and tire diameters in excess of over 97". The Atlas TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53". This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000.

The automatic operation of the Atlas TTC306 tire changer is controlled by the (wired) remote console. But the operation of this remote console may optionally be made wireless. Two advantages of the wireless feature: No wires on the shop floor, and the ability for the control console to be moved anywhere in the service area.

This tire changer has been sold all over the world and many of the component features are the result of a previous joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.

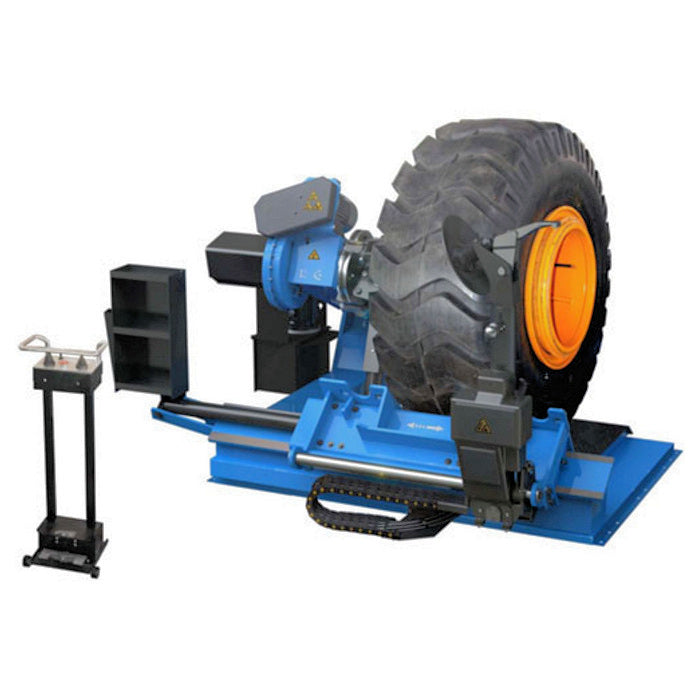

This Atlas TTC306 truck tire changer is designed for high volume truck, agricultural and mine truck tire shops that demand dependability and durability in their equipment. This Deluxe truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies and demands the capabilities to change agricultural and off road wheel assemblies. The TTC306 handles off-road tires, agricultural tires, super single tires, and skidder tires with ease.

CE Tested And Approved
The CE marking indicates a product's compliance with EU legislation and so enables the free movement of products within the European market. By affixing the CE marking to a product, a manufacturer declares, on his sole responsibility, that the product meets all the legal requirements for the CE marking, which means that the product can be sold throughout the European Economic Area (EEA, the 28 Member States of the EU and European Free Trade Association (EFTA) countries Iceland, Norway, Liechtenstein). This also applies to products made in other countries which are sold in the EEA.

Features & Specs

Features

Deluxe Automatic Super-Duty Truck Tire Changer
220 Volt 3 Phase Electric
2-Speed Hydraulic Chuck With 5 Rim Locking Positions
Automatic Movement And Positioning Of Bead Tool, Carriage, & Chuck Arm
Handles Rims From 14" To 56" And Tire Diameters In Excess Of 97"
Accommodates Tires With A Max Width Of Up To 53"
Bead Breaker
Mount/Demount Head

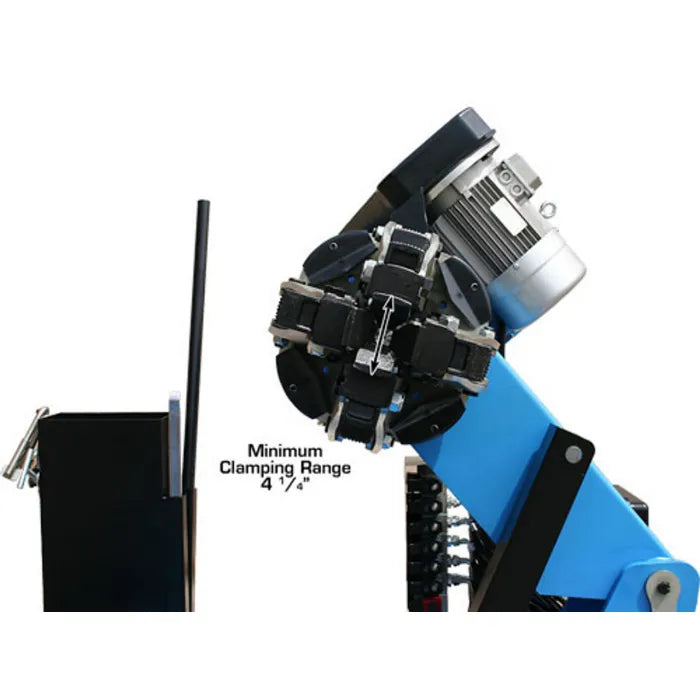

Electric/Hydraulic Self-Centering Four Jaw Chuck
5 Different Rim Locking Positions

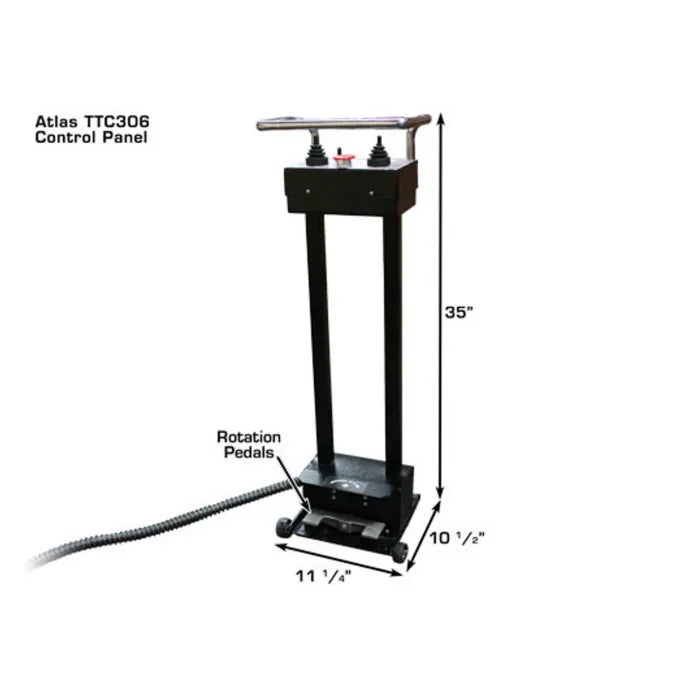

Wired Mobile Control Unit (Wireless Control Optional)
Tire Tool And Heavy Duty Tire Tool Included
Rim Clamps For Steel And Alloy Wheels Included
Alloy Rim Adapter Set With Plastic Inserts Included
Clamping Extensions Included

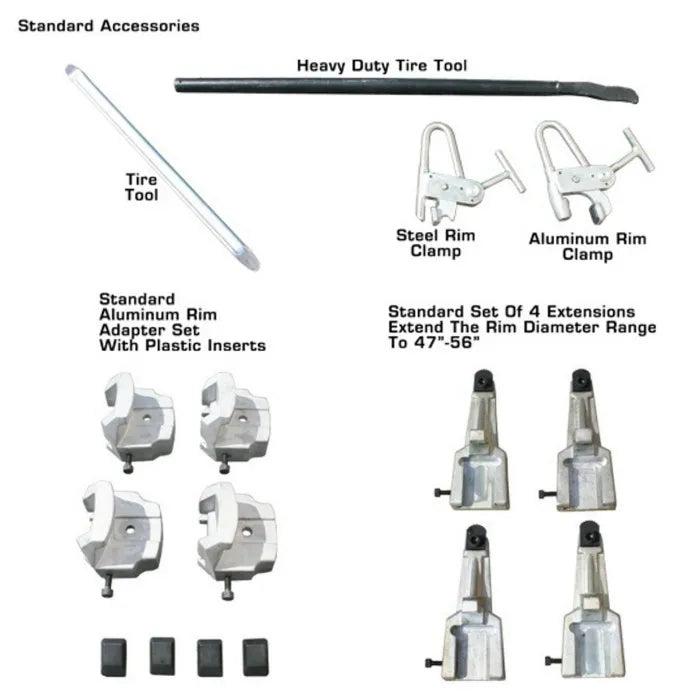

Standard Accessories

Tire Tool
Heavy-Duty Tire Tool
Steel Rim Clamp

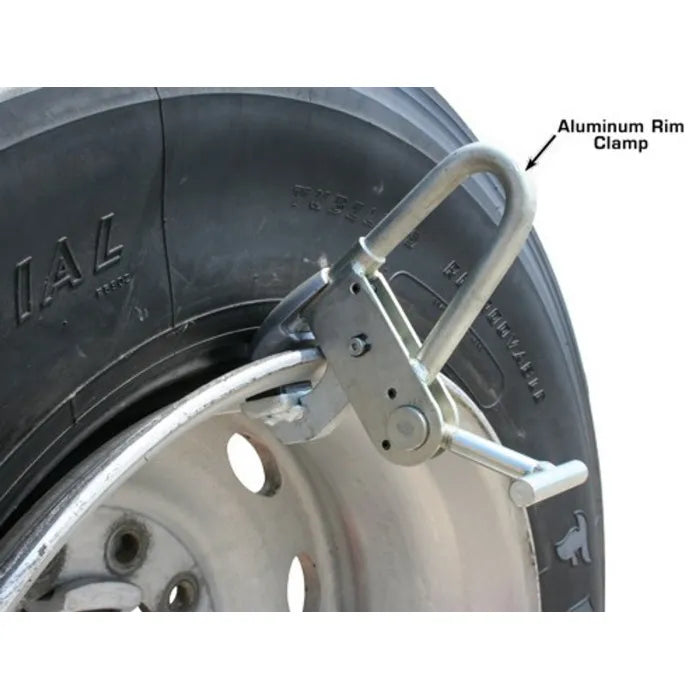

Alloy Rim Clamp
(4) Alloy Rim Adapters With Plastic Inserts
(4) Clamping Extensions

Optional Accessories

Wireless Control Console

Specifications

Rim Clamping Range: 14" - 46"
Max Clamping Size With Extensions: 56""
Max Wheel Weight: 3,968 lbs.
Max Tire Diameter: 98" (8' 2")
Max Tire Width: 42" (3' 6")
Clamping Power: 13,173 lbs.
Operating Pressure: 0 - 1885 PSI
Acoustic Pressure: < 70 Dba
Bead Breaker Force: 5,930 lbs.
Tool Arm Positioning: Automatic
Tool Head Positioning: Automatic
Construction: Single Piece Frame With Solid Floor Plate

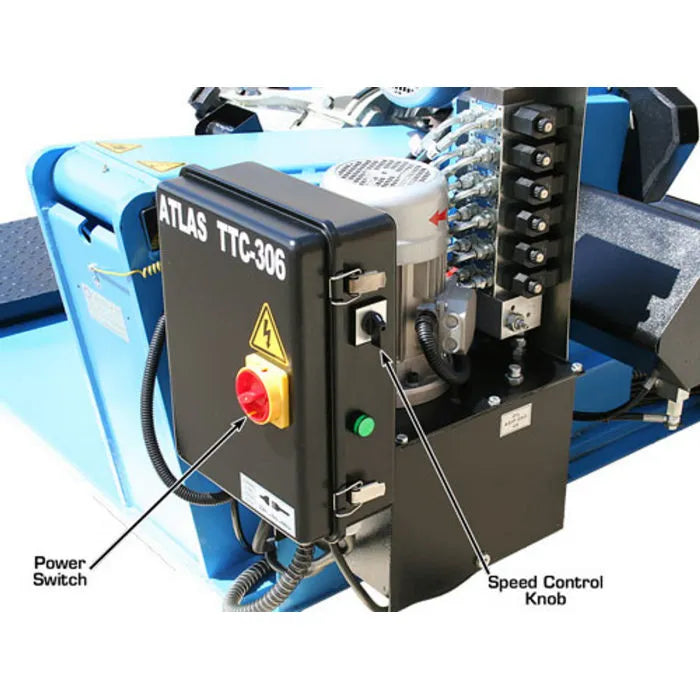

Hydraulic Motor Power: 3 HP, 220V (+/- 5% 209-231 Volts) 3 Phase
Chuck Motor Power: 3.5-4 HP, 220V (+/- 5% 209-231 Volts) 3 Phase
Electrical Requirement: 30 Amp Breaker Required

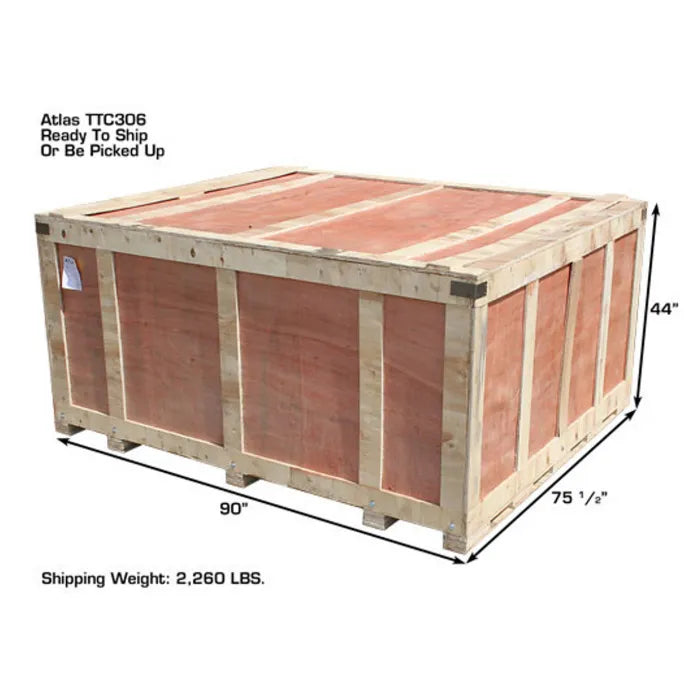

Shipping Weight: 2,260 lbs.
Shipping Dimensions: 90" L x 75 1-/2" W x 44" H
Warranty: (1) Year Limited Parts Only

Atlas (1) Year Limited Parts Only Warranty
This warranty covers any defects in manufacturing on your spray wash cabinet.

This warranty lasts (1) year from the date of purchase. Coverage terminates if you sell or otherwise transfer the spray wash cabinet during the period of the warranty.

Rust, or any problem that is caused by abuse, misuse, or an act of God is not covered in this warranty. The manufacturer should not be liable in either tort or contract for any loss or damage, direct, indirect, special, consequential, or incidental, arising out of the use or inability to use this product. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
