Autel ADAS AS30 All Systems 3.0 Calibration Package
In Stock SKU AS30 UPC 849438010058
OUR PRICE: $29,918.30
Regular Price: $32,689.30
Short Description
Autel ADAS AS30 All Systems 3.0 Calibration Package

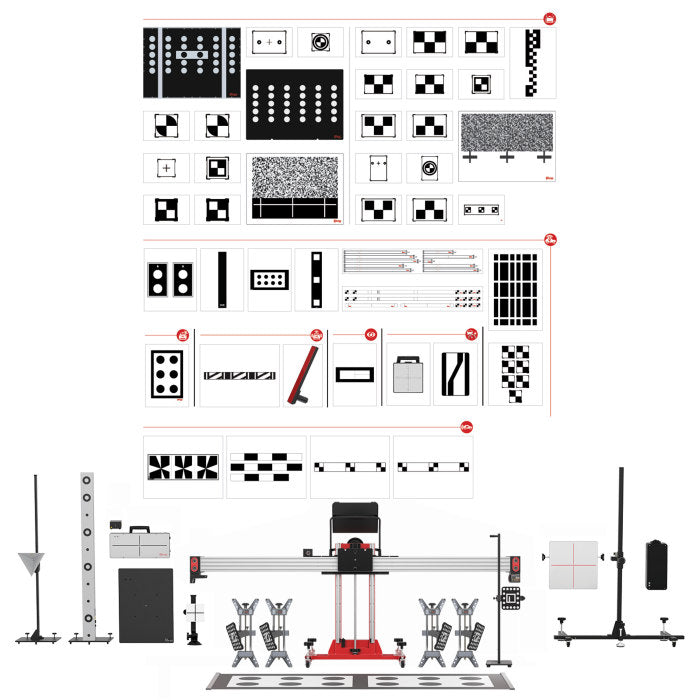

The Autel ADAS AS30 All Systems 3.0 Calibration Package includes the Standard Frame, IA800 positioning system, targets, patterns and components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations. Includes calibration software upgrade for MaxiSYS tablet (tablet not included). This system includes the IA800 optical positioning package that enables rapid vehicle to target positioning and precheck of vehicle alignment. The IA800 package includes six cameras, wheel clamps and positioning targets and distance positioning stand. Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota and Lexus vehicles; AVM patterns systems for Hyundai, Kia, Nissan, Mitsubishi, Toyota, VW, Honda and GM vehicles; RCW patterns/package for Mercedes, Nissan and VW vehicles; Night Vision Calibrator for VW, Mercedes and GM vehicles; Lidar Calibrator for VW, Audi, Lexus and Toyota vehicles. Includes 2- and 5-line lasers, plumb bob, laser-assisted mirror, L-shaped bracket and laser reflector. Includes One-Year Warranty.
The Autel ADAS AS30 All Systems 3.0 Calibration Package includes the Standard Frame, IA800 positioning system, targets, patterns and components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations. Includes calibration software upgrade for MaxiSYS tablet (tablet not included). This system includes the IA800 optical positioning package that enables rapid vehicle to target positioning and precheck of vehicle alignment. The IA800 package includes six cameras, wheel clamps and positioning targets and distance positioning stand. Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota and Lexus vehicles; AVM patterns systems for Hyundai, Kia, Nissan, Mitsubishi, Toyota, VW, Honda and GM vehicles; RCW patterns/package for Mercedes, Nissan and VW vehicles; Night Vision Calibrator for VW, Mercedes and GM vehicles; Lidar Calibrator for VW, Audi, Lexus and Toyota vehicles. Includes 2- and 5-line lasers, plumb bob, laser-assisted mirror, L-shaped bracket and laser reflector. Includes One-Year Warranty.
Description
Autel ADAS AS30 All Systems 3.0 Calibration Package
The Autel ADAS AS30 All Systems 3.0 Calibration Package includes the Standard Frame, IA800 positioning system, targets, patterns and components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations. Includes calibration software upgrade for MaxiSYS tablet (tablet not included). This system includes the IA800 optical positioning package that enables rapid vehicle to target positioning and precheck of vehicle alignment. The IA800 package includes six cameras, wheel clamps and positioning targets and distance positioning stand. Includes LDW Patterns/Targets for Alpha Romeo, Honda, VW, Mercedes, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota and Lexus vehicles; AVM patterns systems for Hyundai, Kia, Nissan, Mitsubishi, Toyota, VW, Honda and GM vehicles; RCW patterns/package for Mercedes, Nissan and VW vehicles; Night Vision Calibrator for VW, Mercedes and GM vehicles; Lidar Calibrator for VW, Audi, Lexus and Toyota vehicles. Includes 2- and 5-line lasers, plumb bob, laser-assisted mirror, L-shaped bracket and laser reflector. Includes One-Year Warranty.Advanced Driver Assistance System (ADAS) is becoming standard equipment on today's new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.
Features & Specs
Features
- All Systems Calibration Package Includes Standard Frame, Targets, Patterns, and Components for:
- LDW - Lane Departure Warning
- ACC - Adaptive Cruise Control
- LIDAR - Light Detection And Ranging
- RADAR - Radio Detection And Ranging
- NV - Night Vision
- RCW - Rear Collision Warning
- LW - Lane Watch
- AVM - Around View Monitoring
- Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
- Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
- Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle
Hardware Features
- Precise millimeter-level accuracy: crossbar's minor adjustment knob and camera positioning
- Precise cameras to locate radar and front camera
- Flexible power adjustable lift
- Flexible portable and easy for storage pattern cloth and pattern board
- Integrated modular frame assembled with accessory tools for calibration
- Integrated easy to move pattern board holder, pattern cloth, and pattern board
Software Features
- Smart calibration procedure
- Smart compatible use with leveling lift adjustment
- Accurate regular updates of latest OE-level diagnostic and calibration software
- Accurate correct calibration
- Intuitive tutorial graphics and step-by-step instructions
- Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
- Complete wide vehicle coverage
- Complete (7) calibration functions fixed and mobile calibrations
Package Includes
- All Systems Calibration Package
- Autel Standard Calibration Frame with Target Board Holder
- Includes IA800 Optical Positioning System for Rapid Vehicle to Target Positioning
- Includes Targets, Patterns and Components for LDW, ACC, Lidar, Radar, Night Vision, RCW, Lane Watch and AVM system calibrations
- Includes LDW Targets and Patterns for Honda, Genesis, VW, Mercedes, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota and Lexus Vehicles
- Includes AVM Patterns Systems for Hyundai, Kia, Nissan, Mitsubishi, Toyota, VW, Honda and GM Vehicles
- Includes RCW patterns for Mercedes, Nissan and VW Vehicles
- Includes Night Vision Calibrator for VW, Mercedes and GM Vehicles
- Includes Lidar Calibrator for VW, Audi, Lexus and Toyota Vehicles
- Includes ADAS Calibration Software Upgrade
- Includes 2- and 5-Line Lasers, Plumb Bob, Laser-Assisted Mirror, L-Shaped Bracket and Laser Reflector
- Compatible with MaxiSYS tablet (not included)
Specifications
- Shipping Dimensions: 64" H x 105" L x 42" W
- Shipping Weight: 1,025 lbs.
Frame & Pattern Board Specifications
- Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
- Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
- Calibration Frame Weight GW: 152kg (335.1 lb.)
- Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
- Crossbar Length: 2510mm (98.82")
- Measurement Range of Crossbar's Height Min: 350mm (13.78")
- Measurement Range of Crossbar's Height Max: 950mm (37.40")
- Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
- Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
- Rated Power: 24V, 3A
- Laser Rated Power: 3V, 25mA
- Laser Battery Type: AA 2x1.5V
- Calibration Frame Working Temp: 0℃ to 50℃
- Calibration Frame Storage Temp: -20℃ to 60°C
- Laser Class: Class 2
- Certification: CE, FCC, RoHS
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:
- The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
- This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
- Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
- All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.
Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
