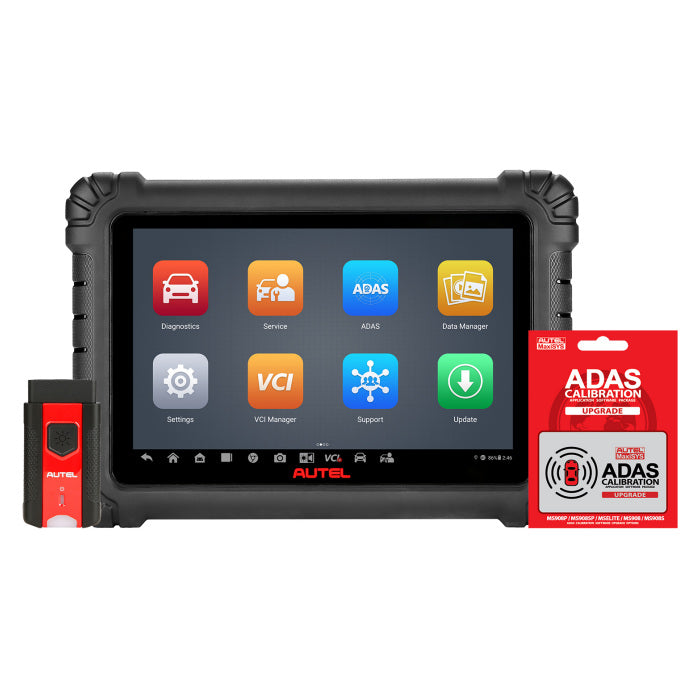

Autel MS906MAXADAS Professional Diagnostic Tablet

Features & Specs

Features

• 10.1" Touchscreen Wireless Professional Diagnostics And Service Tablet
• Extensive Vehicle Coverage Of U.S., Asian And European Vehicles, 1996 And Newer
• Includes Static And Dynamic ADAS Calibration Software Upgrade.

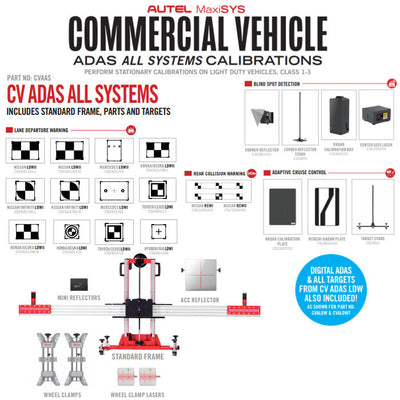

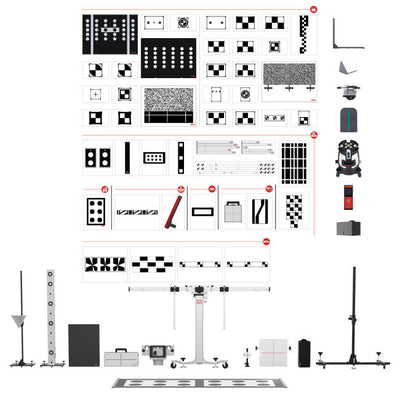

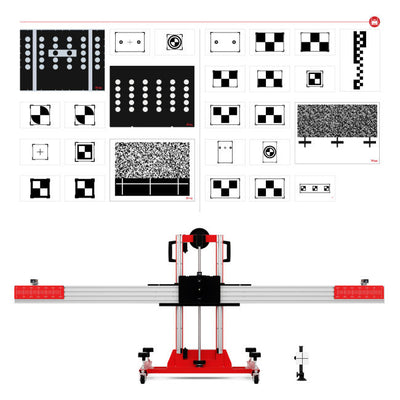

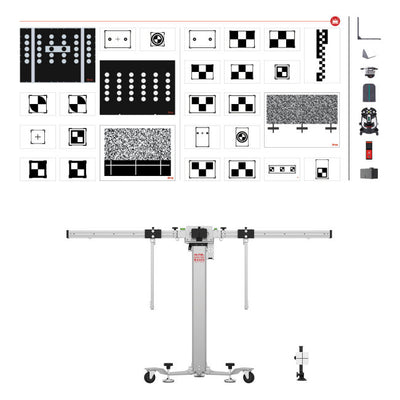

• Compatible With Autel MA600 And Standard ADAS Calibration Frame Systems (Purchased Separately)
• Perform All-Systems Diagnostics Including Read And Erase Codes, View And Graph Live Data
• Perform Bi-Directional Active Tests And Special Functions
• Extensive Service And Maintenance Task Menu
• Includes Bluetooth-Enabled MaxiVCI V200 For Support Of Standard And Advanced Communication Protocols
• 128GB Storage And Extended Battery Life
• Includes One Year Of Software Updates
• Covered By A One-Year Limited Warranty

Specifications

• Operating System: Android 10
• Processor: Octa-core Processor
• Memory: 4 GB RAM & 128 GB On-board Memory
• Battery: 11600 mAh 3.85 V Lithium-polymer Battery
• Display: 10.1-inch LCD Capacitive Touchscreen with 1920 x 1200 Resolution
• Camera (Rear): 13 MP
• Connectivity
• Wi-Fi (802.11 a/b/g/n/ac)
• BT 5.0 (BR/EDR + BLE)
• GPS
• USB 2.0 (Two USB Host Type A, one Mini USB)
• SD Card (Support up to 256 GB)
• Audio Input: Microphone
• Audio Output: Dual Speakers, 3-band or 4-band 3.5 mm Headset Jack
• Operating Temp.: 0 °C to 50 °C (32 °F to 122 °F)
• Storage Temp.: -10 °C to 60 °C (14 °F to 140 °F)
• Protocols: ISO13400, CAN FD, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAEJ2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
• Weight: 10.43 lbs.
• Dimensions: 13.62" H x 16.85" L x 6.14" W
• Warranty: (1) Year Limited
