Autel ADAS LDW30 LDW 3.0 Calibration Package

Features & Specs

Features

• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Camera Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and camera positioning
• Precise cameras to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage pattern cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of latest OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

Package Includes

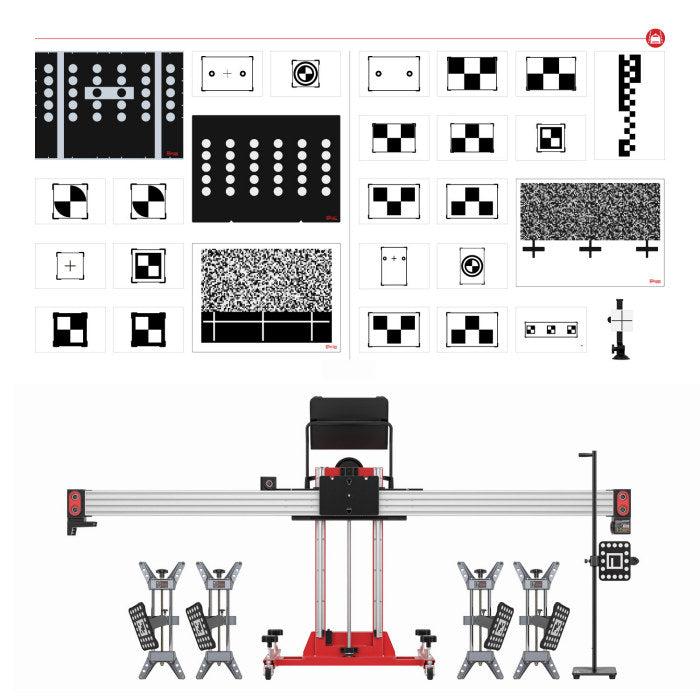

• Lane Departure Warning Calibration System
• Standard ADAS Calibration Frame with Target Board Holder
• Includes IA800 Optical Positioning System for Rapid Vehicle to Target Positioning
• Includes LDW Targets and Patterns for Honda, Genesis, VW, Mercedes, Hyundai, Kia
• Includes LDW Targets and Patterns for Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota, Lexus
• IA800 Includes Six Cameras, Wheel Clamps and Positioning Targets, Distance Positioning Stand
• Includes 2- and 5-Line Lasers, Plumb Bob, Laser-Assisted Mirror, L-Shaped Bracket and Laser Reflector
• Includes ADAS Calibration Software Upgrade
• Compatible with MaxiSYS tablet (not included)

Specifications

• Shipping Dimensions: 54" H x 105" L x 42" W
• Shipping Weight: 750 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS
