Autel ADAS LDW20 LDW 2.0 Calibration Package

Features & Specs

Features

• Flexible - Easily Interchangeable Calibration Components with Power Adjustable Frame
• Precise - Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler
• Adjustable - Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

Hardware Features

• Precise millimeter-level accuracy: crossbar's minor adjustment knob and laser positioning
• Precise laser on sliding plate to locate radar and front camera
• Flexible power adjustable lift
• Flexible portable and easy for storage patter cloth and pattern board
• Integrated modular frame assembled with accessory tools for calibration
• Integrated easy to move pattern board holder, pattern cloth, and pattern board

Software Features

• Smart calibration procedure
• Smart compatible use with leveling lift adjustment
• Accurate regular updates of lates OE-level diagnostic and calibration software
• Accurate correct calibration
• Intuitive tutorial graphics and step-by-step instructions
• Intuitive pre-scan and post-scan reports (ADAD module identification, calibration)
• Complete wide vehicle coverage
• Complete (7) calibration functions fixed and mobile calibrations

Package Includes

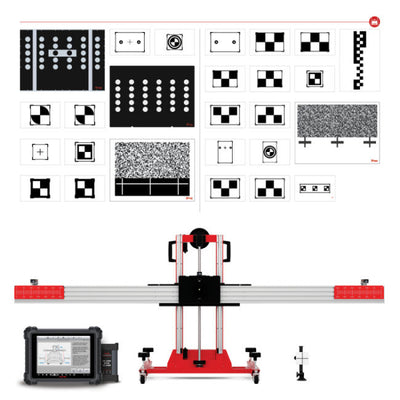

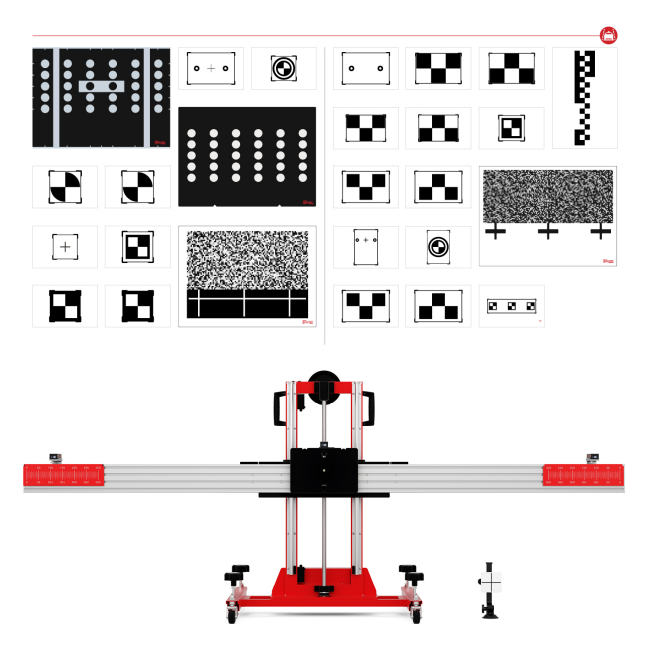

• Autel Standard Calibration Frame
• Pattern Board, Wheel Clamps and Laser Crossbar
• ADAS Upgrade Software, compatible with MaxiSYS Tablet (not included)
• DIGITALADAS Add-on for Faster Frame Placement with One Person
• LDW Patterns/Targets for Alpha Romeo, Honda, Genesis, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Mazda, Subaru, Toyota/Lexus
• LDW Target Case
• Target Board Holder

Specifications

• Shipping Dimensions: 54" H x 105" L x 42" W
• Shipping Weight: 661 lbs.

Frame & Pattern Board Specifications

• Calibration Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480-2105 mm (58.27-82.87")
• Calibration Frame Weight NW: 74.5 kg (164.24 lb.)
• Calibration Frame Weight GW: 152kg (335.1 lb.)
• Pattern Board Size (LxW): 1360mm (53.54") x 960mm (37.80")
• Crossbar Length: 2510mm (98.82")
• Measurement Range of Crossbar's Height Min: 350mm (13.78")
• Measurement Range of Crossbar's Height Max: 950mm (37.40")
• Measurement Range of Pattern Board's Height Min: 1000mm (39.37")
• Measurement Range of Pattern Board's Height Max: 1600mm (62.99")
• Rated Power: 24V, 3A
• Laser Rated Power: 3V, 25mA
• Laser Battery Type: AA 2x1.5V
• Calibration Frame Working Temp: 0℃ to 50℃
• Calibration Frame Storage Temp: -20℃ to 60°C
• Laser Class: Class 2
• Certification: CE, FCC, RoHS

One-Year Limited Warranty
Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:

1. The sole responsibility of Autel under the Warranty is limited to either the repair or, at the option of Autel, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
2. This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired by anyone other than the Manufacturer Service Center.
3. Autel shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
4. All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. Autel reserves the right to make changes at any time without notice.

One-Year Limited Warranty: Store or dealer receipt acts as proof of purchase. In lieu of proof of purchase, tool or tablet is warranted one (1) year from tool/tablet registration.

Repair Cost: If under warranty, your Autel tool will be repaired or replaced free of charge unless damaged (including but not limited to a cracked screen, broken case, chemical exposure or liquid damage) to accident, abuse, misuse, natural disaster, insufficient or excessive electrical supply, abnormal mechanical or environmental conditions or unauthorized disassembly, repair or modification. If the repaired unit is out of warranty, the customer will be contacted and will be responsible for the repair fee.
