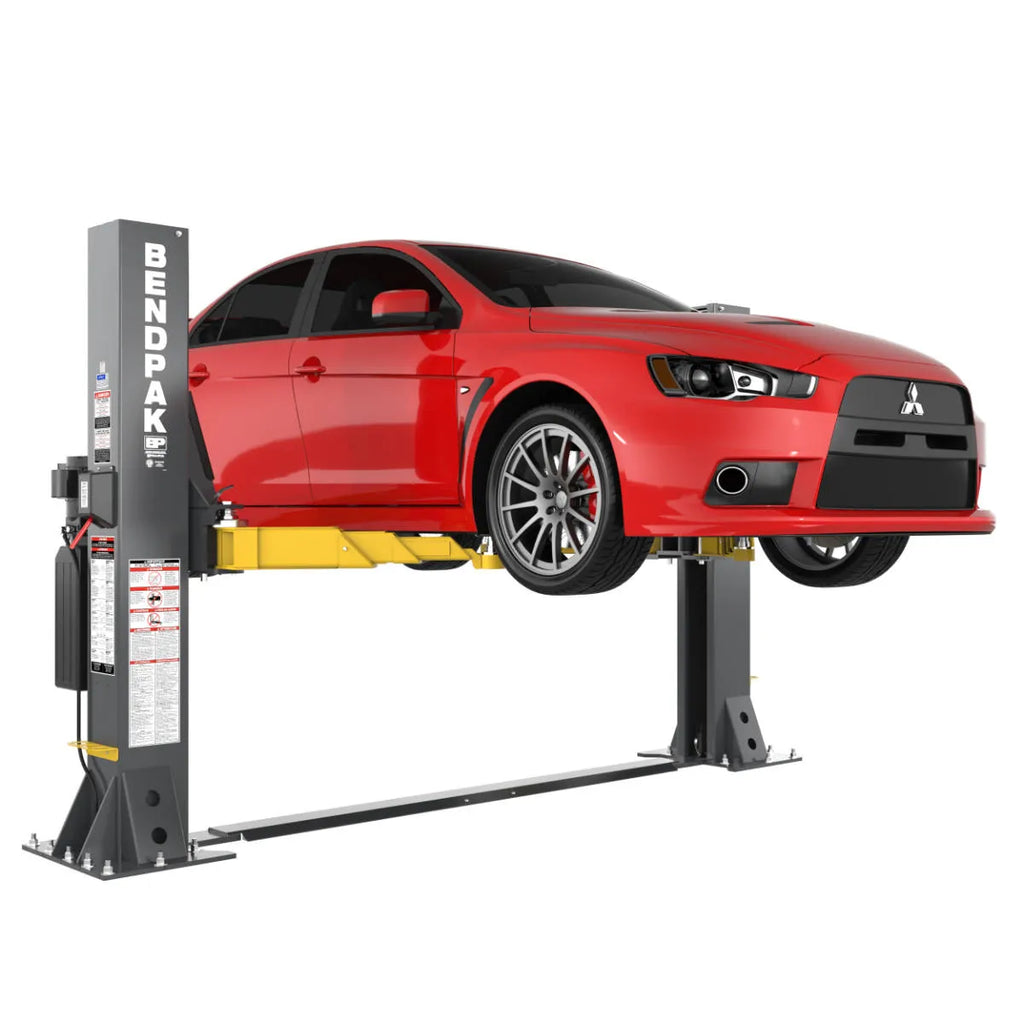

BendPak 10AP-SRT Floorplate Short-Rise Two Post Lift

Name: BendPak 10AP-SRT Floorplate Short-Rise Two Post Lift
Brand: ASEDeals
SKU: 5175610
Price: 6595.0 USD
Availability: InStock

In Stock SKU 5175610 UPC 849672034414

OUR PRICE: $6,595.00

Regular Price: $6,929.00

$183.19 / mo

INCLUDES FREE SHIPPING*

Short Description

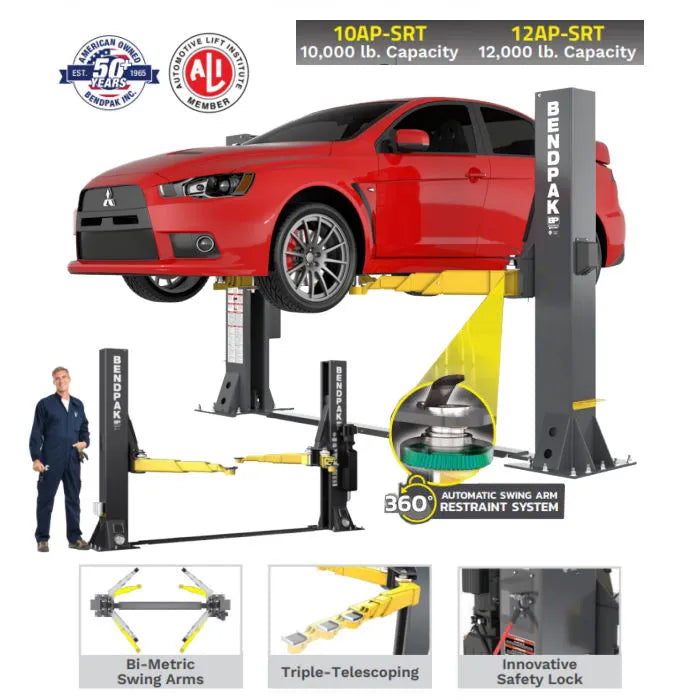

BendPak 10AP-SRT Floorplate Short-Rise Two Post Lift
10,000 lbs. Three-Stage Low-Profile Bi-Metric Arms
Adjustable Width with Automatic Swing Arm Restraint System
At BendPak, we understand that different jobs require different tools. You're not always going to need a standard lift so you can stand under a vehicle, and that's where the 10AP-SRT comes in. This short-rise, short-column lift is the latest addition to the revolutionary AP Series and fits perfectly in shops and low-ceiling garages. It's also capable of safely handling up to 10,000 lbs.
Experience seamless adaptability like never before with the 10AP-SRT's intuitive design, capable of effortlessly transitioning between symmetric and asymmetric lifting configurations. Whether you're tackling routine tire changes or complex wheel alignments, this lift is equipped to handle it all with precision and ease.

Description

BendPak 10AP-SRT Floorplate Short-Rise Two Post Lift
10,000 lbs. Three-Stage Low-Profile Bi-Metric Arms
Adjustable Width with Automatic Swing Arm Restraint System

At BendPak, we understand that different jobs require different tools. You're not always going to need a standard lift so you can stand under a vehicle, and that's where the 10AP-SRT comes in. This short-rise, short-column lift is the latest addition to the revolutionary AP Series and fits perfectly in shops and low-ceiling garages. It's also capable of safely handling up to 10,000 lbs.
Experience seamless adaptability like never before with the 10AP-SRT's intuitive design, capable of effortlessly transitioning between symmetric and asymmetric lifting configurations. Whether you're tackling routine tire changes or complex wheel alignments, this lift is equipped to handle it all with precision and ease.

The Perfect Lift for Tire and Wheel Service
The 10AP-SRT from BendPak is a fantastic choice when you don't need to work underneath vehicles. Whether you're focusing on detailing or other non-undercarriage tasks, this innovative lift is your go-to choice for efficiency and safety. With its compact design, the 10AP-SRT easily fits into both professional shops and personal garages, maximizing space without compromising performance. Say goodbye to bulky equipment and hello to streamlined operations with the 10AP-SRT.

A New Paradigm in Lifting
In an ever-evolving industry, innovation is key to staying ahead. Introducing BendPak's groundbreaking AP Series, a testament to cutting-edge automotive lift engineering. Combining the finest features from modern two-post lifts, this series sets a new standard in the market.

Built to withstand extreme loads, safety, and efficiency are at the forefront of the AP Series design. The 10AP-SRT offers both wide and narrow installation options in a single, customizable package. Engineered for durability, safety, and reliability, these lifts feature BendPak's state-of-the-art Bi-Metric arms which is able to safely accommodate both symmetric and asymmetric lifting needs.

Screw Pads and Adapters That Adjust to Your Needs
BendPak's screw adapters have been meticulously crafted for precision and safety. They feature durable polyurethane pads that resist wear and tear. Easily adjustable for level lifting in any situation, they ensure secure frame engagement, prioritizing technician safety above all else.

For added versatility, make sure to check out the optional 2.5" and 5" stackable adapters. They provide secure support for various vehicles and with a convenient drop-in design and a column-mounted rack for organization, they'll streamline your workflow and boost efficiency.

Innovative Safety Lock System
Experience a revolutionary approach to operator safety and efficiency with BendPak's patented automatic safety lock system. Designed to engage seamlessly during all lift rising operations, it offers a dependable layer of protection like no other.

What really sets it apart is its user-friendly design. Featuring an ergonomic single-point release mechanism, operators can effortlessly disengage the safety locks during lift descent with just the push of a finger. It's that simple, ensuring smooth and safe operation every time.

BendPak's patented automatic safety lock system is a gamechanger for operator efficiency and safety. Its innovative design ensures that safety locks automatically engage during all lift rising operations, providing a reliable layer of protection. But what truly sets it apart is the user-friendly experience it offers. With an ergonomic single-point release mechanism, operators can effortlessly disengage the safety locks during lift descent. It's that simple, making your operations smoother and safer than ever before.

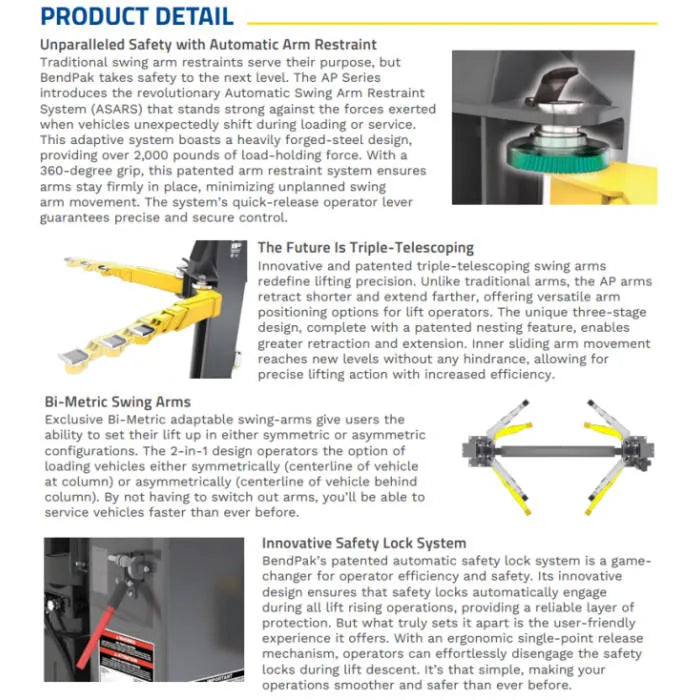

Unparalleled Safety with Automatic Arm Restraint

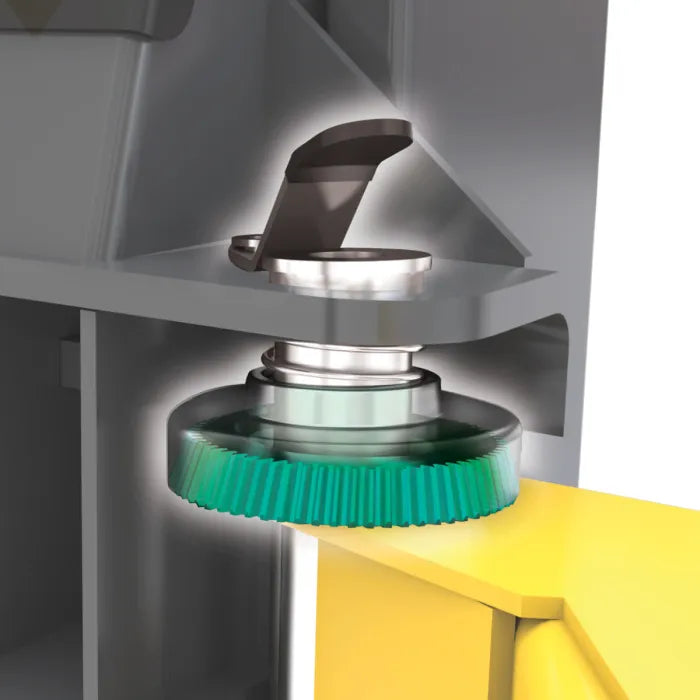

Say goodbye to traditional swing arm restraints and hello to the next level of safety with BendPak's revolutionary Automatic Swing Arm Restraint System from the AP Series. Designed to withstand the forces exerted during vehicle loading or service, this adaptive system sets a new benchmark in safety.

Featuring a robust forged-steel design, the ASARS provides over 2000-lbs. of load holding force, ensuring stability and security at all times. With its 360-degree grip, this patented system keeps arms firmly in place, minimizing unexpected swing arm movement.

Traditional swing arm restraints serve their purpose, but BendPak takes safety to the next level. The AP Series introduces the revolutionary Automatic Swing Arm Restraint System (ASARS) that stands strong against the forces exerted when vehicles unexpectedly shift during loading or service. This adaptive system boasts a heavily forged-steel design, providing over 2,000 pounds of load-holding force. With a 360-degree grip, this patented arm restraint system ensures arms stay firmly in place, minimizing unplanned swing arm movement. The system's quick-release operator lever guarantees precise and secure control.

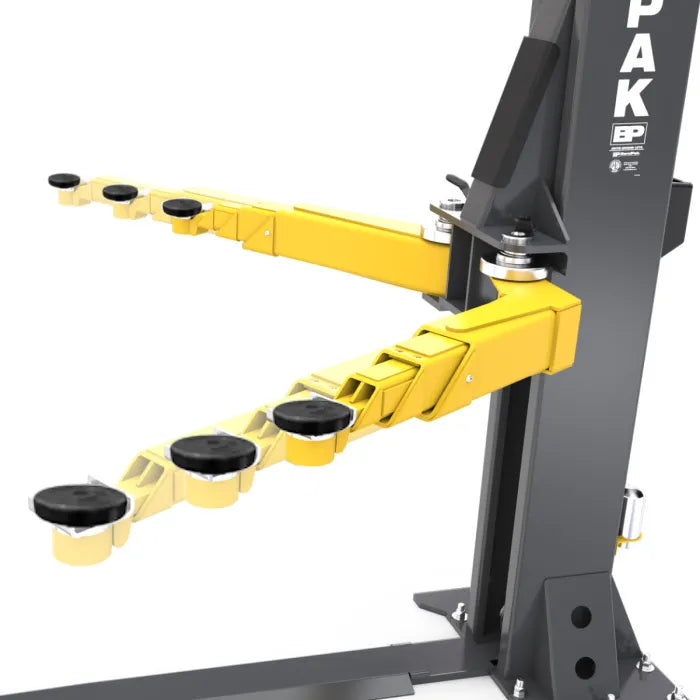

The Future is Triple-Telescoping
The innovative and patented triple-telescoping swing arms redefine lifting precision. Unlike standard lifting arms, the AP arms retract shorter and extend farther, offering versatile arm positioning options for lift operators. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension. Inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency.

Innovative and patented triple-telescoping swing arms redefine lifting precision. Unlike traditional arms, the AP arms retract shorter and extend farther, offering versatile arm positioning options for lift operators. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension. Inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency.

Bi-Metric Swing Arms
Exclusive Bi-Metric adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you'll be able to service vehicles faster than ever before.

Features & Specs

Features

Perfect Lift For Tire And Wheel Service
Compact Design Easily Fits Into Both Professional Shops And Personal Garages
Wide And Narrow Installation Options In A Single, Customizable Package
Screw Pads And Adapters That Adjust To Your Needs
Innovative Safety Lock System
Unparalleled Safety With Automatic Arm Restraint
Innovative And Patented Triple-Telescoping Swing Arms
Durable Powder Coat Finish

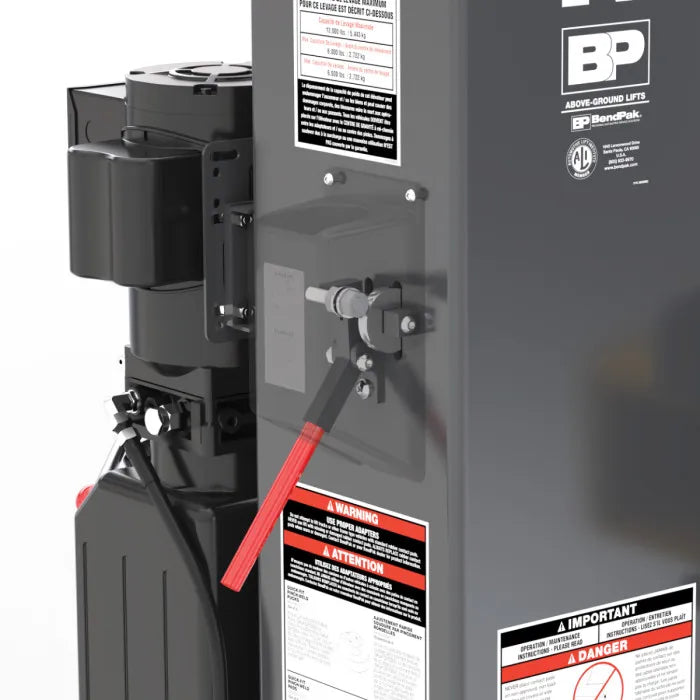

Power Side Post Supports The Power Unit, The Safety Lock Release Handle And The Lowering Handle
ALI Certified
Exclusive Bi-Metric Arm Design For More Versatile Arm Positioning
Single-Point Safety Release
Drop-End Arms Provide A Lower Pad Height
Dual Hydraulic Direct-Drive Cylinders
Electric / Hydraulic HVLP Power System
Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
Safety Locks In Each Column Spaced Every 3"
Automatic Arm Restraints Withstand Over 2000-Pounds Of Side Force
Heavy-Duty 1/2" Aircraft-Quality Equalizer Cables

Standard Accessories

#5215762 Screw Pads (Set of 4)
#5211660 Adapter Holders

Optional Accessories

#5215757 2-1/4" Small Adapters (Set of 4)
#5215758 2-1/2" Medium Adapters (Set of 4)
#5215759 5" Tall Adapters (Set of 4)
#5215761 Drop-In Cradle Pads (Set of 4)
#5215763 Drop-In Steel Pads (Set of 4)

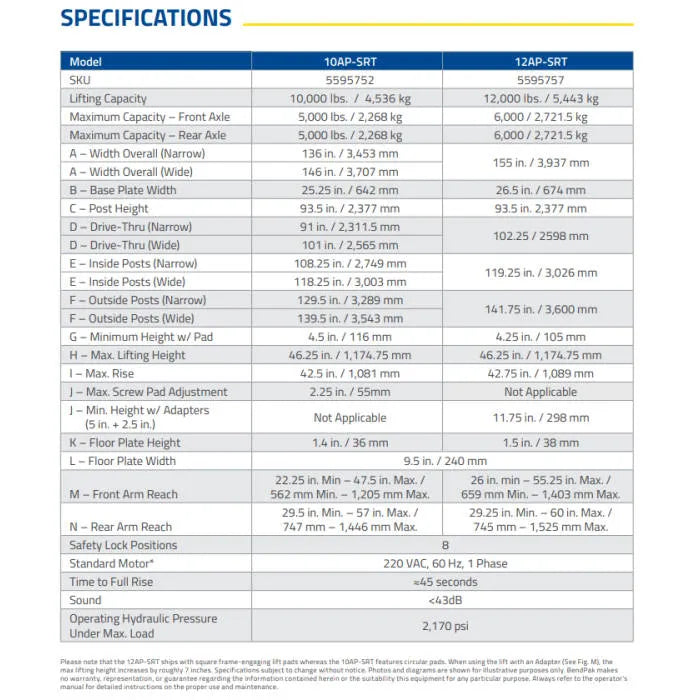

Specifications

Lifting Capacity: 10,000 lbs. (4,536 kg)
Max Capacity / Front Axle: 5,000 lbs. (2,268 kg)
Max Capacity / Rear Axle: 5,000 lbs. (2,268 kg)

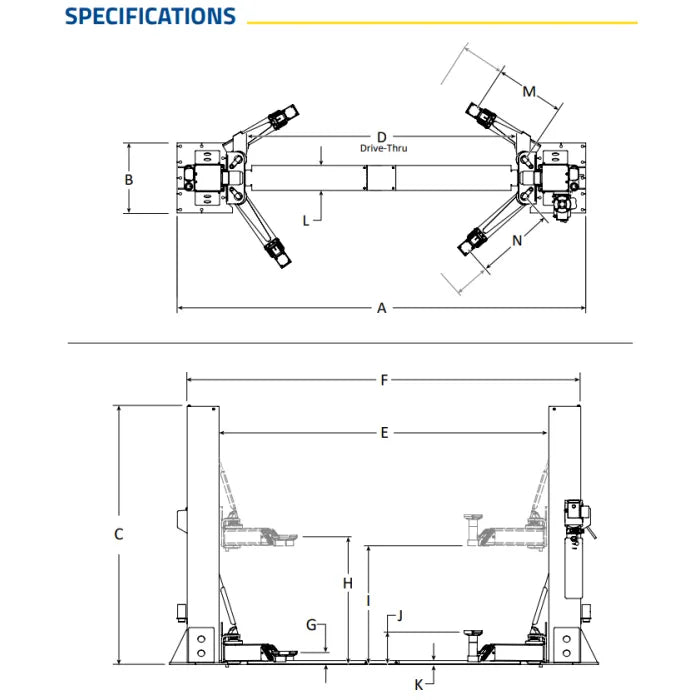

A - Width Overall: 146 in. (3,707 mm)
B - Base Plate Width: 25.25 in. (642 mm)
C - Post Height: 93.5 in. (2,377 mm)
D - Drive-Thru (Narrow): 91 in. (2,311 mm)
D - Drive-Thru (Wide): 101 in. (2,565 mm)
E - Inside Posts (Narrow): 108.25 in. (2,749 mm)
E - Inside Posts (Wide): 118.25 in. (3,003 mm)
F - Outside Posts (Narrow): 128.75 in. (3,269 mm)
F - Outside Posts (Wide): 138.75 in. (3,523 mm)
G - Minimum Height with Pad: 4.5 in. (116 mm)
H - Max. Lifting Height: 46 in. (1,168 mm)
I - Max. Rise: 42.5 in. (1,081 mm)
J - Max. Screwpad Adjustment: 2.25 in. (55 mm)
K - Floor Plate Height: 1.4 in. (36 mm)
L - Floor Plate Width: 9.5 in. (240 mm)
M - Front Arm Reach*: 22.25 in. min - 47.5 in. max. (562 mm min. - 1,205 mm max.)
N - Rear Arm Reach*: 29.5 in. min. - 57 in. max. (747 mm - 1,446 mm max.)
Safety Lock Positions: 8
Standard Motor: 208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps
Time to Full Rise: ˜45 seconds
Sound Pressure: Lift produces less than 43dB when in operation.
Operating Hydraulic Pressure under Max. Load: 2,170 psi
Special voltages available upon request.
Shipping Weight: 1,664 lbs.
Shipping Dimensions: 112" x 28" x 29"
Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

*Measured from the Lift Arm Pivot to the Cradle Pad Center Pin

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

Five Years (60-Months) Warranty on the lift structure
Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12‐Months) Warranty on operating components
One Year (12‐Months) Warranty on electrical components (excluding power unit)
One Year (12‐Months) Labor Warranty on site or at factory*
One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:

Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
Any damage caused by overloading Product beyond rated capacity.
Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
Rusted components due to improper maintenance or corrosive environments.
Cosmetic defects that do not interfere with Product functionality.
Damage due to incorrect voltage or improper wiring.
Any failure that results from improper installation or use not according to specifications.
Damage caused by disasters such as fire, flood, wind, and lightning.
Damage caused by unauthorized attachments or modifications.

Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
Responsibilities of Purchaser under this warranty/ notice of claims:

Provide dated proof of purchase and maintenance records.
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.

When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
