BendPak EVS3000 EV Battery and Powertrain Lift Table

Description

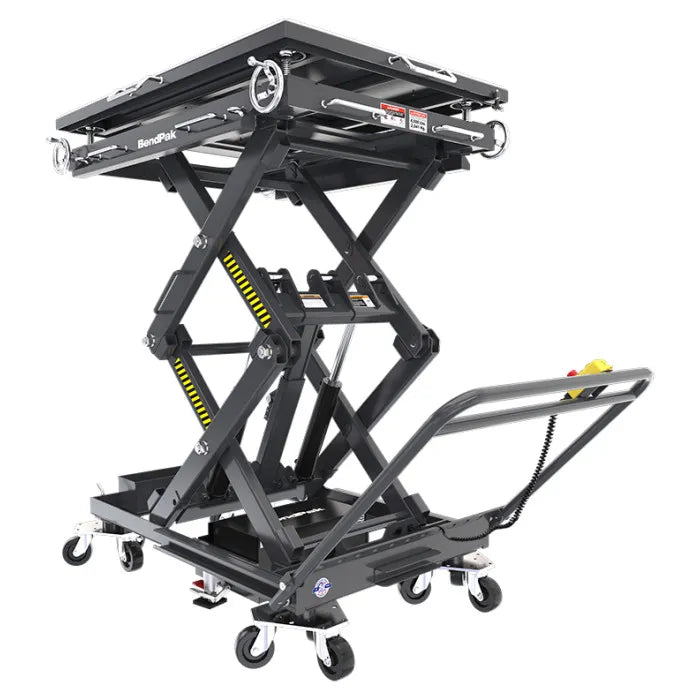

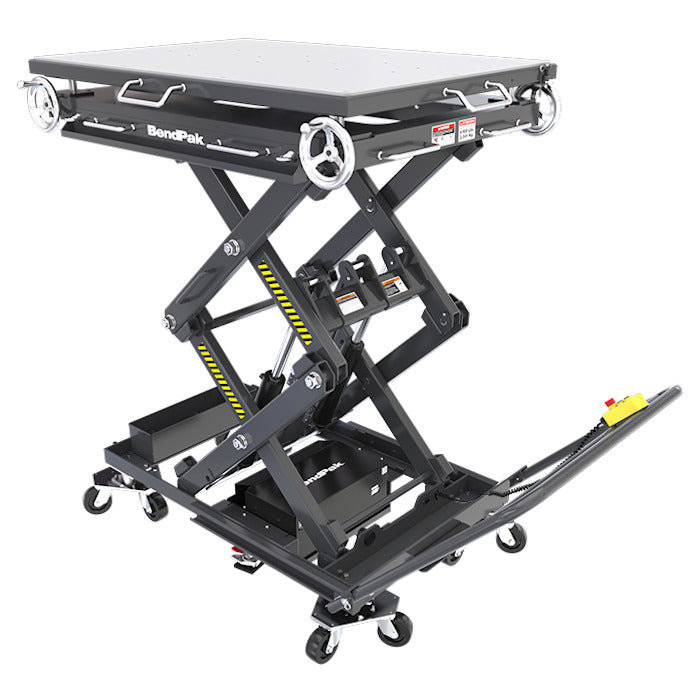

BendPak EVS3000 EV Battery and Powertrain Lift Table
3,000 lbs. Capacity Includes Rechargeable 12V Battery

The BendPak EVS3000 EV Battery and Powertrain Lift Table is the latest in BendPak's revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables and is perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. With it, you'll be able to safely handle critical vehicle components weighing up to 3,000 lbs. With a compact design, this space-saving lift table can be easily transported anywhere in the workplace, making the EVS3000 ideal for multi-bay facilities or workplaces with confined areas.

The Future of EV Service
The BendPak EVS3000 and EVS4500 are multi-functional scissor-style lifts that feature multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories. Each can be repositioned or removed as applications dictate.

Precision Simplified
With a press of the button on the pendant control, the lift platform elevates to more than 6 feet in less than 20 seconds. The BendPak EVS3000 and EVS4500 feature state-of- the-art engineering and technology within an elegant design that sets a new industry benchmark for performance and versatility.

Adapts to Your Needs
The BendPak EVS3000 and EVS4500 boasts an array of thoughtfully integrated ergonomic features that seamlessly merge user comfort and operational efficiency. These features collectively empower mechanics to work more efficiently, minimizing fatigue and maximizing their overall output within the dynamic automotive workshop environment.

Built Smart, Built Tough, Built to Last
To ensure optimal portability, BendPak's EVS3000 and EVS4500 are meticulously engineered to uphold its structural integrity in key areas, all while avoiding unnecessary steel usage. High-tensile steel used throughout skillfully marries minimal weight with exceptional safety standards making for a ruggedly built lifting system. A robust upper deck plate is further reinforced with supplementary structural cross- members, strategically implemented to mitigate deflection resulting from torsion or uneven loading, even under demanding conditions.

DC Electric Power System With Onboard Charger
The BendPak EVS3000 and EVS4500 feature a heavy-duty 12V DC power unit with deep cycle battery, an onboard battery charger, and battery charge indicator that accurately displays the charge condition of the lift battery at all times. The 12V, 15A microprocessor controlled, 4-stage automatic battery charger features connect and forget operation that helps protect the battery from being overcharged.

Multi-Point Safety Locks
The Multi-Point Safety Lock system is designed to provide you with peace of mind and unmatched control, acting as a fail-safe sentry that engages automatically at all times during lifting operations. Features an electric solenoid control that is readily available and easily disengaged with a simple button press on the pendant control.

Zero-throw Casters for Extreme Maneuverability
Revolutionary turn-on-a-dime zero-throw casters allow the lift table to move and change direction effortlessly, requiring a fraction of the effort normally associated with plain swivel casters.

Adjustable Screw Jacks
Adjustable Screw jacks allow for quick and easy service and provide effortless roll, pitch, and yaw adjustments for precise alignment and leveling of EV batteries, engine and drivetrain assemblies, fuel tanks, and more. This patented design minimizes time and effort spent making adjustments.

Optimum Versatility
The 42.75" x 63" lift platform is the perfect size for safe handling of heavy battery packs and powertrain systems. The platform surface features multiple recessed anchoring locations for accommodating a variety of modular fixtures, adapters, and accessories that can be repositioned or removed as applications dictate.

Extremely Durable Tabletop
Extremely durable and impact-resistant Ultra-High Molecular Weight (UHMW) Polyethylene protects the tabletop from wear and tear and provides a low-friction surface allowing technicians to shift heavy components back and forth on the tabletop with less effort. The UHMW also acts as an insulation barrier that prevents direct contact between electrical components and the conductive surface of the steel platform.

Remote Control Operation
A standard hand pendant controller made of high-impact ABS plastic features an eight-foot lead, allowing convenient one-man control on all sides of the lift. An Emergency Stop shuts off power to the lift instantly with a simple push of a button.

Side-To-Side Adjustments Made Easy
An integrated slip-plate deck features low rolling resistance maintenance free ball retainers and nylon bearings that enable effortless side-to-side shifting of the tabletop for even more adjustability and precise alignment.

Twin Hydraulic Cylinders
Twin hydraulic cylinders feature welded construction, chrome-plated rods, and high polished bores for extended seal life. Proprietary seal design reduces leakage and increased seal life for long-lasting, dependable operation.

Tri-Caster Locking
It is easier than ever to move your EVS Lift Table longer distances. The removable locking pin located on the front tri-casters converts them into a fixed design making straight-line travel more efficient.

Full-Length Utility Trays
Having all the necessities in easy reach can help increase productivity. All EVS Lift Tables feature full-length utility trays on both sides of the lift that provide ample storage for tools and fasteners.

Manual Floor Locks
Single-action tandem floor locks act as a parking brake when the lift is being loaded or used during EV service. Foot operation locks and releases easily with durable urethane bottom pads offer maximum gripping power.

Precision Hydraulic Control
Ensuring smooth and precise operation, this specialized valve regulates the flow of hydraulic fluid within the lift's hydraulic system, allowing for controlled ascent and descent of the platform. It enables operators to manage the lift's speed and movement with accuracy, enhancing safety and usability.

Storage Bins
Two different storage bin options are the perfect place to store your most frequently used tools and adapters to help keep your work area organized.

Stowable Push-Pull Handle
The stow-and-go handle provides a space-saving solution by allowing users to quickly stow the push-pull handle back into the lift providing more workaround clearance. Wider push-pull handle mounts provide improved control.

Powder Coat Paint Finish
The BendPak EVS3000 and EVS4500 sport a durable baked-on powder coat finish that gives the metal a high-quality, sturdy finish that can withstand even the harshest environmental or chemical conditions.

Ergonomic Features
The BendPak EVS3000 and EVS4500 boast an array of thoughtfully integrated ergonomic features that seamlessly merge user comfort and operational efficiency. These features collectively empower mechanics to work more efficiently, minimizing fatigue and maximizing their overall output within the dynamic automotive workshop environment.

Expand Capabilities With Modular Fixtures, Adapters, and Accessories
The BendPak EVS3000 and EVS4500 Lift Tables feature sixteen recessed anchoring locations intended to accommodate a variety of accessories, modular fixtures, and adapters. Each can be repositioned or removed as applications dictate.

• #5210454 EVS Telescoping Arm Kit
• #5210458 EVS Accu-Point Support Fixture Set
• #5216205 EVS Multi-Point Support Kit
• #5323189 EVS Transmission Support
• #5216234 EVS Universal Deck Mount Kit
