iDEAL LT-PT3300DC-X Powertrain Lift Table

In Stock SKU LT-PT3300DC-X UPC 850049063487

OUR PRICE: $8,020.00

Regular Price: $8,429.00

$222.77 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

iDEAL LT-PT3300DC-X Powertrain Lift Table
High Quality Heavy-Duty 3,300 lbs. Lifting Capacity
The iDEAL LT-PT2500AH-X is a 3,300 lbs. portable, high-rise commercial and industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting and lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle and transaxle assemblies, or other similar heavy components.

Description

iDEAL

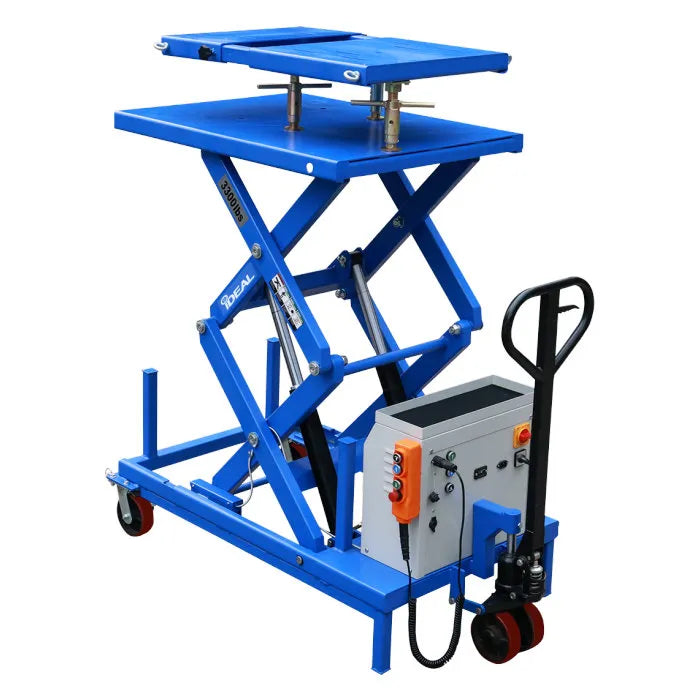

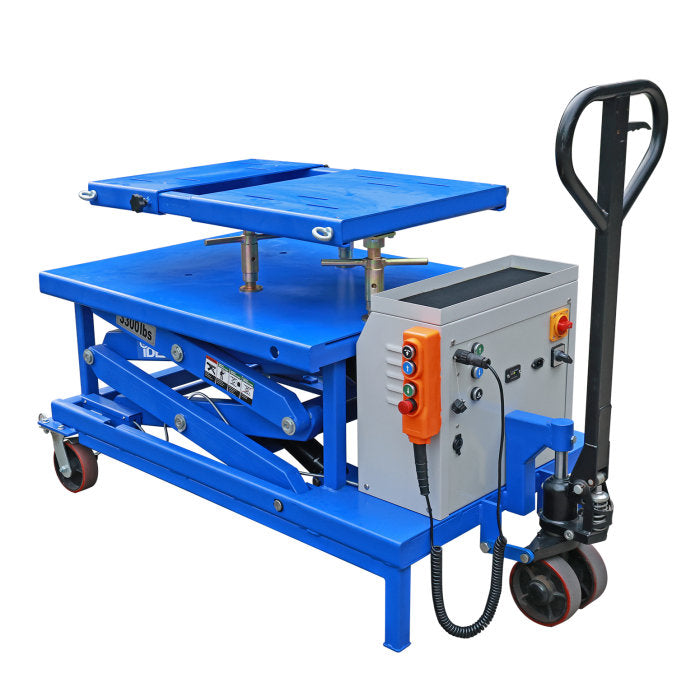

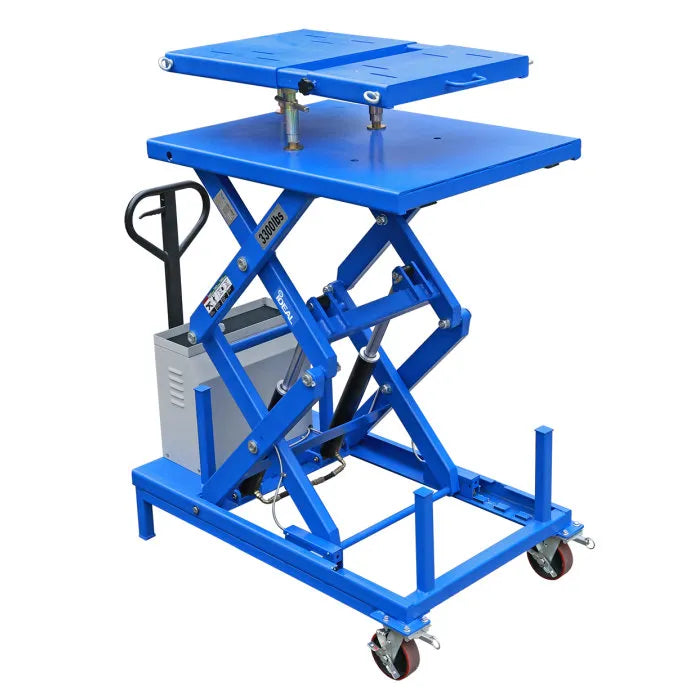

iDEAL LT-PT3300DC-X Powertrain Lift Table
High Quality Heavy-Duty 3,300 lbs. Lifting Capacity

The iDEAL LT-PT2500AH-X is a 3,300 lbs. portable, high-rise commercial and industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting and lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle and transaxle assemblies, or other similar heavy components.

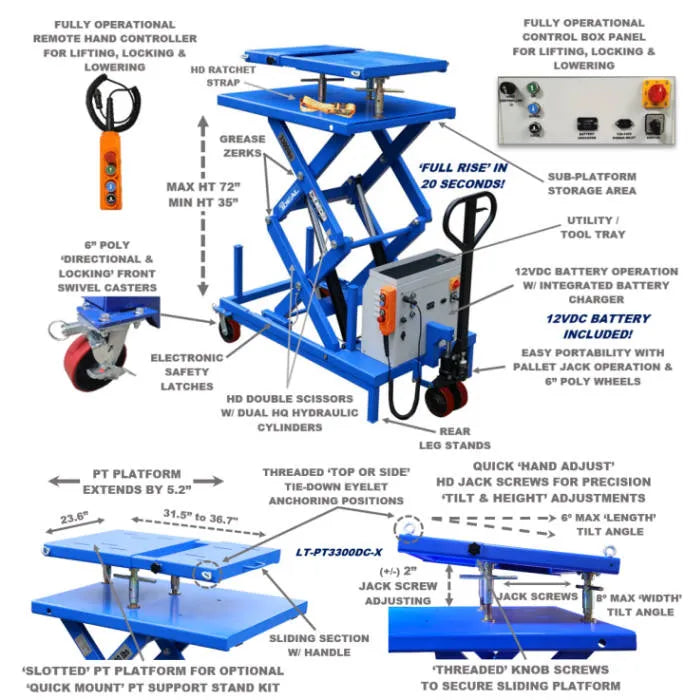

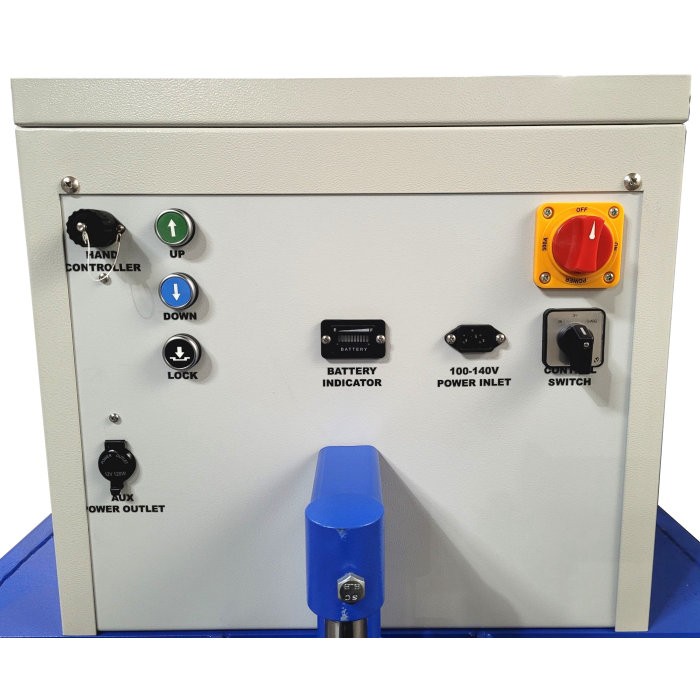

The LT-PT3300DC-X comes standardly equipped with a durable powertrain platform that includes extendable length, tilt & height adjustments, while also incorporating a fully operational remote hand controller & control box panel buttons for dual operational control operations. Also included is a high quality deep-cycle 12VDC sealed battery, integrated battery charger and 12VDC auxiliary outlet port. In addition, the iDEAL Powertrain 3,300 lbs. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel & directional poly casters, tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders, tie-down anchors, and heavy duty ratchet strap. Optional Accessories include a 'quick mount' PT Support Stand Kit & 12VDC LED Spot Light with magnetic base

Features & Specs

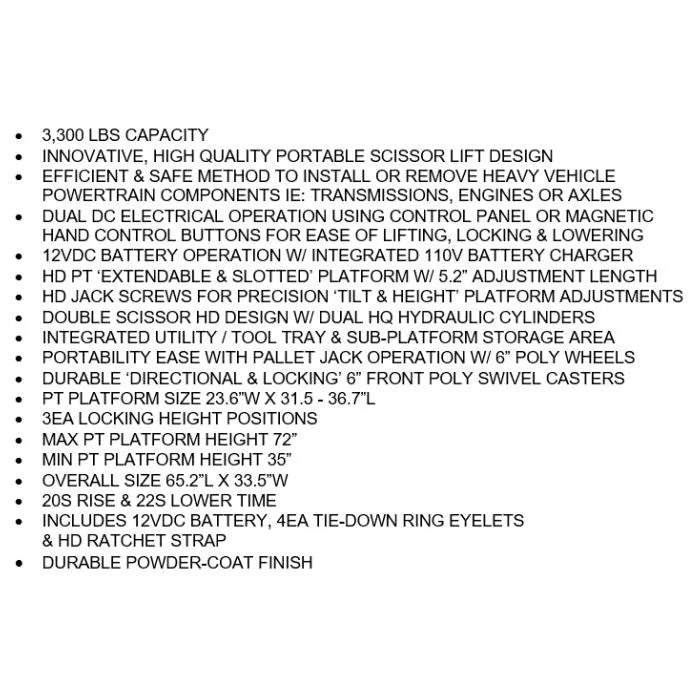

Features

  • 3,300 lbs. Capacity
  • Innovative, High Quality Portable Scissor Lift Design
  • Efficient & Safe Method To Install Or Remove Heavy Vehicle Components
  • Transmissions, Engines and Axles

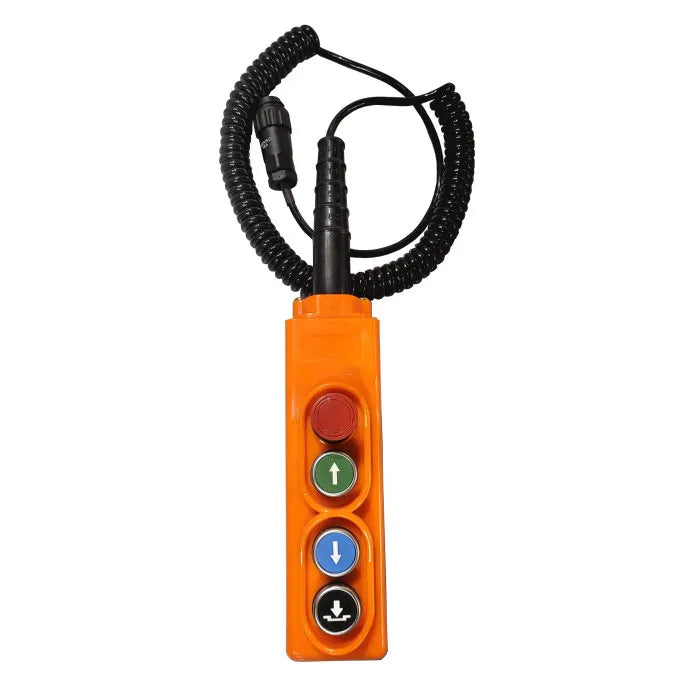

  • Dual DC Electric Operation With Control Panel Or Magnetic Hand Control Buttons For Lifting, Locking & Lowering
  • 12VDC Operation With Integrated 100V Battery Charger

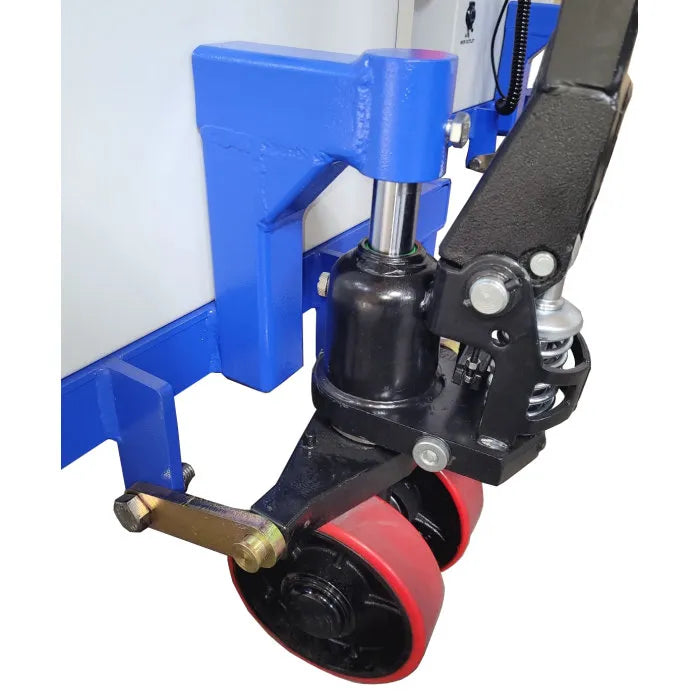

  • Portability Ease With Pallet Jack Operation With 6" Poly Wheels

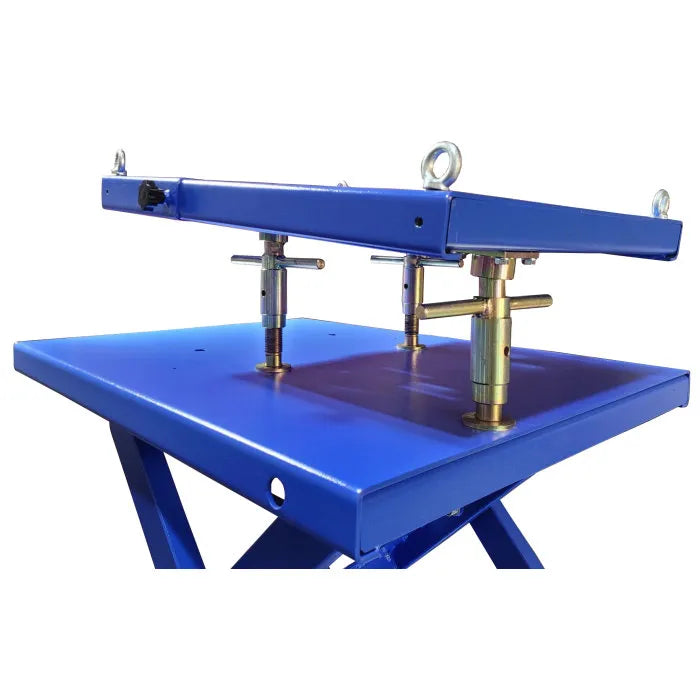

  • Heavy-Duty Powertrain Extendable & Slotted Platform With 5.2" Adjustment Length
  • Heavy-Duty Jack Screws For Precision Tilt & Height Platform Adjustments

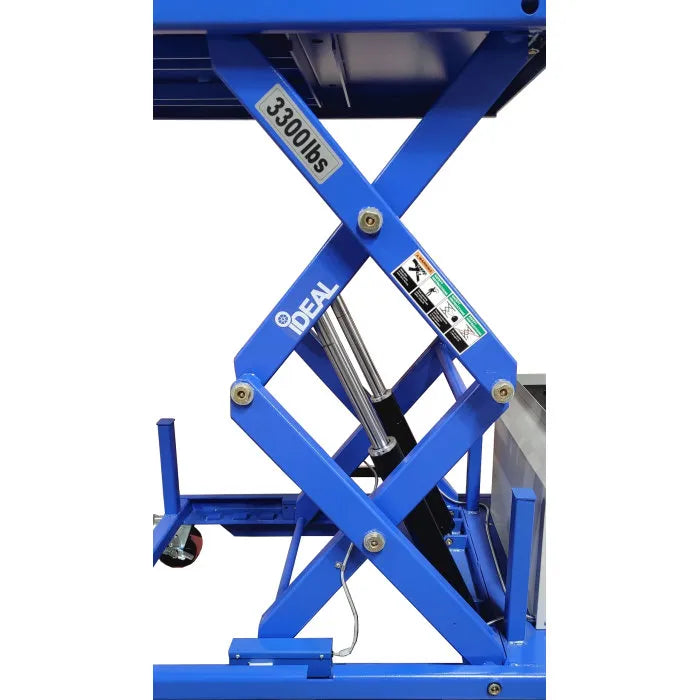

  • Double Scissor Heavy-Duty Design With High Quality Hydraulic Cylinder
  • Integrated Utility / Tool Tray & Sub-Platform Storage Area

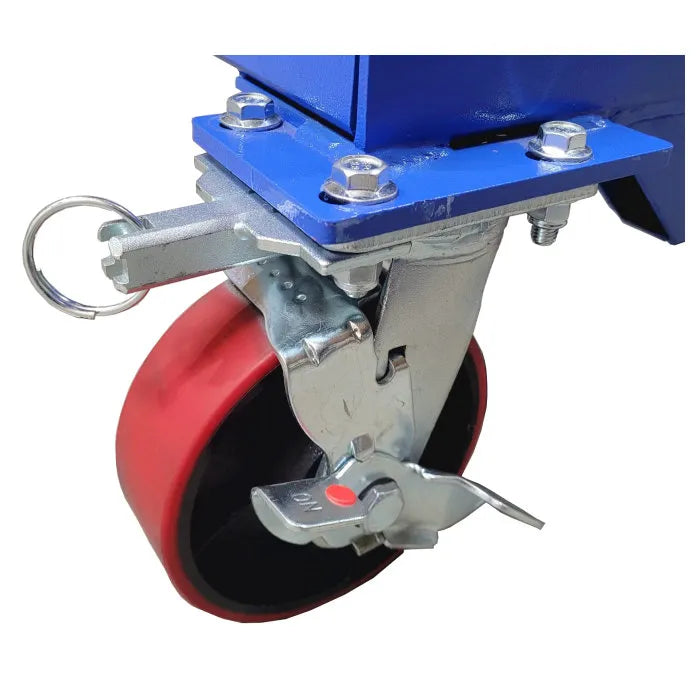

  • Durable Directional & Locking 6" Poly Swivel Casters
  • Powertrain Platform Size 23.6" W x 31.5" - 36.7" L
  • (3) Locking Height Positions
  • Powertrain Platform Height 35" to 72"
  • 20 Second Rise & 22 Second Lower Time

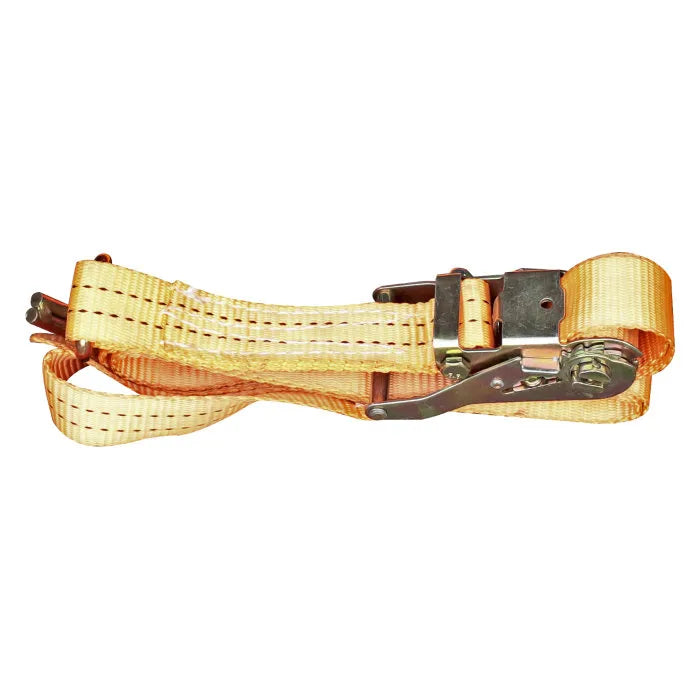

  • Includes (4) Tie-Down Ring Eyelets & Heavy-Duty Ratchet Strap
  • Durable Powder-Coat Finish

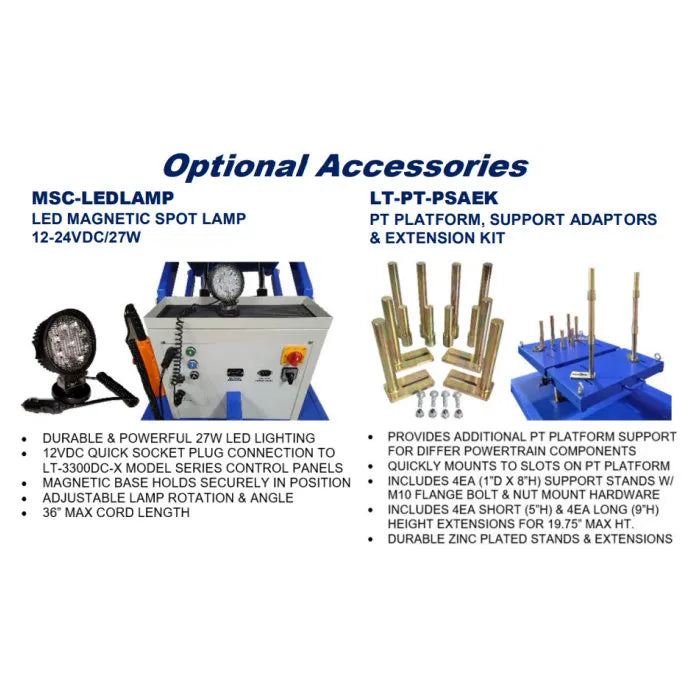

Optional Accessories

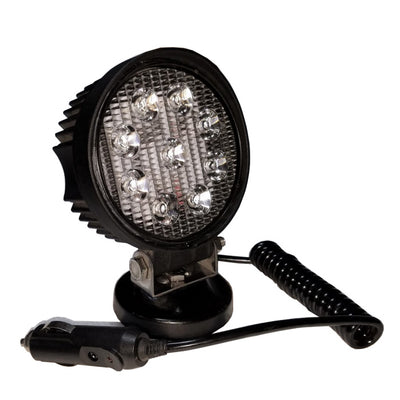

  • #MSC-LEDLAMP - LED Magnetic Spot Lamp 12-24VDC/27W

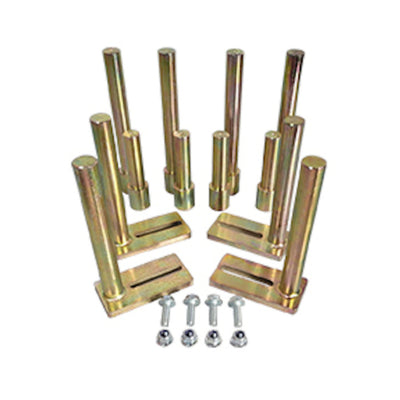

  • #LT-PT-PSAEK - Powertrain Platform Support Adapters & Extension Kit

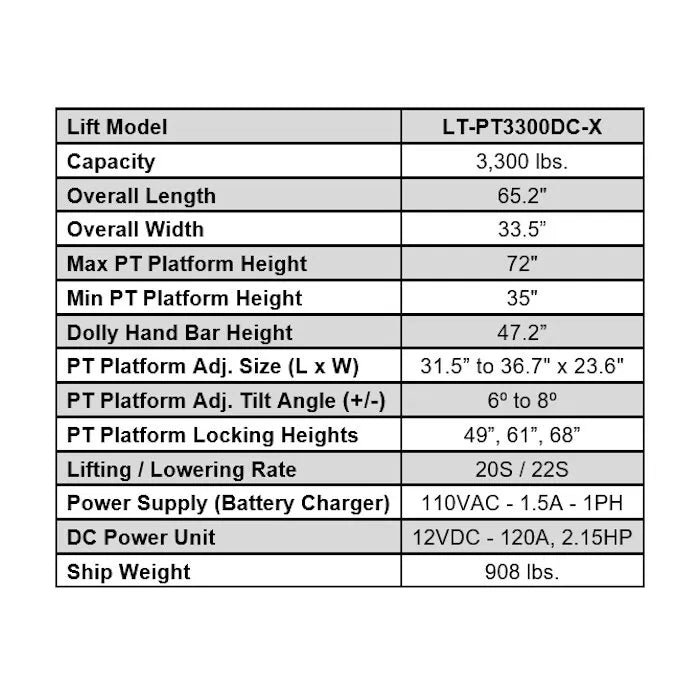

Specifications

  • Capacity: 3,300 lbs.
  • Overall Length: 65.2"
  • Overall Width: 33.5"
  • Max Powertrain Platform Height: 72"
  • Min Powertrain Platform Height: 35"
  • Hand Bar Height: 47.2"
  • Powertrain Platform Adjustment: 31.5" - 36.7" L x 23.6" W
  • Powertrain Platform Tilt Angle (+/-): 6° to 8°
  • Powertrain Platform Locking Heights: 49", 61", 68"
  • Speed of Rise: 20 Seconds
  • Speed of Lowering: 22 Seconds
  • Power Supply: 110VAC - 1.5A - 1PH
  • DC Power Unit: 12VDC - 120A, 2.15HP
  • Shipping Weight: 908 lbs.
  • Warranty: 5 Years Structure, 1 Year Parts, No Labor

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

  • Parts needed for normal maintenance
  • Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
  • Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
  • On-site labor

Accessories/Options

More Information

iDEAL LT-PT3300DC-X Powertrain Lift Table Brochure (.pdf)

iDEAL LT-PT3300DC-X Powertrain Lift Table Manual (.pdf)
