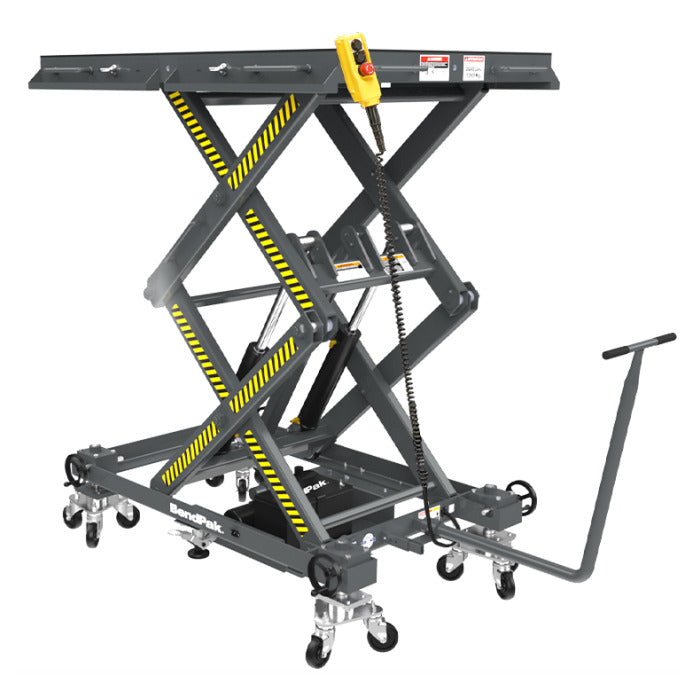

BendPak EV2400SL EV Battery Pack and Powertrain Lift Table

Name: BendPak EV2400SL EV Battery Pack and Powertrain Lift Table
Brand: ASEDeals
SKU: 5175423
Price: 9295.0 USD
Availability: InStock

Out Of Stock SKU 5175423 UPC 849672026686

OUR PRICE: $9,295.00

Regular Price: $9,780.00

$258.19 / mo

INCLUDES FREE SHIPPING*

Short Description

BendPak EV2400SL EV Battery Pack and Powertrain Lift Table
2,400 lbs. Capacity
The BendPak EV2400SL is a push-around full-rise scissor lift table that is perfectly suited for EV battery pack replacement. With its compact design, this space-saving scissor lift can be easily transported anywhere in the workplace, making it ideal for multi-bay facilities or workplaces with confined areas.

Description

BendPak

BendPak EV2400SL EV Battery Pack and Powertrain Lift Table
2,400 lbs. Capacity

The BendPak EV2400SL is a push-around full-rise scissor lift table that is perfectly suited for EV battery pack replacement. With its compact design, this space-saving scissor lift can be easily transported anywhere in the workplace, making it ideal for multi-bay facilities or workplaces with confined areas.

The EV2400SL is compact and portable with oversized urethane casters to provide low rolling resistance and unparalleled maneuverability around the shop. Equipped with proprietary zero-throw casters on all four corners, it allows the platform to move easily in any direction - a fraction of that required with traditional swivel casters. Adjustable screw jacks on each corner provide effortless pitch and roll adjustments for more precise alignment of high-voltage batteries, engine and drivetrain assemblies, fuel tanks and more.

A single-action tandem floor lock functions as a parking brake when the lift is being loaded or used during battery pack and drivetrain installation. Spring-loaded foot operation locks and releases easily and durable urethane bottom pad offers maximum gripping power.

With a press of the button on the pendant control, the EV2400SL elevates to more than 6 feet in less than 20 seconds. It supports 2,400 lbs. on its oversized 40-inch by 60-inch cushioned rubber platform.

Sixteen recessed mounting anchors in the platform tabletop accommodate a variety of modular fixtures, adapters and accessories that can be added, repositioned or removed as needed to handle engines, transmissions, gas tanks, transaxle assemblies and more. An optional side-shift deck features ball-transfers enables the table to move side-to-side for even more adjustability and precise alignment.

Essential Features

Portable design is ideal for transporting from one work area to another.
Zero-throw casters on all four corners allows the platform to move easily in any direction.
Rigid tubular steel outrigger supports securely stabilize lifted loads providing a safer working condition for operators.
Recessed mounting anchors in the lift platform surface accommodate a variety of specialty lifting brackets for safe handling of engines and transmissions, gas tanks, transaxle assemblies and more.
Full length utility trays provide ample storage for tools and fasteners during all stages of service and battery-pack removal.
Precision steel scissor rollers are captured within the structural steel channels to provide excellent load stability during all stages of travel.
Twin hydraulic cylinders feature welded construction, chrome plated rods and high polished bore for extended seal life.
Powered by a single maintenance-free 12-volt deep-cycle battery.
Automatic 3-stage 15 Amp battery charger protects battery from overcharge.

Manual Floor Locks
A single-action tandem floor lock functions as a parking brake when the lift is being loaded or used during battery pack and drivetrain installation. Durable urethane bottom pad offers maximum gripping power.

Zero-Throw Casters
Zero-throw casters on all four corners allows the platform to move easily in any direction - a fraction of that required with traditional swivel casters. Adjustable screw jacks on each corner provide effortless pitch and roll adjustments for more precise alignment of high-voltage batteries, engine and drivetrain assemblies, fuel tanks and more.

Learn About EV2400SL
With electric vehicles expected to undergo an explosion in popularity over the next decade, car manufacturers and vehicle repair centers are looking for ways to make battery pack replacement safer and more efficient. The BendPak EV2400SL is a push around full-rise scissor lift table that is perfectly suited for EV battery pack and powertrain replacement. With its compact design, this space-saving scissor lift can be easily transported anywhere in the workplace, making it ideal for multi-bay facilities or workplaces with confined areas.

Battery-Powered Mobility
The EV2400SL is powered by a single maintenance free 12-volt deep-cycle battery that features proprietary, high-density grid technology, precisely engineered to deliver outstanding battery performance. An advanced fully automatic three stage battery charger features connect and forget operation that helps protect the battery from being overcharged. An integrated thermal sensor detects ambient temperature and adjusts the 15 Amp output to prevent overcharging in hotter areas and undercharging in colder climates.

Why Should you purchase a BendPak lift from ASEdeals?
1) Guaranteed Lowest Prices - Listen, we monitor our competition's prices. We know we usually have the lowest price on most of our equipment most of the time. In the unlikely event you find any of our automotive lifts advertised anywhere on the web for less, just tell us where you saw them, and we'll beat them. It's that simple. Our prices will not be beaten!
2) Largest BendPak Distributor -This means that you enjoy the benefit of our size. Not only does this allow us to offer the best pricing available, If you have any warranty issues that you feel are not being addressed quickly enough, or to your satisfaction, we have the influence with the manufacturer to get your issue resolved right away.
3) Years of Experience - So many internet companies have popped up over the past few years, claiming to have all kinds of experience, and then when you dig a little deeper, you'll find out that they've only been around for a few years. We've been carrying Bend Pak equipment for over 17 years now. When you call and speak to us, you're not getting just an order taker that knows nothing about the product. We know these products better than most. Not only will get you answers to your questions, we will make sure that you get the proper lift for your application.
4) Reputation - Right along with the years of experience comes our reputation. Check out our reputation on all of the various car enthusiast forums out there, such as Garage Journal or Corvette Forum. You'll find countless satisfied customers, praising not only our prices, but also our integrity, honesty and ability to help you choose the right product for your application. And then, there's our hundreds of satisfied customer pictures and testimonials to back it up. We'll gladly put our reputation up against anybody's.

Features & Specs

Features

2,400 lbs. Lifting Capacity
Portable Design
Zero-Throw Casters
Rigid Tubular Steel Outrigger Supports
Recessed Mounting Anchors
Full-Length Utility Trays
Precision Steel Scissor Rollers
Dual Scissor Design
Twin Hydraulic Cylinders
Effortless Steering Control
12-Volt Deep Cycle Battery
Automatic 3-Stage 15 Amp Battery Charger

Optional Accessories

#5210305 Accu-Point Fixtures Set of 4
#5210272 Arm Kit Set of 4
#5216205 Multi-Point Support
#5216120 Deck Mount
#5216043 Tilt Deck

Specifications

Max. Platform Height: 75.75" (1,924 mm)
Platform Capacity: 2,400 lbs. (1,090 kg)
Overall Length: 90" (2,286 mm)
Overall Length (Handle Stowed): 65" (1,651 mm)
Overall Width: 46" (1,168 mm)
Platform Size: 40" x 60" (1,016 mm x 1,524 mm)
Stowed Height: 21.5" (546 mm)
Raise / Lower Time (Max Rise): 18 seconds
Power Source: 12V Deep Cycle DC Battery
Charger: Automatic / 15A
Weight: 896 lbs. (406 kg)
Warranty: (2) Years on Structure, (1) Year on Parts, (1) Year Labor

BendPak Full-Rise Scissor Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 24‐12 months from the date of shipment by BendPak or whichever comes first.

Two Years (24‐Months) Warranty on the lift structure
One Year (12‐Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12‐Months) Warranty on operating components
One Year (12‐Months) Warranty on electrical components (excluding power unit)
One Year (12‐Months) Labor Warranty on site or at factory*
One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty (Product): Any BendPak Full‐Rise Scissors Vehicle Service Lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:

Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
Any damage caused by overloading Product beyond rated capacity.
Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
Rusted components due to improper maintenance or corrosive environments.
Cosmetic defects that do not interfere with Product functionality.
Damage due to incorrect voltage or improper wiring.
Any failure that results from improper installation or use not according to specifications.
Damage caused by disasters such as fire, flood, wind, and lightning.
Damage caused by unauthorized attachments or modifications.

Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
Responsibilities of Purchaser under this warranty/ notice of claims:

Provide dated proof of purchase and maintenance records.
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.

When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
