Atlas EVBL3310 Electric Vehicle Battery Lift Table

Name: Atlas EVBL3310 Electric Vehicle Battery Lift Table
Brand: ASEDeals
SKU: ATEATTD-EVBL3310
Price: 6249.0 USD
Availability: InStock

In Stock SKU ATEATTD-EVBL3310 UPC 810524029605

OUR PRICE: $6,249.00

Regular Price: $6,569.00

$173.58 / mo

INCLUDES FREE SHIPPING*

Short Description

Atlas EVBL3310 Electric Vehicle Battery Lift Table
3,300 lbs. Capacity Electric / Hydraulic

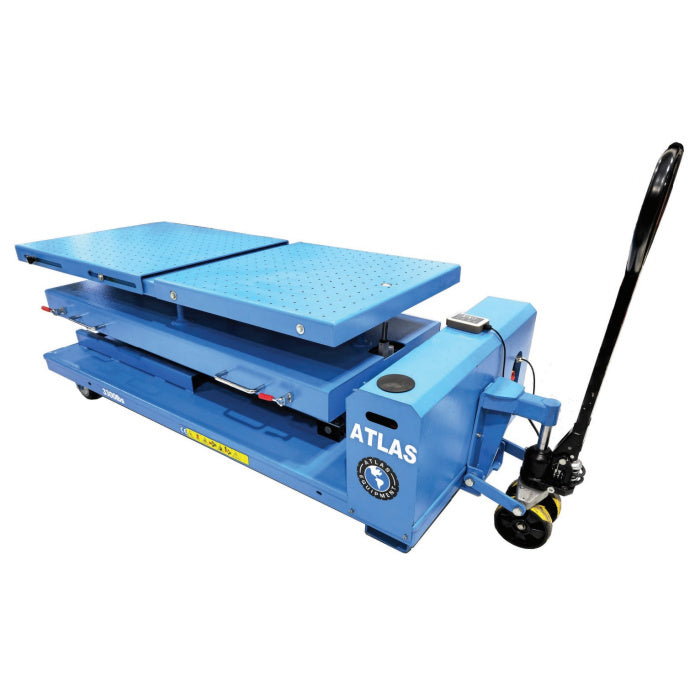

The Atlas EVBL3310 Electric Battery Lift Table combines a robust lifting capacity, versatile platform adjustments, and thoughtful design features, making it an adaptable solution for lifting tasks. The EVBL3310 has been specifically designed for the purpose of lifting electric vehicle battery during maintenance. It can also be used for engine or transmission work. All mechanical frames, including platforms, base frames, and arms, have been constructed using steel plates to ensure a robust and sturdy frame while minimizing overall weight. The lift comprises two tables, scissor arms, a base frame and a mobile jack.

Description

Atlas EVBL3310 Electric Vehicle Battery Lift Table
3,300 lbs. Capacity Electric / Hydraulic

The Atlas EVBL3310 Electric Vehicle Battery Lift Table combines a robust lifting capacity, versatile platform adjustments, and thoughtful design features, making it an adaptable solution for lifting tasks. The EVBL3310 has been specifically designed for the purpose of lifting electric vehicle battery during maintenance. It can also be used for engine or transmission work. All mechanical frames, including platforms, base frames, and arms, have been constructed using steel plates to ensure a robust and sturdy frame while minimizing overall weight. The lift comprises two tables, scissor arms, a base frame and a mobile jack.

As Electric Vehicles become more popular the need for specialty tools to handle that market is only growing. The Atlas EVBL3310 is perfect for automotive shops (both big and small) looking to more easily handle batteries and battery assemblies from a wide variety of Electric vehicles on the market.

Features & Specs

Features

Heavy-Duty Electric Vehicle Battery Lifting Table
3,300 lbs. Lifting Capacity
110V Electric/Hydraulic Operated (External 110V Power Supply Required)

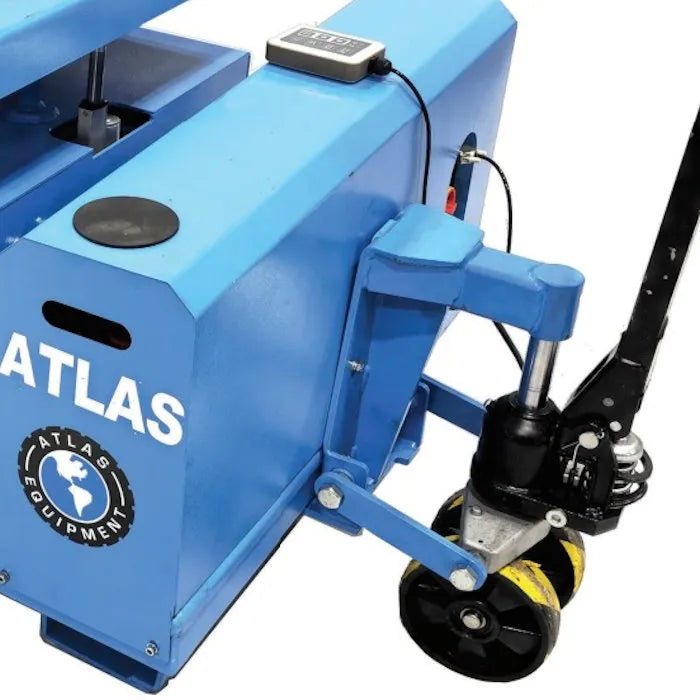

Easy To Move, Highly Portable

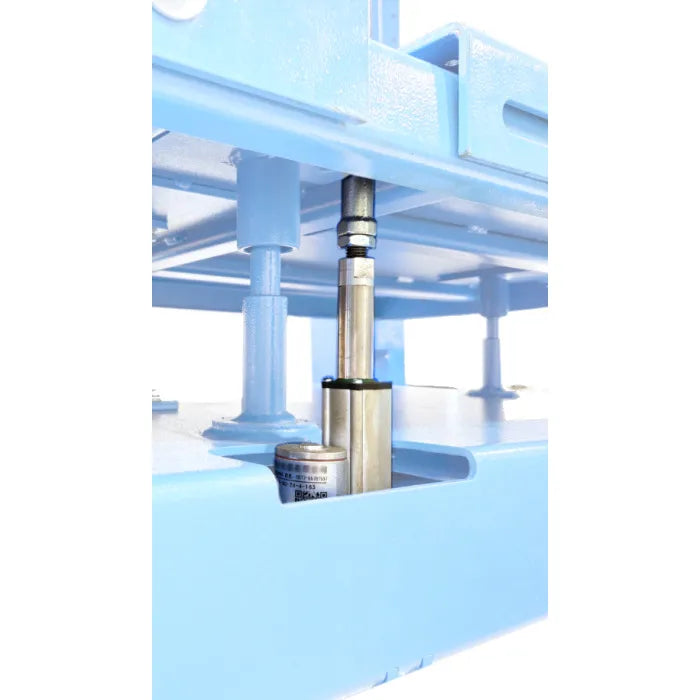

Versatile Tilting Platform Adjustments
Extendable Platform Length

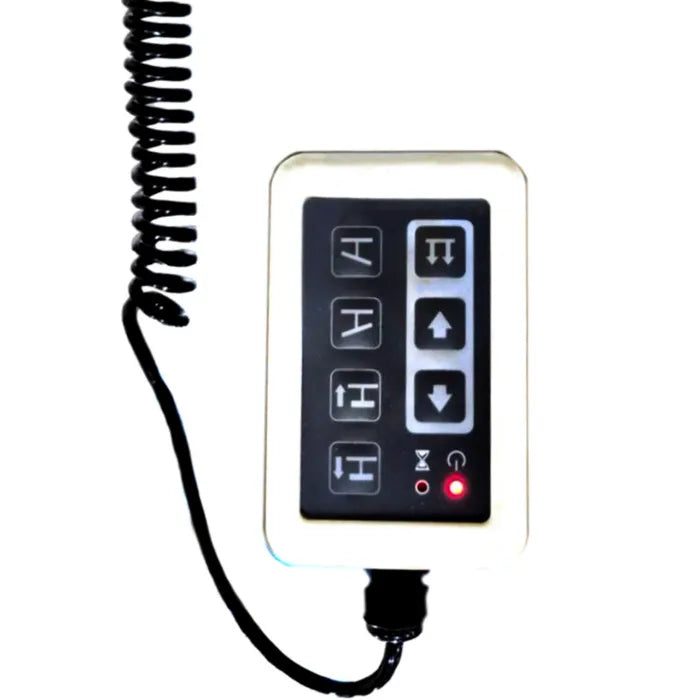

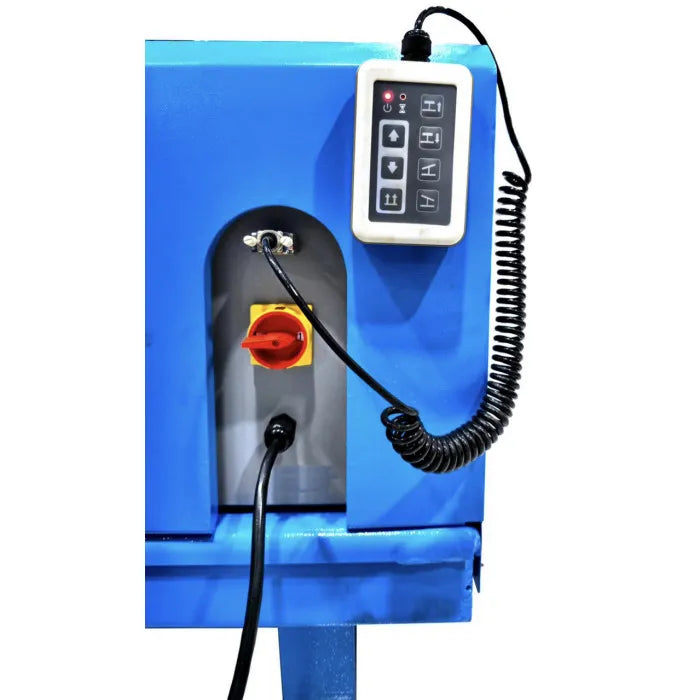

Wired Remote Control For Lifting And Tilting
Tabletop Features Multiple Threaded Holes For Accessory Attachment (Accessory Kit Sold Separately)

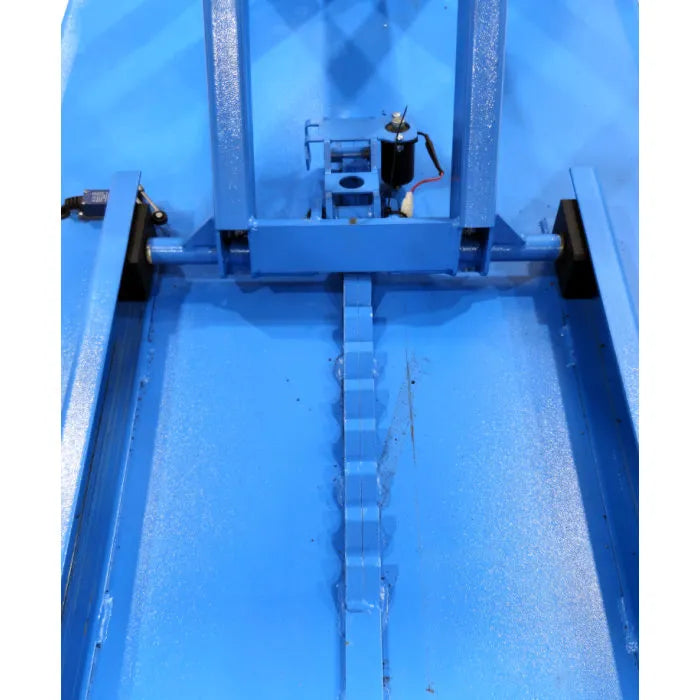

Built In Safety Lock Ladder, With Manual Release
Reinforced Legs For Extra Stability When In Use
(2) Year Structural / Hydraulic Warranty

Specifications

Capacity: 3,300 lbs.

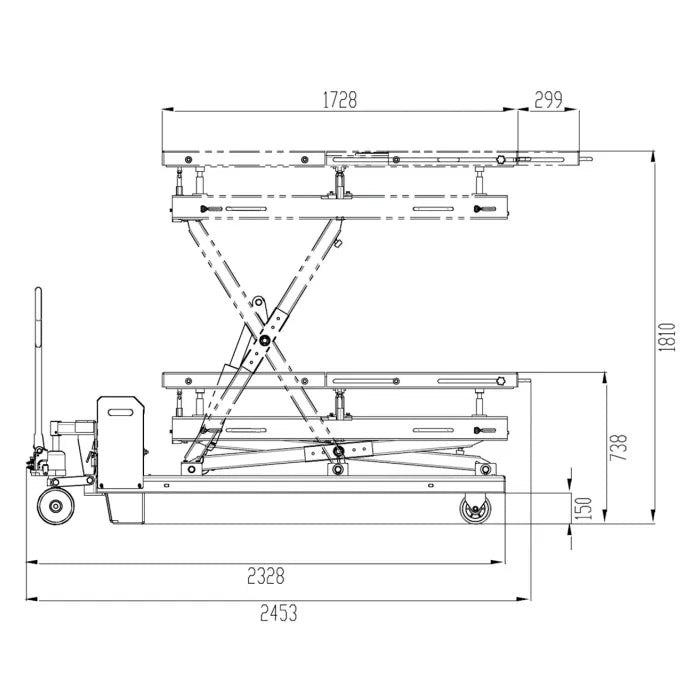

Maximum Lift Height: 71 1/4"
Minimum Lift Height: 29 1/4"

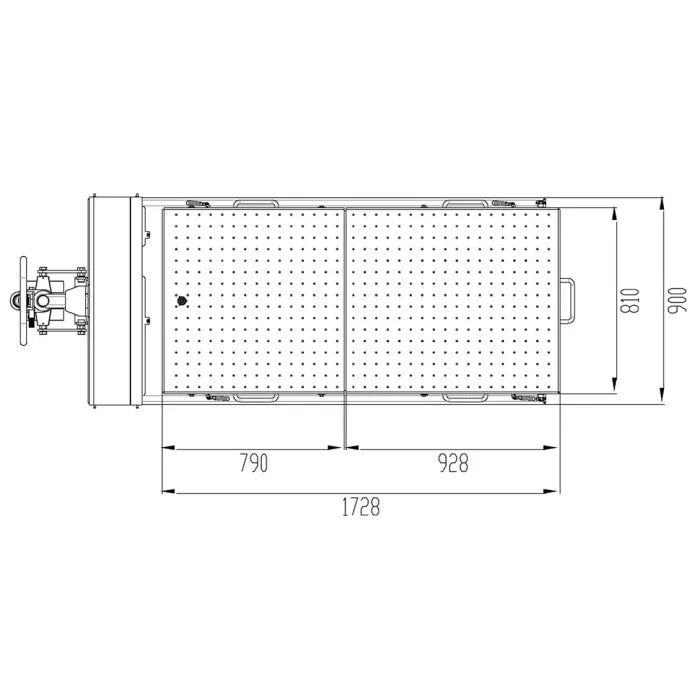

Expandable Lifting Platform Length: 68 1/4" - 79 3/4"
Platform Width: 31 3/4"
Tilting Angle Left/Right: +/- 5.1°
Tilting Angle Front/Rear: - +/-2.2°
Motor: 110 Volt Single (1) Phase
Electrical Requirement: 30 Amp Breaker Recommended

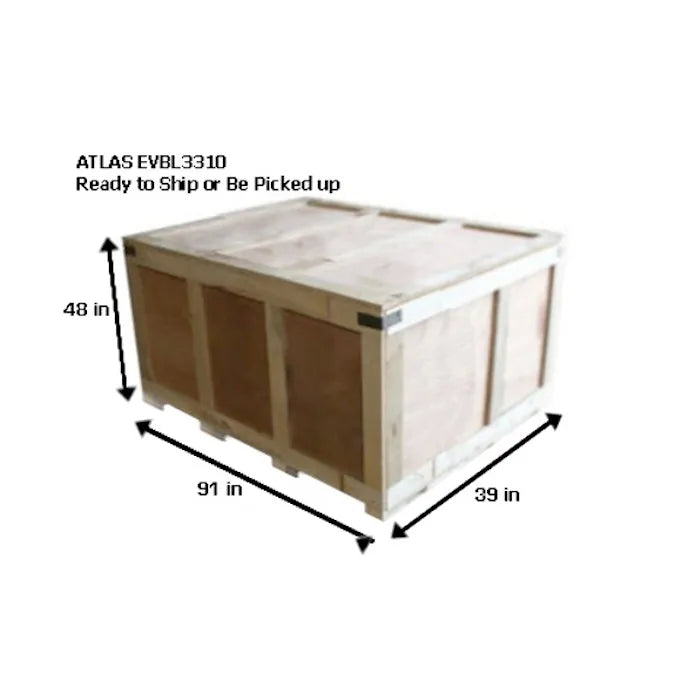

Shipping Weight 1,500 lbs.
Warranty: (2) Years Structure, (2) Years Hydraulic, No Labor

2 Year Structural & 2 Year Hydraulic Warranty
This Atlas product is warranted for two (2) years on structural components and two (2) years on hydraulic power units and cylinders from invoice date. Wear items are covered by a 90 day warranty.

This LIMITED warranty policy does not include a labor warranty.

NOTE: ALL WARRANTY CLAIMS MUST BE PRE-APPROVED BY THE MANUFACTURER TO BE VALID.

The Manufacturer shall repair or replace at their option for this period those parts returned to the factory freight prepaid, which prove after inspection to be defective. This warranty will not apply unless the product is installed, used and maintained in accordance with the Manufacturers installation, operation and maintenance instructions.

This warranty applies to the ORIGINAL purchaser only, and is non-transferable. The warranty covers the products to be free of defects in material and workmanship but, does not cover normal maintenance or adjustments, damage or malfunction caused by: improper handling, installation, abuse, misuse, negligence, carelessness of operation or normal wear and tear. In addition, this warranty does not cover equipment when repairs or alterations have been made or attempted to the Manufacturer's products.
