iDEAL LT-EV2500AH-X EV Hybrid Battery Lift Table

Name: iDEAL LT-EV2500AH-X EV Hybrid Battery Lift Table
Brand: ASEDeals
SKU: LT-EV2500AH-X
Price: 6380.0 USD
Availability: InStock

In Stock SKU LT-EV2500AH-X UPC 850049063470

OUR PRICE: $6,380.00

Regular Price: $6,699.00

$177.22 / mo

INCLUDES FREE SHIPPING*

Short Description

iDEAL LT-EV2500AH-X EV Hybrid Battery Lift Table
High Quality Heavy-Duty 2,500 lbs. Lifting Capacity

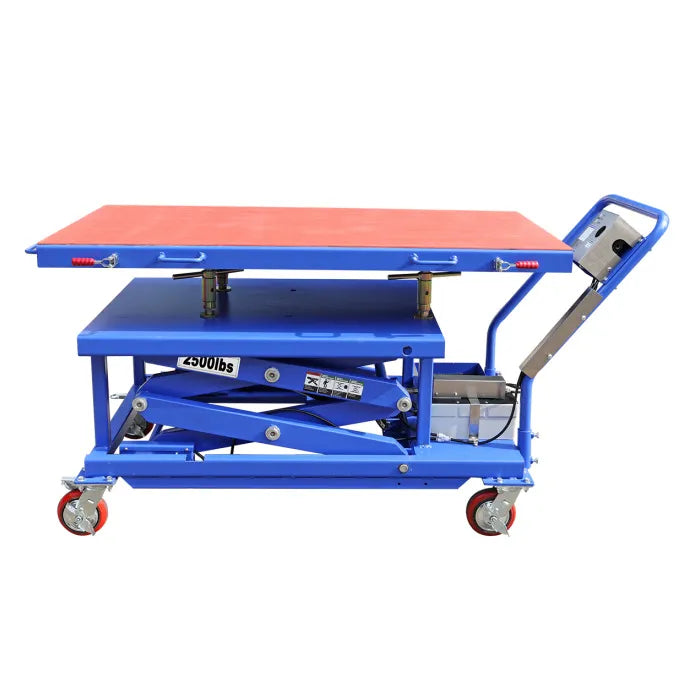

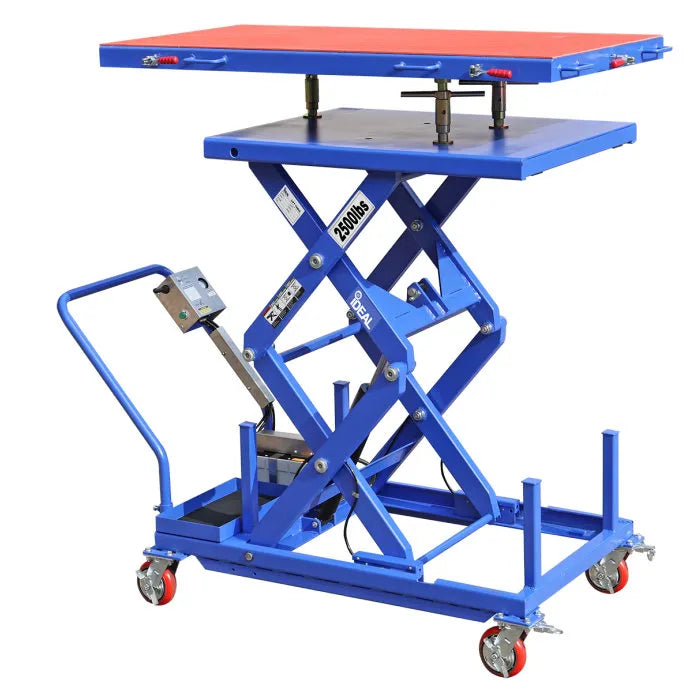

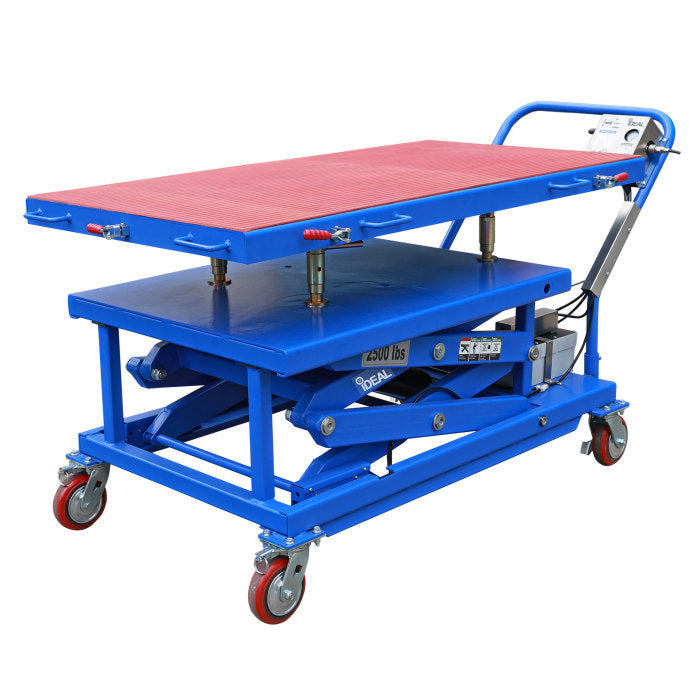

The iDEAL LT-EV2500AH-X is a 2,500 lbs. portable, high-rise commercial and industrial grade air hydraulic platform lift table, incorporating a 'multi-adjustable' EV platform primarily designed to assist with controlled lifting and lowering tasks to safely remove, replace or service heavy vehicle components, especially for electric and hybrid vehicles, such as EV battery packs, motors, powertrain assemblies, or other similar heavy components.

Description

iDEAL LT-EV2500AH-X EV Hybrid Battery Lift Table
High Quality Heavy-Duty 2,500 lbs. Lifting Capacity

The iDEAL LT-EV2500AH-X is a 2,500 lbs. portable, high-rise commercial and industrial grade air hydraulic platform lift table, incorporating a 'multi-adjustable' EV platform primarily designed to assist with controlled lifting and lowering tasks to safely remove, replace or service heavy vehicle components, especially for electric and hybrid vehicles, such as EV battery packs, motors, powertrain assemblies, or other similar heavy components.

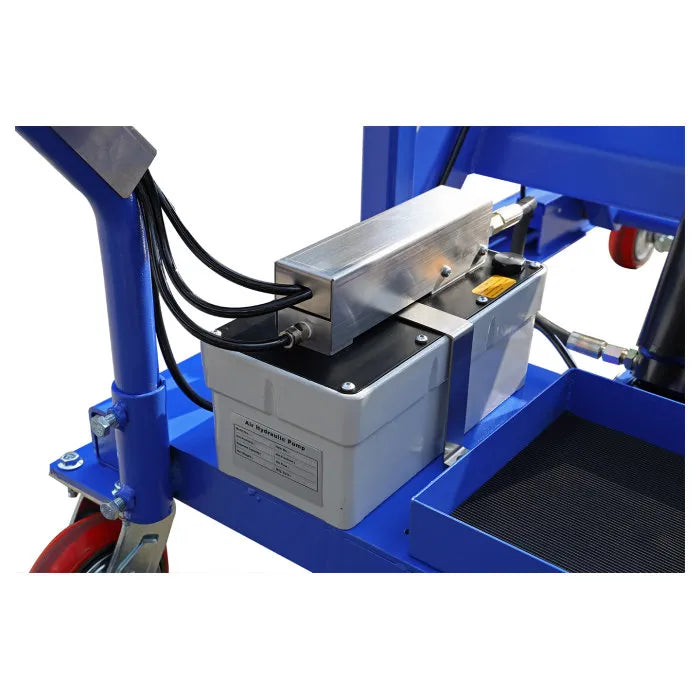

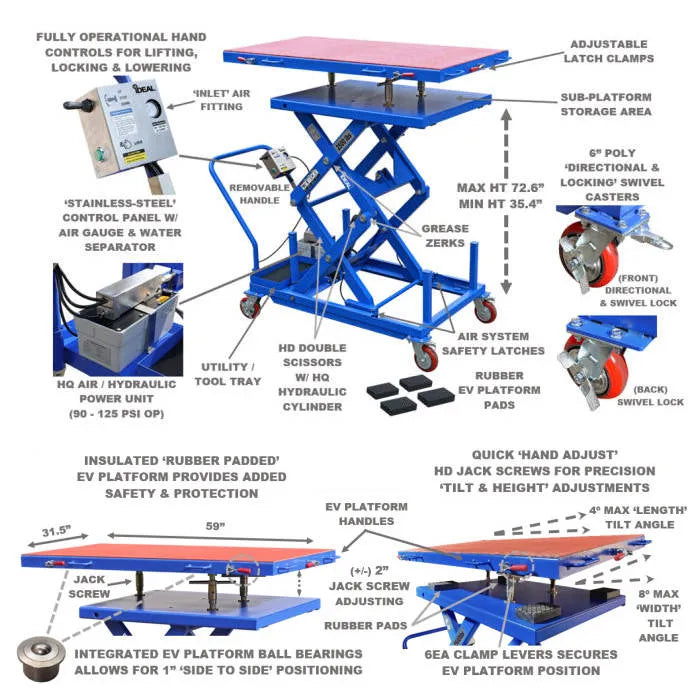

The LT-EV2500AH-X comes standardly equipped with a durable multi-adjustable EV insulated platform that includes a multi-directional 'sliding' platform with latch clamps, along with tilt and height adjustments, while also incorporating an exclusive fully operational pneumatic hand operated 'stainless-steel' control panel with integrated air gauge and water separator. In addition, iDEAL EV 2500 lbs. Lift Table comes standard with high-quality locking swivel and directional poly casters, tool tray, removable hand bar, double lift scissors, HD air-hydraulic pump and hydraulic cylinder, and four rubber pads all combined to provide maximum strength, stability, and safety for added efficiency and convenience.

Features & Specs

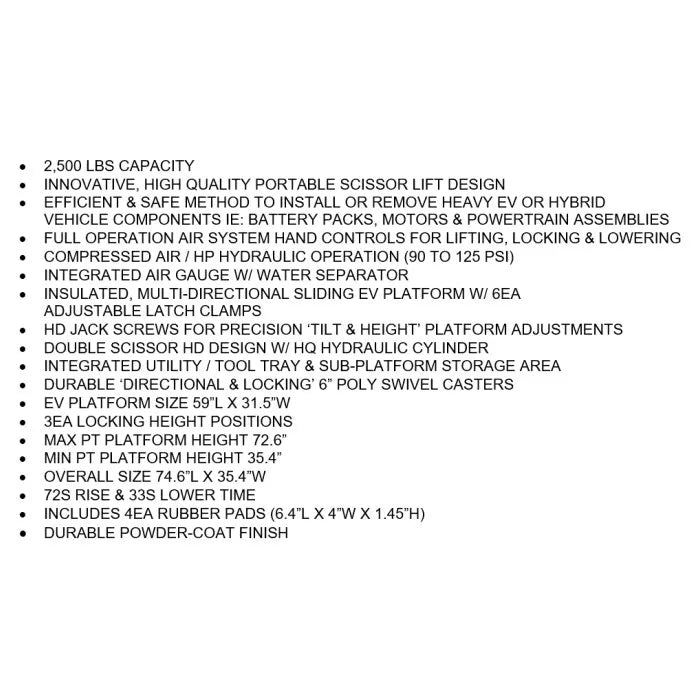

Features

2,500 lbs. Capacity
Innovative, High Quality Portable Scissor Lift Design
Efficient & Safe Method To Install Or Remove EV Or Hybrid Vehicle Components
Battery Packs, Motors, And Powertrain Assemblies

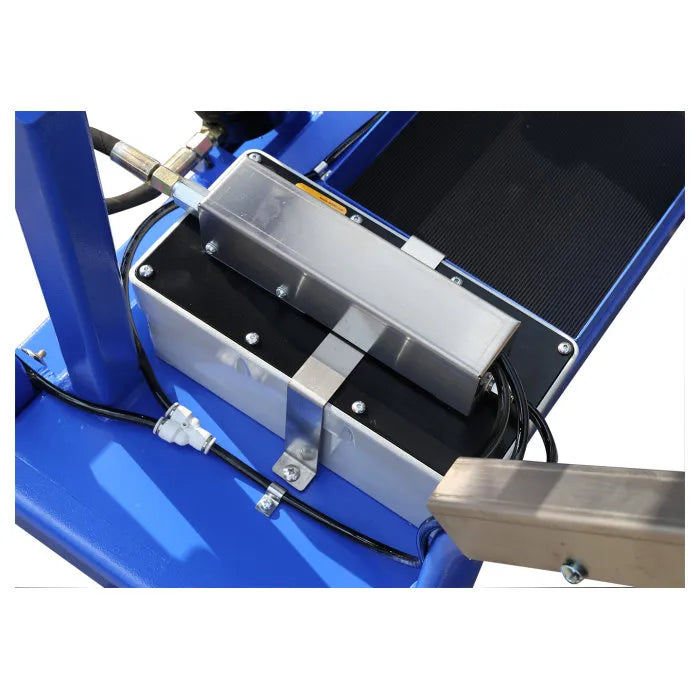

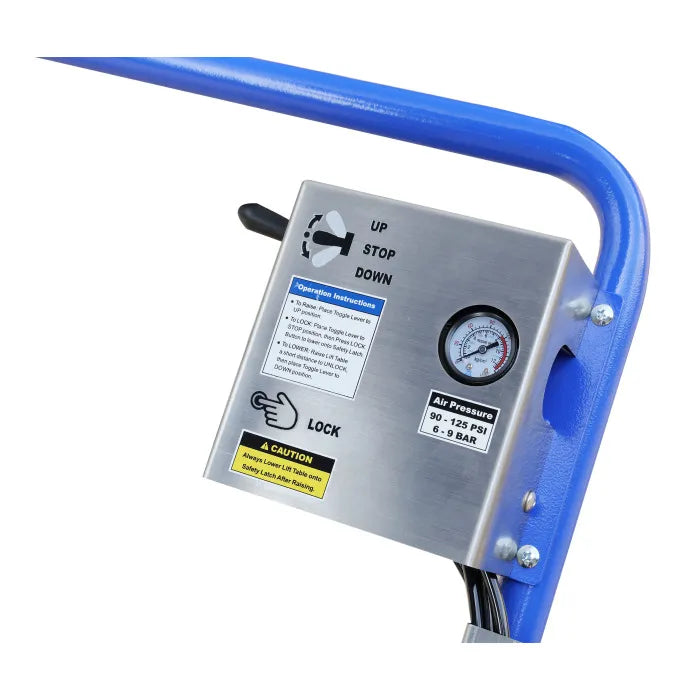

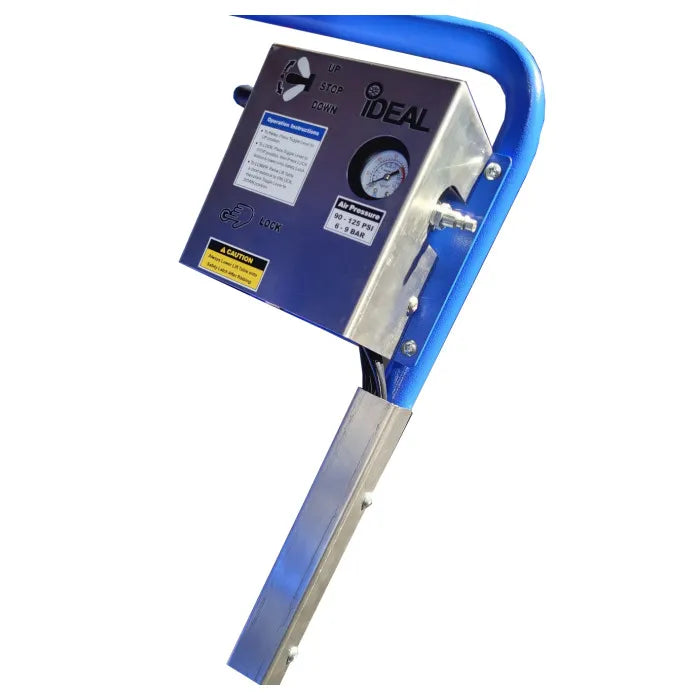

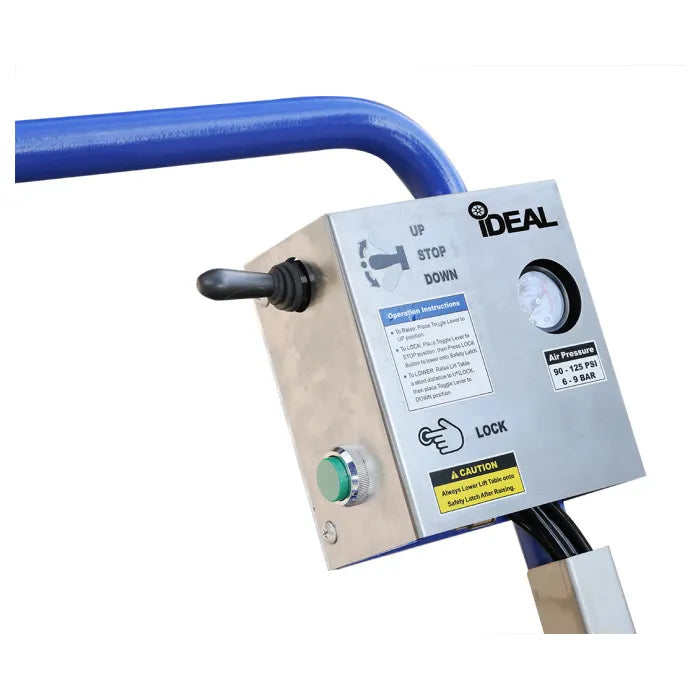

Full Operation Air System Hand Controls For Lifting, Locking & Lowering
Compressed Air / HP Hydraulic Operation (90-125 PSI)
Integrated Air Gauge With Water Separator

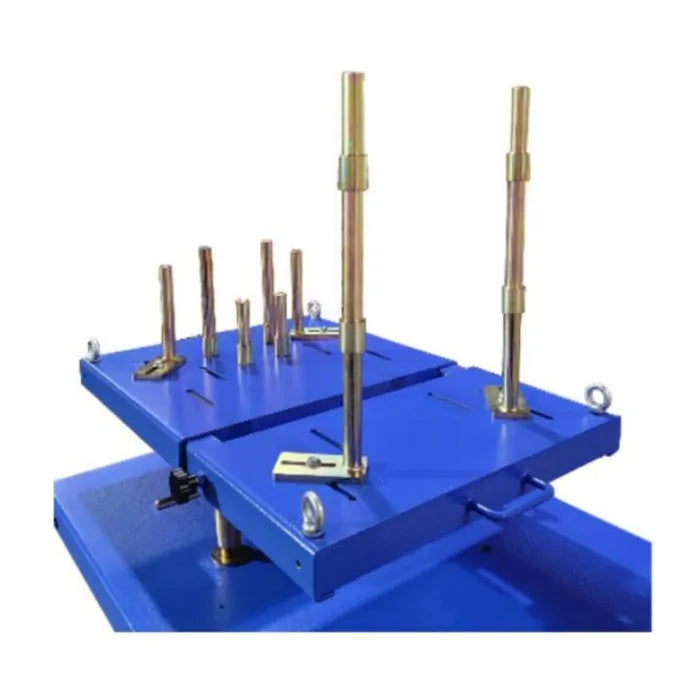

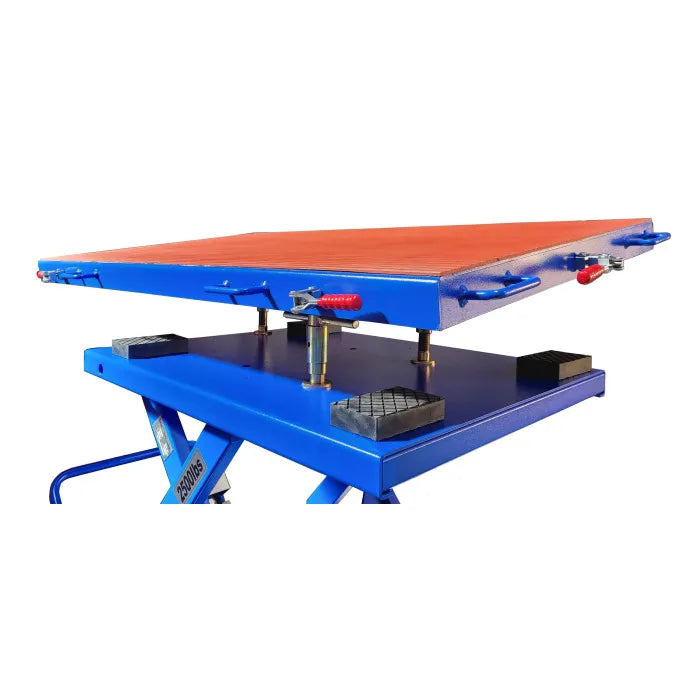

Insulated Multi-Directional Sliding EV Platform With (6) Adjustable Latch Clamps

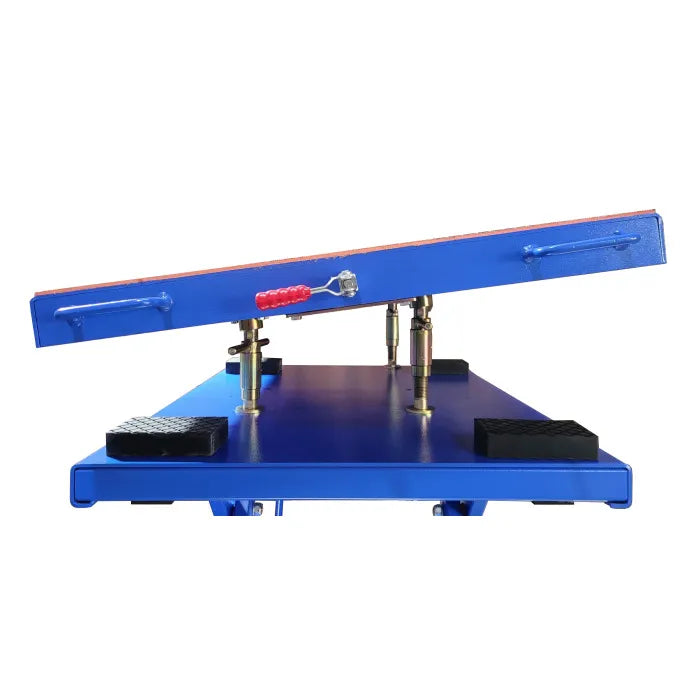

Heavy-Duty Jack Screws For Precision Tilt & Height Platform Adjustments

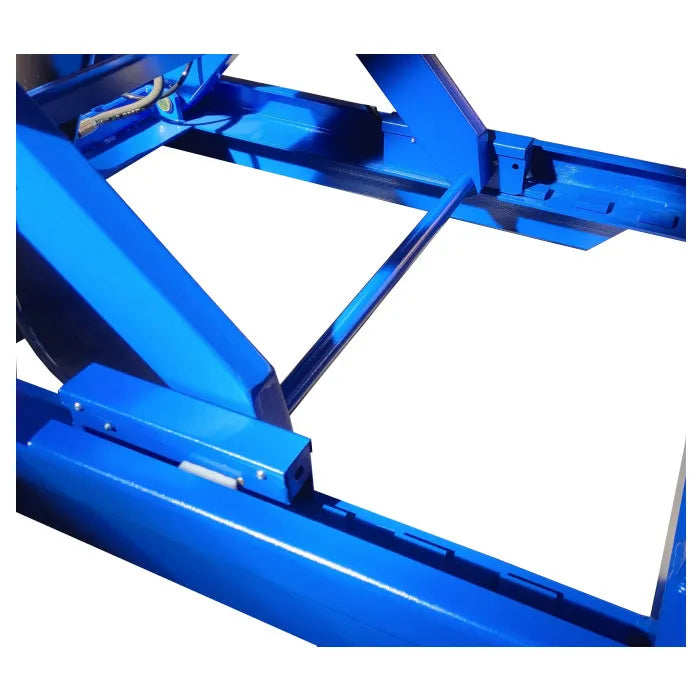

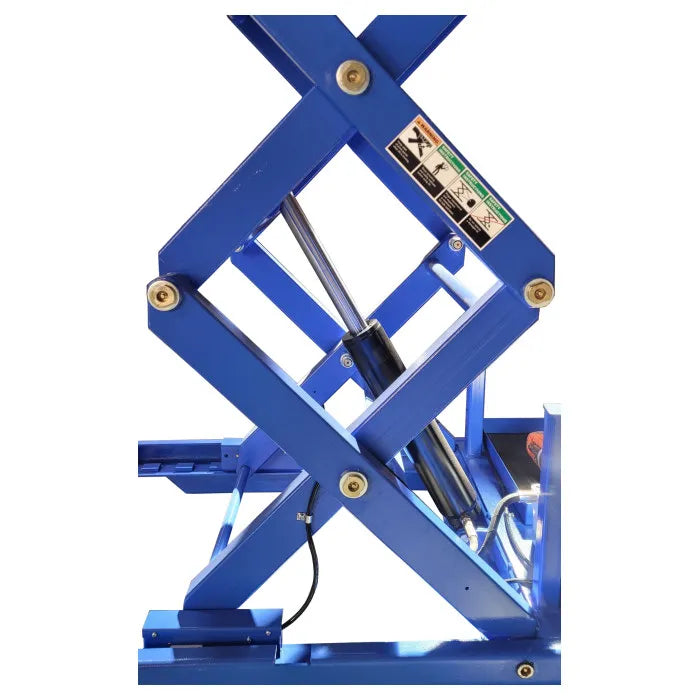

Double Scissor Heavy-Duty Design With High Quality Hydraulic Cylinder
Integrated Utility / Tool Tray & Sub-Platform Storage Area

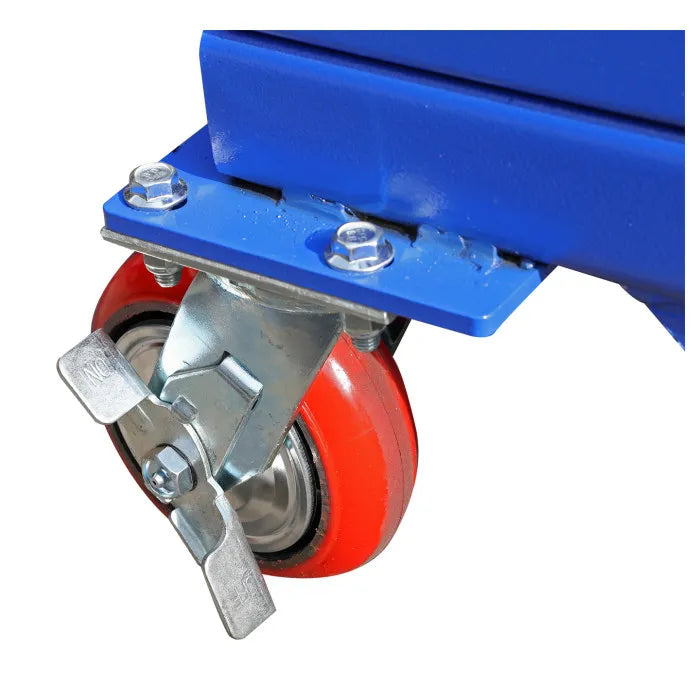

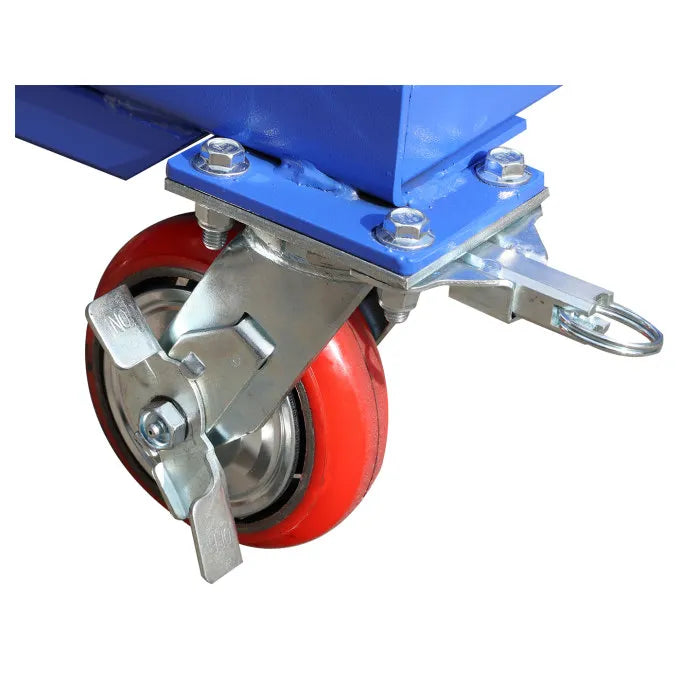

Durable Directional & Locking 6" Poly Swivel Casters
EV Platform Size 59" L x 31.5" W
(3) Locking Height Positions
EV Platform Height 35.4" to 72.6"
72 Second Rise & 33 Second Lower Time

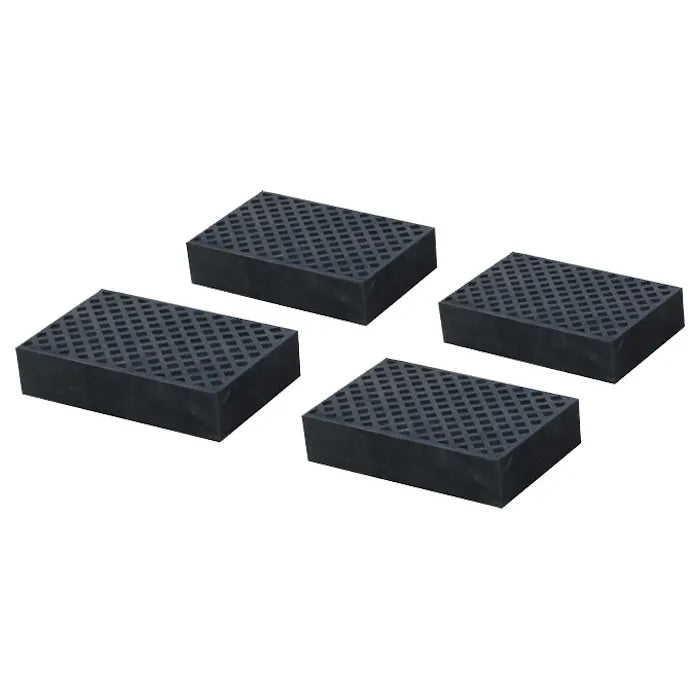

Includes (4) Rubber Pads (6.4" L x 4" W x 1.45" H)
Durable Powder-Coat Finish

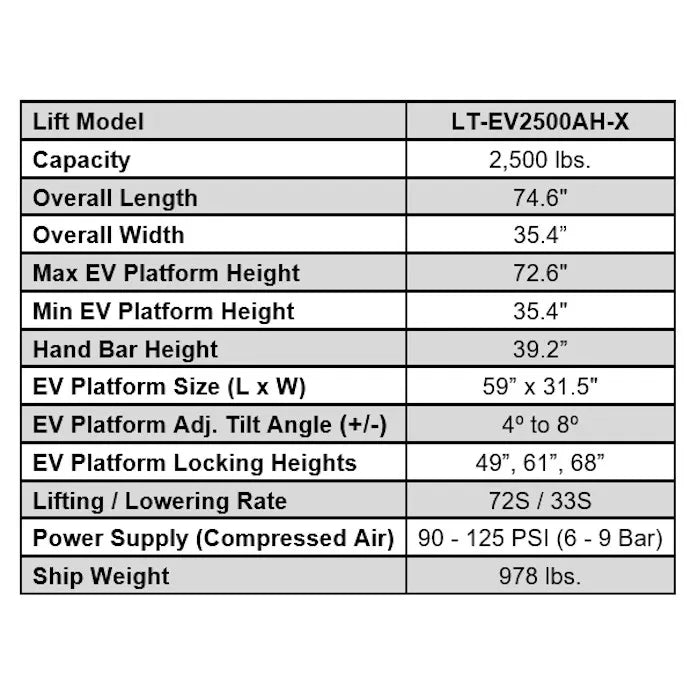

Specifications

Capacity: 2,500 lbs.
Overall Length: 74.6"
Overall Width: 35.4"
Max EV Platform Height: 72.6"
Min EV Platform Height: 35.4"
Hand Bar Height: 39.2"
EV Platform Size: 59" L x 31.5" W
EV Platform Tilt Angle (+/-): 4° to 8°
EV Platform Locking Heights: 49", 61", 68"
Speed of Rise: 72 Seconds
Speed of Lowering: 33 Seconds
Power Supply: 90 - 125 PSI (6 - 9 BAR)
Shipping Weight: 978 lbs.
Warranty: 5 Years Structure, 1 Year Parts, No Labor

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

Parts needed for normal maintenance
Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
On-site labor
