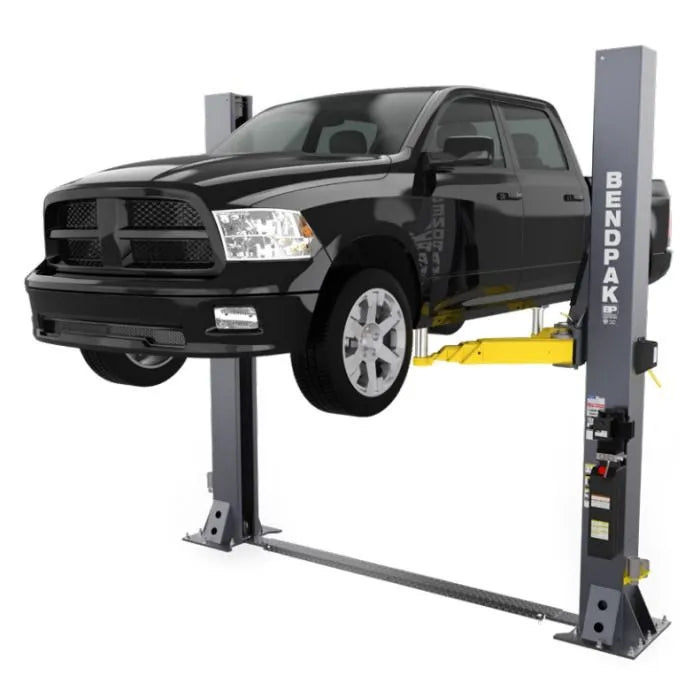

BendPak 12APF Floorplate Direct-Drive Two Post Lift

Features & Specs

Features

• 12,000 lbs. Lifting Capacity
• Direct-Drive Tower Design
• Symmetric or Asymmetric Lifting Configuration
• Triple-Telescoping Arms
• Adjustable Screw Pads
• Single Point Lock Release
• 15 Locking Positions Spaced 4" Apart
• Heavy-Duty Steel Construction
• Durable Powder Coat Finish

Optional Accessories

• #5210254 Pinch-Weld Pads
• #5210263 Pinch-Weld Pucks
• #5215761 Frame Cradle Adapters
• #5215848 Wide Frame Cradle Adapters
• #5210253 Super Wide Frame Cradle Adapters
• #5215763 Steel Lift Pads
• #5715052 Replacement Polyurethane Tuf Pads
• #5215757 Low Adapters
• #5215758 Medium Adapters
• #5215759 Tall Adapters

Specifications

• Lifting Capacity: 12,000 lbs. (5,443 kg)
• Maximum Capacity Front Axle: 6,000 lbs. (2,722 kg)
• Maximum Capacity Rear Axle: 6,000 lbs. (2,722 kg)
• Maximum Capacity Per Lift Arm: 3,000 lbs. (1,361 kg)
• Width Overall: 155" (3,937 mm)
• Base Plate Width: 26.5" (674 mm)
• Post Height: 144.75" (3,676 mm)
• Drive-Thru: 102.25" (2,599 mm)
• Inside Posts: 119.125" (3,026 mm)
• Outside Posts: 142.25" (3,612 mm)
• Minimum Height w/Frame Cradle: 4.5" (114 mm)
• Maximum Lifting Height¹ w/Frame Cradle: 73.5" (1,865 mm)
• Maximum Rise²: 70" (1,780 mm)
• Frame Cradle Height w/Med. and Long Adapters: 11.75" (300 mm)
• Floor Plate Height: 1.5" (36 mm)
• Floor Plate Width: 9.5" (240 mm)
• Asymmetric Arm Reach³ (min-max): 26" - 55.25" (660 - 1,404 mm)
• Symmetric Arm Reach⁴ (min-max.): 29.5" to 60" (745 - 1,524.5 mm)
• Safety Lock Positions: 15 Positions Spaced Every 4" (99 mm)
• Time to Full Rise: ≈68 Seconds
• Operating Hydraulic Pressure Under Max Load: 2,170 PSI (14.96 MPa)
• Hydraulic Fluid Required: 3.6 gallons (13.6 liters)
• Standard Motor⁵: 208-240 VAC 50/60 Hz 1 Phase
• Amps: Approx. 11
• Operating Temperature: 41° - 104°F (5° - 40°C)
• Sound Pressure: 81dB Peak Level
• Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

¹ Max. Lifting Height w/Pad is the max. height while not engaged on a Safety Lock and without adjustment or adapter(s).
² Maximum Rise is the maximum lifting height not engaged on the Safety Lock.
³ Asymmetric Arm Reach is range of reach from least to greatest.
⁴ Symmetric Arm Reach is range of reach from least to greatest.
⁵ Special voltages available upon request.

Specifications subject to change without notice.
Dimensions rounded to the nearest 1/4" (6 mm).

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

• Five Years (60-Months) Warranty on the lift structure
• Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
• One Year (12‐Months) Warranty on operating components
• One Year (12‐Months) Warranty on electrical components (excluding power unit)
• One Year (12‐Months) Labor Warranty on site or at factory*
• One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
1. Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
2. Any damage caused by overloading Product beyond rated capacity.
3. Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
4. Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
5. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
6. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
7. Rusted components due to improper maintenance or corrosive environments.
8. Cosmetic defects that do not interfere with Product functionality.
9. Damage due to incorrect voltage or improper wiring.
10. Any failure that results from improper installation or use not according to specifications.
11. Damage caused by disasters such as fire, flood, wind, and lightning.
12. Damage caused by unauthorized attachments or modifications.
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
7. Responsibilities of Purchaser under this warranty/ notice of claims:
1. Provide dated proof of purchase and maintenance records.
2. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
3. Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
4. Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
9. *As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
