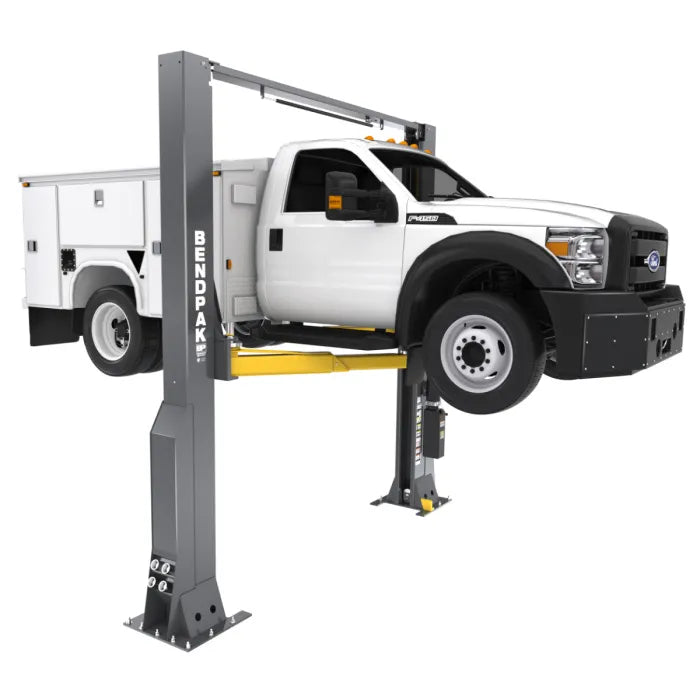

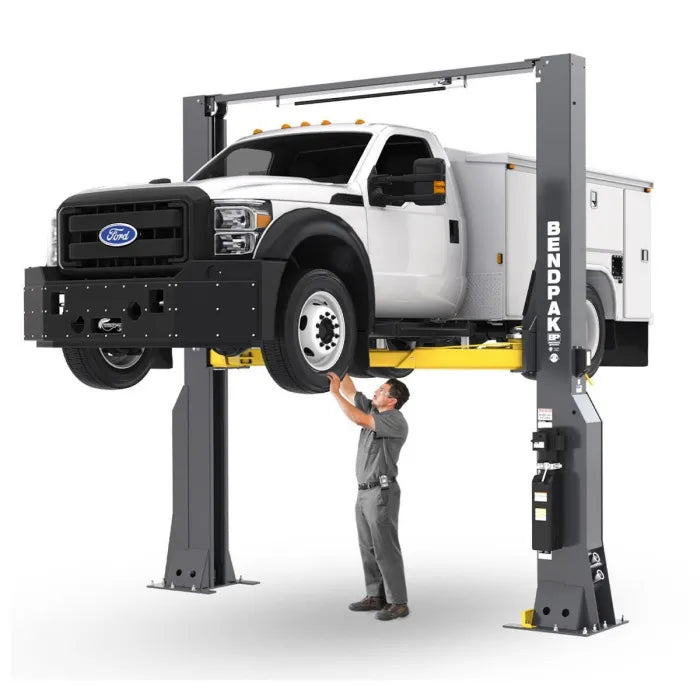

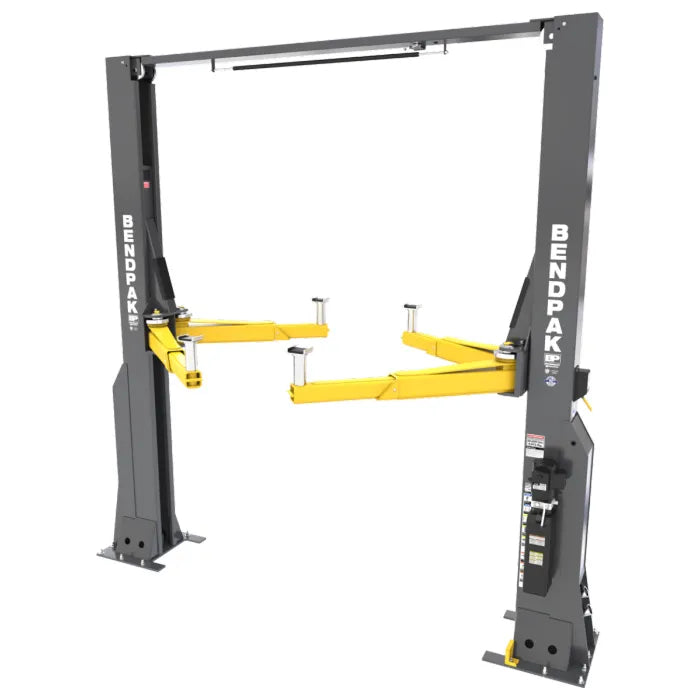

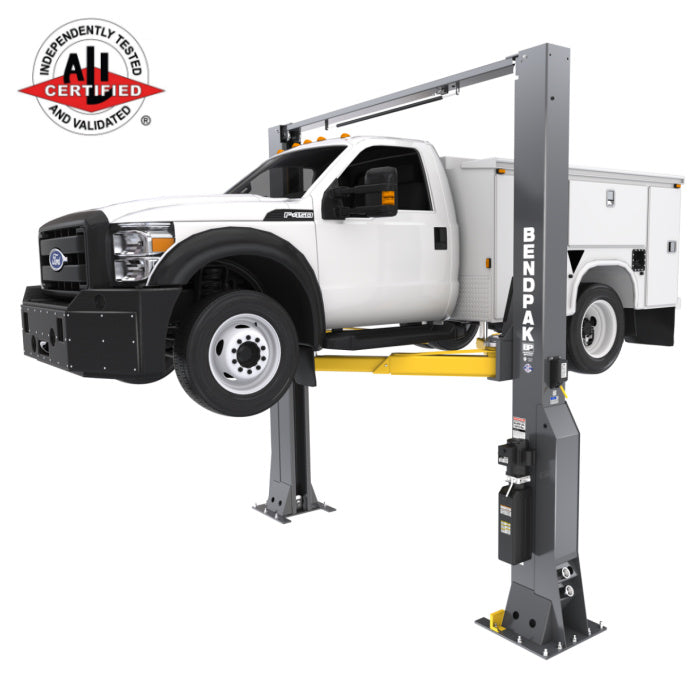

BendPak 20AP Heavy-Duty Clearfloor High-Rise Two Post Lift

Name: BendPak 20AP Heavy-Duty Clearfloor High-Rise Two Post Lift
Brand: ASEDeals
SKU: 5175614
Price: 22895.0 USD
Availability: InStock

In Stock SKU 5175614 UPC 849672034209

OUR PRICE: $22,895.00

Regular Price: $24,395.00

$635.97 / mo

INCLUDES FREE SHIPPING*

Short Description

BendPak 20AP Heavy-Duty Clearfloor High-Rise Two Post Lift
16,000 lbs. Capacity Super-Duty 168" Overall Height
with Automatic Swing Arm Restraint System
The BendPak 20AP Clearfloor High-Rise Two Post Lift delivers exceptional direct-drive lifting performance, cutting-edge technology, top-of-the-line materials, and a design that's ahead of its time. From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak's 20AP Series tackles them all. With plentiful 20,000 pound lifting capacities combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations.

Description

BendPak 20AP Heavy-Duty Clearfloor High-Rise Two Post Lift
16,000 lbs. Capacity Super-Duty 168" Overall Height
with Automatic Swing Arm Restraint System

The BendPak 20AP Clearfloor High-Rise Two Post Lift delivers exceptional direct-drive lifting performance, cutting-edge technology, top-of-the-line materials, and a design that's ahead of its time. From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak's 20AP Series tackles them all. With plentiful 20,000 pound lifting capacities combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations.

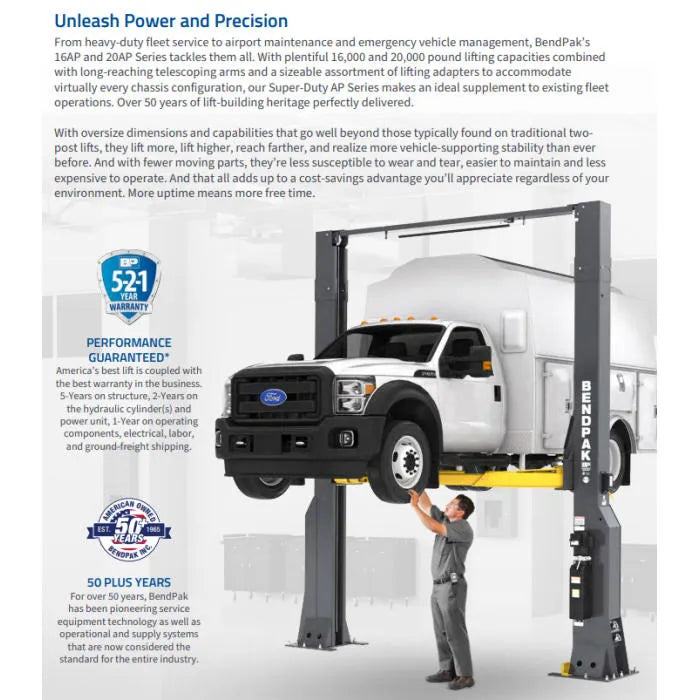

Unleash Power and Precision
From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak's 16AP and 20AP Series tackles them all. With plentiful 16,000 and 20,000 pound lifting capacities combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations. Over 50 years of lift-building heritage perfectly delivered. With oversize dimensions and capabilities that go well beyond those typically found on traditional two post lifts, they lift more, lift higher, reach farther, and realize more vehicle-supporting stability than ever before. And with fewer moving parts, they're less susceptible to wear and tear, easier to maintain and less expensive to operate. And that all adds up to a cost-savings advantage you'll appreciate regardless of your environment. More uptime means more free time.

5-2-1 Year Warranty Performance Guaranteed
America's best lift is coupled with the best warranty in the business. 5-Years on structure, 2-Years on the hydraulic cylinder(s) and power unit, 1-Year on operating components, electrical, labor, and ground-freight shipping.

American Owned 50+ Years BendPak Inc.
For over 50 years, BendPak has been pioneering service equipment technology as well as operational and supply systems that are now considered the standard for the entire industry.

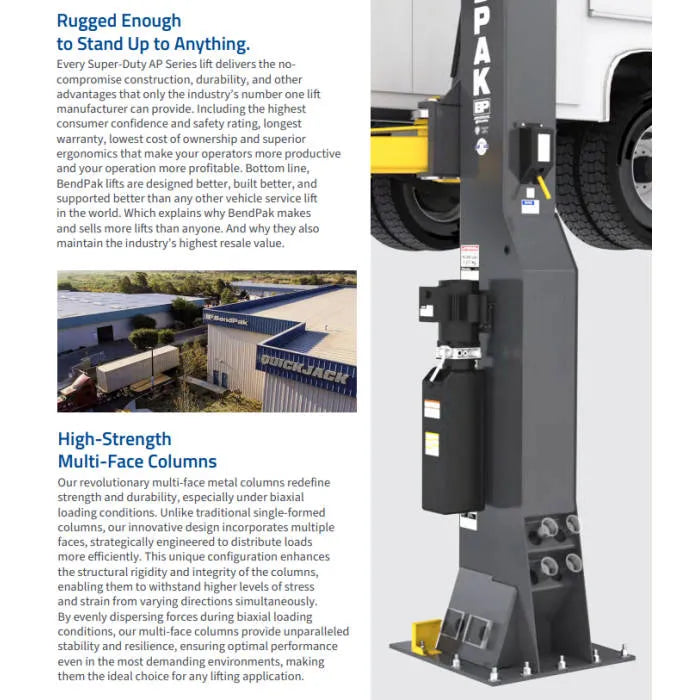

Rugged Enough To Stand Up To Anything
Every Super-Duty AP Series lift delivers the no compromise construction, durability, and other advantages that only the industry's number one lift manufacturer can provide. Including the highest consumer confidence and safety rating, longest warranty, lowest cost of ownership and superior ergonomics that make your operators more productive and your operation more profitable. Bottom line, BendPak lifts are designed better, built better, and supported better than any other vehicle service lift in the world. Which explains why BendPak makes and sells more lifts than anyone. And why they also maintain the industry's highest resale value.

High-Strength Multi-Face Columns
Our revolutionary multi-face metal columns redefine strength and durability, especially under biaxial loading conditions. Unlike traditional single-formed columns, our innovative design incorporates multiple faces, strategically engineered to distribute loads more efficiently. This unique configuration enhances the structural rigidity and integrity of the columns, enabling them to withstand higher levels of stress and strain from varying directions simultaneously. By evenly dispersing forces during biaxial loading conditions, our multi-face columns provide unparalleled stability and resilience, ensuring optimal performance even in the most demanding environments, making them the ideal choice for any lifting application.

Next Generation Two Post Lifting
Designed to meet the demands of modern automotive shops, the 16AP combines cutting-edge engineering with unparalleled safety and efficiency, ensuring optimal performance for heavy vehicle service.

Redefining Safety and Stability With ASARS (Automatic Swing Arm Restraint System)
Thanks to BendPak's patented Automatic Swing Arm Restraint System, you can finally say goodbye to unplanned movement. Engineered to withstand extreme forces, this system delivers over 2000 pounds of load holding force, ensuring secure arm positioning during vehicle service. With a full 360-degree grip and a quick-release lever for effortless operation, ASARS provides unmatched stability and control.

Next-Level Safety Lock System
Experience peace of mind with BendPak's automatic safety lock system. Designed for seamless operation, this innovative system engages automatically during lift rising operations, with a single-point release for effortless descent. Streamline your workflow and prioritize your safety (and the safety of your vehicle) with BendPak's industry-leading safety features.

ALI Certified
The gold ALI Certification badge is the leading nationally recognized standard for car lifts of all designs.

12-Piece Adapter Set Included
The 16AP and 20AP lifts come equipped with a comprehensive 12-piece set of lifting adapters, allowing seamless compatibility with a wide range of chassis configurations. This set includes (4) frame cradle pads, (4) 2 1/4" medium stacking adapters, and (4) 5" tall stacking adapters, ensuring versatile support for all your lifting needs. Keep them nice and organized with the included Adapter Holder.

Features
From accommodating large commercial trucks safer than ever before and lifting and supporting long awkward vehicles effortlessly, our Super-Duty AP Series handles heavy fleet tasks very comfortably. The key? Graciously spaced columns make for easier entry and exit and ruggedly built far reaching arms increase lifting point coverage delivering greater stability. With an impressive rise that exceeds the industry standard, these lifts boast a maximum lifting height of over 90 inches. That means no more bending over or crouching while working beneath the vehicle. This ergonomic advantage not only enhances productivity but also significantly reduces the risk of back strain and musculoskeletal disorders and the potential for workplace injury claims.

Power Unit - Electric-hydraulic power system with ergonomic push-button controls.
Gunmetal Grey - Durable powder-coat finish gives the lift a sleek appearance.
Extended Height - 192 models offer extended height topbeam provides greater clearance.
Telescoping Arms - Versatile arms accommodates a wide variety of vehicle chassis.
Adapters Included - Comes with a 12-piece set of lifting adapters to suit your lifting needs.
Storage - Conveniently keep lifting adapters on the side of your lift and within arm's reach.
Shutoff Bar - Padded overhead safety shutoff bar automatically stops the lift should a vehicle make contact with the overhead structure.

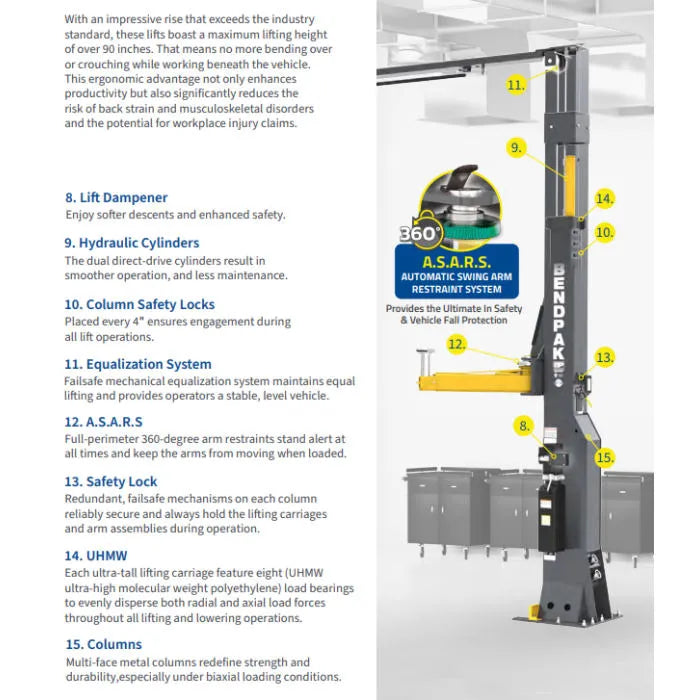

Lift Dampener - Enjoy softer descents and enhanced safety.

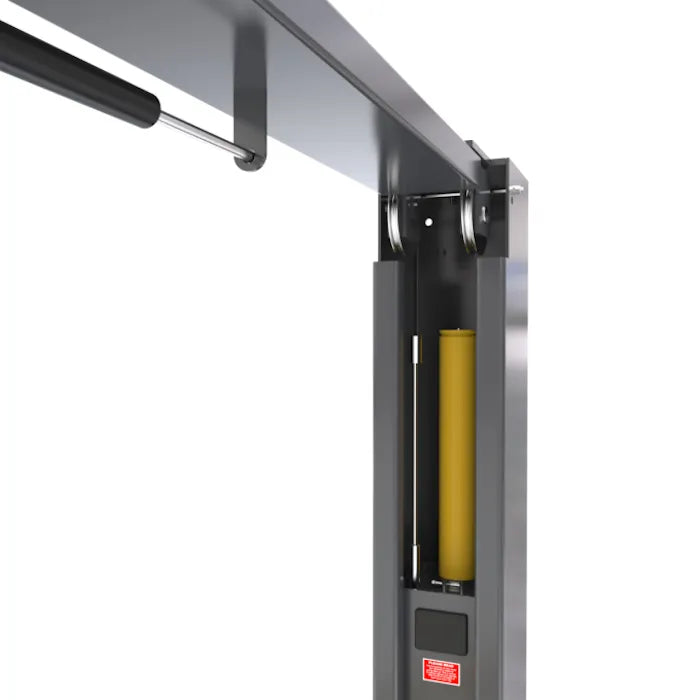

Hydraulic Cylinders - The dual direct-drive cylinders result in smoother operation, and less maintenance.
Column Safety Locks - Placed every 4" ensures engagement during all lift operations.
Equalization System - Failsafe mechanical equalization system maintains equal lifting and provides operators a stable, level vehicle.
A.S.A.R.S - Full-perimeter 360-degree arm restraints stand alert at all times and keep the arms from moving when loaded.
Safety Lock - Redundant, failsafe mechanisms on each column reliably secure and always hold the lifting carriages and arm assemblies during operation.
UHMW - Each ultra-tall lifting carriage feature eight (UHMW ultra-high molecular weight polyethylene) load bearings to evenly disperse both radial and axial load forces throughout all lifting and lowering operations.
Columns - Multi-face metal columns redefine strength and stability, especially under biaxial loading conditions.

Features & Specs

Features

Combines Cutting-Edge Engineering With Unparalleled Safety And Efficiency, Ensuring Optimal Performance For Heavy Vehicle Service
Redefining Safety And Stability Through ASARS (Automatic Swing Arm Restraint System)
Next-Level Safety Lock System
Rugged Enough To Stand Up To Anything
High-Strength Multi-Face Columns
Durable Powder Coat Finish
Expandable Top Beam Accommodates Wide Or Narrow Drive-Thru Configurations
Double-Telescoping Screw Pads Offer Increased Versatility
Padded Overhead Safety Shutoff Bar
Single-Point Safety Release
Drop-End Arms Provide A Lower Pad Height
Dual Hydraulic Direct-Drive Cylinders
Electric / Hydraulic HVLP Power System
Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
Automatic Arm Restraints Withstand Over 2,000 Pounds Of Side Force
Oversized Cable Sheave Diameter Reduces Cable Fatigue
Built-In Adapter Holders
ALI Certified

Standard Accessories

#5215758 2-1/2" Medium Adapters (Set of 4)
#5215759 5" Tall Adapters (Set of 4)
#5215761 5" Drop-In Cradle Pads (Set of 4)

Optional Accessories

#5210263 Quick-Fit Pinch-Weld Pucks (Set of 4)
#5210254 Quick-Fit Pinch-Weld Pads (Set of 4)
#5215761 Wide Frame Cradle Adapters (Set of 4)
#5215757 2-1/4" Small Adapters (Set of 4)
#5215763 Drop-In Steel Pads (Set of 4)
#5700227 Replacement Urethane Pads (Set of 4)
#5215762 Screw Pads (Set of 4)

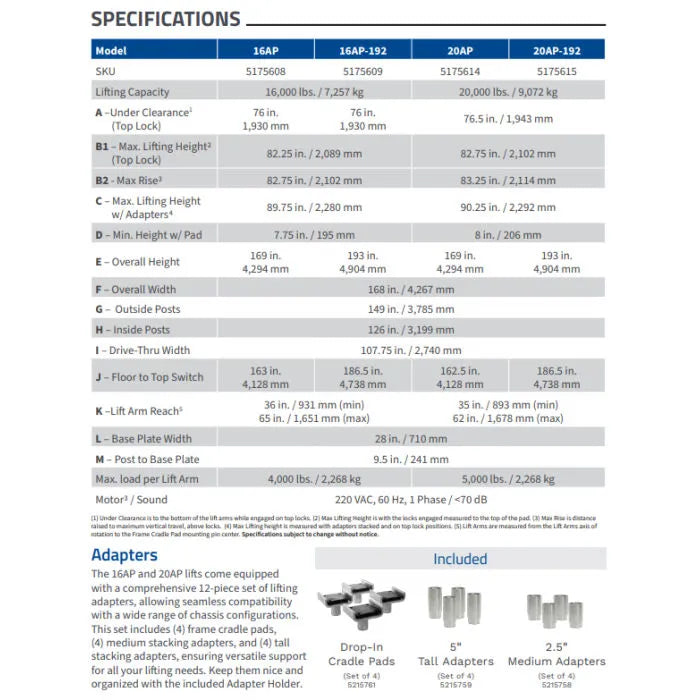

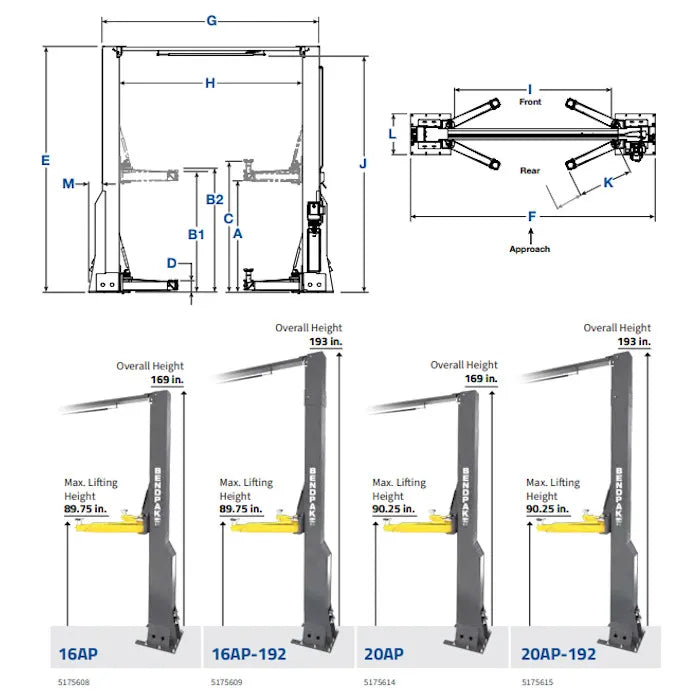

Specifications

Model Number	16AP	16AP-192	20AP	20AP-192
SKU	5175608	5175609	5175614	5175615
Lifting Capacity	16,000 lbs. (7,257 kg)	16,000 lbs. (7,257 kg)	20,000 lbs. (9,072 kg)	20,000 lbs. (9,072 kg)
Under Clearance (Top Lock)	76" (1,930 mm)	76" (1,930 mm)	76.5" (1,943 mm)	76.5" (1,943 mm)
Max Lifting Height (Top Lock)	82.25" (2,089 mm)	82.25" (2,089 mm)	82.75" (2,102 mm)	82.75" (2,102 mm)
Max Rise	82.75" (2,102 mm)	82.75" (2,102 mm)	83.25" (2,114 mm)	83.25" (2,114 mm)
Max Height with Adapters	89.75" (2,280 mm)	89.75" (2,280 mm)	90.25" (2,292 mm)	90.25" (2,292 mm)
Min Height with Adapters	7.75" (195 mm)	7.75" (195 mm)	8" (206 mm)	8" (206 mm)
Overall Height	169" (4,294 mm)	193" (4,904 mm)	169" (4,294 mm)	193" (4,904 mm)
Overall Width	168" (4,267 mm)	168" (4,267 mm)	168" (4,267 mm)	168" (4,267 mm)
Outside Posts	149" (3,785 mm)	149" (3,785 mm)	149" (3,785 mm)	149" (3,785 mm)
Inside Posts	126" (3,199 mm)	126" (3,199 mm)	126" (3,199 mm)	126" (3,199 mm)
Drive-Thru Width	107.75" (2,740 mm)	107.75" (2,740 mm)	107.75" (2,740 mm)	107.75" (2,740 mm)
Floor To Top Switch	163" (4,128 mm)	186.5" (4,738 mm)	162.5" (4,128)	186.5" (4,738 mm)
Lift Arm Reach Min	36" (931 mm)	36" (931 mm)	35" (893 mm)	35" (893 mm)
Lift Arm Reach Max	65" (1,651 mm)	65" (1,651 mm)	62" (1,574 mm)	62" (1,574 mm)
Bast Plate Width	28" (710 mm)	28" (710 mm)	28" (710 mm)	28" (710 mm)
Post To Base Plate	9.5" (241 mm)	9.5" (241 mm)	9.5" (241 mm)	9.5" (241 mm)
Max Load Per Lift Arm	4,000 lbs. (1,814 kg)	4,000 lbs. (1,814 kg)	5,000 lbs. (2,268 kg)	5,000 lbs. (2,268 kg)
Motor	220 VAC 60 Hz 1 Ph	220 VAC 60 Hz 1 Ph	220 VAC 60 Hz 1 Ph	220 VAC 60 Hz 1 Ph
Sound	<70 dB	<70 dB	<70 dB	<70 dB
(4) 2 1/2" Medium Adapters	Included	Included	Included	Included
(4) 5" Tall Adapters	Included	Included	Included	Included
(4) Drop-In Cradle Pads	Included	Included	Included	Included

Shipping Weight: 3,466 lbs.
Shipping Dimensions: 186" x 31" x 36"
Warranty: (5) Years on Structure, (2) Year on Hydraulics, (1) Year Electrical, (1) Year Labor

BendPak Two Post/Four Post Lifts Limited Warranty
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER.

Duration: From the date of purchase by original Purchaser or 60-24‐12 months from the date of shipment by BendPak or whichever comes first.

Five Years (60-Months) Warranty on the lift structure
Two Years (24‐Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12‐Months) Warranty on operating components
One Year (12‐Months) Warranty on electrical components (excluding power unit)
One Year (12‐Months) Labor Warranty on site or at factory*
One Year (12‐Months) Free‐Shipping** on ground‐freight charges related to warranty performance

Limited Warranty

Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty (Product): Any BendPak Two‐Post or Four‐Post Vehicle Service Lift***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
What is not covered under this warranty:

Any failure that results from Purchaser's abuse, neglect or failure to operate, maintain or service Product in accordance with instructions provided in the owner's manual(s) supplied.
Any damage caused by overloading Product beyond rated capacity.
Items or service normally required to maintain the Product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber pads/blocks, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship.
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants.
Rusted components due to improper maintenance or corrosive environments.
Cosmetic defects that do not interfere with Product functionality.
Damage due to incorrect voltage or improper wiring.
Any failure that results from improper installation or use not according to specifications.
Damage caused by disasters such as fire, flood, wind, and lightning.
Damage caused by unauthorized attachments or modifications.

Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor's option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Warrantor will pay reasonable labor costs for the first 12 months only.
Responsibilities of Purchaser under this warranty/ notice of claims:

Provide dated proof of purchase and maintenance records.
In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12‐months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the Products as described in the owner's manual(s).
Immediately upon receipt of the Product, Purchaser shall inspect the same. Any claim for shortage must be made within ten days after Purchaser's receipt. All other claims, including claims for alleged defective Product, must be made within fifteen days after Purchaser learns of the facts upon which such claim is based, but in no event later than the applicable one, two or five year period specified above for the specified component(s). All claims not made in writing and received by Seller within the time periods specified above shall be deemed waived. With respect to any defects incapable of discovery until in use, all claims for any damages or losses as a result of such defects shall be deemed waived unless made in writing and received by Seller within fifteen days after Purchaser learns of the alleged defect giving rise to the claim and after the expiration of said periods, but in no event later than the applicable one, two or five year period specified above for the specified component(s). Purchaser expressly assumes all liability for all such damages or losses, irrespective of any use which shall have taken place or whether the alleged defect shall have occurred or been discovered prior to expiration of such periods.

When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*As determined by Warrantor in its sole discretion**Free‐shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses. ***For all BendPak brand Full‐Rise Scissors Vehicle Service Lift (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 1/1/2011.
