Autostacker A6S-OPT1 Platform Parking Lift
In Stock SKU A6S-OPT1
OUR PRICE: $12,995.00
Regular Price: $13,649.00
Short Description
Autostacker A6S-OPT1 Platform Parking Lift by BendPak
Fully Collapsible Parking Lift 6,000 lbs. Capacity
SKU 5175274 Including 220V Power Unit for Single Lift
SKU 5175387 Including 110V Power Unit for Single Lift
(Some folks sell the power unit separately)
Autostacker (A6S) is the fully collapsible parking lift that doubles the vehicle capacity of a single parking space. Ideal for home garages and commercial applications alike, this unique lift offers a minimal footprint that maximizes expansion. Easy and safe to use both indoors and outdoors.
Description
Autostacker A6S-OPT1 Platform Parking Lift by BendPak
Fully Collapsible Parking Lift 6,000 lbs. Capacity
SKU 5175274 Including 220V Power Unit for Single Lift
SKU 5175387 Including 110V Power Unit for Single Lift
(Some folks sell the power unit separately)
Autostacker (A6S) is the fully collapsible parking lift that doubles the vehicle capacity of a single parking space. Ideal for home garages and commercial applications alike, this unique lift offers a minimal footprint that maximizes expansion. Easy and safe to use both indoors and outdoors.

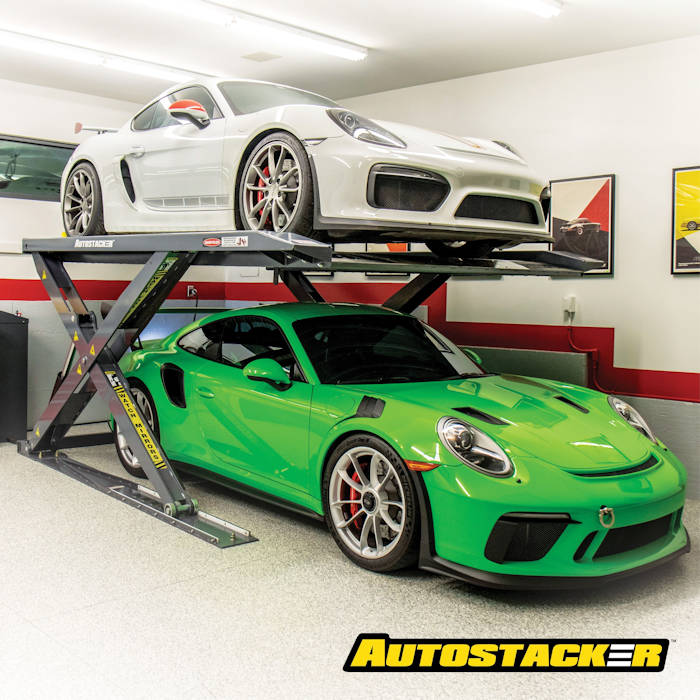

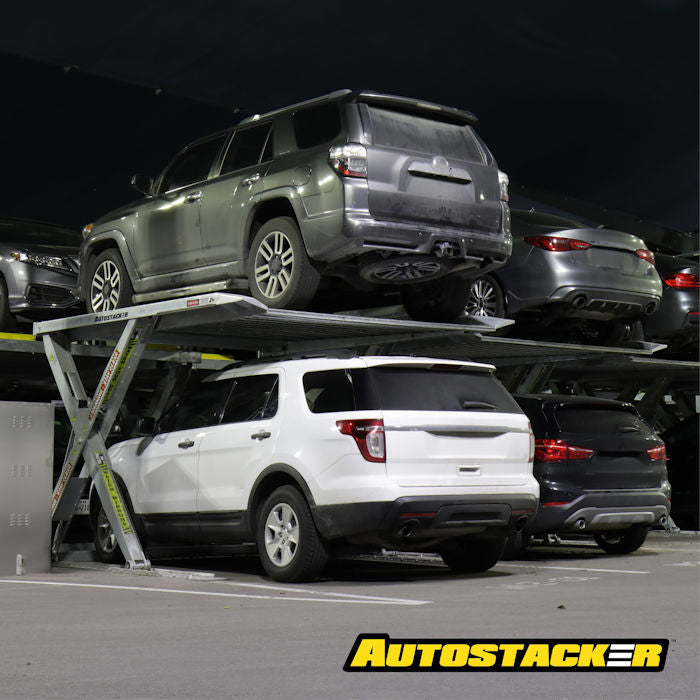

Low-Profile, High Capability
For so many reasons, this is the ultimate parking lift for homeowners. It's the safe, discreet and ultimately ideal tool for stacking your most-valued machines. Its slim nature also makes it perfect for commercial parking lots, indoors or outdoors, because more parking units are able fit in less space. This provides a welcome way to increase profits without having to excavate or purchase pricey real estate.
The best thing about Autostacker is that it doesn't sacrifice ruggedness and capability in exchange for its slimmed-down design. Everything about this lift is industrial-grade. The 6,000 lbs. capacity wide-platform galvanized deck offers 80 incredible inches of overhead clearance when the platform is raised to the max lock level, which creates more than enough room for most high-clearance trucks and SUVs. Even low-ceiling garages are able to comfortably accommodate two low-profile vehicles, and spaces with more overhead clearance can accommodate almost anything in the lower level.
Autostacker is a division of BendPak Inc., but it's so unique, we knew we had to let it stand apart all on its own.
Innovation At Every Turn

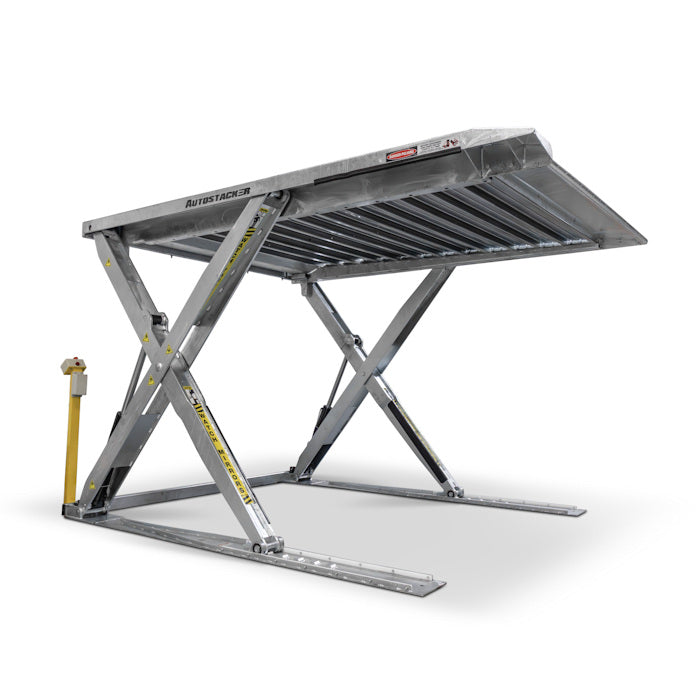

Autostacker is made to fit comfortably in a single parking space. It's able to do this thanks to unique design innovations. It doesn't have any of the side posts found on virtually every other parking lift on the market. The galvanized deck is inclined toward the back of the lift, so low-riding cars are never at risk of scratching the front bumper. This also lets us keep the approach ramp shorter, further reducing the lift's footprint. If you're pulling in front-first, our patented Door-sentry™ rubber door protectors, built right into the structure of the lift, will prevent dings and dents from accidental door slams. All these features, and many more, make Autostacker the most innovative and user-friendly home lift ever made.

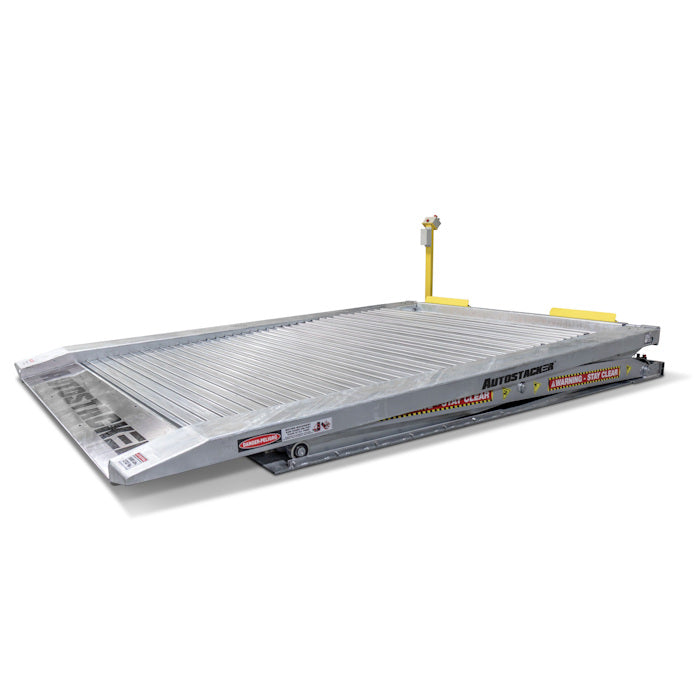

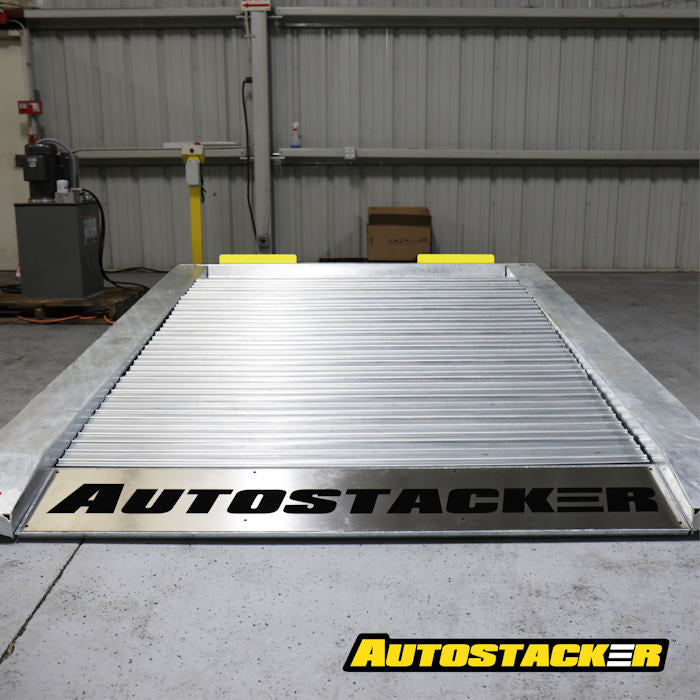

Wide Galvanized Deck
Bolt-on deck panels are easy to install and create a drip-proof platform deck that will last virtually forever and never rust or wear out under normal use. At the end of the deck is a gentle wheel trough that securely cradles wheels of all sizes.

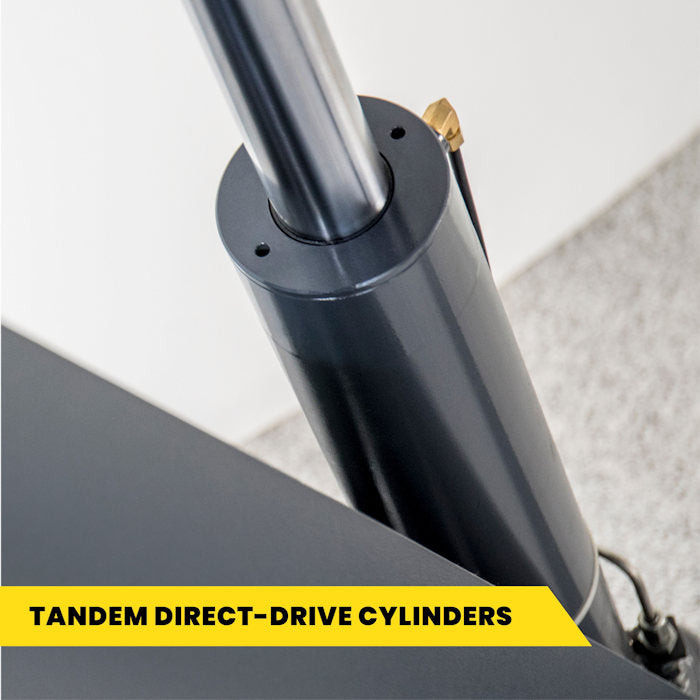

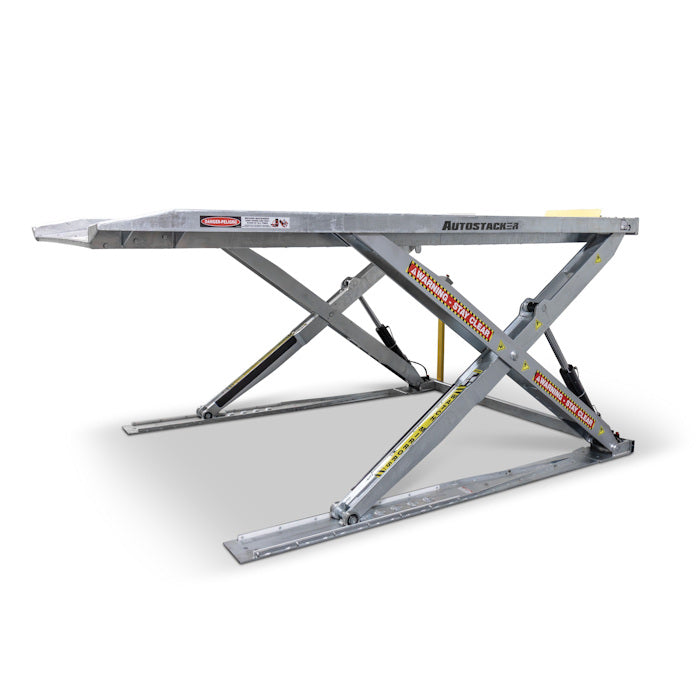

Dual Hydraulic Cylinders
Massive, dual hydraulic cylinders, one on each scissor superstructure, power the lift from underneath the vehicle. This eliminates side-loading, which in turn reduces maintenance over time and significantly extends the lifespan of the lift.
Automatic Safety Locks
Five lock positions engage automatically as the scissor arms extend, so the hydraulics are never actively engaged with vehicles parked underneath. A flow divider in the power unit ensures equal pressure to each scissor arm, so the locks engage and disengage simultaneously.
Superior Base Support
Autostacker's base support is just enough to keep the lift stable without adding unnecessary steel that simply clogs up your floor space. The parking lift is over-engineered to easily handle the rated 6,000 lbs. lift capacity, and the two-post structure never wobbles or shakes during operation.
Detached Power Unit Console
A cantilevered torsion bar extends off the lift and contains the push-button UP and DOWN controls. This ergonomically designed console is extremely safe and easy to use. Always keep an eye on your surroundings before and during car lift operation.
Multi-Unit Power Unit Available

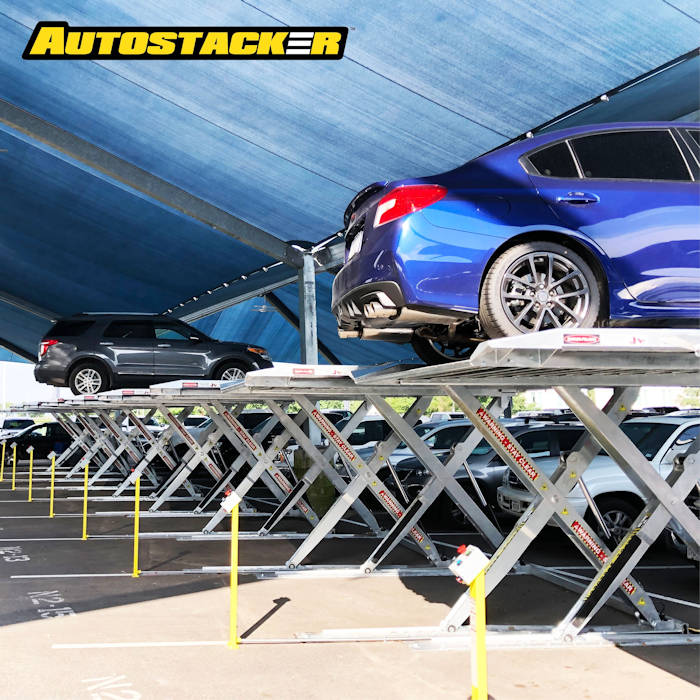

For commercial lots, dealerships and other ventures looking to significantly increase their home or business parking capacity, Autostacker can provide an optional, industrial-sized power unit capable of powering up to 14 parking lifts. Each lift will be outfitted with a proprietary key-activated lift/descent button, limiting the amount of hydraulic fluid required while maximizing space and efficiency. There are significant cost savings as well compared to buying 14 individual lifts and power units.

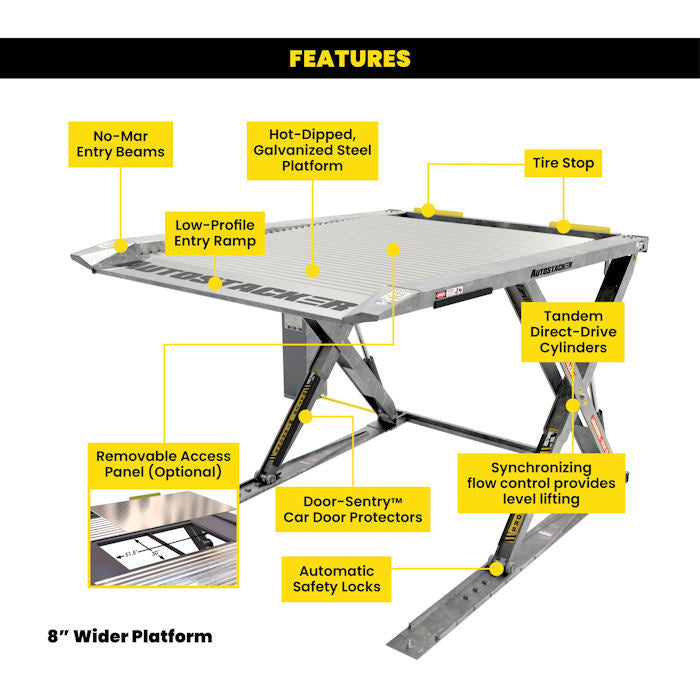

Features & Specs
Features
- 6,000 lbs. Lifting Capacity
- Key‐switch disconnect fully disables operation for enhanced security
- Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
- Accommodates cars, light trucks and SUVs
- Rugged, welded‐steel construction is strong and durable
- 100% hot‐dipped, galvanized steel platform
- Attractive slate gray, baked‐on powder coat finish provides added toughness

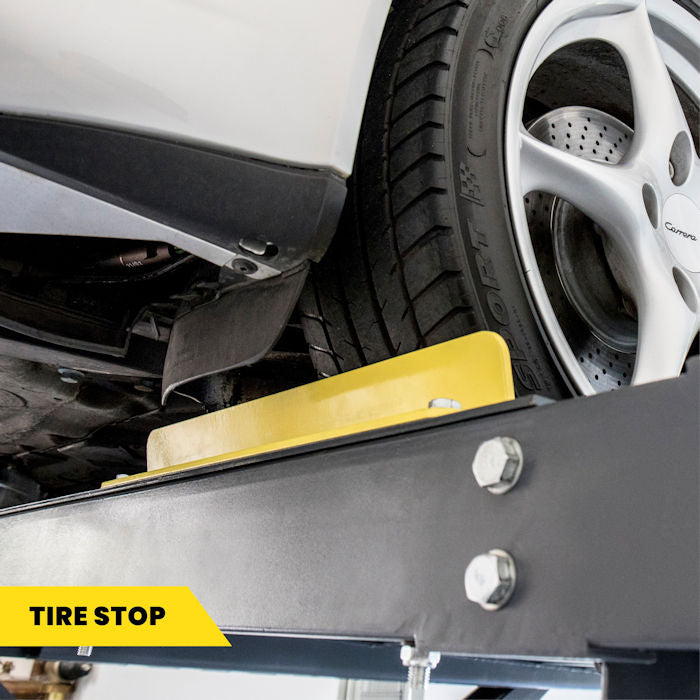

- Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
- Full‐width, gradual sloping platform reduces entry ramp height
- Automatic safety locks engage at five different parking heights
- Simple push‐button controls
- Dual, direct‐drive hydraulic lifting cylinders
- Dependable hydraulic circuit that provides precise, equalized lifting
- Variable height parking accommodates a wide range of vehicle and ceiling heights
- Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
- Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
- Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel - vital for eccentric loads
- Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
- Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins

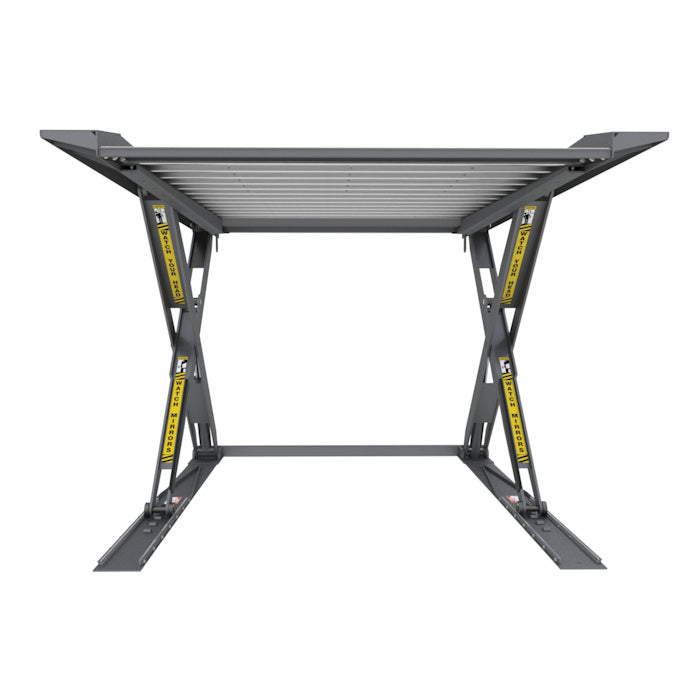

- Patented asymmetric scissor arms provide greater underside door clearance
- Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
- Space‐saving design is perfect for commercial or residential applications
- Minimal footprint fits a typical parking space
- Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
- UL Listed electrical components meet National Electrical Code (NEC) requirements
For those looking for a more personalized parking solution,
optional design features are available to enhance safety and functionality:
- Ultrasonic vehicle positioning indicator
- Vehicle-present photo-eye system
- Photo-eye interference detection
Autostacker, BendPak, and the Autostacker and BendPak logos are all registered trademarks of BendPak Incorporated. Autostacker reserves the right to make product changes relating to colors, equipment, specifications or available options without notice. For more information, contact your Autostacker representative.
Specifications
| Model: | A6S | A6W |
|---|---|---|
| Style: | Multi-Platform Parking Lift | Multi-Platform Parking Lift |
| Lifting Capacity: | 6,000 lbs. (2,722 kg) | 6,000 lbs. (2,722 kg) |
| Overall Width: | 103” (2,620 mm) | 111” (2,815 mm) |
| Overall Length: | 143” (3,632 mm) | 144” (3,658 mm) |
| Platform Length: | 124” (3,150 mm) | 124” (3,150 mm) |
| Platform Width: | 83.75” (2,128 mm) | 91.75” (2,331 mm) |
| Platform Height (Forward): | 13” (330 mm) | 13” (330 mm) |
| Ramp Height (Entry): | 2” (51 mm) | 2” (51 mm) |
| Maximum Under Clearance: | 80” (2,032 mm) | 80” (2,032 mm) |

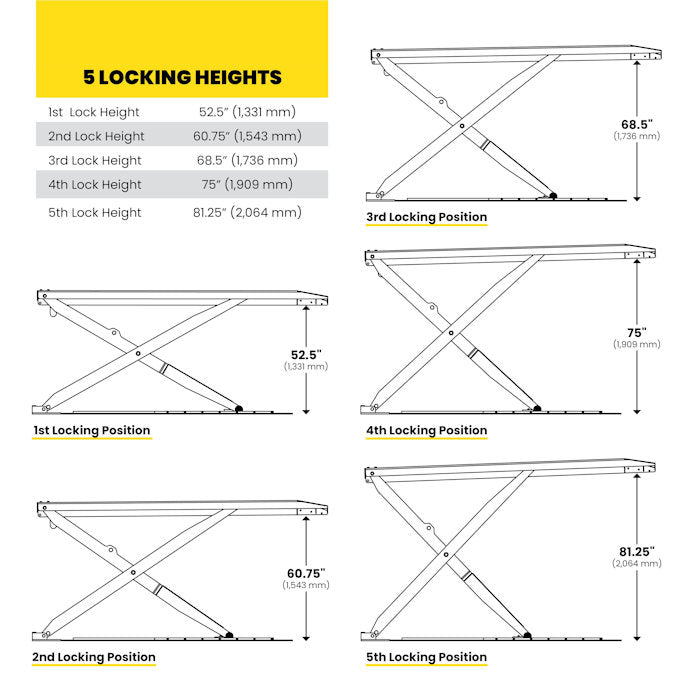

| Under Clearance 1st Lock (Lowest): | 52.5" (1,331 mm) | 52.5" (1,331 mm) |
| Under Clearance 2nd Lock: | 60.75" (1,543 mm) | 60.75" (1,543 mm) |
| Under Clearance 3rd Lock: | 68.5" (1,736 mm) | 68.5" (1,736 mm) |
| Under Clearance 4th Lock: | 75" (1,909 mm) | 75" (1,909 mm) |
| Under Clearance 5th Lock (Highest): | 81.25" (2,064 mm) | 81.25" (2,064 mm) |
| Motor: | 208-240V, 50/60 Hz / 1 Ph | 208-240V, 50/60 Hz / 1 Ph |
| Noise: | 52 dB | 52 dB |
| Shipping Weight: | 2,558 lbs. (1,160 kg) | 3,350 lbs. (1,530 kg) |
| Shipping Dimensions: | 143'' x 28'' x 22'' (3632 x 711 x 558.8 mm) |
144'' x 28'' x 30'' (3,657 x 711 x 762 mm) |

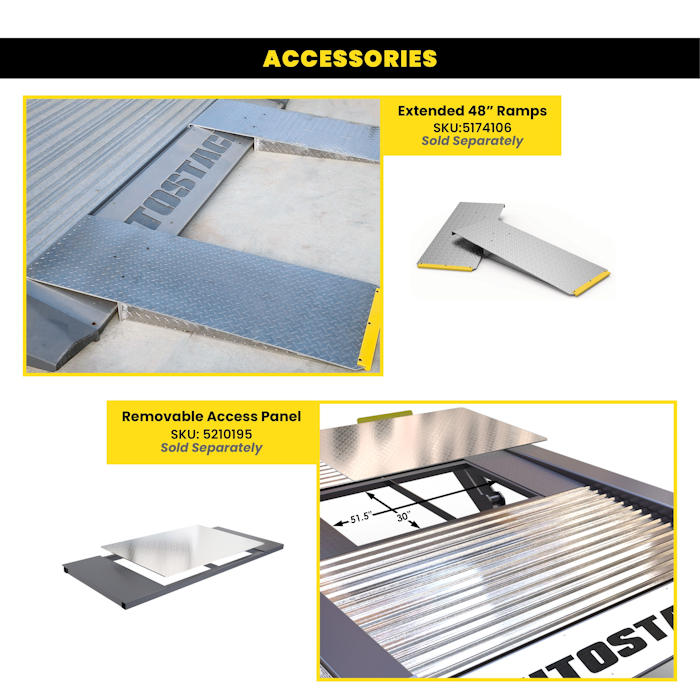

Accessories/Options
Autostacker 5210195 Access Panel for A6S
OUR PRICE: $1,175.00
Regular Price: $1,239.00
Autostacker A6W-OPT1 Extra Wide Platform Parking Lift
OUR PRICE: $14,195.00
Regular Price: $14,909.00
More Information
BendPak Autostacker Brochure (.pdf)
BendPak Autostacker Manual (.pdf)
BendPak Autostacker Ceiling Height Calculator (.xlsx)
BendPak Autostacker Warranty (.pdf)
When Vanderhall Motorworks needed car parking lifts for their unique 3 wheeled cars, they knew to contact ASE deals. We set them up with two of our Auto Stacker A6S car parking lifts. These cars are so cool, they were featured on Jay Leno's Garage.
Check out the video showing these unique automobiles on our auto lifts in the video below -
How does Autostacker compare to other parking lifts?
In order to get a truer sense of what makes Autostacker different, we’re going to compare our parking lift to four-post lifts, single-post lifts, automated parking systems, “puzzle” style parking lifts and multi-level lifts. Some folks who run auto shops or commercial parking garages might be looking to expand their parking and/or auto service capacity. So, we want you to know exactly what Autostacker can do for you.
Autostacker vs. four-post lifts
There’s a big difference between traditional four-post service lifts and parking lifts. If you’re a car enthusiast one who spends your free time working under cars then indeed, explore four-post service lift options, and perhaps a variety of other service lifts (e.g., two-post lifts, scissor lifts). The final decision on which lift to purchase often comes down to bulkiness and overall functionality, as well as cost-effectiveness. And you sure if you need a parking lift and not a service lift, Autostacker is the most compact, efficient and high-value parking lift option you’ll quickly learn to love.
Autostacker vs. two-post lifts
Two-post lifts are frame-engaging maintenance lifts most commonly found in auto shops and home garages of DIY’ers with higher-ceiling garages. They’re not really meant for long-term storage, however.
Autostacker vs. single-post lifts
Single-post lifts are a lot less common these days because they are impossible to design when trying to meet safety factors over one. They’re neat, but not really practical and not really space-saving either.
Autostacker vs. automated parking systems
These are not home car lift structures. Automated parking systems are huge, and they’re extremely expensive. (We’re talking tens and hundreds of millions of dollars). More than likely, this is not the parking lift type you’re looking for, but we’ll compare it anyway. If you can afford it, kudos to you.
Autostacker vs. "puzzle" style parking lifts
Independently moving, multi-platform parking lifts are sometimes referred to as “puzzle” lifts. These lifts use a four-post structure that’s wide enough to suspend two or three platforms within its frame. They require quite a bit of garage space to install, so they’re not ideal for the average garage. We at Autostacker’s happen to love these cool magic carpet looking lifts though and if your garage space is large enough be sure to give these guys a call.
Autostacker vs. multi-level parking lifts
Multi-level parking lifts are a different breed altogether. Sometimes used in outdoor lots, auto shops and home garages, they’re also seen in showrooms. That being said, any indoor space with a substantially high ceiling can fit one, and they definitely make for an impressive display. They may also be ideal if you have high ceilings but a narrow area to work with. They are not well suited for low clearance vehicles though. BendPak has a pretty good offering in this super-tall category.
