Autostacker A6W-OPT1 Extra Wide Platform Parking Lift
In Stock SKU A6W-OPT1
OUR PRICE: $14,195.00
Regular Price: $14,909.00
Short Description
Autostacker A6W-OPT1 Extra Wide Platform Parking Lift
Fully Collapsible Parking Lift 6,000 lbs. Capacity
SKU 5175282 Including 220V Power Unit for Single Lift
SKU 5175389 Including 110V Power Unit for Single Lift
(Some folks sell the power unit separately)
Meet the Autostacker A6W, an extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.
CURRENT LEAD TIME 2 WEEKS
Description
Autostacker A6W-OPT1 Extra Wide Platform Parking Lift
Fully Collapsible Parking Lift 6,000 lbs. Capacity
SKU 5175282 Including 220V Power Unit for Single Lift
SKU 5175389 Including 110V Power Unit for Single Lift
(Some folks sell the power unit separately)
Meet the Autostacker A6W, an extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.

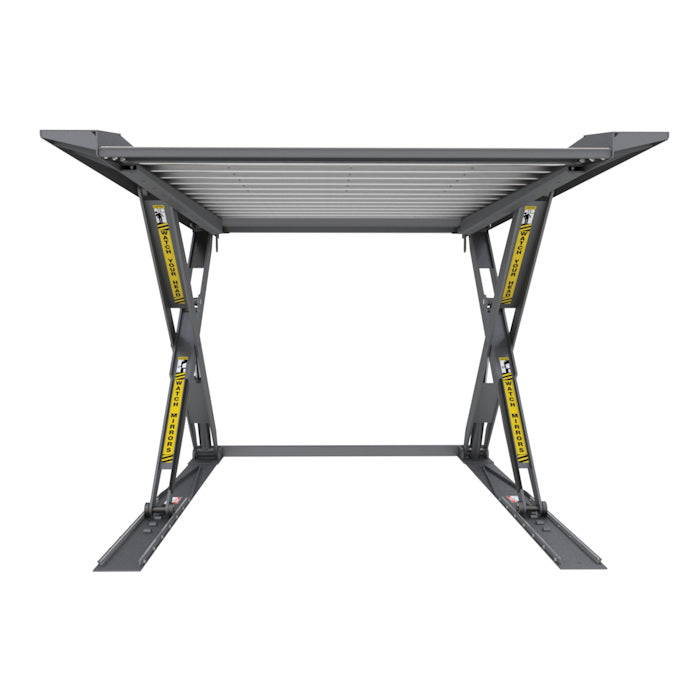

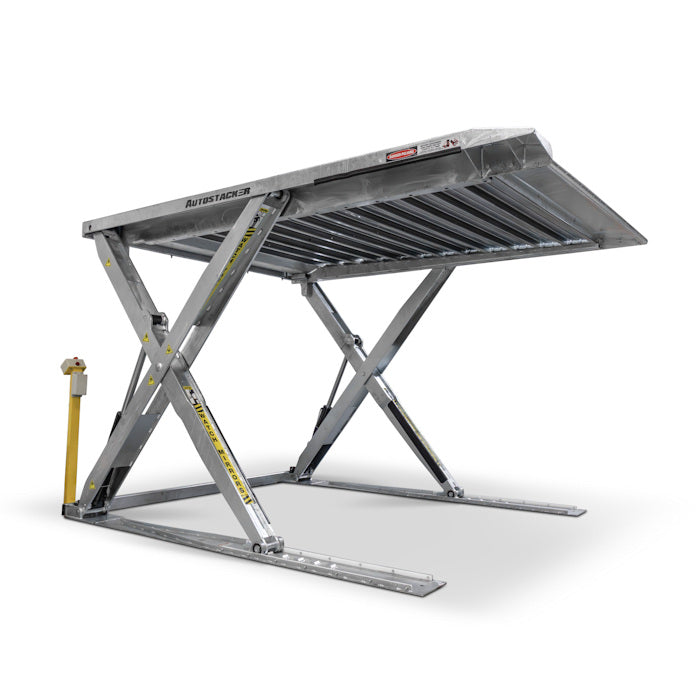

Autostacker A6W Extra-Wide Parking Lift
Meet the Autostacker A6W, an extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.
Autostacker is compact, which lets it fit in tighter spaces with ease. The potential downside of this: There are precious few inches to open a vehicle door when a car is pulled front-first into the lower space. With 8 extra inches for door clearance, the A6W offers more space for ingress and egress.
Additionally, the A6W offers a more spacious environment for vehicle loading on the top-level platform. Lower-level vehicles will pull into an equally roomy parking space that is protected by Autostacker's scissor superstructures. The extra-wide version of Autostacker remains an ideal home car lift for tight spaces and garages, and it lets homeowners maintain a clean, modern and sophisticated look to their garages.

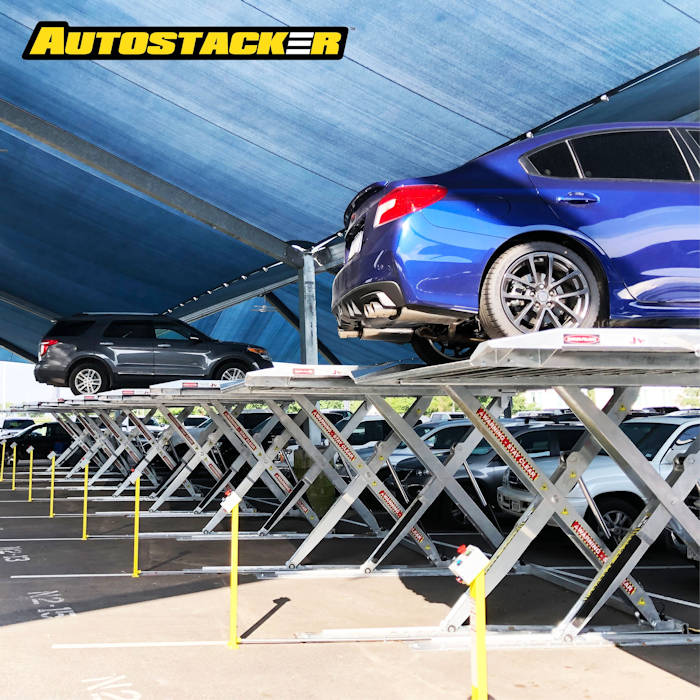

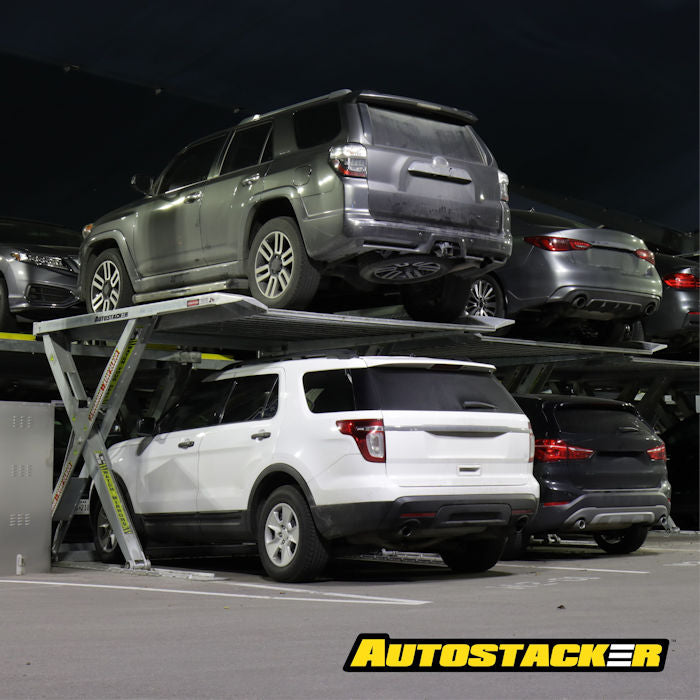

Commercial Application Of A Wider Lift
Commercial parking lots and valets need to be ready for anything: commuter sedans, trucks, SUVs, classics, exotics, etc. When space is limited and parking is tight, the only way to do that is with a string of parking lifts that can accommodate anything that comes their way. A wider lift offers commercial benefits to vehicles whether they're raised on the platform or parked in the lower level.
The upper level provides more room for wide vehicles, and the lower level has arguably the best benefit of all: additional door clearance. The A6W makes it that much easier to get in and out of a lower-level parked vehicle. Even though Autostacker comes standard with built-in rubber door protectors, the extra space further reduces the chances of damaging a customer's vehicle door.

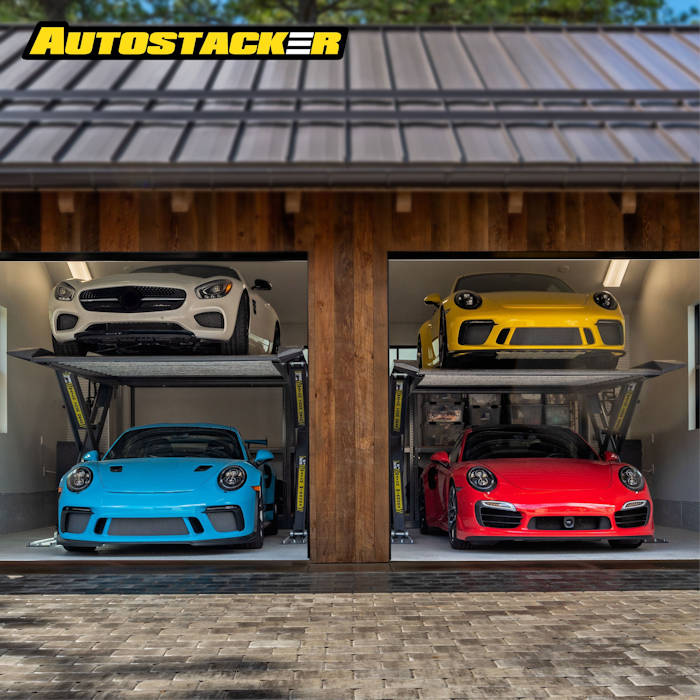

Residential Application Of A Wider Lift
Homeowners traditionally have a hard time finding a home car lift that checks all their boxes. A lift must be compact, safe, efficient and protective of the vehicles. Many people who collect cars are not mechanics, so home parking lifts need to be easy to use and require minimal maintenance. And of course, lift owners need to be able to comfortably enter and exit their vehicles.
Low Maintenance
Autostacker is built with uncompromisingly high-quality materials and rigorous engineering standards, and it could not be simpler to use. The A6W option is wider than the original Autostacker, so the full-length, galvanized and drip-proof loading platform is more accommodating for wide-body vehicles. There are no cables to replace or maintain, so the simplicity of the lift design means there's more time with zero scheduled maintenance.
Extra-Wide Autostacker Still Saves Space
Nothing could be more disappointing than measuring your vehicles only to find out they're just a bit too wide to fit on your Autostacker. It's equally frustrating when exiting wider vehicles and finding it's a difficult squeeze to get out. You want to save space, or you won't be able to fit a lift in your garage, but you can't do so at the expense of basic functionality.
The A6W smartly balances the need to save space with the need to fit wider vehicles. With the standard-size Autostacker is just about the size of a parking space, our extra-wide model is just slightly larger, but it makes a world of difference. Your parking lift will still fit in most home and commercial environments, and it still offers our patented completely collapsible design that promises maximum versatility, safety and ease-of-use.
Features & Specs

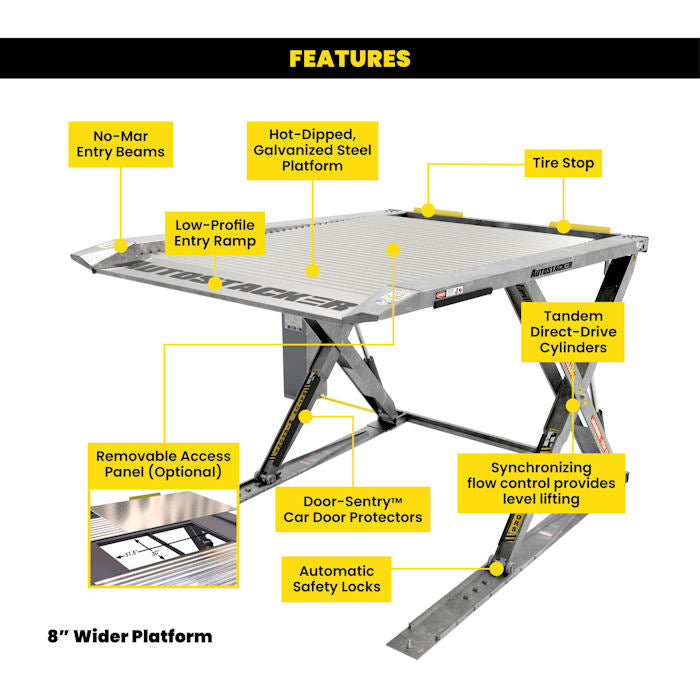

Features
- 6,000 lbs. Lifting Capacity
- Extra-wide construction for increased door clearance
- Key‐switch disconnect fully disables operation for enhanced security
- Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
- Accommodates cars, light trucks and SUVs
- Rugged, welded‐steel construction is strong and durable
- 100% hot‐dipped, galvanized steel platform
- Attractive slate gray, baked‐on powder coat finish provides added toughness

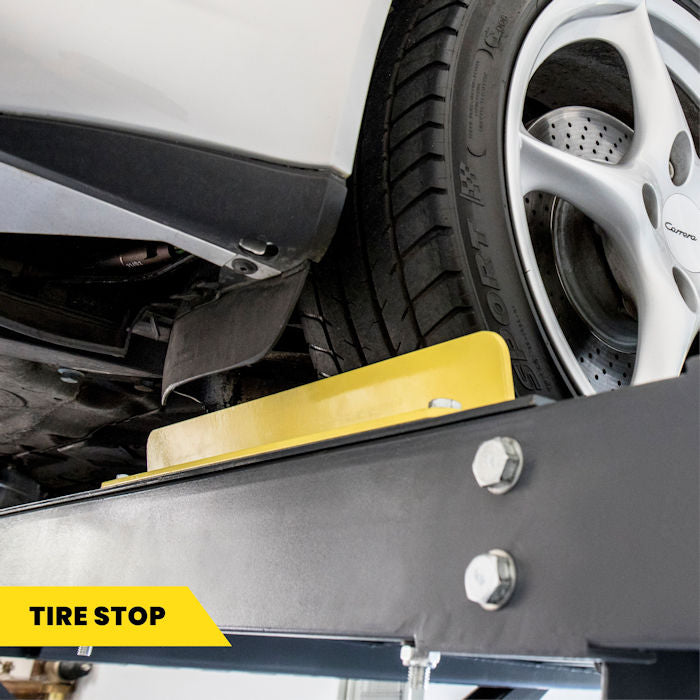

- Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward

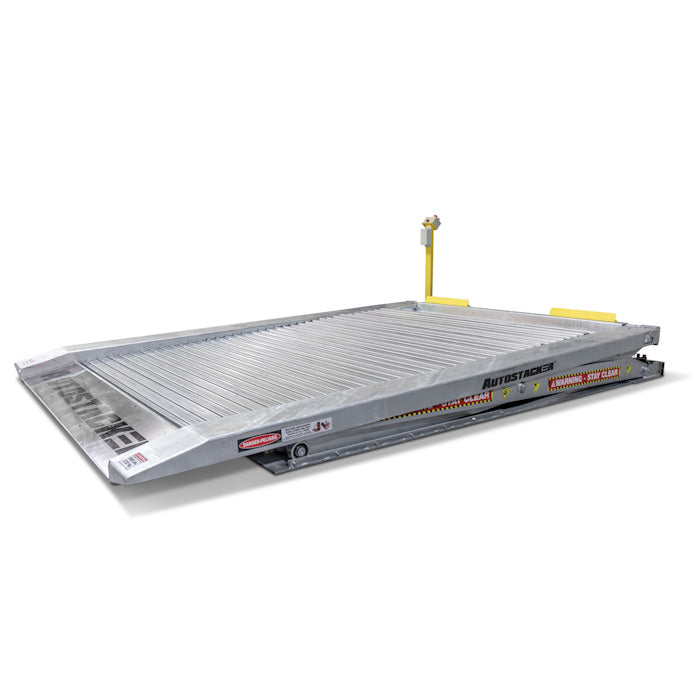

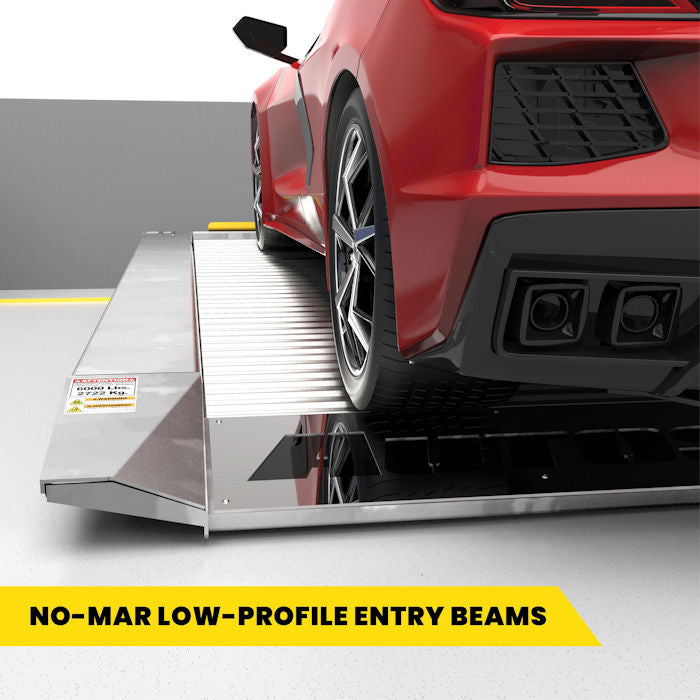

- Extra-wide, gradual sloping platform reduces entry ramp height

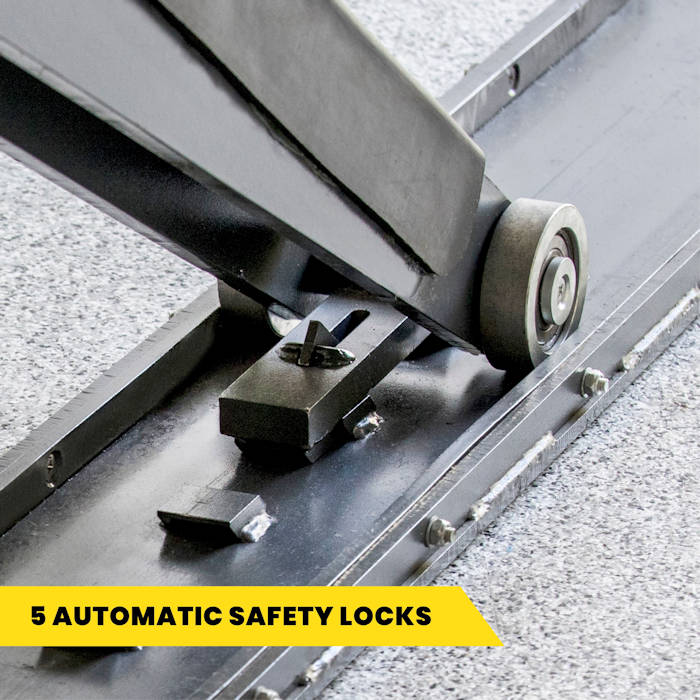

- Automatic safety locks engage at five different parking heights
- Simple push‐button controls

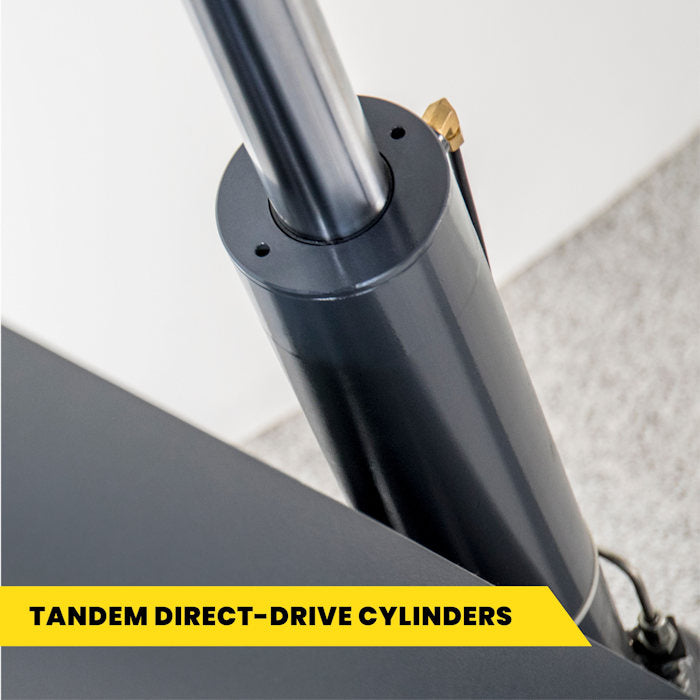

- Dual, direct‐drive hydraulic lifting cylinders
- Dependable hydraulic circuit that provides precise, equalized lifting
- Variable height parking accommodates a wide range of vehicle and ceiling heights
- Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
- Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
- Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel - vital for eccentric loads
- Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
- Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
- Patented asymmetric scissor arms provide greater underside door clearance
- Patented Door‐sentry car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
- Space‐saving design is perfect for commercial or residential applications
- Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
- UL Listed electrical components meet National Electrical Code (NEC) requirements
For those looking for a more personalized parking solution,
optional design features are available to enhance safety and functionality:
- Ultrasonic vehicle positioning indicator
- Vehicle-present photo-eye system
- Photo-eye interference detection
Autostacker, BendPak, and the Autostacker and BendPak logos are all registered trademarks of BendPak Incorporated. Autostacker reserves the right to make product changes relating to colors, equipment, specifications or available options without notice. For more information, contact your Autostacker representative.

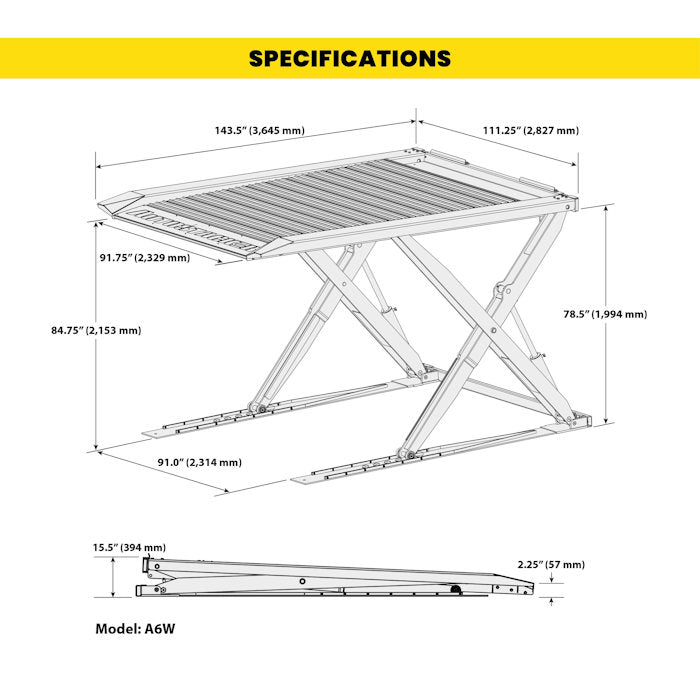

Specifications
| Model: | A6S | A6W |
|---|---|---|
| Style: | Multi-Platform Parking Lift | Multi-Platform Parking Lift |
| Lifting Capacity: | 6,000 lbs. (2,722 kg) | 6,000 lbs. (2,722 kg) |
| Overall Width: | 103” (2,620 mm) | 111” (2,815 mm) |
| Overall Length: | 143” (3,632 mm) | 144” (3,658 mm) |
| Platform Length: | 124” (3,150 mm) | 124” (3,150 mm) |
| Platform Width: | 83.75” (2,128 mm) | 91.75” (2,331 mm) |
| Platform Height (Forward): | 13” (330 mm) | 13” (330 mm) |
| Ramp Height (Entry): | 2” (51 mm) | 2” (51 mm) |
| Maximum Under Clearance: | 80” (2,032 mm) | 80” (2,032 mm) |

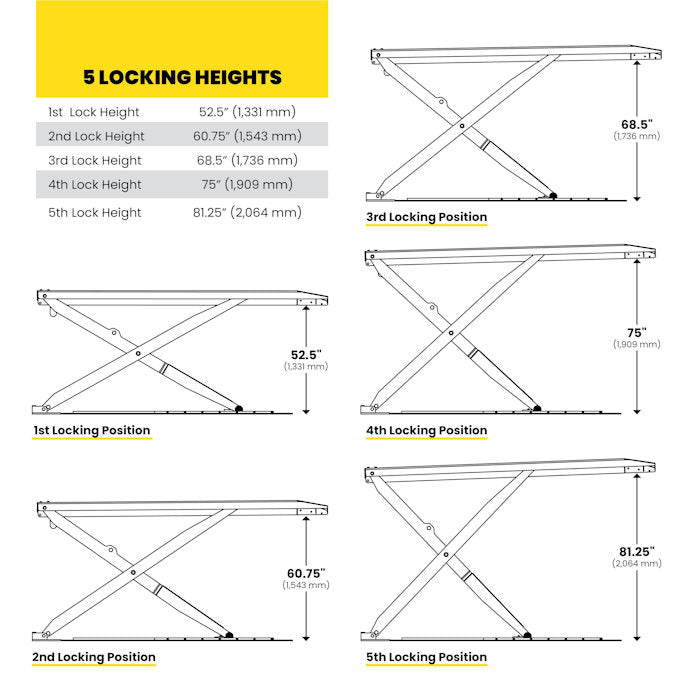

| Under Clearance 1st Lock (Lowest): | 52.5" (1,331 mm) | 52.5" (1,331 mm) |
| Under Clearance 2nd Lock: | 60.75" (1,543 mm) | 60.75" (1,543 mm) |
| Under Clearance 3rd Lock: | 68.5" (1,736 mm) | 68.5" (1,736 mm) |
| Under Clearance 4th Lock: | 75" (1,909 mm) | 75" (1,909 mm) |
| Under Clearance 5th Lock (Highest): | 81.25" (2,064 mm) | 81.25" (2,064 mm) |
| Motor: | 208-240V, 50/60 Hz / 1 Ph | 208-240V, 50/60 Hz / 1 Ph |
| Noise: | 52 dB | 52 dB |
| Shipping Weight: | 2,558 lbs. (1,160 kg) | 3,350 lbs. (1,530 kg) |
| Shipping Dimensions: | 143'' x 28'' x 22'' (3632 x 711 x 558.8 mm) |
144'' x 28'' x 30'' (3,657 x 711 x 762 mm) |
Accessories/Options
Autostacker A6S-OPT1 Platform Parking Lift
OUR PRICE: $12,995.00
Regular Price: $13,649.00
Autostacker 5210198 Extra Wide Access Panel for A6W
OUR PRICE: $1,300.00
Regular Price: $1,369.00
More Information
BendPak Autostacker Brochure (.pdf)
BendPak Autostacker Manual (.pdf)
BendPak Autostacker Ceiling Height Calculator (.xlsx)
BendPak Autostacker Warranty (.pdf)
When Vanderhall Motorworks needed car parking lifts for their unique 3 wheeled cars, they knew to contact ASE deals. We set them up with two of our Auto Stacker A6S car parking lifts. These cars are so cool, they were featured on Jay Leno's Garage.
Check out the video showing these unique automobiles on our auto lifts in the video below -
How does Autostacker compare to other parking lifts?
In order to get a truer sense of what makes Autostacker different, we’re going to compare our parking lift to four-post lifts, single-post lifts, automated parking systems, “puzzle” style parking lifts and multi-level lifts. Some folks who run auto shops or commercial parking garages might be looking to expand their parking and/or auto service capacity. So, we want you to know exactly what Autostacker can do for you.
Autostacker vs. four-post lifts
There’s a big difference between traditional four-post service lifts and parking lifts. If you’re a car enthusiast one who spends your free time working under cars then indeed, explore four-post service lift options, and perhaps a variety of other service lifts (e.g., two-post lifts, scissor lifts). The final decision on which lift to purchase often comes down to bulkiness and overall functionality, as well as cost-effectiveness. And you sure if you need a parking lift and not a service lift, Autostacker is the most compact, efficient and high-value parking lift option you’ll quickly learn to love.
Autostacker vs. two-post lifts
Two-post lifts are frame-engaging maintenance lifts most commonly found in auto shops and home garages of DIY’ers with higher-ceiling garages. They’re not really meant for long-term storage, however.
Autostacker vs. single-post lifts
Single-post lifts are a lot less common these days because they are impossible to design when trying to meet safety factors over one. They’re neat, but not really practical and not really space-saving either.
Autostacker vs. automated parking systems
These are not home car lift structures. Automated parking systems are huge, and they’re extremely expensive. (We’re talking tens and hundreds of millions of dollars). More than likely, this is not the parking lift type you’re looking for, but we’ll compare it anyway. If you can afford it, kudos to you.
Autostacker vs. "puzzle" style parking lifts
Independently moving, multi-platform parking lifts are sometimes referred to as “puzzle” lifts. These lifts use a four-post structure that’s wide enough to suspend two or three platforms within its frame. They require quite a bit of garage space to install, so they’re not ideal for the average garage. We at Autostacker’s happen to love these cool magic carpet looking lifts though and if your garage space is large enough be sure to give these guys a call.
Autostacker vs. multi-level parking lifts
Multi-level parking lifts are a different breed altogether. Sometimes used in outdoor lots, auto shops and home garages, they’re also seen in showrooms. That being said, any indoor space with a substantially high ceiling can fit one, and they definitely make for an impressive display. They may also be ideal if you have high ceilings but a narrow area to work with. They are not well suited for low clearance vehicles though. BendPak has a pretty good offering in this super-tall category.
