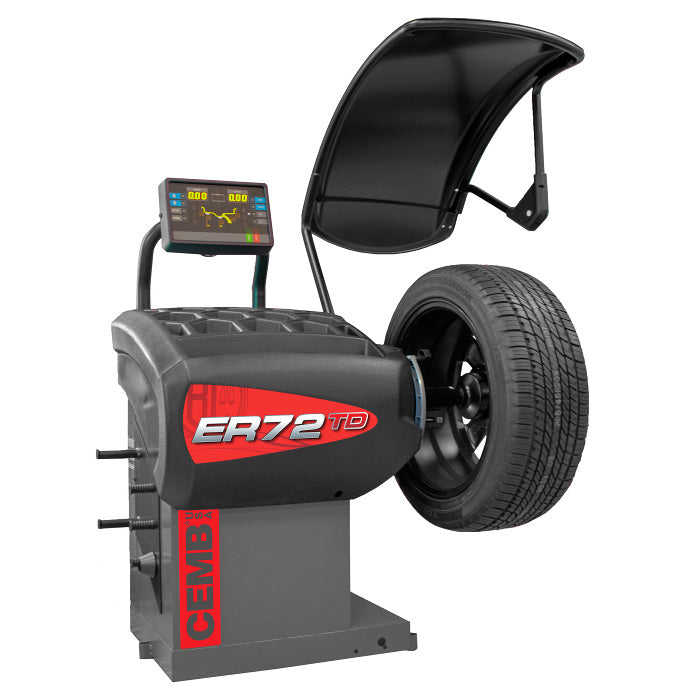

CEMB ER72TD Spotter Digital Wheel Balancer with Manual Clamping

Description

CEMB ER72TD Spotter Digital Wheel Balancer with Manual Clamping
AutoAdaptive One Plane Balancing EMS Width Sonar

The CEMB ER72TD Spotter Digital Wheel Balancer is a high volume, heavy-duty LED wheel balancer made especially for busy tire shops. This new series has the latest technology in wheel balancing featuring Manual Locking, AutoAdaptive One Plane Balancing, Automatic Approach, 3D Automatic Gauge, Laser Spotter, EMS Width Sonar, and an Electromagnetic Brake. A high volume, heavy-duty LED wheel balancer with all the best features from CEMB; focused on performance, ease of use, efficiency, and time savings. The unique ergonomic wheel offset improves access to the inside of the commonly balanced wheels requiring tape-on weights.

• Fast 5-Second Cycle Time. Quick Clamping Wing Nut Supplied Standard.
• Dynamic Autoadaptive OPB Balancing Software.
• CEMB Balancing Software Automatically Resolves Residual Static Unbalance Commonly Left Behind When Dynamically Balancing With Traditional Balancers Causing Hidden Vibration Complaints.
• An Automatic Laser Spotter Highlights The Exact Tape-On Weight Locations.
• Automatic LED Lighting At The Inside Of The Wheel Greatly Increases Visibility.
• Automatic 3D Direct Weight Placement (Distance, Diameter And Width Measurements) Are Included Standard. No Manual Key Pad Entry Required To Balance Wheels.
• Electro-Magnetic Brake Holds The Wheel For More Accurate Weight Placement.
• Automatic Approach System Allows For Faster Floor To Floor Time.
• Made In Italy. Final Assembly In USA.

OPB One Plane Balancing
Correct Both Static And Dynamic Imbalance With Only One Weight Saving Time
CEMB's OPB (One Plane Balancing) Software along with the most recent technical innovations such as Laser Spotter and 3D Laser Scan, the machine offers a single ideal correction plane, indicating the exact point within the rim where the wheel can be balanced. Minimizing both static and dynamic unbalance, using a single counterweight thus saving time. The OPB program is proposed automatically at the end of the spin, each time the possibility of correcting with a single weight is detected.

AutoAdaptive Mode
The New Tolerance Calculation System
The innovative tolerance calculation system AutoAdaptive Mode is based on the evaluation of the residual imbalance limit value corresponding to an acceptable perceived vibration. For each wheel that is balanced, the software AutoAdaptive Mode detects weight and dimensions and calculates the tolerance value that will cancel any vibration perceived on the steering wheel. AutoAdaptive Mode grants the highest comfort when driving, and together with OPB Program, saves balancing time.

Automatic Approach To Correction Position
To facilitate and speed up the calibration procedure, CEMB has introduced the automatic approach to the correction position on all balancing machines equipped with electric brake that are not provided with automatic positioning system. Once the measuring launch is completed, the wheel automatically stops around 15° from the exact point of application of the counterweight, allowing the operator to position it correctly with little movement. After the first plane correction, pressing "start" the wheel will be repositioned around the second correction point.

Advanced Diagnostic Capabilities
With this model, you can diagnose and address a multitude of wheel-related issues. The balancer automatically detects tire and rim damage, tire runout and other potential concerns.

Comprehensive Diagnostic Reports
This machine generates diagnostic reports, providing you with a detailed overview of wheel conditions and imbalances. These reports serve as valuable documentation for your customers and facilitate transparent communication about necessary repairs.

Advanced Features
Equipped with advanced capabilities, such as OPB One Plane Balancing Software along with the most recent technical innovations such as Laser Spotter, the machine offers a single ideal correction plane, indicating the exact point within the rim where the wheel can be balanced.

Dynamic Balancing Modes
The ER72 offers multiple balancing modes, including static, dynamic and alloy. You can select the most suitable mode based on the vehicle specifications to ensure accurate balancing for a wide range of vehicles. This fast wheel balancer will be a game changer in your craft, as it optimizes your wheel balancing operations with speed and precision. It combines the latest in technology and design with efficient and user-friendly features to deliver expert results for your customers.

CEMB wheel balancers constitute a wide range of innovative and patented solutions, recognizable for their capability to combine excellent balancing performances, robustness and ease of use.

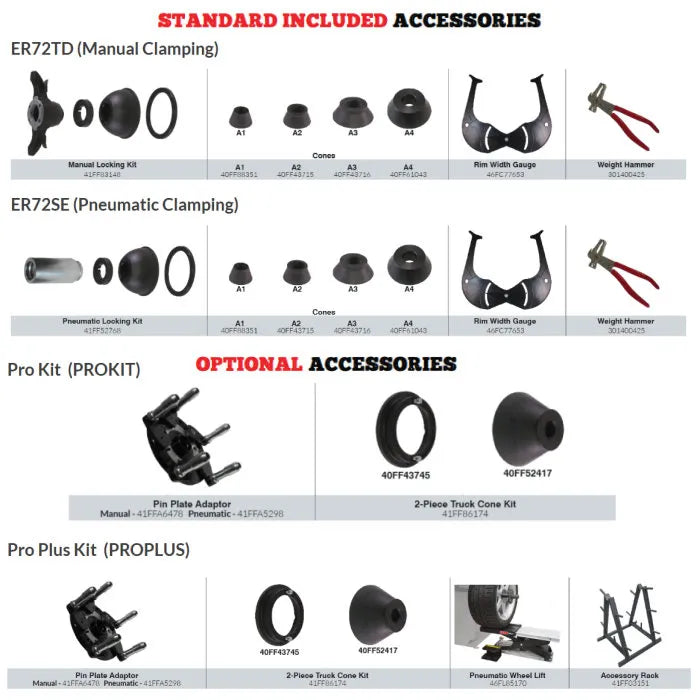

Accessories/Options
