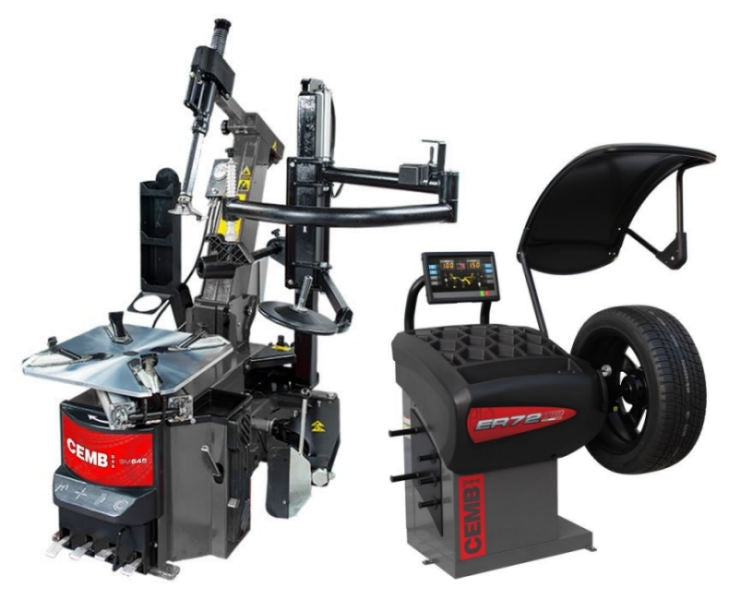

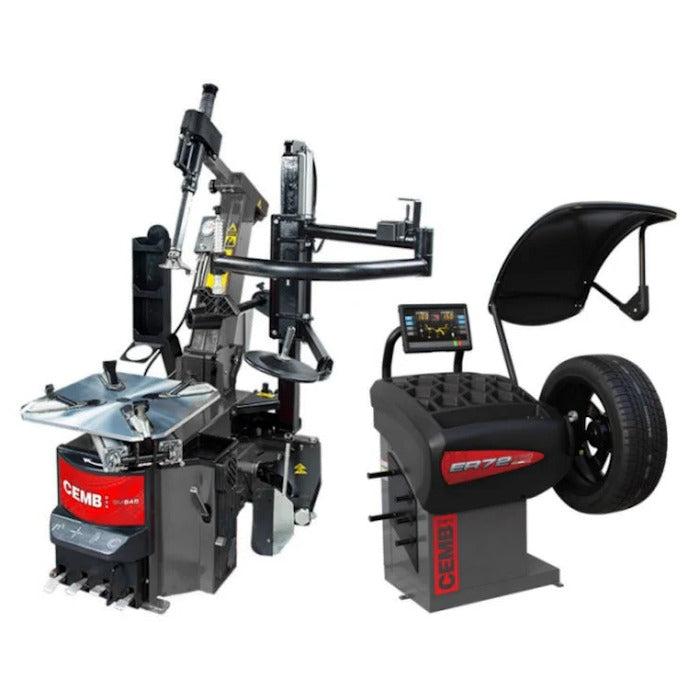

CEMB SM645HP2 Tilt Back Tire Changer + ER72TD Digital Wheel Balancer Combo

Features & Specs

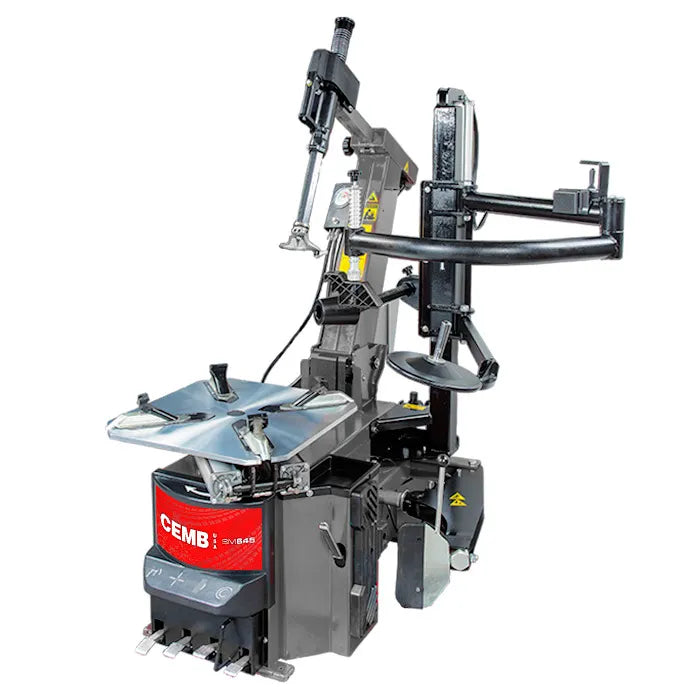

SM645HP2 Tire Changer Features

• Automatic Tilt-Back
• Table Top Clamping
• High Torque 110V Motor
• HP2 Side Presser
• Two Stage Inflation
• Bead Breaker Shovel
• Final Assembly And Tested In The USA

SM645HP2 Tire Changer Standard Accessories

• #511242 Bead Lifting Lever
• #C00A00017 Bead Lifting Lever Cover
• #YC130001468 Clamp Covers (4)
• #YC13013240 Bead Breaker Cover (2)
• #YC13013650 Rear Inserts (3)
• #YC13006689 Front Inserts (3)

SM645HP2 Tire Changer Specifications

• Power Supply: 110V, 1ph, 50/60 Hz
• Air Pressure: 115-145 psi (8-10 bar)
• Rim Diameter (Ext.): 12" - 26"
• Tire Diameter: 44" (1,118 mm)
• Max. Wheel Width: 13" (380 mm)
• Turn Table Speed: 8-15 rpm
• Shipping Weight: 950 lbs. (430 Kg)
• Warranty: (2) Years on Parts, (1) Year Labor

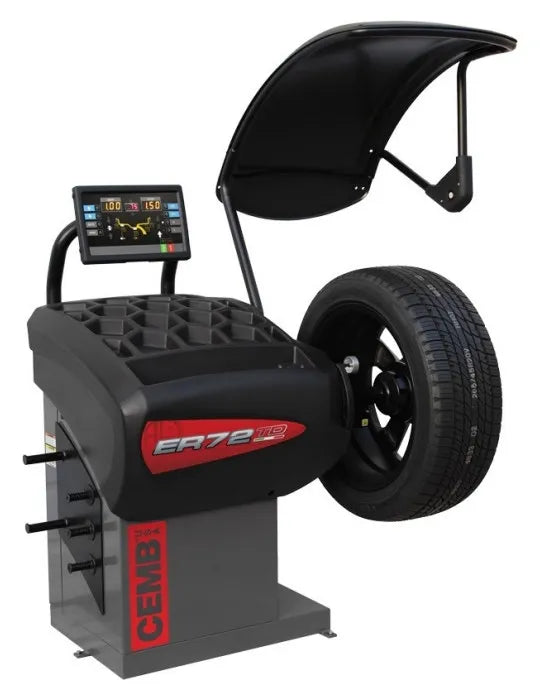

ER72TD Wheel Balancer Features

• Professional digital wheel balancer especially designed for tire dealers
• Automatic Distance & Diameter Entry with Width Sonar (3D)
• Fully automatic Spotter Laser System for best correction possible
• Full-time accuracy with Static unbalance always displayed on screen
• LED to light the work space inside the rim
• New automatic arm to measure automatically diameters up to 30"
• Standard locking with Quick Nut
• Electromagnetic brake for easy weight placement
• Available 110VAC or 220VAC
• Wide working space
• Direct selection ounces/grams
• Optimization program for compensation of rim and tire unbalance
• One Button Split & Hidden Weight Program

ER72TD Wheel Balancer Specifications

• Power Supply: 110VAC or 220VAC, 50/60 Hz, 1 ph
• Balancing Speed: < 100 rpm
• Balancing Accuracy: < 0.1 oz (< 1 g)
• Average Cycle Time: 5 seconds
• Rim Diameter Capacity: 10" - 30" (265 - 765 mm)
• Rim Width Capacity: 1.5" - 20" (40 - 510 mm)
• Max. Wheel Weight: 165 lbs (75 kg)
• Max. Tire Diameter: 42" (1,067 mm)
• Operating Temperature: 32 - 113°F (0 - 45°C)
• Shaft Size: 40 mm
• Gross Ship. Weight: 370 lbs (168 Kg)
• Warranty: (2) Years on Parts, (1) Year Labor

ER72TD Wheel Balancer Standard Accessories

• Quick release wingnut
• Reverse mounting cup with no mar-ring + Pressure ring
• 4 cones covering hole sizes 1.69" (43mm) to 5.2" (132mm)
• 2 piece truck cone kit for light truck wheels for hole from 3.82" (97mm) to 7.09" (180mm)
• Rim width gauge for measuring wheel width
• 40mm threaded shaft
• Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights
• Test weight
• 8mm allen wrench to mount the 40mm threaded shaft
• Wheel guard
• Automatic Width Sonar reading (3D)
• New extended gauge for diameter measurement of rims up to 30"
• Spotter Laser System for best correction possible
• LED to light the working space inside of the rim
• Electric brake for easy weight placement
• 5 pegs for adaptors storage

ER72TD Wheel Balancer Optional Accessories

• Pneumatic lift for wheel balancers
• Universal motorcycle and scooter adaptor kit with 15mm arbor, cones and spacers for bearing type wheels and single side arm (flange) type wheels (Wheel guard required)
• Universal stud adaptor (for hub centric wheels with 3-4-5-6 holes, 75-210mm bolt pattern). To be used with inside centering cone.
• Stud adapter for rim protection and high precision (on lug centric wheels). To be used without centering cone.
• Universal bolt pattern adaptor (for wheels 3-4-5 holes or without center hole)
• WD wheel support spacer for very wide wheels + DC spring pusher bush
• Large diameter plastic cup for alloy rims protection (8.11"/206mm for alloy rims, includes no-mar ring)
• 2 piece truck cone kit + GG spacer ring to fit Ford F-350, 450 and 550
• Cone for GMC 6500 series & International using 19.5" rims (must be used with 3 Piece Truck Cone Kit)

CEMB Limited Warranty Statement
The BL Systems Co. (hereinafter "BL") warrants products manufactured and sold by it to be free from defects in material and workmanship for a period of 24 months parts, 60 months Wheel Balancer Motors, and 12 months labor from the date of installation, note: machine calibration is not a warranty item, except that parts sold from the repair or replacement of existing equipment will only be warranted for a period of 90 days from the date of installation.

If upon inspection by BL, any warranted product shall prove defective in materials or workmanship during the warranty period, that product shall be repaired or replaced at BL's option. BL must receive damaged part for full credit. Such repair or replacement shall be BL's sole obligation and the buyer's exclusive remedy under this warranty.

This warranty supersedes all prior oral or written agreements, promises, advertising or representations. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER REPRESENTATIONS AND WARRANTIES, EXPRESS OR IMPLIED, AND BL EXPRESSLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITMESS FOR A PARTICULAR PURPOSE. THESE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. BL's liability in contract, in tort (negligence, strict liability, or any other theory) under any warranty, or under any other legal or equitable theory of whatever type, shall not exceed the purchase price paid by buyer, and under no circumstances shall BL be liable of special, indirect, incidental or consequential damages. The amount of the purchase price of the equipment is determined in part by the fact that buyer has agreed to so limit seller's liability. No action arising out of any transaction under this agreement may be brought by purchaser more than one year after the cause of action has accrued. Some states do not allow an exclusion or limitation of consequential or incidental damages, so the above limitation of liability may not apply to you.
