Corghi EM9580 Plus LaserLine Wheel Balancer
In Stock SKU 0-21109587/00 plus 8-21100235
OUR PRICE: $7,960.00
Regular Price: $8,359.00
Short Description

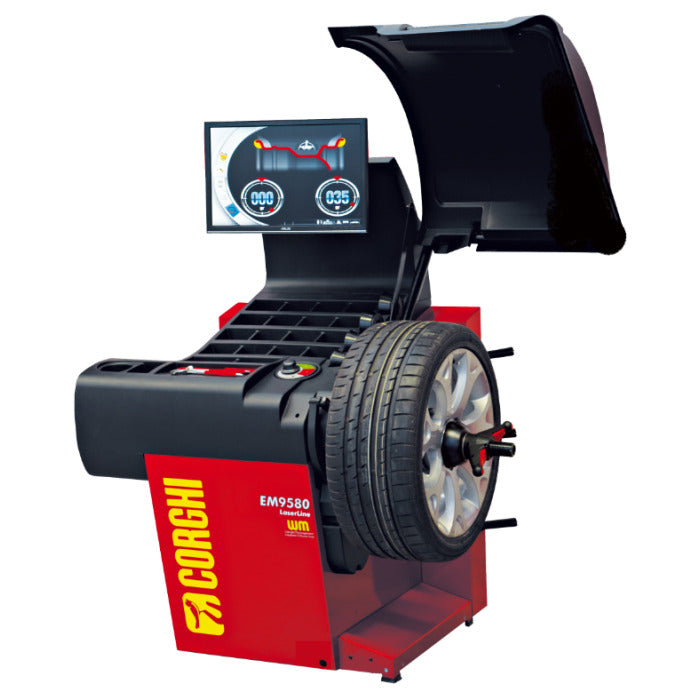

Corghi EM9580 Plus LaserLine Wheel Balancer
Performance Series
The Corghi EM9580 is a professional wheel balancer with automatic wheel dimension detection, automatic positioning, automatic width measuring, and weight management. NaviSystem controls and menu navigation are quick and easy. Just a click to directly access each program including Opt Flash, Hidden Weight, Split Weight, and Multi-Operator. Fast, accurate, reliable and easy-to-use. Manual wheel clamping with quick ring nut.
Corghi 2025 4th Quarter Rebate Promo
When you purchase a Corghi machine between October 1, 2025 through December 31, 2025 you are qualified to receive a 10% Cash Rebate Direct from Corghi USA. Applies to All Corghi Machines, Helper Arms, and Accessories purchased with a machine. Accessories must appear on Invoice with machine. Copy of valid Invoice must be included with the form below and submitted within 2 Weeks of Invoice date or they will not qualify. Cannot be combined with any other promotion.
Corghi 2025 4th Quarter Promo Submission Form (.pdf)
Description
Corghi EM9580 Plus LaserLine Wheel Balancer
Performance Series
The Corghi EM9580 is a professional wheel balancer with automatic wheel dimension detection, automatic positioning, automatic width measuring, and weight management. NaviSystem controls and menu navigation are quick and easy. Just a click to directly access each program including Opt Flash, Hidden Weight, Split Weight, and Multi-Operator. Fast, accurate, reliable and easy-to-use. Manual wheel clamping with quick ring nut.
 |
Wheel Detection with Smart-Arm Plus New digital gauge for the acquisition of the diameter and distance with the FSP (Fast Selection Program) function and new integrated LaserBlade pointer: the FSP function automatically activates the balancing program avoiding selection via the keypad, while the LaserBlade pointer (inside the measuring arm) guides the operator in choosing the level within the alloy rim without any errors and with extremely good visibility. Fast • Eliminates measurement errors • Guides the operator • Extremely good visibility, quick and accurate • Optimum flow |
 |
Automatic Positioning and LED Light At the end of the spin the wheel is braked and automatically brought to the balancing position. The integrated LED light illuminates the work area to facilitate rim cleaning and application of the counterweights. |
 |
Application of Adhesive Counterweights The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o'clock (laser line system) or by using the weight tray clip. |
 |
AWD Measuring Sensor AWD automatic sensor (Auto Width Device) for contactless measurement of wheel width. |
 |
Manual Wheel Clamping Manual wheel clamping with quick ring. |
 |
Weight Management Special suite of programmes including LESS WEIGHT, which cuts job times (20%) and reduces the quantity of counterweights used (30%), for more cost-effective, environmentally friendly operation. |
 |
Opt Flash Minimises road noise by allowing the operator to alter the position of the tyre on the rim in order to optimise quietness. |
 |
Sonar Run-Out & Best Fit Measurement Diagnosis system for wheel radial run-out that causes vibrations that cannot be fixed with a simple wheel balancing. The presence of the sonar run-out sensor automatically activates the new BESTFIT software function which indicates on the screen the point of highest wheel run-out and suggests how to mount it on the hub of the vehicle, before tightening the bolts, in order to eliminate vibrations directly during the assembly on the vehicle. |
 |
Intelligent Positioning Lite A special vehicle tire set diagnostic tool for checking run-out and imbalance. Once all the wheels are memorised, the wheel balancer suggests their best placement on the vehicle placement of the wheels themselves on the vehicle for maximum comfort and safety. Complete diagnosis if equipped with sonar run-out. |
 |
USB & LAN Ports USB ports for connection to peripheral devices and easy software upgrading LAN port for connection to your company network. |
|
Inclined Front Part Inclined front part to improve operator access to the inside of the rim. |

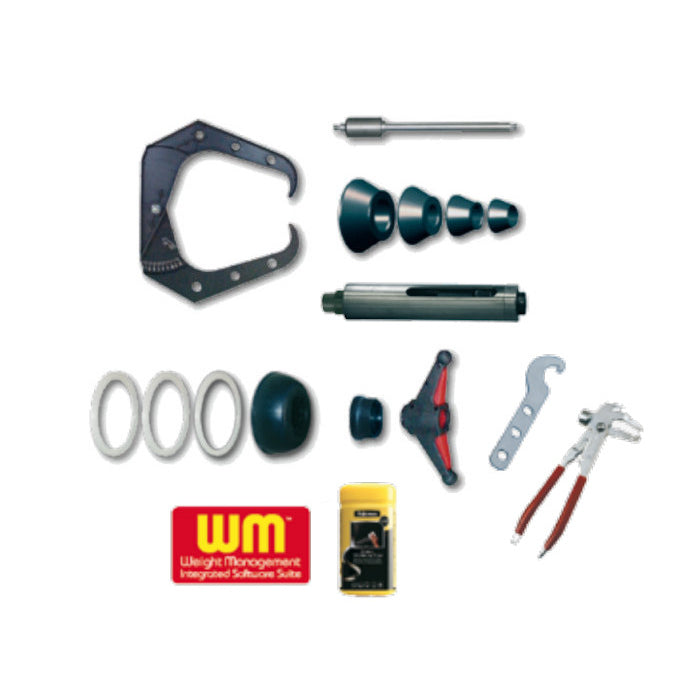

Accessories/Options
ESCO Auto Tire Balancing Beads 6 Oz Bags Case of 24
OUR PRICE: $143.00
Regular Price: $159.00
Corghi 8-21100141 Light Truck Cone Kit
OUR PRICE: $520.00
Regular Price: $549.00
Corghi TT80 Pneumatic Stationary Wheel Lift
OUR PRICE: $866.00
Regular Price: $909.00
More Information
Corghi EM9580 Wheel Balancer Brochure (.pdf)
Corghi EM9580 Wheel Balancer Manual (.pdf)
