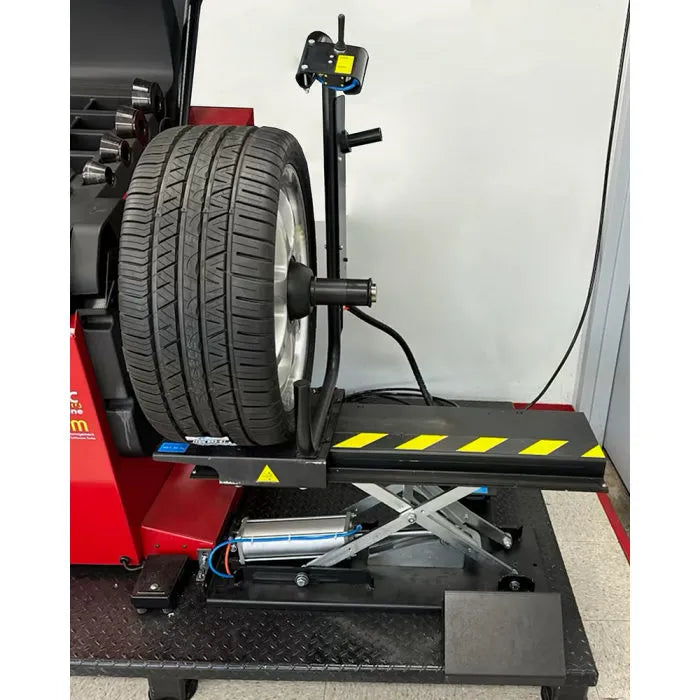

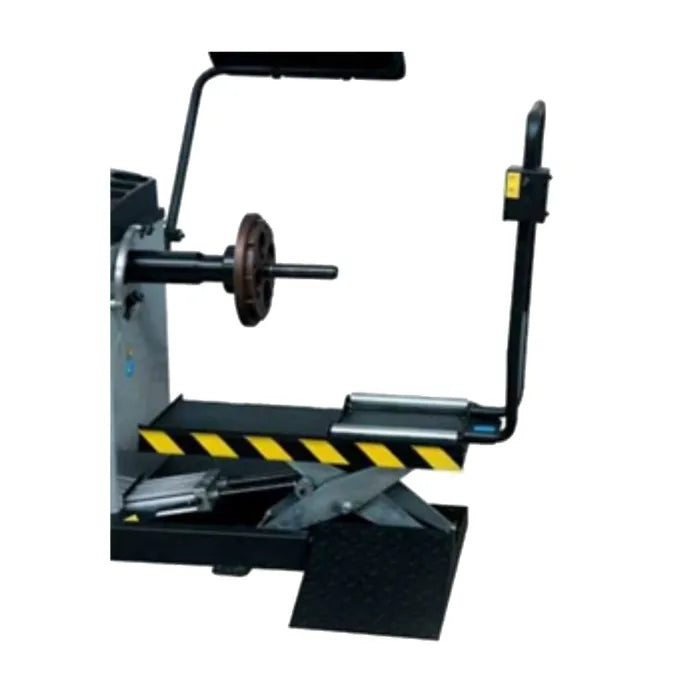

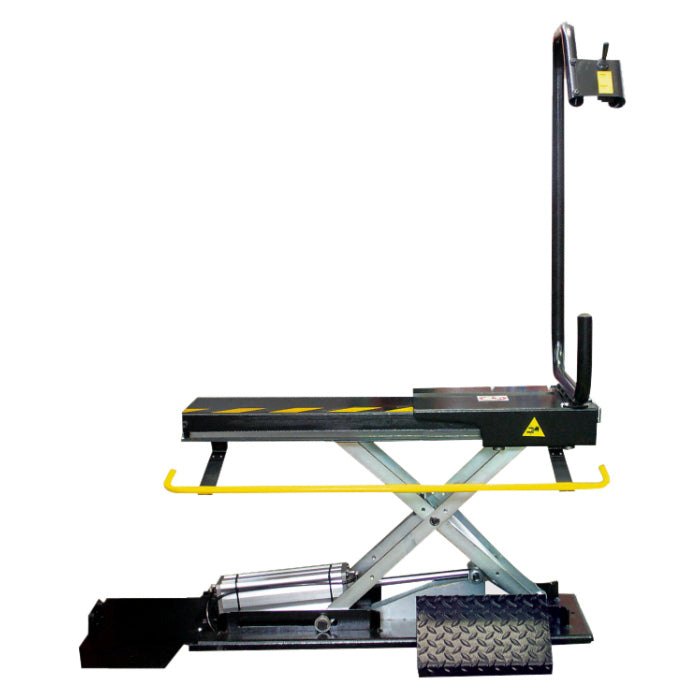

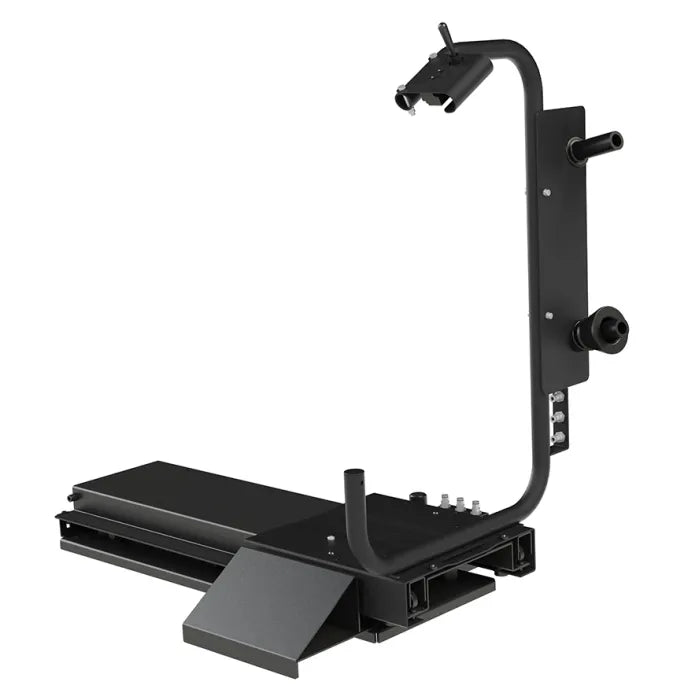

Corghi TT80 Pneumatic Stationary Wheel Lift

Features & Specs

Features

• Ideal For Car, Van, SUV, And Motorcycle Wheels
• Will Lift Wheel Assemblies Up To 20" Vertically And 23" Horizontally

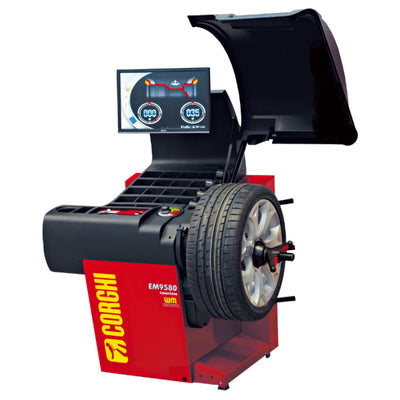

• For Use With All Corghi Wheel Balancers
• Eliminates Risk Of Injury Due To Lifting Heavy Loads
• Pedal Free - Wheel Height Adjustable Comfortable Manual Control Lever
• Integrated Accessory Holder In Optimal Working Position

Specifications

• Model Number: TT80
• Part Number: 8-21100161
• Max Lifting Weight: 176 lbs. (80 kg)

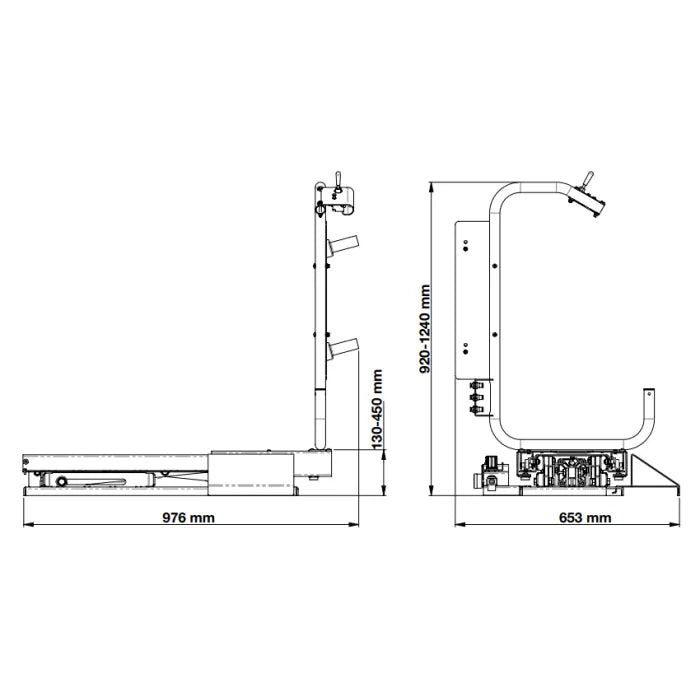

• Max Lifting Height: 19.685" (500 mm)
• Min Height: 5.1" (130 mm)
• Max Wheel Width: 16" (406 mm)
• Air Supply Pressure: 145 PSI (10 BAR)
• Working Pressure: 87 - 116 PSI (6 - 8 BAR)
• Max Horizontal Travel: 23" (585 mm)
• Net Weight: 99 lbs. (45 kg)
• Warranty: (3) Years Parts, (1) Year Labor
