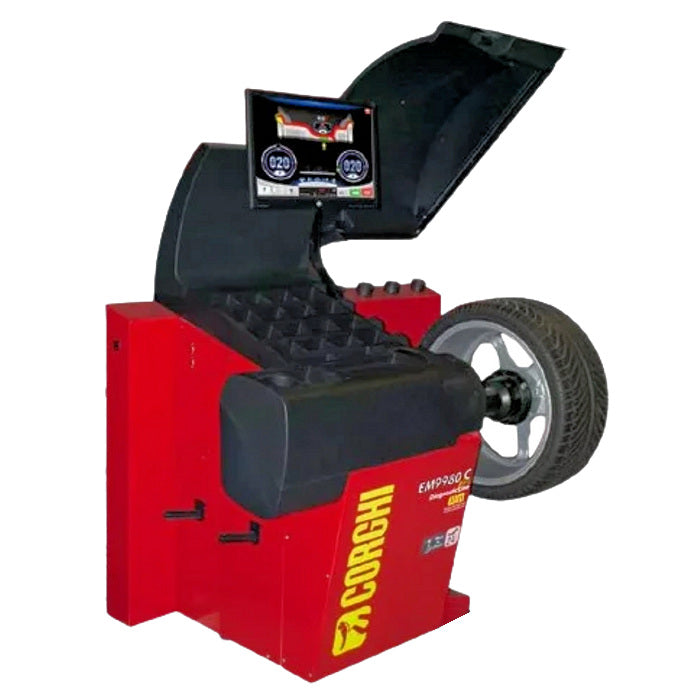

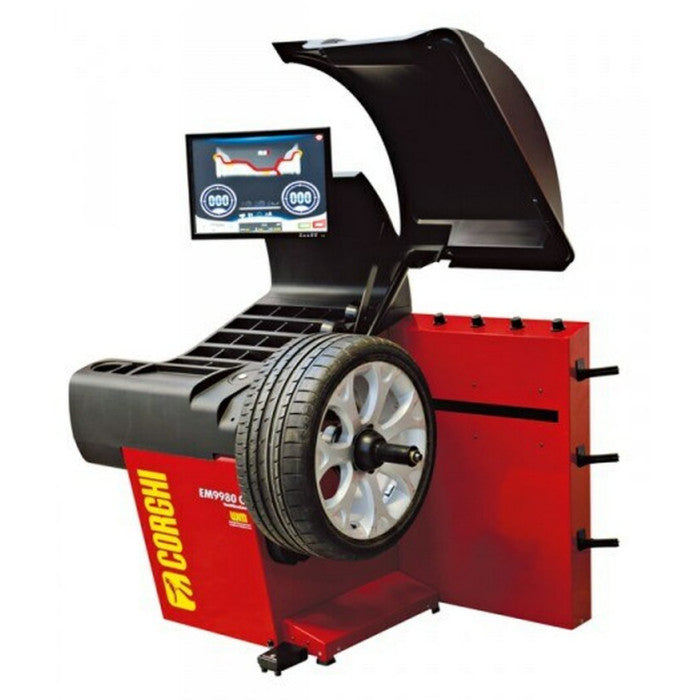

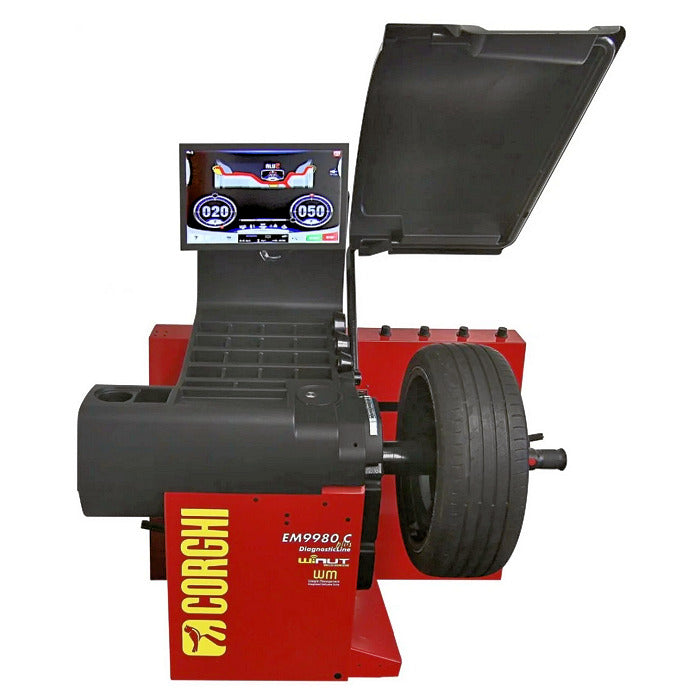

Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer

Name: Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer
Brand: ASEDeals
SKU: 0-21109984/00
Price: 17450.0 USD
Availability: InStock

In Stock SKU 0-21109984/00

OUR PRICE: $17,450.00

Regular Price: ~~$18,329.00~~

$481.00 / mo

INCLUDES FREE SHIPPING*

Short Description

Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer
Touchless Diagnostic Performance Series
The Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer is a super fully-automatic diagnostic touchless wheel balancer featuring touchscreen interface, automatic wheel detection, wireless and electronic clamping, laser runout, imbalance optimization, weight management, automatic positioning, laserline pointer, LED light illuminator, easy calibration, one-touch multifunction button, 3 variable speed cycles, 3 operators, shift plane, ergonomic and functional weight tray, slanted front, and compact wheel guard. Fast, accurate, reliable and easy-to-use.

Description

Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer
Touchless Diagnostic Performance Series

The Corghi EM9980C Plus Automatic Diagnostic Wheel Balancer is a super fully-automatic diagnostic touchless wheel balancer featuring touchscreen interface, automatic wheel detection, wireless and electronic clamping, laser runout, imbalance optimization, weight management, automatic positioning, laserline pointer, LED light illuminator, easy calibration, one-touch multifunction button, 3 variable speed cycles, 3 operators, shift plane, ergonomic and functional weight tray, slanted front, and compact wheel guard. Fast, accurate, reliable and easy-to-use.

Fully Automatic
No manual operations required the operator. Reduced spin and diagnostic times to make it one of the fastest on the market.

Touchscreen Interface
The graphic interface and touchscreen technology simplify and speed up operations and work programme selection.

Wheel Dimension Measurements with Contactless System
High precision laser sensors automatically measure all wheel dimensions in a few seconds during the measurement cycle.

Automatic Positioning and LED Illuminator
At the end of the spin cycle, the wheel is braked and brought automatically into the balancing position (RPA). The integrated LED illuminator illuminates the work area to facilitate wheel cleaning and application of the counterweights.

Adhesive Counterweight Application
The internal point laser indicates the correct position for applying the adhesive counterweights with absolute precision.

Hidden Weight Automatic
New 'Hidden Weight' programme to divide the external side balancing adhesive weight into two equivalent weights hidden behind the spokes. A completely autonomous operation.

Laser Run-Out Measurement
High-precision measurement of radial and lateral wheel run-out (1st harmonic and peak-to-peak) and calculation of the best coupling of parts, resolving the typical problems of road vibration.

Intelligent Positioning Lite
A special vehicle tyre set diagnostic tool for checking run-out and imbalance. Once all the wheels are memorised, EM9980C suggests their best placement on the vehicle placement of the wheels themselves on the vehicle for maximum comfort and safety.

Electronic Clamping
New electromechanical system which reduces working times and increases centring precision.

Weight Management & Opt Flash
Special suite of programmes including LESS WEIGHT, which cuts job times (20%) and reduces the quantity of counterweights used (30%), for more cost-effective, environmentally friendly operation.

Minimises road noise by allowing the operator to alter the position of the tyre on the wheel in order to optimise quietness.

Multifunction (One-Touch) Button and Weight Tray
One-Touch multifunction button - Makes the selection of work programmes simpler and quicker.

Ergonomic and functional weight holder top with large trays for different types of counterweights and tools.

USB Ports
USB ports for connection to peripheral devices and easy software upgrading.

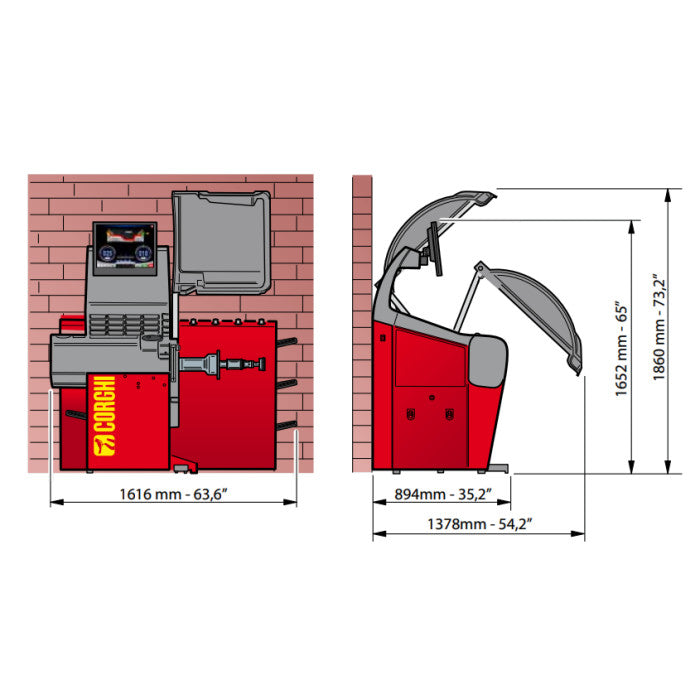

Slanted Front and Compact Wheel Guard
Slanted front panel, ensuring operator's easier access to wheel inner section.

Compact wheel guard (patented), designed for wheel balancer wall mounting and accomodating wheels up to a max. diameter of 44" (1,118 mm).

Features & Specs

Features

Fully Automatic
Touchscreen Interface
Contactless Detection Of Dimensions
Automatic Wheel Clamping
Laser Runout
iPos Lite 4-Wheel Intelligent Positioning
Automatic Hidden Weight
USB Port for Software Upgrading
PR Zero Wheel Guard
Opt Flash Imbalance Optimization
Weight Management Intelligent Software Suite
Automatic Positioning
LaserLine Pointer
LED Light Illuminator
Easy Cal Calibration

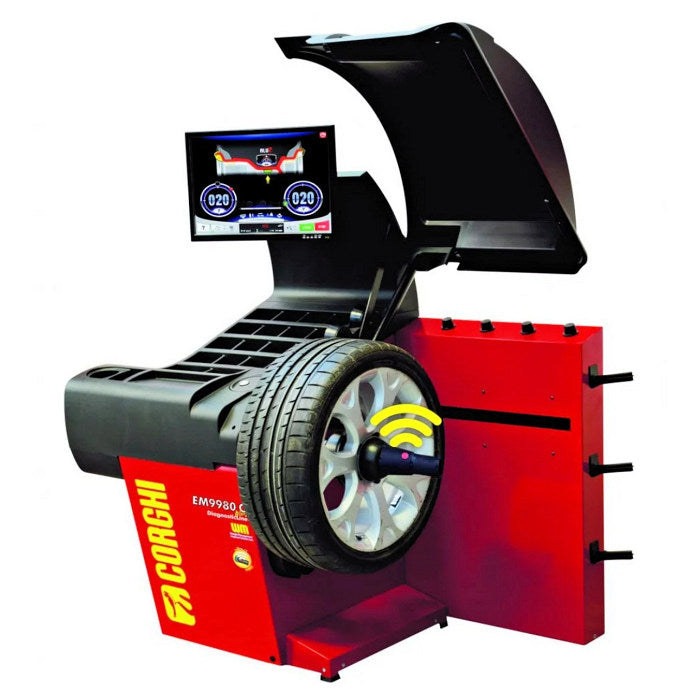

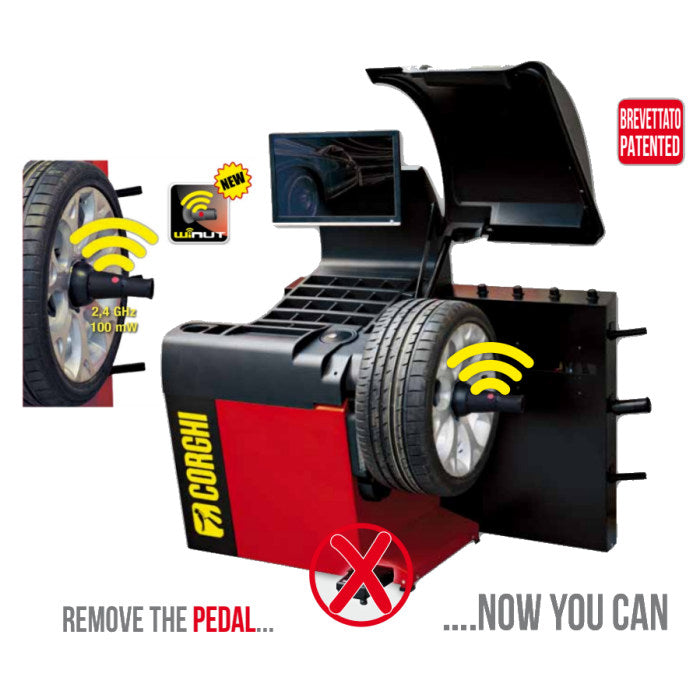

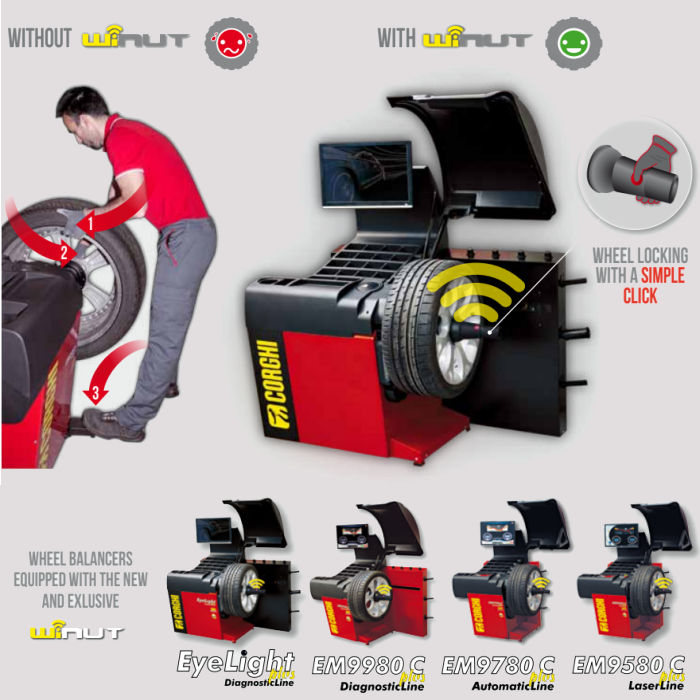

Wi-Nut Automatic Wireless Clamping
One-Touch Multifunction Button
3 Matic Variable Speed Cycle
3 Operators
Shift Plane
Ergonomic and Functional Weight Tray
Slanted Front and Compact Wheel Guard

Specifications

Power Supply Voltage: 230V 1Ph 50-60Hz / 115V 1Ph 50-60Hz
Total Power Absorption: 550 W
Balancing Speed: 75-85-98 RPM
Max. Unbalance Value Calculated: 999 g
Resolution: 1-5 g / 0.0353 - 0.1764 oz
Average Measurement Time: 7 s (14kg Wheel - 30.8 lbs.
Shaft Diameter: 40 mm / 1.57"
Settable Wheel Width Range: 1.6"-23.6"
Rim Diameter Setting Range: 1"-35"
Rim Diameter Measurement Range: 10"-32"
Max. Wheel Width (with Guard): 22" / 560 mm
Max. Wheel Diameter (with Guard): 44" / 1,118 mm
Max. Wheel/Machine Distance: 10.82" / 275 mm
Max. Wheel Weight: 165.3 lbs. / 75 kg
Machine Weight: 403.4 lbs. / 183 kg
Warranty: (3) Years Parts and (1) Year Labor

Corghi USA Limited Warranty Statement
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within (7) days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.

This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).

Corghi machines are warranted to be free of defects as follows:

Tire Changers:
A2030, A2024TI, 2024LL, A9824, A9824LL, A9830, A9222, Service Pro 124, Service Pro 324, BC200S, A2002 - (3) years parts and (1) year labor. Additional Transmission Warranty Models: A9222 - (5) years parts only. A2030, A2024TI, 2024LL, A9824, A9824LL, A9830 - (10) years parts only. AM50, AM500, AM5000, Master J, Master Code, Master28 - (3) years parts and (1) year labor. HD700, HD1300, HD1400, Monster TT, HD1800, Service Pro 440, Service Pro 426 - (3) years parts and (1) year labor. NOTE: Rubber pads, air lines, gauges, mount/demount heads, and swabs - (90) day warranty.

Wheel Balancers:
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C, ET1450, ET88 - (3) years parts and (1) year labor.

Alignment Machines and Specialty Equipment:
(3) years parts and (1) year labor.

Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner's lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.

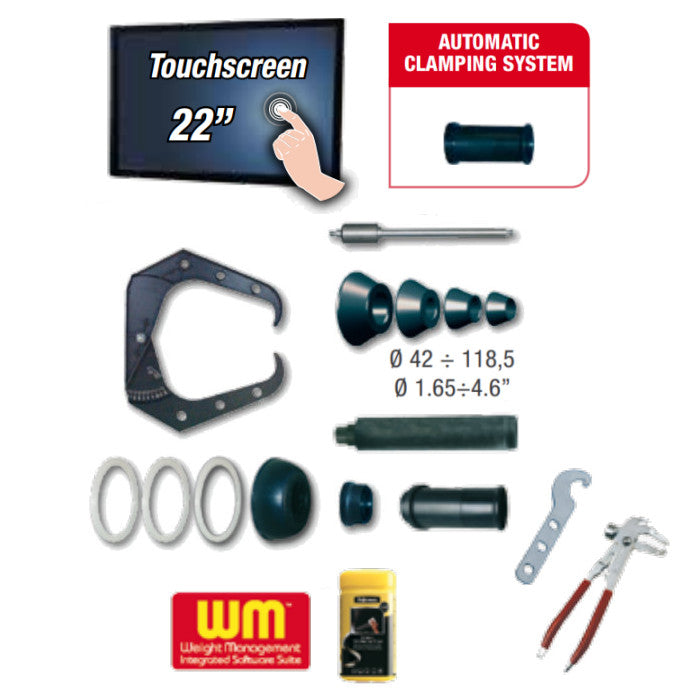

Accessories/Options
