ESCO 10247 Combi Aluminum Bead Breaker Kit with 5 Quart Pump
In Stock SKU 10247
OUR PRICE: $3,124.00
Regular Price: $3,289.00
Short Description
ESCO Combi Aluminum Bead Breaker Kit with
5 Quart Hydraulic Air Pump SKU 10247

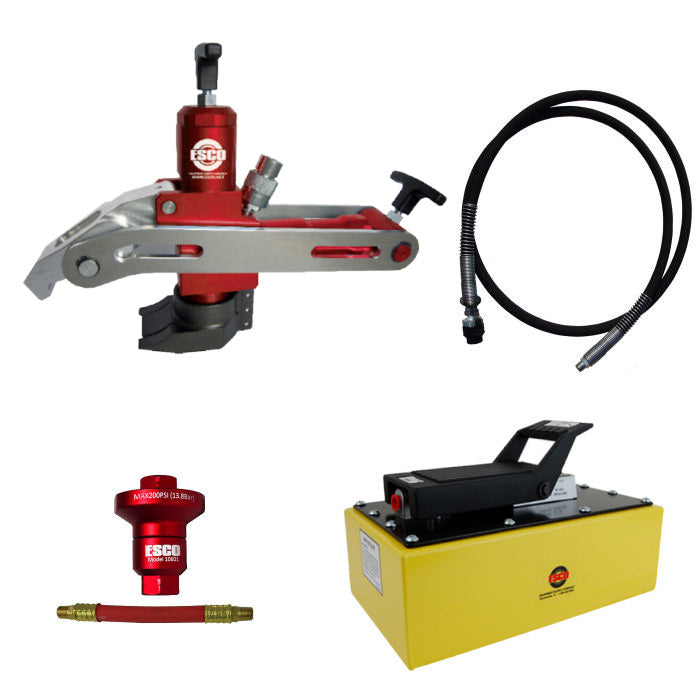

The ESCO "Combi" Aluminum Bead Breaker Kit #10247 includes:
#40801 - "Combi" Aluminum Bead Breaker Tool
#10592 - 5 Quart Turbo II Hydraulic Air Pump
#10604 - 8' Hose Assembly with Hose Coupler
#10601K - Air Pressure Reducer with 6" Whip-Hose
The ESCO #10247 "Combi" Aluminum Bead Breaker Kit is for serious tire professionals. Lightweight and durable aluminum design will last for years. Works on all one-piece, two-piece wheels, and most 3 piece wheels with 10 tons of bead-breaking force and 2.75" (70mm) of stroke. Comparable to the #10101 "Combi" Bead Breaker. Extended jaw for deep dish style wheels (extended flange). The ESCO #10592 5 Quart Turbo II Hydraulic Air Pump features a rugged metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools. The ESCO #10604 8' Hose Assembly with Hose Coupler won't kink, is reinforced with 2 layers of braided steel, and can withstand extreme cold temperatures. The ESCO #10601K Air Pressure Reducer with 6" Whip-Hose is designed to regulate the air pressure that is received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools.
Description
ESCO Combi Aluminum Bead Breaker Kit
with 5 Quart Hydraulic Air Pump SKU 10247
The ESCO "Combi" Aluminum Bead Breaker Kit #10247 includes: #40801 - "Combi" Aluminum Bead Breaker Tool
#10592 - 5 Quart Turbo II Hydraulic Air Pump
#10604 - 8' Hose Assembly with Hose Coupler
#10601K - Air Pressure Reducer with 6" Whip-Hose
The ESCO #10247 "Combi" Aluminum Bead Breaker Kit is for serious tire professionals. Lightweight and durable aluminum design will last for years. Works on all one-piece, two-piece wheels, and most 3 piece wheels with 10 tons of bead-breaking force and 2.75" (70mm) of stroke. Comparable to the #10101 "Combi" Bead Breaker. Extended jaw for deep dish style wheels (extended flange). The ESCO #10592 5 Quart Turbo II Hydraulic Air Pump features a rugged metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools. The ESCO #10604 8' Hose Assembly with Hose Coupler won't kink, is reinforced with 2 layers of braided steel, and can withstand extreme cold temperatures. The ESCO #10601K Air Pressure Reducer with 6" Whip-Hose is designed to regulate the air pressure that is received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools.
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

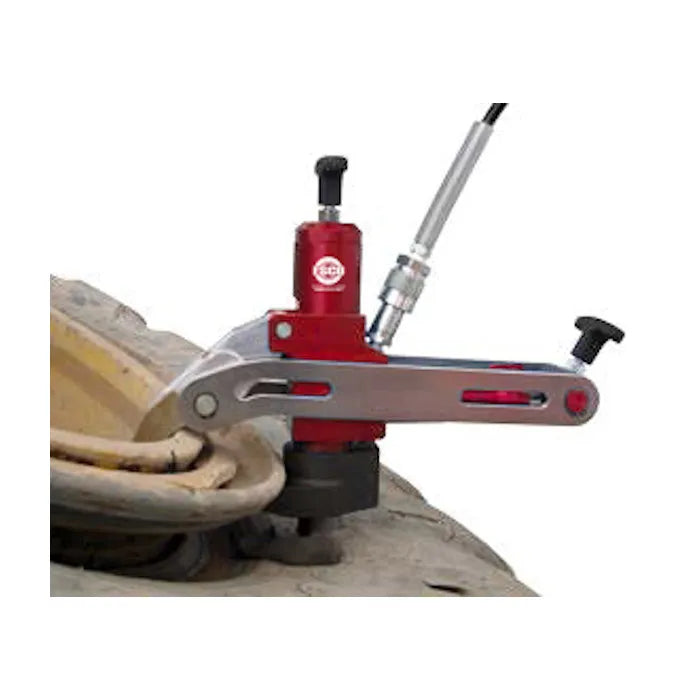

The ESCO #40801 "Combi" Aluminum Bead Breaker Tool is for serious tire professionals. Lightweight and durable aluminum design will last for years. Works on all one-piece, two-piece wheels, and most 3 piece wheels with 10 tons of bead-breaking force and 2.75" (70mm) of stroke. Comparable to the #10101 "Combi" Bead Breaker. Extended jaw for deep dish style wheels (extended flange).

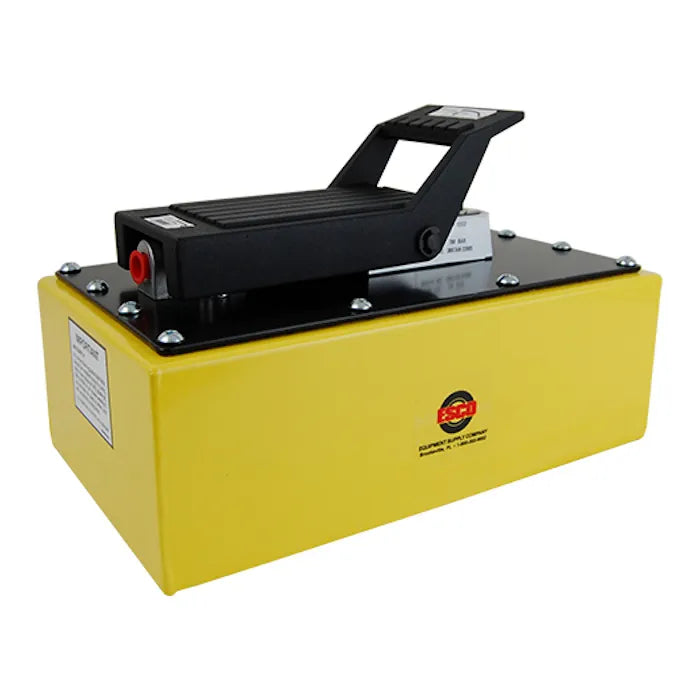

The ESCO #10592 5 Quart Hydraulic Air Pump features a rugged metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools. This pump is constructed with the user in mind, as a compact lightweight air hydraulic pump solution that delivers a powerful punch; 10,000 PSI of operating hydraulic pressure to power even the heaviest of cylinders, ram, bead breakers, and more. Built-in exhaust muffler promotes safer, quieter operation along with a robust foot pedal providing hand-free pumping and release of load. Manufactured with the highest quality parts and components designed to withstand rigorous use in any environment. All ESCO air hydraulic pumps are designed with fully serviceable pump motors, allowing for economical repairs and maintenance. The metal reservoir is durable for field, shop, and mobile applications.
The ESCO #10604 8' Hose Assembly with Hose Coupler is a hydraulic hose with swivel fitting, hose won't kink. Reinforced with 2 layers of braided steel. All hoses can withstand extreme cold temperatures of -40°F (C). Use with any 10,000 psi. pump, ram, or bead breaker. Includes #10605 Half Coupler.

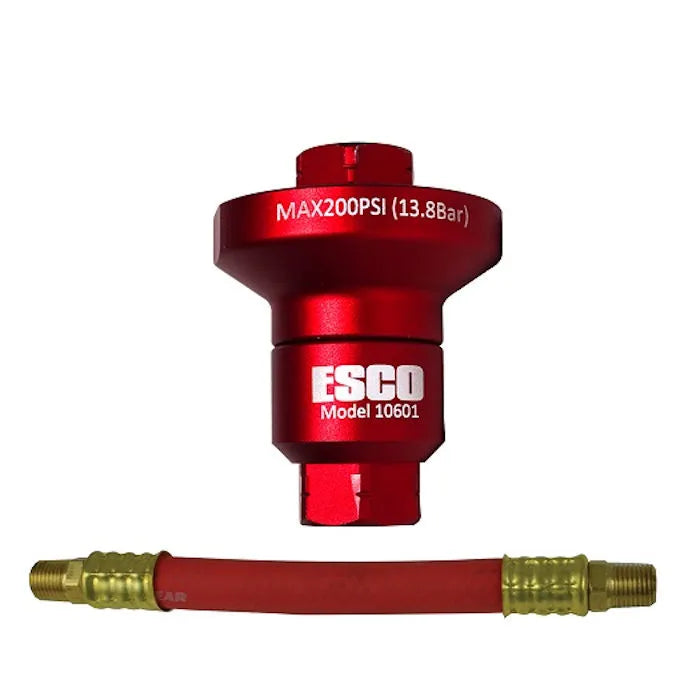

The ESCO #10601K Air Pressure Reducer with 6" Whip-Hose, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools. Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.
Features & Specs
Kit Includes
- #40801 - "Combi" Aluminum Bead Breaker Tool
- #10592 - 5 Quart Turbo II Hydraulic Air Pump
- #10604 - 8' Hose Assembly with Hose Coupler
- #10601K - Air Pressure Reducer with 6" Whip-Hose
#40801 "Combi" Aluminum Bead Breaker Tool Features
- Lightweight Aluminum Construction
- 10 Tons Of B1ead Breaking Force With 2.75" (70mm ) Stroke
- Comparable To #10101 "Combi" Bead Breaker

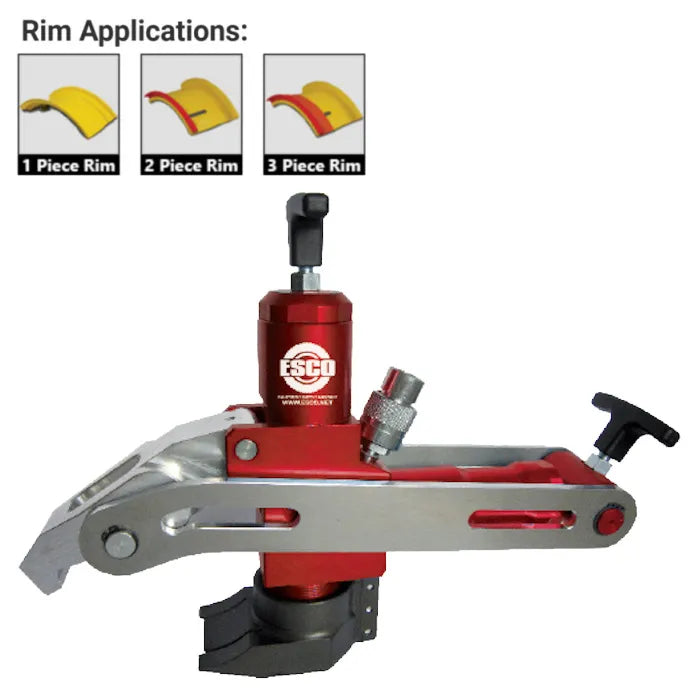

- Works On All One-Piece, Two-Piece, and Most Three-Piece Wheels
- Extended Jaw For Deep Dish Style Wheels (Extended Flange)
- 3-Year Extended Warranty
#40801 "Combi" Aluminum Bead Breaker Tool Specifications
- Ram Tonnage: 10 Tons
- Material: Aluminum
- Rim Sizes: 25-57" (636-1448mm)
- Stroke: 2.75" (70mm)
- Max Pressure: 10,000 PSI
- Length: 17" (432mm)
- Height: 13" (330mm)
- Width: 3.5" (89mm)
- Weight: 19 lbs. (8.5 kg)
- Warranty: (3) Years Limited*
#10592 5 Quart Turbo II Hydraulic Air Pump Features
- Enough Oil Capacity To Operate Lifting Jacks, Cylinders, And Then Switch To Bead Breaking Tools
- Rugged 5 Quart Metal Reservoir
- 10,000 Psi Hydraulic Pressure
- Specifically Designed For Tire Service Trucks
- Air Inlet Filter Keeps Air Clean
- 3-Year Extended Warranty
#10592 5 Quart Turbo II Hydraulic Air Pump Specifications
- Oil Capacity: 5 Quart
- Material: Metal
- Max. Pressure: 10,000 PSI
- Weight: 27 lbs. (12 kg)
- Warranty: (3) Years Limited*
#10604 8' Hose Assembly with Hose Coupler Features
- Hydraulic Hose With Swivel Fitting - Hose Won't Kink
- Reinforced With Two Layers Of Braided Steel
- Withstands Extreme Temperatures of -40°F
- Use With Any 10,000 PSI Pump, Ram Or Bead Breaker
- Includes Half Coupler
#10604 8' Hose Assembly with Hose Coupler Specifications
- Hose Length: 8' (96")
- Max. Air Pressure: 10,000 PSI
- Type: 3/8" 18 Male
- Attachments Included: Model #10605 Half Coupler
- Weight: 5 lbs. (2.2 kg)
#10601K Air Pressure Reducer with 6" Whip-Hose Features
- Maintain A Tools Recommended Working Air Pressure
- Tamper-Proof Preset Value 110 Psi
- Assist In Lengthening The Life Of Hydraulic Pumps & Lifting Equipment
- Promotes Safe & Accurate Application
- Easy Installation & Usage
- Can Be Used In Conjunction With Multiple ESCO Products
#10601K Air Pressure Reducer with 6" Whip-Hose Specifications
- Application: Hydraulic Tools
- Air Pressure: 110 PSI
- Max. PSI: 200 PSI (13.8 BAR)
- Air Inlet Size: 1/4" NPT
- Accuracy: +/- 10%
- Hose Length: 6" (152.4mm)
- Weight: 2 lbs. (0.09 kg)
- Warranty: (1) Year Limited
*Must Register Product to Qualify for 3-Year Warranty Extension.
ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.
This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.
