ESCO 10202 Combi Bead Breaker Kit with 5 Quart Pump

In Stock SKU 10202 UPC 816904020033

OUR PRICE: $1,944.00

Regular Price: $2,049.00

$54.00 / mo
INCLUDES FREE SHIPPING*
asedeals.com widget logo

Short Description

ESCO 10592 5 Quart Air Hydraulic Pump
The ESCO 10592 5 Quart Hydraulic Air Pump is a 10,000 PSI air hydraulic pump designed specifically for tire service trucks and heavy-duty applications that require a high volume of oil. Featuring an air inlet filter, an all metal air motor, and a rugged 5 quart metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools.

Description

ESCO

ESCO Combi Bead Breaker Kit with 5 Quart Hydraulic Air Pump
SKU 10202

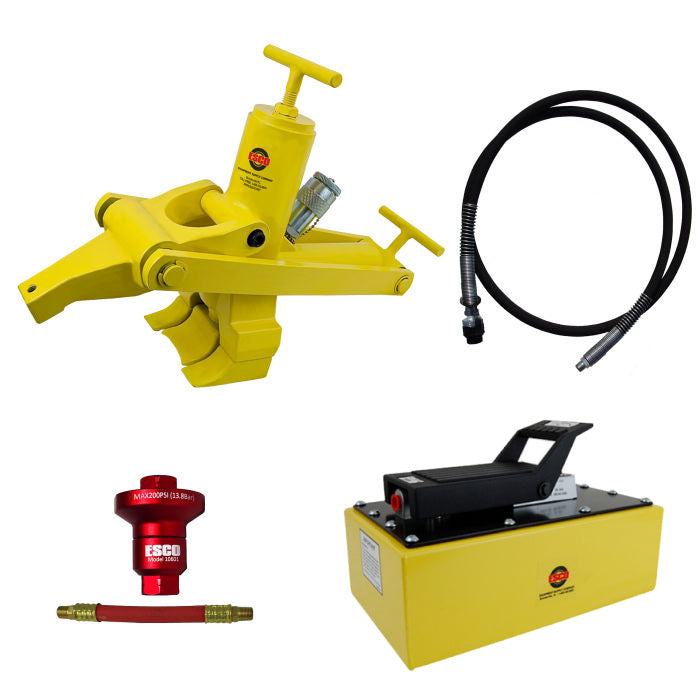

The ESCO Combi Bead Breaker Kit #10202 includes:

#10101 - "Combi" Bead Breaker Tool
#10592 - 5 Quart Turbo II Hydraulic Air Pump
#10604 - 8' Hose Assembly with Hose Coupler
#10601K - Air Pressure Reducer with 6" Whip-Hose

The ESCO #10101 Bead Breaker Tool features a Redesigned Sequence Valve and Lock Jaw Pin Set Screw. The ESCO #10592 5 Quart Turbo II Hydraulic Air Pump features a rugged metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools. The ESCO #10604 8' Hose Assembly with Hose Coupler won't kink, is reinforced with 2 layers of braided steel, and can withstand extreme cold temperatures. The ESCO #10601K Air Pressure Reducer with 6" Whip-Hose is designed to regulate the air pressure that is received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools.

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

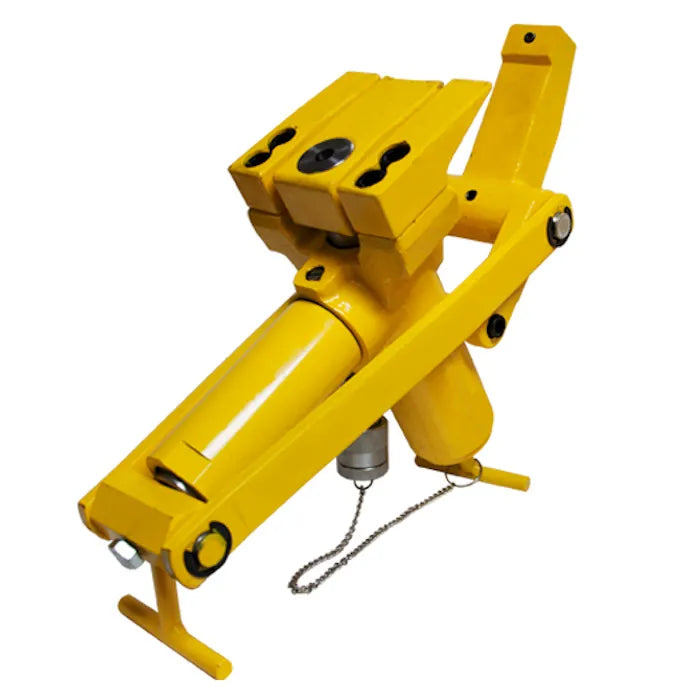

ESCO #10101 Combi Bead Breaker Tool New Design

REDESIGNED SEQUENCE VALVE - Adjustable and Longer Lasting...

The "Sequence Valve Screw" has been redesigned to better aid in both usability and eliminating potential issues while the product is in use on the Wheel Assembly (1).

PROBLEM: The Old Design Nut (2) would get damaged during the use of the tool. This damage would then make it difficult to service the bead breaker and/or adjust the sequencing of the bead breaker, eventually putting the bead breaker "out of service".

In addition to damaging the sequence screw over time, the spring inside of the bead breaker loses strength and clamping force weakens, resulting in the need to replace the spring or "shim" the spring with a washer, which is NOT reccommended. This may also result in leaking of the valve body.

SOLUTION: ESCO has redesigned the Sequence Valve Screw to a recessed adjustable set screw (1) that not only keeps the screw completely out of the way during the use of the tool but, also makes it a much more convenient solution for "adjusting" the sequence of the bead breaker while out in the field*.

*NOTE: It is possible to OVER TORQUE the Set Screw. This will result in damaging the tool or even the wheel assembly. Mark where you started with the set screw and adjust in "quarter turns" ONLY.

LOCK JAW PIN "SET SCREW" - More Control & Better Bites

ESCO has redesigned the "JAW" to create a much stronger and stabilized gripping of tool onto wheel assembly (3).

PROBLEM: The jaw of the bead breaker, due to its design, has some "give" allowing for it to move from side to side. This then will cause the bead breaker to grab onto the wheel assembly at an angle, causing potential scarring of the internal rams that operate the bead breaker.

SOLUTION: ESCO has added an additional "set screw" (3) that clamps the jaw onto the pin centrically so that there is no movement on the jaw. This in turn will keep the bead breaker aligned straight, aiding in removing a potential for damage to the unit, giving a more precise grasp onto the wheel assembly.

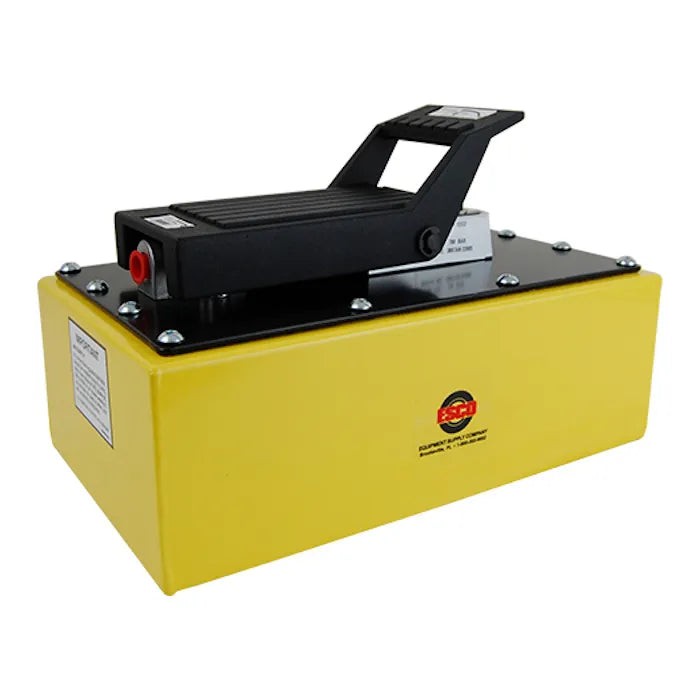

The ESCO #10592 5 Quart Turbo II Hydraulic Air Pump features a rugged metal reservoir with enough oil capacity to operate lifting jacks, cylinders, and then switch to bead breaking tools. This pump is constructed with the user in mind, as a compact lightweight air hydraulic pump solution that delivers a powerful punch; 10,000 PSI of operating hydraulic pressure to power even the heaviest of cylinders, ram, bead breakers, and more. Built-in exhaust muffler promotes safer, quieter operation along with a robust foot pedal providing hand-free pumping and release of load. Manufactured with the highest quality parts and components designed to withstand rigorous use in any environment. All ESCO air hydraulic pumps are designed with fully serviceable pump motors, allowing for economical repairs and maintenance. The metal reservoir is durable for field, shop, and mobile applications.

The ESCO #10604 8' Hose Assembly with Hose Coupler is a hydraulic hose with swivel fitting, hose won't kink. Reinforced with 2 layers of braided steel. All hoses can withstand extreme cold temperatures of -40°F (C). Use with any 10,000 psi. pump, ram, or bead breaker. Includes #10605 Half Coupler.

The ESCO #10601K Air Pressure Reducer with 6" Whip-Hose, for Air/Hydraulic Pumps, is designed to regulate the air pressure that is received by the hydraulic pump, which is then used to power all ESCO Hydraulic Tools. Maintaining air pressure when using Hydraulic Equipment will increase the Proper Functioning of Hydraulic Equipment, Protect Air/Hydraulic Pumps from Over-Flow of Air, & Keep ESCO Hydraulic Products in their PRIME.

Features & Specs

Features

  • Enough Oil Capacity To Operate Lifting Jacks, Cylinders, And Then Switch To Bead Breaking Tools
  • Rugged 5 Quart Metal Reservoir
  • 10,000 PSI Hydraulic Pressure
  • Specifically Designed For Tire Service Trucks
  • Air Inlet Filter Keeps Air Clean
  • 3-Year Extended Warranty

Specifications

  • Oil Capacity: 5 Quart
  • Material: Metal
  • Max. Pressure: 10,000 PSI
  • Weight: 27 lbs. (12 kg)
  • Warranty: (3) Years Limited*

*Must Register Product to Qualify for 3-Year Warranty Extension.

ESCO Limited Warranty Statement
Products sold by Equipment Supply Company (ESCO) are warranted to be free from defects in material and workmanship under proper use, application, and maintenance in accordance with ESCO's written recommendations, instructions, and specifications for a period of 1 year (365 days) from the date of shipment to the end user, unless otherwise noted. ESCO's obligation under this warranty is limited to, and the sole remedy for any such defect shall be the repair or replacement (at ESCO's discretion) of unaltered parts returned to ESCO, freight prepaid, and proven to have such defect, provided such defect occurs within the 90-day warranty period (or otherwise noted) and is reported within 14 days of occurrence.

This is the only authorized ESCO warranty and is in lieu of all other express or implied warranties or representations, including any implied warranties of merchantability or fitness. Warranty claims must be submitted and be processed in accordance with ESCO's established warranty claim procedure. In no event will ESCO be liable for business interruptions, loss of sales and/or profits, personal injury, costs of delay, or for any other special, indirect, incidental or consequential losses, costs, or damages.

Accessories/Options

More Information

ESCO 10592 5 Quart Air Hydraulic Pump Brochure (.pdf)

ESCO 10590-10594 Air Hydraulic Pump Parts (.pdf)

ESCO is the world leader in manufacturing and supplying quality tire service equipment for the automotive, agricultural, commercial truck, off-the-road (OTR), and mining markets. ESCO produces a wide range of tire service/handling products ranging from: heavy duty bead breakers, hydraulic rams, air hydraulic pumps, heavy duty jacks and stands, tire demounting and mounting tools, tire wheel dollies, torque wrenches, and many other quality tire service equipment to better aid in safely and efficiently servicing tire/wheels.

ESCO also has an in-house hydraulic repair facility where we feature our 24-hour Turnaround Hydraulic Tool Repair Program. ESCO is known in the industry as the expert in producing equipment for servicing single and multi-piece rims, with over 36 years of experience, ESCO has the Proper Tools to Keep All of Your Equipment Moving.

Why Buy An ESCO Product Over The Competition?
  • Products have been a staple in the Tire Service & Wheel Handling Market for well over 36 years and continue to expand globally.
  • Provide quality product and service to multiple markets throughout the world.
  • Known as the company, that has "The Proper Tools To Keep Your Equipment Moving" around the world.
Who Buys ESCO Products?
Fleet Maintenance Shops, Commercial / All Tire Dealers, Truck Shops, Heavy Duty Truck Repair Facilities, Fleet Road Service & Repair, Government/Municipal Fleet Garages, Heavy Construction, Mining Equipment or Trucks, and "Do-it Yourselfers" (DIY).

Who Will Support The Products If There Is An Issue?
ESCO Customer Service & Sales Staff have well over 100+ Years of combined experience in the tire/wheel service industry. Once product is purchased/registered, the customer have 100% support from the ESCO company for any future needs. ESCO Products all come with a One-Year Warranty. Some products have "extended warranty" opportunities with registration. For more information on which products apply for extended warranty consideration, speak with your ESCO sales representative.

ESCO has a full Hydraulic Repair and Service Center at our main headquarters in Brooksville, FL. Any product purchased through ESCO can be serviced, repaired, or considered for warranty with our 24-Hour Repair Program Turnaround. ESCO also has satellite Hydraulic Repair Facilities across the USA for convenience to our customers.
