iDEAL FP14KAC-X Four Post Alignment Lift

Features & Specs

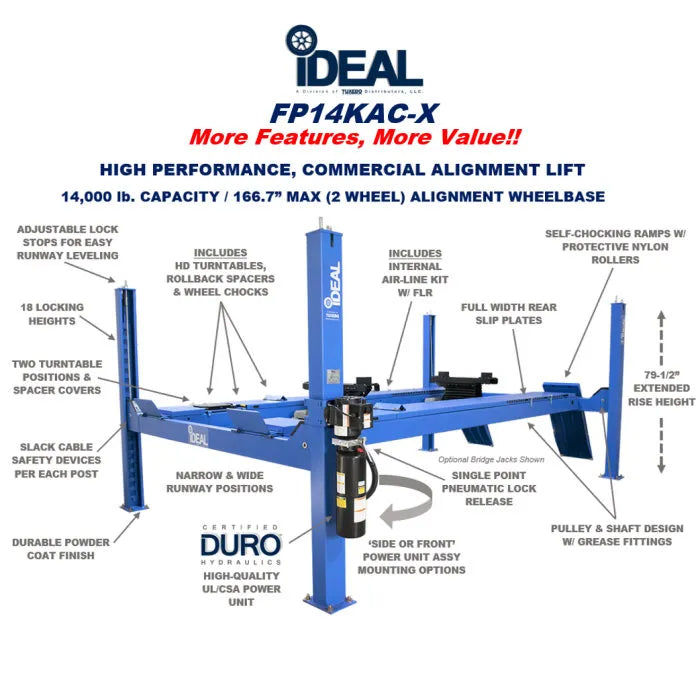

Features

• 14,000 lbs. Capacity
• High Performance Commercial Alignment Lift
• Durable, High Quality Cable Lift System
• Extended Rise Height
• 'Bolt-On' Runway Alignment Kit
• 166.7" Max Alignment Wheelbase (2 Wheel)
• 157" Max Alignment Wheelbase (4 Wheel)
• 182.5" Max Service Wheelbase
• 18 Locking Height Positions
• Full Width Rear Wheel Slip Plates
• Two Turntable Positions with/ Spacer Covers
• 20" Wide Runways
• Narrow & Wide Runway Mounting Positions
• Single Point Pneumatic Lock Release
• Fully Adjustable Lock Stops For Easy Leveling
• Slack Cable Safety Devices
• Self-Chocking Approach Ramps with Nylon Rollers
• Wheel Chocks (1 Pair)
• Durable Powder Coat Finish

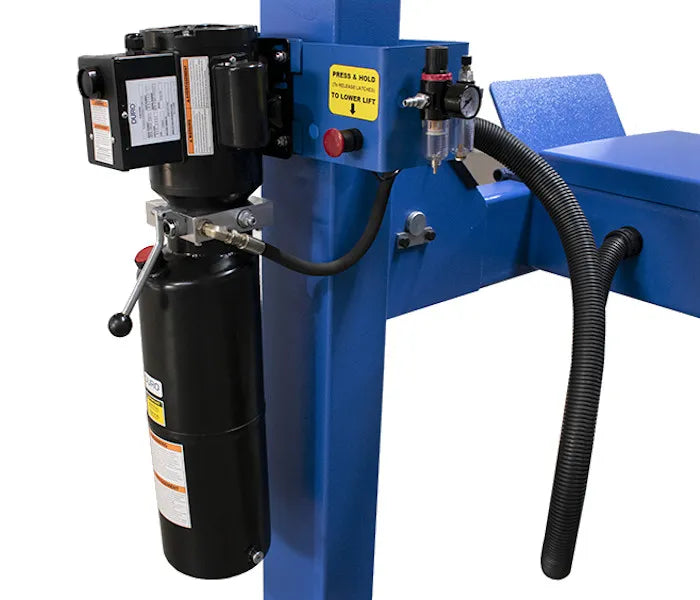

• High Quality Duro Power Unit with UL Listed Motor and Switch Components

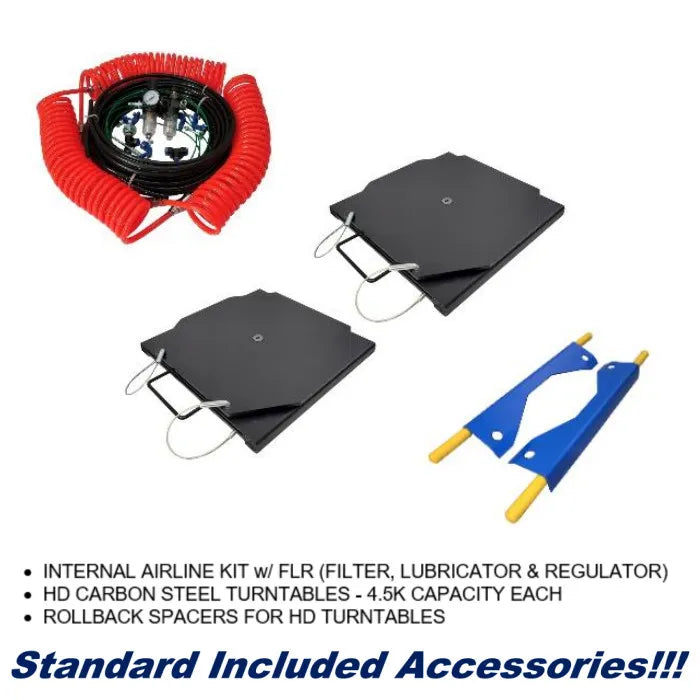

Standard Included Accessories

• Internal Airline Kit with Filter, Lubricator, and Regulator
• Heavy-Duty Carbon Steel Turntables - 4,500 lbs. Capacity Each
• Rollback Spacers for HD Turntables

Optional Accessories

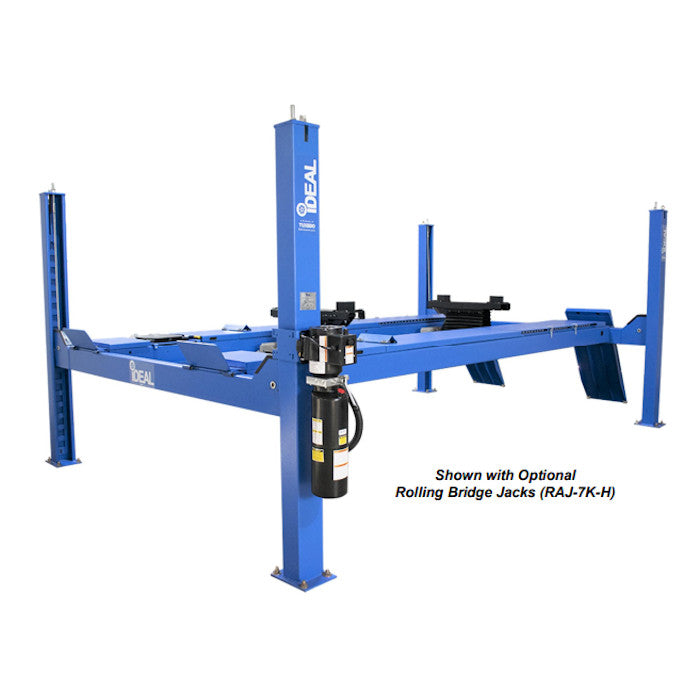

• RAJ-7K-H Rolling Air Jack High Mount 7,000 lbs. Capacity
• FP-14KCX-24EXTKIT 24" Runway Extension Kit
• FP14KCX-24ALIGNSPCKIT 24" Extension Alignment Spacer Kit

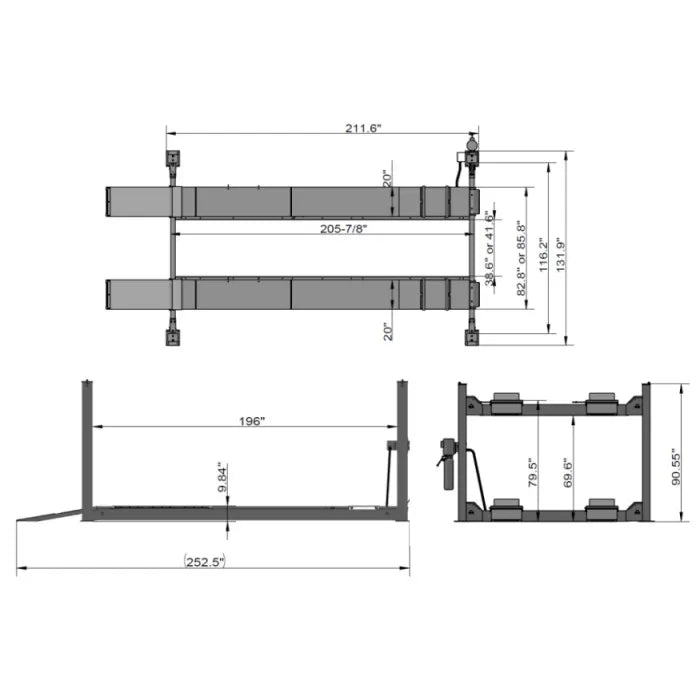

Specifications

• Capacity: 14,000 lbs.
• Overall Length with Ramp: 252-1/2"
• Overall Width (without Power Unit): 131-7/8"
• Overall Width (with Power Unit): 142"
• Overall Height: 92-1/2"
• Max Rise Height: 79-1/2"
• Min Height: 9-7/8"
• Width Between Posts: 116-1/4"
• Length Between Posts: 196"
• Width Between Runways: 43" or 46"
• Width of Runways: 20"
• Max Wheelbase: 182-1/2"
• Max Align Wheelbase (2 Wheel): 166-3/4"
• Max Align Wheelbase (4 Wheel): 103" / 157"
• Ramp Length: 44"
• Max Clearance Under Runway: 69-5/8"
• Drive-Thru Clearance: 100"
• Base Plate: 10-1/2" x 9"
• Power Requirement: 220V - 20 Amp - 1 PH
• Minimum Bay Size: 16' x 25'
• Shipping Weight: 3,810 lbs.
• Warranty: 5 Years Structure, 1 Year Parts, No Labor

Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.

Limited (1) Year Warranty
Tuxedo Distributors, LLC (iDEAL) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.

Other Limitations
This warranty does not cover:

• Parts needed for normal maintenance
• Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
• Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
• On-site labor
